Standard Mode - Meteor COMPACT SERIES User Manual

5.1 Standard Mode

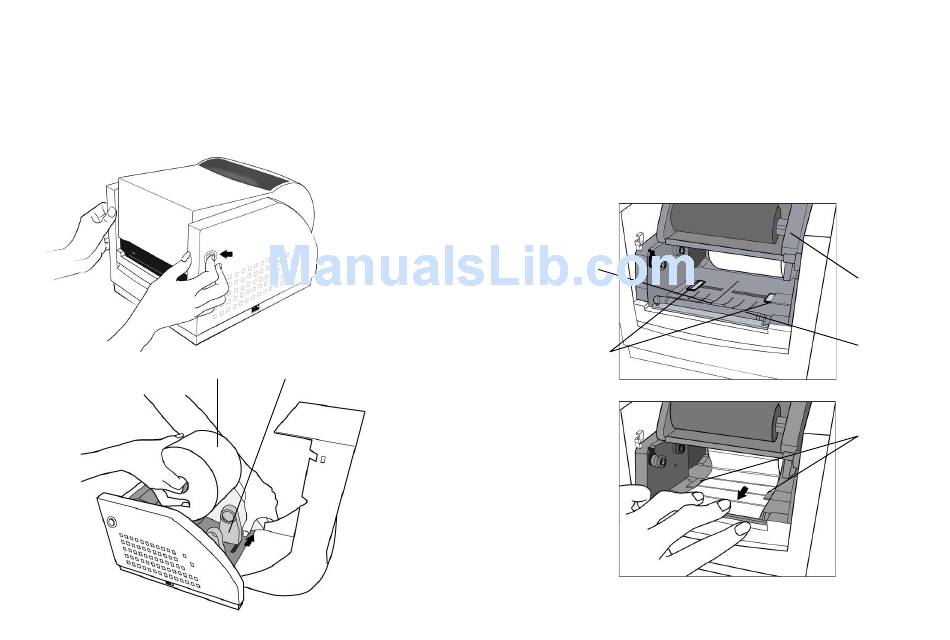

5.1.1 Press the cover locks on both sides to swing the top
cover toward the rear and expose the media
compartment.
5.1.2 Push media holder to adjust the space allowed a media
roll to fit in.
5.1.3 Load the media roll onto the hanger.
Media Roll
Media Roll Holder
13
5.1.4 Unlatch the print head module.
5.1.5 Hold the print head module upright with one hand to
allow the media pass under it. Lead the media through
the media guides with the other hand. The media
guides can be adjusted centrality to well fit with
different label width.
5.1.6 Route the media through the media sensor for media
detection.
5.1.7 Lead the media over the platen roller.
Sensor
Media Guides
Print Head Module
Platen Roller
Media Guides
