Cutter Mode - Meteor COMPACT SERIES User Manual

5.2.6 Latch print head module
5.2.7 Turn on the printer and press feed button.
5.2.8 Labels will be separated from backing paper and fed out
on H cover, while backing paper will come out from the
slot under the H cover, and label will be fed out.
5.2.9 Close the top cover.

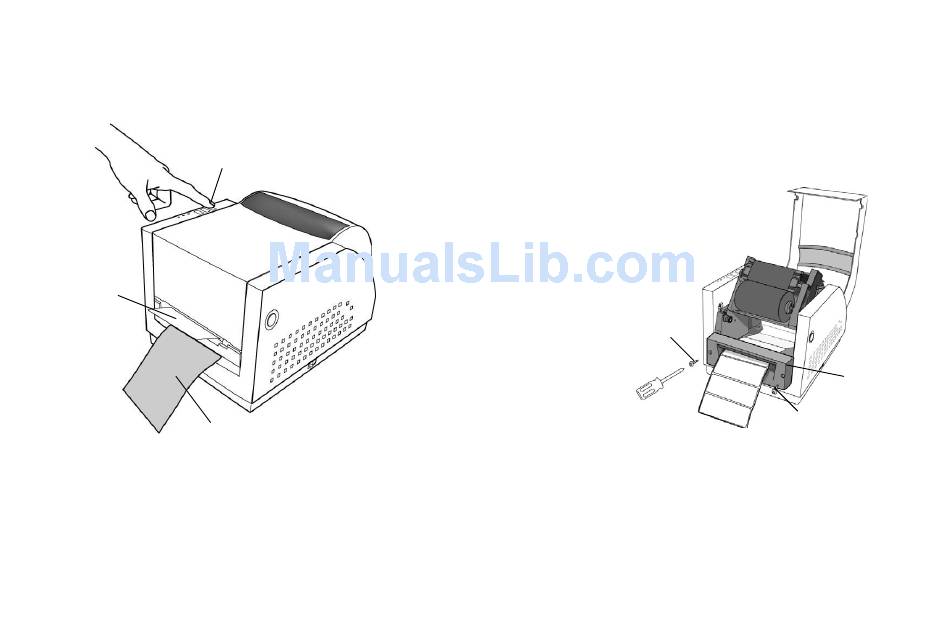

Label
Note:
The "FEED" button will not drive the printer to peel. The
peeling work can be executed only when the software
setting is ready.
.
Feed Button
Backing Paper
19

5.3 Cutter Mode

(Installing the cutter, please refer to chapter 15.4)
Follow the same procedure as "Loading the Media" from
step 5.1.1 to step 5.1.9.
5.3.1 Mount cutter on print head module by fastening with two
screws.
5.3.2 Thread the media over the platen roller, and then route
the media through the slot of the cutter module.
Screw
Cutter
Screw
