Media Roll-feed, die-cut, continuous, fan-fold, tags,
ticket in thermal paper or plain paper and
fabric label
Max width 110 mm
Min width 15 mm
Thickness .0025"~. 01" (.0635mm ~. 254mm)
Max roll capacity 6" (OD 152 mm)
Core size 1" (ID 25mm)
(Core sized 3" ID can by applied by installing
with extra media core adapter)
Ribbon Wax, Wax/Resin, Resin (inside coating)
Ribbon width – 2", 4"
Ribbon roll – max 2.67" (OD 68 mm)
Ribbon length – re-sin 300 m, wax 360 m (OD
68 m)
Core size - ID 1" core (25 mm)
Mechanism Built-in Tear off bar, front-open cover, clear
request window, fan fold paper back cover, face-in
ribbon run way, un-adjustable TPH carrier.
Weight 9.3 lbs (4.2 kg)
Power source Internal Power Switch (90 ~ 250 VAC)
Agency listing CE, UL, CUL, FCC class A, CCC
Operation 40ºF ~ 100ºF (4ºC~38ºC)
environment 10~90% non condensing
Optional items Cutter, Dispenser kit, Real time clock card,
PrintNet print server, USB, Asian font card
49

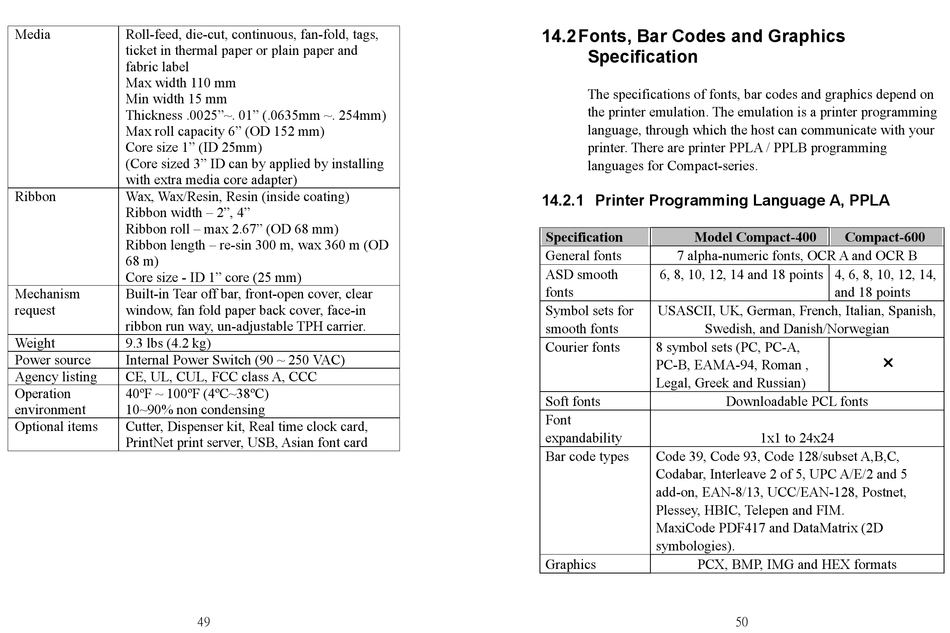

14.2 Fonts, Bar Codes and Graphics

Specification
The specifications of fonts, bar codes and graphics depend on
the printer emulation. The emulation is a printer programming
language, through which the host can communicate with your
printer. There are printer PPLA / PPLB programming
languages for Compact-series.
14.2.1 Printer Programming Language A, PPLA
Specification Model Compact-400
General fonts 7 alpha-numeric fonts, OCR A and OCR B
ASD smooth 6, 8, 10, 12, 14 and 18 points 4, 6, 8, 10, 12, 14,
fonts
Symbol sets for USASCII, UK, German, French, Italian, Spanish,
smooth fonts Swedish, and Danish/Norwegian
Courier fonts 8 symbol sets (PC, PC-A,
PC-B, EAMA-94, Roman ,
Legal, Greek and Russian)
Soft fonts
Font
expandability
Bar code types Code 39, Code 93, Code 128/subset A,B,C,
Codabar, Interleave 2 of 5, UPC A/E/2 and 5
add-on, EAN-8/13, UCC/EAN-128, Postnet,
Plessey, HBIC, Telepen and FIM.
MaxiCode PDF417 and DataMatrix (2D
symbologies).
Graphics PCX, BMP, IMG and HEX formats
Compact-600
and 18 points
r
Downloadable PCL fonts
1x1 to 24x24
