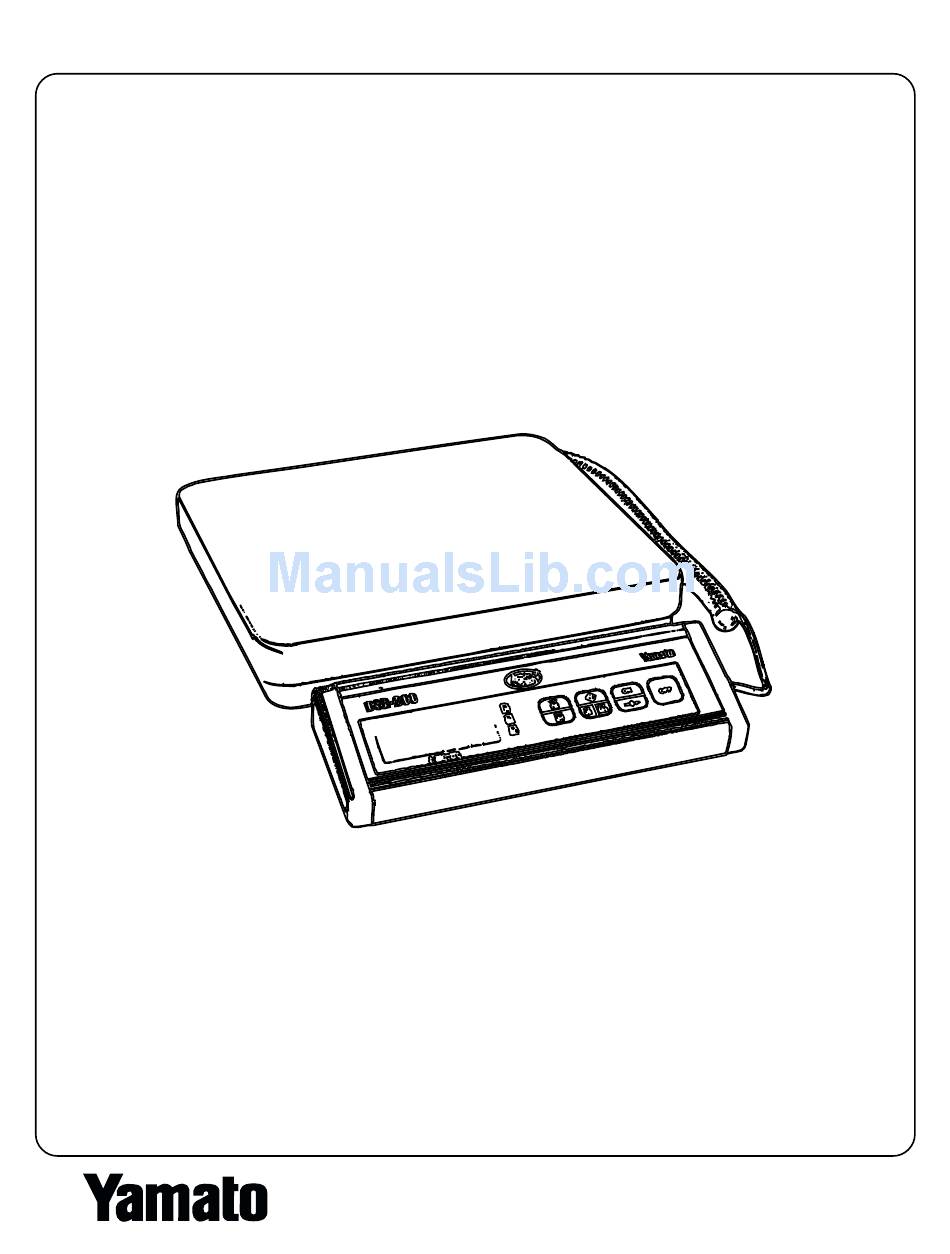

- Page 1 DSR-200 Technical Manual YAMATO CORPORATION YAMATO TECH CORPORATION 1775 S. Murray Blvd. #112-19425 Langley By-Pass Colorado Springs, CO 80916 USA Surrey, B.C. V3S 6K1 Canada Tel (719) 591-1500 Fax (719) 591-1045 Tel (604) 533-2338 Fax (604) 533-0827 YCO-1052-03-00...
-
Page 2: Safety Instructions
DSR-200 Technical Manual Table of Contents Introduction Set-up Procedures A. Setting Auto-Off B. Calibration III. Troubleshooting IV. Wiring Diagram SAFETY INSTRUCTIONS Before using the scale, carefully read, understand and follow the “Safety Instructions” described in this manual. Observe the advice given in every section to ensure proper operation. -
Page 3: Setup Procedures
0.1 kg 0.2 kg The DSR-200 can be powered by 6-AA batteries or by an AC adapter. Use only the AC adaptor sup- plied or an adaptor of the same output characteristics. While operating the DSR-200 on batteries, an automatic-off feature is enabled. It will turn off the scale after two minutes of non-use unless the feature is disabled. - Page 4 DSR-200 Technical Manual II Set-up Procedures II.B Calibration 1. Enter Calibration Mode (see section II.A.1-4.) The scale should indicate between 500 to 5000 counts. 2. Press the unit key to select the units the scale will be cali- brated in.
-
Page 5: Troubleshooting
DSR-200 Technical Manual III Troubleshooting Problem Possible Cause Solution The scale will not power on. Batteries dead or incorrectly Test batteries. Reinstall if installed. needed. AC adapter loose or malfunc- Reseat adapter. Replace if tioning. needed. CPU board malfunction. Replace CPU board.
