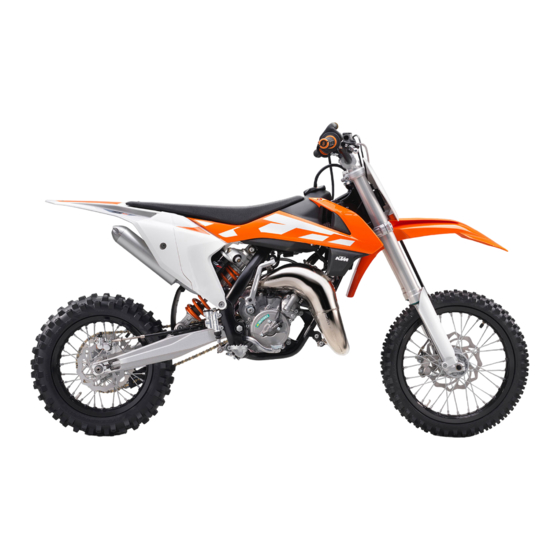

KTM 65 SX Owner's Manual
Hide thumbs
Also See for 65 SX:
- Owner's manual (91 pages) ,
- Owner's handbook manual (28 pages) ,
- Manual (21 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for KTM 65 SX
Summary of Contents for KTM 65 SX
- Page 1 OWNER'S MANUAL 2016 65 SX Art. no. 3213328en...
- Page 3 KTM accepts no liability for delivery options, devi- ations from illustrations and descriptions, misprints, and other errors.
-
Page 4: Table Of Contents
TABLE OF CONTENTS 10.4 Adjusting the high-speed compression TABLE OF CONTENTS MEANS OF REPRESENTATION ........4 damping of the shock absorber......23 Symbols used ........... 4 10.5 Adjusting the rebound damping of the shock Formats used............ 4 absorber............23 SAFETY ADVICE............5 10.6 Measuring rear wheel sag unloaded.... - Page 5 TABLE OF CONTENTS 11.42 Correcting the fluid level of the hydraulic 20.3 Carburetor ............76 clutch ............46 20.3.1 Carburetor tuning........77 11.43 Changing the hydraulic clutch fluid ....47 20.4 Capacities ............78 12 BRAKE SYSTEM ............48 20.4.1 Gear oil............
-
Page 6: Means Of Representation
All work marked with this symbol requires specialist knowledge and technical understanding. In the interest of the safety of your child, have these jobs performed in an authorized KTM workshop. There, your motorcycle will be optimally cared for by specially trained experts using the specialist tools required. -
Page 7: Safety Advice
SAFETY ADVICE Use definition - intended use KTM sport motorcycles are designed and built to withstand the normal stresses and strains of competitive use. The motorcycles com- ply with currently valid regulations and categories of the top international motorsport organizations. -
Page 8: Protective Clothing
Keep the Owner's Manual in an accessible place to enable you to refer to it as needed. If you would like to know more about the vehicle or have questions on the material you read, please contact an authorized KTM dealer. -
Page 9: Important Notes
Guarantee, warranty The work prescribed in the service schedule must be carried out by an authorized KTM workshop only and confirmed in the customer's Service & Warranty Booklet and in the KTM Dealer.net; otherwise, all warranty claims will be void. No warranty claims can be consid- ered for damage resulting from manipulations and/or alterations to the vehicle. -
Page 10: View Of Vehicle
VIEW OF VEHICLE View of vehicle, front left (example) H00040-10 Hand brake lever ( p. 11) Rebound damping of fork Clutch lever ( p. 11) Quick release for seat lock Shock absorber rebound adjustment Shift lever ( p. 13) Choke ( p. -
Page 11: View Of Vehicle, Rear Right (Example)
VIEW OF VEHICLE View of vehicle, rear right (example) H00041-10 Filler cap Kill switch ( p. 11) Compression damping of fork Throttle grip ( p. 11) Chassis number ( p. 10) Kick starter ( p. 13) Foot brake lever ( p. -
Page 12: Serial Numbers
SERIAL NUMBERS Chassis number The chassis number is stamped on the right side of the steering head. 401945-10 Engine number The engine number is located on the left side of the engine under the engine sprocket. 401949-10 Shock absorber part number ... -
Page 13: Controls
CONTROLS Clutch lever The clutch lever is fitted on the left side of the handlebar. The clutch is hydraulically operated and self-adjusting. 602653-10 Hand brake lever Hand brake lever is fitted on the right side of the handlebar. The hand brake lever is used to activate the front brake. -
Page 14: Closing The Filler Cap
CONTROLS Warning Danger of poisoning Fuel is poisonous and a health hazard. – Fuel must not come into contact with the skin, eyes, or clothing. Do not breathe in the fuel vapors. If contact occurs with the eyes, rinse with water immediately and contact a physician. Immediately clean contaminated areas on the skin with soap and water. -
Page 15: Shift Lever
CONTROLS Shift lever Shift lever is mounted on the left of the engine. 401950-10 The gear positions can be seen in the figure. The neutral or idle position is between the first and second gear. 401950-11 6.10 Kick starter ... -
Page 16: Preparing For Use
When using your motorcycle, remember that others may feel disturbed by excessive noise. – Make sure that the pre-delivery inspection work has been carried out by an authorized KTM workshop. You receive a delivery certificate and the service booklet at vehicle handover. -
Page 17: Running In The Engine
PREPARING FOR USE – Accustom your child to the handling of the motorcycle on suitable terrain, preferably on a large open meadow. Info To give your child a feeling for the brake system, you should push your child at first. Do not start the engine until your child is able to apply the necessary front brake pressure. -
Page 18: Riding Instructions
RIDING INSTRUCTIONS Checks and maintenance measures when preparing for use Info Before each use, check the condition of the vehicle and its operating safety. The vehicle must be in perfect technical condition when it is being operated. – Check the gear oil level. ( p. -
Page 19: Starting Off
Do not change into a low gear at high engine speed. The engine races and the rear wheel can lock up. Info If you hear unusual noises while riding, stop immediately, switch off the engine and contact an authorized KTM workshop. First gear is used for starting off or for steep inclines. -
Page 20: Stopping, Parking
RIDING INSTRUCTIONS Stopping, parking Warning Risk of misappropriation Usage by unauthorized persons. – Never leave the vehicle while the engine is running. Secure the vehicle against use by unauthorized persons. Warning Danger of burns Some vehicle components become very hot when the vehicle is operated. –... -
Page 21: Refueling
RIDING INSTRUCTIONS Refueling Danger Fire hazard Fuel is highly flammable. – Never refuel the vehicle near open flames or burning cigarettes, and always switch off the engine first. Be careful that no fuel is spilt, especially on hot vehicle components. Clean up spilt fuel immediately. –... -
Page 22: Service Schedule
SERVICE SCHEDULE Service schedule Annually Every 80 operating hours Every 40 operating hours Every 20 operating hours Once after 10 operating hours ○ ● ● ● Check the front brake linings. ( p. 50) ○ ● ● ● Check the rear brake linings. ( p. - Page 23 ● ● Final inspection: check the vehicle for operating safety and take a test ride. ○ ● ● ● Make the service entry in the KTM Dealer.net and in the Service and Warranty Booklet. ○ One-time interval ● Periodic interval...
-
Page 24: Tuning The Chassis
Caution Danger of accidents Disassembly of pressurized parts can lead to injury. – The shock absorber is filled with high density nitrogen. Adhere to the description provided. (Your authorized KTM workshop will be glad to help.) Info The low-speed setting can be seen during the slow to normal compression of the shock absorber. -
Page 25: Adjusting The High-Speed Compression Damping Of The Shock Absorber
Caution Danger of accidents Disassembly of pressurized parts can lead to injury. – The shock absorber is filled with high density nitrogen. Adhere to the description provided. (Your authorized KTM workshop will be glad to help.) Info The high-speed setting can be seen during the fast compression of the shock absorber. -
Page 26: Measuring Rear Wheel Sag Unloaded
TUNING THE CHASSIS 10.6 Measuring rear wheel sag unloaded Preparatory work – Raise the motorcycle with a lift stand. ( p. 28) Main work – Measure the distance – as vertical as possible – between the rear axle and a fixed point, for example, a mark on the side cover. -
Page 27: Adjusting The Spring Preload Of The Shock Absorber
Adjusting the spring preload of the shock absorber Caution Danger of accidents Disassembly of pressurized parts can lead to injury. – The shock absorber is filled with high density nitrogen. Adhere to the description provided. (Your authorized KTM workshop will be glad to help.) Preparatory work –... -
Page 28: Checking The Basic Setting Of The Fork
TUNING THE CHASSIS – Adjust the rebound damping of the shock absorber. ( p. 23) 10.11 Checking the basic setting of the fork Info For various reasons, no exact riding sag can be determined for the forks. – As with the shock absorber, smaller differences in the rider's weight can be com- pensated by the spring preload. -
Page 29: Handlebar Position
TUNING THE CHASSIS 10.14 Handlebar position On the upper triple clamp, there are 2 holes at a distance of to each other. 15 mm (0.59 in) Distance between holes The holes on the handlebar support are placed at a distance of from the center. -
Page 30: Service Work On The Chassis
SERVICE WORK ON THE CHASSIS 11.1 Raising the motorcycle with a lift stand Note Danger of damage The parked vehicle may roll away or fall over. – Always place the vehicle on a firm and even surface. – Raise the motorcycle at the frame underneath the engine. Lift stand (78929955100) The wheels must no longer touch the ground. -
Page 31: Cleaning The Dust Boots Of The Fork Legs
SERVICE WORK ON THE CHASSIS 11.4 Cleaning the dust boots of the fork legs Preparatory work – Raise the motorcycle with a lift stand. ( p. 28) – Remove the fork protector. ( p. 29) Main work – Push dust boots of both fork legs downward. -
Page 32: Removing The Fork Legs
SERVICE WORK ON THE CHASSIS – Position the fork protector on the left fork leg. Mount and tighten screws Guideline Remaining screws, chassis 10 Nm (7.4 lbf ft) – Position the brake line. Mount clamp – Mount screws H00163-11 11.7 Removing the fork legs... -
Page 33: Removing The Lower Triple Clamp
SERVICE WORK ON THE CHASSIS – Position brake caliper, mount and tighten screws Guideline Screw, brake caliper 20 Nm Loctite ® 243™ (14.8 lbf ft) – Position the brake line. Mount the clamp and screws K00208-11 Finishing work –... -
Page 34: Installing The Lower Triple Clamp
SERVICE WORK ON THE CHASSIS 11.10 Installing the lower triple clamp Main work – Clean the bearing and sealing elements, check for damage, and grease. High viscosity grease ( p. 83) – Insert the lower triple clamp with the steering stem. Mount the upper steering head bearing. -
Page 35: Checking Play Of Steering Head Bearing
Danger of accidents Unstable vehicle handling from incorrect steering head bearing play. – Adjust the steering head bearing play without delay. (Your authorized KTM workshop will be glad to help.) Info If the bike is ridden with play in the steering head bearing, the bearing and the bearing seats in the frame can become dam- aged over time. -
Page 36: Adjusting The Steering Head Bearing Play
SERVICE WORK ON THE CHASSIS – Move the handlebar to and fro over the entire steering range. The handlebar must be able to move easily over the entire steering range. No resting locations should be noticeable. » If click positions are noticeable: –... -
Page 37: Installing The Start Number Plate
SERVICE WORK ON THE CHASSIS 11.15 Installing the start number plate – Attach the start number plate to the brake line. – Position the start number plate. Holding lugs engage in the fender. H00139-10 – Mount and tighten screw Guideline Remaining screws, chassis 10 Nm (7.4 lbf ft) -
Page 38: Removing The Shock Absorber
SERVICE WORK ON THE CHASSIS 11.18 Removing the shock absorber Preparatory work – Raise the motorcycle with a lift stand. ( p. 28) Main work – Remove screw and lower the rear wheel with the swingarm as far as possible without blocking the rear wheel. -
Page 39: Removing The Air Filter
SERVICE WORK ON THE CHASSIS – Close quick release H00122-11 11.22 Removing the air filter Note Engine failure Unfiltered intake air has a negative effect on the service life of the engine. – Never operate the vehicle without an air filter as dust and dirt will enter the engine and lead to increased wear. Warning Environmental hazard Hazardous substances cause environmental damage. -
Page 40: Cleaning The Air Filter And Air Filter Box
SERVICE WORK ON THE CHASSIS 11.24 Cleaning the air filter and air filter box Warning Environmental hazard Hazardous substances cause environmental damage. – Oil, grease, filters, fuel, cleaners, brake fluid, etc., should be disposed of as stipulated in applicable regulations. Info Do not clean the air filter with fuel or petroleum since these substances attack the foam. -
Page 41: Changing The Glass Fiber Yarn Filling Of The Main Silencer
SERVICE WORK ON THE CHASSIS – Mount and tighten screw Guideline Remaining screws, chassis 10 Nm (7.4 lbf ft) H00124-11 11.27 Changing the glass fiber yarn filling of the main silencer Warning Danger of burns The exhaust system gets very hot when the vehicle is driven. –... -
Page 42: Installing The Fuel Tank
SERVICE WORK ON THE CHASSIS Main work – Remove screw H00126-10 – Remove screws K00219-10 – Pull off fuel hose Info Remaining fuel may run out of the fuel hose. – Pull both spoilers off of the side of the radiator bracket and lift off the fuel tank. K00216-10 11.29 Installing the fuel tank... -
Page 43: Checking The Chain For Dirt
SERVICE WORK ON THE CHASSIS – Mount and tighten screws Guideline Remaining screws, chassis 10 Nm (7.4 lbf ft) K00219-10 – Mount and tighten screw Guideline Remaining screws, chassis 10 Nm (7.4 lbf ft) – Position the fuel tank breather. H00126-11 Finishing work –... -
Page 44: Checking The Chain Tension
SERVICE WORK ON THE CHASSIS Main work – Clean the chain regularly and then treat with chain spray. Chain cleaner ( p. 83) Off-road chain spray ( p. 83) 400725-01 Finishing work – Remove the motorcycle from the lift stand. ( p. -
Page 45: Checking The Chain, Rear Sprocket, Engine Sprocket, And Chain Guide
SERVICE WORK ON THE CHASSIS Main work – Loosen nut – Loosen nuts – Adjust the chain tension by turning the adjusting screws left and right. Guideline Chain tension 5… 8 mm (0.2… 0.31 in) Turn the left and right adjusting screws ... - Page 46 SERVICE WORK ON THE CHASSIS – Check the chain sliding guard for wear. » If the lower edge of the chain pin is at the level of or below the chain sliding guard: – Change the chain sliding guard. – Check that the chain sliding guard is firmly seated.
-
Page 47: Checking The Frame
If the frame exhibits cracking or deformation due to a mechanical impact: – Change the frame. Info A frame that has been damaged due to a mechanical impact must always be changed. Repair of the frame is not authorized by KTM. 601599-01 11.36 Checking the swingarm –... -
Page 48: Additionally Securing The Rubber Grip
SERVICE WORK ON THE CHASSIS 11.39 Additionally securing the rubber grip Preparatory work – Check the rubber grip. ( p. 45) Main work – Secure the rubber grip at two locations with the retaining wire. Securing wire (54812016000) Wire twister forceps (U6907854) The twisted wire ends face away from the palms and are bent in toward the rubber grip. -
Page 49: Changing The Hydraulic Clutch Fluid
SERVICE WORK ON THE CHASSIS Info Clean up overflowed or spilled brake fluid immediately with water. 11.43 Changing the hydraulic clutch fluid Warning Environmental hazard Hazardous substances cause environmental damage. – Oil, grease, filters, fuel, cleaners, brake fluid, etc., should be disposed of as stipulated in applicable regulations. Info The fluid level rises with increasing wear of the clutch facing discs. -
Page 50: Brake System
Danger of accidents Reduced braking efficiency due to worn brake disc(s). – Change the worn brake disc(s) without delay. (Your authorized KTM workshop will be glad to help.) – Check the thickness of the front and rear brake discs at several places on the disc ... -
Page 51: Checking Front Brake Fluid Level
Warning Danger of accidents Reduced braking efficiency due to old brake fluid. – Change the brake fluid of the front and rear brake according to the service schedule. (Your authorized KTM workshop will be glad to help.) Warning Environmental hazard Hazardous substances cause environmental damage. -
Page 52: Checking The Front Brake Linings
Warning Danger of accidents Reduced braking efficiency due to old brake fluid. – Change the brake fluid of the front and rear brake according to the service schedule. (Your authorized KTM workshop will be glad to help.) Warning Environmental hazard Hazardous substances cause environmental damage. -
Page 53: Changing The Front Brake Linings
Warning Danger of accidents Reduced braking efficiency due to old brake fluid. – Change the brake fluid of the front and rear brake according to the service schedule. (Your authorized KTM workshop will be glad to help.) Warning Environmental hazard Hazardous substances cause environmental damage. -
Page 54: Installing The Front Brake Linings
Brake linings available from accessory suppliers are often not tested and approved for use on KTM vehicles. The construc- tion and friction factor of the brake linings and therefore the brake power can differ considerably from the original KTM brake linings. If brake linings are used that differ from the originals, there is no guarantee that they comply with the origi- nal license. -
Page 55: Checking The Free Travel Of The Foot Brake Lever
BRAKE SYSTEM 12.10 Checking the free travel of the foot brake lever Warning Danger of accidents Brake system failure. – If there is no free travel on the foot brake lever, pressure builds up on the rear brake circuit. The rear brake can fail due to overheating. -
Page 56: Checking Rear Brake Fluid Level
Warning Danger of accidents Reduced braking efficiency due to old brake fluid. – Change the brake fluid of the front and rear brake according to the service schedule. (Your authorized KTM workshop will be glad to help.) – Stand the vehicle upright. -
Page 57: Checking The Rear Brake Linings
Warning Danger of accidents Reduced braking efficiency due to old brake fluid. – Change the brake fluid of the front and rear brake according to the service schedule. (Your authorized KTM workshop will be glad to help.) Warning Environmental hazard Hazardous substances cause environmental damage. -
Page 58: Removing The Rear Brake Linings
Clean up overflowed or spilt brake fluid immediately with water. 12.17 Removing the rear brake linings Warning Danger of accident Brake system failure. – Maintenance work and repairs must be carried out professionally. (Your authorized KTM workshop will be glad to help.) – Remove lock washer – ... -
Page 59: Installing The Rear Brake Linings
Brake linings available from accessory suppliers are often not tested and approved for use on KTM vehicles. The construc- tion and friction factor of the brake linings and therefore the brake power can differ considerably from the original KTM brake linings. If brake linings are used that differ from the originals, there is no guarantee that they comply with the origi- nal license. -
Page 60: Wheels, Tires
WHEELS, TIRES 13.1 Removing the front wheel Preparatory work – Raise the motorcycle with a lift stand. ( p. 28) Main work – Remove screw 601956-10 – Loosen screw – Hold the front wheel and pull out wheel spindle . -
Page 61: Removing The Rear Wheel
WHEELS, TIRES – Operate the hand brake lever several times until the brake linings are in contact with the brake disc. – Loosen screws – Pull the front wheel brake and push down hard on the fork several times. This aligns the fork legs. -
Page 62: Checking The Tire Condition
DOT marking. The first two digits refer to the week of manufacture and last two digits refer to the year of manufac- ture. KTM recommends that the tires be changed after 5 years at the latest, regardless of the actual state of wear. »... -
Page 63: Checking Spoke Tension
Danger of accidents Instable handling due to incorrect spoke tension. – Ensure that the spoke tension is correct. (Your authorized KTM workshop will be glad to help.) Info A loose spoke can cause wheel imbalance, which leads to more loose spokes in a short time. -
Page 64: Cooling System
COOLING SYSTEM 14.1 Cooling system The water pump in the engine forces the coolant to flow. The pressure resulting from the warming of the cooling system is regulated by a valve in the radiator cap . This ensures that operating the vehicle at the specified coolant temperature will not result in a risk of malfunctions. -
Page 65: Checking The Coolant Level
COOLING SYSTEM 14.3 Checking the coolant level Warning Danger of scalding During motorcycle operation, the coolant gets very hot and is under pressure. – Do not remove the radiator cap, radiator hoses or other cooling system components when the engine is hot. Allow the engine and cooling system to cool down. -
Page 66: Refilling With Coolant
COOLING SYSTEM 14.5 Refilling with coolant Warning Danger of poisoning Coolant is poisonous and a health hazard. – Coolant must not come into contact with the skin, eyes, or clothing. If contact occurs with the eyes, rinse with water imme- diately and contact a physician. Immediately clean contaminated areas on the skin with soap and water. If fuel is swal- lowed, contact a physician immediately. -
Page 67: Tuning The Engine
TUNING THE ENGINE 15.1 Checking the play in the throttle cable – Check the throttle grip for smooth operation. – Move the handlebar to the straight-ahead position. Move the throttle grip back- wards and forwards to ascertain play in the throttle cable. Play in gas throttle cable 3…... -
Page 68: Carburetor - Idle
TUNING THE ENGINE 15.3 Carburetor - idle The idle setting of the carburetor has a big influence on the starting behavior, stable idling and the response to throttle opening. That means that an engine with a correctly set idle speed is easier to start than if the idle is set wrongly. Info The carburetor and its components are subject to increased wear caused by engine vibration. -
Page 69: Emptying The Carburetor Float Chamber
TUNING THE ENGINE 15.5 Emptying the carburetor float chamber Danger Fire hazard Fuel is highly flammable. – Never refuel the vehicle near open flames or burning cigarettes, and always switch off the engine first. Be careful that no fuel is spilt, especially on hot vehicle components. Clean up spilt fuel immediately. –... -
Page 70: Service Work On The Engine
SERVICE WORK ON THE ENGINE 16.1 Checking the gear oil level Info The gear oil level must be checked when the engine is cold. Preparatory work – Stand the motorcycle upright on a horizontal surface. Main work – Remove gear oil monitoring screw –... -
Page 71: Filling Up With Gear Oil
SERVICE WORK ON THE ENGINE Main work – Place a suitable container under the engine. – Remove gear oil drain plug with magnet. – Let the gear oil drain fully. – Thoroughly clean the gear oil drain plug with magnet. –... - Page 72 SERVICE WORK ON THE ENGINE Danger Danger of poisoning Exhaust gases are toxic and inhaling them may result in unconsciousness and/or death. – When running the engine, always make sure there is sufficient ventila- tion, and do not start or run the engine in an enclosed space without an effective exhaust extraction system.
-
Page 73: Cleaning, Care
CLEANING, CARE 17.1 Cleaning motorcycle Note Material damage Damage and destruction of components by high-pressure cleaning equipment. – When cleaning the vehicle with a pressure cleaner, do not point the water jet directly onto electrical components, connectors, cables, bearings, etc. Maintain a minimum distance of 60 cm between the nozzle of the pressure cleaner and the component. Excessive pressure can cause malfunctions or destroy these parts. -
Page 74: Storage
60) – Store the vehicle in a dry location that is not subject to large fluctuations in tem- perature. Info KTM recommends raising the motorcycle. – Raise the motorcycle with a lift stand. ( p. 28) – Cover the vehicle with a tarp or similar cover that is permeable to air. -
Page 75: Troubleshooting
TROUBLESHOOTING Faults Possible cause Action – Engine turns but does not start Operating error Go through the steps of starting the engine. p. 16) – Motorcycle was out of use for a long Empty the carburetor float chamber. time and there is old fuel in the float p. - Page 76 TROUBLESHOOTING Faults Possible cause Action – Engine overheats Radiator fins very dirty Clean radiator fins. – Foam formation in cooling system Drain the coolant. p. 63) – Refill with coolant. p. 64) – Damaged cylinder head or cylinder Check the cylinder head or cylinder head gas- head gasket ket.
-
Page 77: Technical Data
TECHNICAL DATA 20.1 Engine Design 1-cylinder 2-stroke engine, water-cooled, with reed intake and exhaust control Displacement 64.85 cm³ (3.9574 cu in) Stroke 40.8 mm (1.606 in) Bore 45 mm (1.77 in) Idle speed 1,400… 1,500 rpm Control Exhaust control PCEV (Pneumatic Controlled Exhaust Valve) Crankshaft bearing 2 grooved ball bearings Conrod bearing... -
Page 78: Carburetor
TECHNICAL DATA – Screw, gear oil level check 6 Nm (4.4 lbf ft) – Screw, intake flange/reed valve housing M6 10 Nm (7.4 lbf ft) Screw, kickstarter stop piece 10 Nm (7.4 lbf ft) Loctite ® 243™ – Screw, outer clutch cover 10 Nm (7.4 lbf ft) –... -
Page 79: Carburetor Tuning
TECHNICAL DATA 20.3.1 Carburetor tuning 100810-01 M/FT ASL Above sea level TEMP Temperature Idle air adjusting screw open (rotations) Idling jet Jet needle Needle position from above Main jet The carburetor tuning depends on the defined ambient and operating conditions. -
Page 80: Capacities
TECHNICAL DATA 20.4 Capacities 20.4.1 Gear oil Gear oil 0.50 l (0.53 qt.) Engine oil (15W/50) ( p. 81) 20.4.2 Coolant Coolant 0.55 l (0.58 qt.) Coolant ( p. 81) 20.4.3 Fuel Fuel tank capacity, approx. 3.5 l (3.7 qt.) Super unleaded (95 octane) mixed with 2-stroke engine oil (1:60) ( p. -
Page 81: Chassis
50 kg (110 lb.) 20.8 Tires Front tires Rear tires 60/100 - 14 30M TT 80/100 - 12 41M TT MAXXIS MAXX CROSS SI M7311 MAXXIS MAXX CROSS SI M7312 Additional information is available in the Service section under: http://www.ktm.com... -
Page 82: Chassis Tightening Torques
TECHNICAL DATA 20.9 Chassis tightening torques – Spoke nipple M3.5 3 Nm (2.2 lbf ft) – Remaining nuts, chassis 10 Nm (7.4 lbf ft) – Remaining screws, chassis 10 Nm (7.4 lbf ft) – Screw, ball joint of push rod on foot 10 Nm (7.4 lbf ft) brake cylinder –... -
Page 83: Substances
SUBSTANCES Brake fluid DOT 4 / DOT 5.1 Standard/classification – Guideline – Use only brake fluid that complies with the specified standard (see specifications on the container) and that exhibits the corre- sponding properties. Recommended supplier Castrol – RESPONSE BRAKE FLUID SUPER DOT 4 Motorex ®... - Page 84 SUBSTANCES Shock absorber fluid (SAE 2.5) (50180751S1) Standard/classification – SAE ( p. 85) (SAE 2.5) Guideline – Use only oils that comply with the specified standards (see specifications on the container) and that exhibit the corresponding properties. Super unleaded (ROZ 95/RON 95/PON 91) Standard/classification –...
-
Page 85: Auxiliary Substances
Motorex ® – Chain Clean Fuel additive Recommended supplier Motorex ® – Fuel Stabilizer Grip adhesive (00062030051) Recommended supplier KTM AG – GRIP GLUE High viscosity grease Recommended supplier ® – LGHB 2 Long-life grease Recommended supplier Motorex ® –... - Page 86 AUXILIARY SUBSTANCES Universal oil spray Recommended supplier Motorex ® – Joker 440 Synthetic...
-
Page 87: Standards
STANDARDS JASO T903 MA Different technical development directions required a new specification for 4-stroke motorcycles – the JASO T903 MA Standard. Ear- lier, engine oils from the automobile industry were used for 4-stroke motorcycles because there was no separate motorcycle specifi- cation. -
