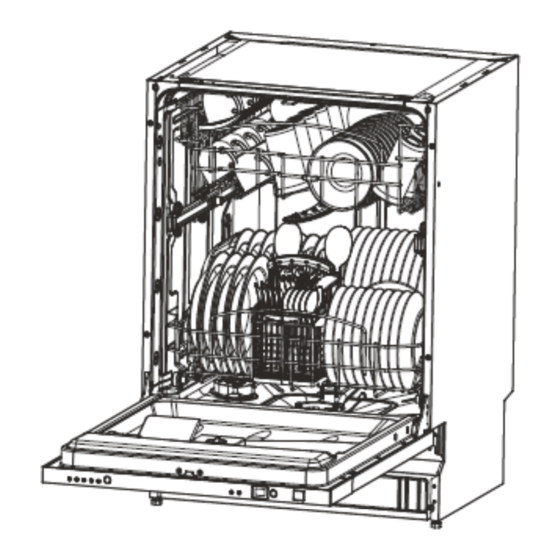

  • Page 1 BDWI635 60 cm Fully integrated full height dishwasher...
  • Page 2 USER MANUAL FOR YOUR BAUMATIC BDWI635 60 cm Fully integrated full height dishwasher NOTE : This User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance. Please keep it in a safe place so that it is easily available for future reference;...

  • Page 3: Table Of Contents

    Contents Environmental note Important safety information 4 – 6 Specifications 7 – 10 Product and aperture dimensions Product specifications 7 - 8 Electrical details Description of the appliance Control panel Using your dishwasher 10 - 21 Before first use Filling with dishwasher salt Setting the water softener level Filling with rinse aid Setting the rinse aid level...

  • Page 4: Environmental Note

    This should be undertaken by a competent person. Disable the door lock to make sure that children cannot get stuck inside the appliance. o The packaging materials that Baumatic uses are environmentally friendly and can be recycled. o Please discard all packaging material with due regard for the...

  • Page 5: Important Safety Information

    IMPORTANT SAFETY INFORMATION Your safety is of the utmost importance to us. Please make sure that read this instruction booklet before attempting to install or use the appliance. If you are unsure of any of the information contained in this booklet, please contact the Customer Care department.
  • Page 6 o Care should be taken not to trap the power supply cable underneath the appliance whilst installing it. o No attempt should be made to alter or modify the specifications of this appliance. In daily use o This appliance is only designed to wash normal domestic washloads.
  • Page 7 Child Safety o Your dishwasher should only be used by adults. You should not allow children in the area of the machine unsupervised. You should not let them touch the controls or play with the appliance. o It could be possible for a child or pet to gain access to the dishwasher if the door is left open.

  • Page 8: Specifications

    Specifications Product dimensions Height: 820 - 870 mm Width: 596 mm Depth: 560 mm Aperture dimensions Height: 825-875 mm (min) Width: 600 mm Depth: 580 mm (min) Product specifications o 12 Place settings o 5 functions: Normal Intensive Economy Rinse Rapid o 4 temperatures: 40°C, 45°C, 50°C, 60°C...

  • Page 9: Electrical Details

    o Noise level: 49 dB o Self-cleaning stainless steel micro-filter o Delay start o Anti-leak device o Anti-flood device o Concealed heating element o Collapsible plate racks o Height adjustable upper basket o Adjustable feet o Residual drying o LED display Energy efficiency details Energy efficiency class: Washing performance class: A...

  • Page 10: Description Of The Appliance

    Description of the appliance Upper basket Spray arms Lower basket Water softener Main filter Detergent dispenser Rinse Aid dispenser Cutlery basket Cup holder Door tension adjustment...

  • Page 11: Control Panel

    Control panel Program indicator neons Program selection button Rinse aid and salt indicator neons Display. (Time remaining and error codes) Delay start button. ON/OFF button Using your dishwasher Before first use o Install the appliance as per the installation instructions contained within this booklet.

  • Page 12: Filling With Dishwasher Salt

    Filling with dishwasher salt IMPORTANT: You should only use salt that is specially designed for use in a dishwasher. If any other type of salt is used in the appliance (in particular table salt), it will damage the water softener. o Ideally you should fill the water softener with salt, just before you are about to run a wash program.

  • Page 13: Setting The Water Softener Level

    Setting the water softener level It is possible to regulate the amount of salt that the water softener will release during a wash cycle. The water softener should be set to a level that is appropriate for the hardness of your water (please refer to the table below).

  • Page 14: Filling With Rinse Aid

    Filling with rinse aid The rinse aid is released during the final rinse and it helps to prevent water from forming droplets on your dishes. These droplets will lead to spots and streaks being left on items after the wash program has completed. o Your dishwasher is designed to utilise liquid rinse aid.

  • Page 15: Setting The Rinse Aid Level

    etting the rinse aid level The amount of rinse aid that the dishwasher requires also depends on the hardness of your water. You should experiment with the rinse aid etting, until you find a level that gives the best results. o On the first wash cycle, we would recommend that th e rinse aid level...
  • Page 16 o The section marked 1 in the diagram is for the main wash cycle detergent. Only one detergent tablet should be placed in the dispenser at any one time. If you are using detergent powder or liquid, you should follow detergent manufacturer’s recommendations.

  • Page 17: Loading The Upper Basket

    Loading the upper basket The upper basket is most suited to washing delicate and light dishware, such as glasses, coffee & tea cups, saucers, plates, bowls and shallow pans (that are not heavily soiled). Cups Glasses Saucers Small serving bowl Large serving bowl Dessert dish o You...

  • Page 18: Loading The Lower Basket

    Loading the lower basket The lower basket is most suited to washing larger and more heavily soiled items, such as saucepans, saucepan lids and serving dishes. You can also load bowls and a variety of plates into the lower basket. G.

  • Page 19: The Cutlery Basket

    The cutlery basket Cutlery should be placed inside of the cutlery basket. The cutlery basket should then be placed in the appropriate position in the lower basket. Teaspoons Dessert spoons Soup spoons Forks Knives Serving fork Serving spoon Gravy ladle o For the best washing performance, cutlery should be placed through the slots in the top of the cutlery basket.
  • Page 20 The following items are NOT suitable for washing inside a dishwasher:- o Cutlery with a handle of mother-of-pearl, wood, horn or china. o Plastic items that are not resistant to heat. o Cutlery that consists of glued parts that are not resistant to heat. o Cutlery items or crockery that are bonded.

  • Page 21: Program Table

    Program table o The ECONOMY program is suitable for cleaning a typical load of dirty dishes and is the most efficient in terms of its combined energy and water consumption. Program Cycle Program Description Detergent Program Energy Water information of cycle pre/main times* (kWh)

  • Page 22: Setting A Wash Program

    Setting a wash program Make sure that the before first use section has been followed. o Check whether the appliance needs rinse aid or salt adding to it. o Pull out the top and bottom baskets, then load them in accordance with the loading instructions.

  • Page 23: At The End Of A Wash Program

    At the end of a wash program o When the wash program is finished a buzzer will sound. o Open the door of the appliance. o Use the ON/OFF button to switch the dishwasher off. o Wait a few minutes before unloading the dishwasher to avoid handling the dishes and utensils while they are still not and more susceptible to breakages.

  • Page 24: Saving Energy Using Your Dishwasher

    Saving energy using your dishwasher Loading dishes o Refer to the relevant section of this manual for instructions on placing items in the dishwasher for the most efficient cleaning. o Only run the dishwasher when it is full for optimum energy and water usage.

  • Page 25: Cleaning And Maintenance

    Cleaning and maintenance IMPORTANT: The appliance should be disconnected from your mains supply before commencing any cleaning process. The filter system Your appliance is fitted with three levels of filtering; these are located in the base of the dishwasher for ease of access. Main filter Coarse filter Fine filter...

  • Page 26: Cleaning The Spray Arms

    2. Pull out the main filter and rinse this under the tap to remove any food debris that is trapped in it. 3. Place all filters back in their original position. 4. You must turn the coarse filter clockwise to lock it back into position.

  • Page 27: Cleaning The Door

    Cleaning the door o To clean the edge around the outside of the door, you should use a soft, damp cloth only. o To prevent water from penetrating the door lock or electrical components, DO NOT use a spray cleaner of any kind. o DO NOT use any abrasive cleaner or scouring pads on the inner or outer surfaces, as they may cause damage to them.

  • Page 28: General Troubleshooting

    - like plinths, or any installation other than the one specified by Baumatic has been completed. Please refer to the conditions of guarantee that appear on the...
  • Page 29 Suds in the Improper detergent Ensure if you are using 3 in 1 detergent tablets, in conjunction with rinse aid and salt that the levels are set correctly. Spilled rinse aid Always wipe up any excess rinse aid or rinse aid spillages immediately. Stained tub Detergent with Use a detergent without colourant.

  • Page 30: Installation

    Installation IMPORTANT: THIS INSTALLATION MUST COMPLETED BY A SUITABLY QUALIFIED PERSON. BAUMATIC ONLY SANCTION INSTALLATION GIVEN THIS INSTRUCTION MANUAL. SHOULD DISPOSE PACKAGING ENVIRONMENTALLY FRIENDLY MANNER. Aperture requirements o The aperture that your dishwasher needs to be installed into should resemble the one shown in the above drawings.

  • Page 31: Preparing And Connecting The Furniture Door

    Installation stages 1. Preparing and connecting the furniture door. 2. Adjusting the tension of the door spring. 3. Connecting to the mains water supply 4. Connecting to the water outlet 5. Connecting to the power supply 6. Applying the condensation strip 7.
  • Page 32 o Screw the 2 fixing bushes onto the top of the furniture door. o Assemble furniture door onto dishwasher door, ensuring that the fixing bushes locate into slots on the top of dishwashe door. o Lift the furniture door upwards so it locks into place on dishwasher door.

  • Page 33: Adjusting The Tension Of The Door Spring

    djusting the tension of the door spring o The door of the dishwasher is attached to springs. These are set at the factory to ensure that they are at th e proper tension, so that the door can open and close smoothly. o After the furniture door has be en fitted, you will need to adjust the tension of the door spring.

  • Page 34: Connecting To The Mains Water Supply

    onnecting to the mains water supply IMPORTANT: Do not connect the appliance to your mains water supply using an old or an existing water inlet hose. The inlet hose su pplied with the dishwasher is the ONLY one that should be used. DO NOT CON NECT THE WATER INLET HOSE TO A HOT WATER TAP.

  • Page 35: Connecting To The Water Outlet

    onnecting to the water outlet o Secure the drain ho se, so that it cannot move whilst the dishwasher is in use. o Place the end of the drain hose on your drain pipe. Push it a short way down into your drain pipe. o IMPORTANT: Do not insert the dr ain hose too deeply into the pipe, as this may cause siphoning.

  • Page 36: Applying The Condensation Strip

    o Consult the rating plate, located on the right hand side of the drop down door BEFORE making the electrical connections. Ensure that the voltage reaching the plug is the same as that on the rating plate. o DO REMOVE RATING PLATE INFORMATION ON IT IS IMPORTANT.

  • Page 37: Installing The Decorative Plinth

    o The condensation strip will be located inside of your dishwasher. o Ensure that the underneath of the worktop is clean before sticking the strip to it. o Separate the backing paper away from the strip. o Stick the condensation strip to the underneath of the worktop. o IMPORTANT: Failure to attach the condensation strip could result in damage to your worktop.

  • Page 38: Levelling The Appliance

    Levelling the appliance o IMPORTANT: Your dishwasher must be level for it to operate properly. o Make sure that the dishwasher is supported whilst it is being levelled, otherwise it may tip over. o The rear feet can be adjusted by using the adjusting screw at the front of the appliance.

  • Page 39: Securing The Dishwasher

    Securing the dishwasher The dishwasher must be secured to the worktop. o Standard worktop: Secure dishwasher to the underside of the worktop both sides appliance by using wood screws provided. o You should screw through the holes in the pre-drilled brackets in the top and sides of the dishwasher.

  • Page 40: Technical Data

    Technical Data Manufacturer BAUMATIC Model Number BDWI635 Standard Place Settings Energy Efficiency Class (1) Annual Energy Consumption (2) 289 kWh Energy Consumption of the Standard 1.03 kWh Cleaning Cycle Power Consumption of Off Mode 0.1 W Power Consumption of Left-On Mode 0.9 W...

  • Page 43: Contact Details

    United Kingdom Baumatic Ltd., Czech Republic Baumatic Buildings, Baumatic CR spol s.r.o. 6 Bennet Road, Lípovà 665 Reading, Berkshire 460 01 Liberec 4 RG2 0QX Czech Republic United Kingdom +420 483 577 200 Sales Telephone www.baumatic.cz (0118) 933 6900 Sales Fax...
