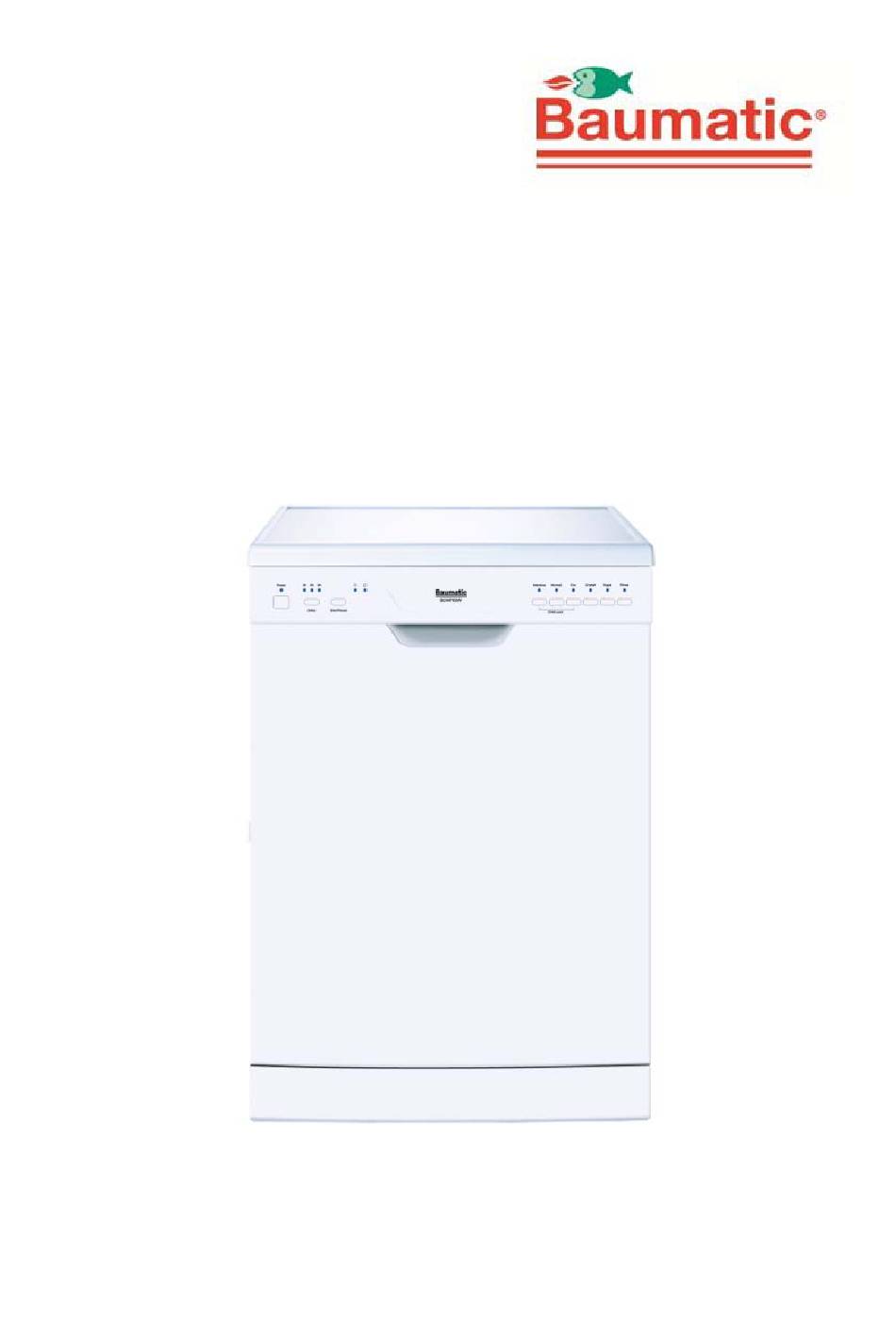

BAUMATIC SERVICE MANUAL
Model: BDWF60W and BDWF65W
60 cm Freestanding Electronic Dishwasher
Date of Issue: 04.09.2013

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BDWF65W and is the answer not in the manual?

Questions and answers

Related Manuals for Baumatic BDWF65W

Summary of Contents for Baumatic BDWF65W

  • Page 1 BAUMATIC SERVICE MANUAL Model: BDWF60W and BDWF65W 60 cm Freestanding Electronic Dishwasher Date of Issue: 04.09.2013...

  • Page 2: Table Of Contents

    Contents 1. FEATURES ......................1 2. SAFETY PRECAUTION ..................... 2 3. WASH CYCLE TABLE ....................4 4. HOW TO KEEP YOUR DISHWASHER IN SHAPE............6 5. FAULT FINDING ..................... 7 6. MAINTENANCES SERVICES AND TROUBLE SHOOTING ........... 11 7. MALFUNCTION DIAGNOSTIC ................15 8 TROUBLE SHOOTING GUIDE ..................

  • Page 3: Features

    1. Features 1.1. A grade for energy consumption of European standard 1.2. A grade for washing efficiency of European standard 1.3. A grade for drying efficiency of European standard 1.4. Delay washing 1.5. Water softening function is provided which can prevent incrustation forming 1.6.

  • Page 4: Safety Precaution

    2.Safety precaution At time of delivery --Check packaging and dishwasher immediately for signs of transport damage. If the appliance is damaged, do not put it into use but contact your supplier or customer service without delay. --Please dispose of packaging materials properly. During installation --Site the dishwasher and connect it up in accordance with the installation instructions.
  • Page 5 appliance could tip forward. --The water inside the dishwasher is not suitable for drinking. --Do not use solvents of any kind inside your dishwasher. They could cause an explosion danger. --Open the door very carefully if the dishwasher is operating. There is a risk of water squirting out.

  • Page 6: Wash Cycle Table

    3.Wash Cycle Table W60A1A401A Detergent Running Cycle Selection Description Energy(KW/h) Water(L) Program Pre/main Time(min) Information of Cycle For the heaviest soiled loads, Pre-wash such as pots, pans, casserole Pre –wash Intensive dishes and dishes that have Wash (60 ℃) 5/25g 1.30 been sitting with dried food Rinse...
  • Page 7 Detergent Running Cycle Selection Description Energy(KW/h) Water(L) Pre/main Time(min) Information of Cycle For the heaviest soiled loads, Pre-wash such as pots, pans, casserole Main wash (60 ℃) Intensive dishes and dishes that have Rinse 5/25g 1.30 been sitting with dried food Hot rinse on them for a while.

  • Page 8: How To Keep Your Dishwasher In Shape

    4.How to keep your dishwasher in shape After Every Wash After every wash, turn off the water supply the appliance and leave the door slightly ajar so that moisture and odors are not trapped inside. Remove the plug Before cleaning or performing maintenance, always remove the plug from the socket.

  • Page 9: Fault Finding

    supply and leave the door of the appliance slightly ajar. This will help the seals last longer and prevent odors from forming within the appliance. 5.Fault finding Resolving minor problems yourself Experience has shown that you can resolve most problems that rise during normal daily usage yourself, without having to call out a service engineer.
  • Page 10 Fill Press “Normal” button The inlet valve work about 1 minute Dispenser Press “Delay” button The dispenser work 10 seconds Motor Auto The washing pump work about 5 sceonds Heater Auto The water will be heated up 60℃ Drain Press “Normal” button The drain pump work about 1 minute Fill Press “Delay”...
  • Page 11 Water remains inside appliance after programme has ended --Blockage or kind in drainage hose. --Pump is jammed. --Filters are blocked. --The programme is still running. Wait for the programme to end ..during washing Unusual amount of foam is creased --Normal washing up liquid has been poured into the rinse-aid container.
  • Page 12 --Waste-water pump is jammed. Plastic items are discoloured --Not enough detergent was added to dispenser. --Detergent has insuffcient bleaching properties. Use a detergent containing a chemical bleaching agent. White stains are left on crockery, glasses have a milky appearance --Not enough detergent was added to dispenser compartment. --Amount of rinse-aid was set too low.

  • Page 13: Maintenances Services And Trouble Shooting

    Smears left behind on glasses and cutlery; glasses have acquired a metallic appearance Amount of rinse-aid set too high. 6 Maintenances Services and Trouble Shooting 6.1 maintenances services With the aid of the following guide, minor problems can be easily corrected without calling for the assistance, saving you both time and money.
  • Page 14 Use only the special dishwasher detergent to avoid suds. If this occurs, open the dishwasher and let suds evaporate. Improper detergent Add 1 gallon of cold water to the tub. Suds in Close and latch the dishwasher, then start the "soak" the tub wash cycle to drain out the water...
  • Page 15 and to get them clean. Using a solution of 1/2 cup of bleach and 3 cups of warm water to remove the stains by hand. WARNING Yellow or Tea or coffee stains You have to wait for 20 minutes brown after a cycle to let the heating film on elements cool down before cleaning...
  • Page 16 Dishwasher Edition: 2011-11 Model: W60A1A401A、W60B1A401A 6.2 Error Codes When some malfunctions happen, the appliance will display error codes to warn you. Codes Meanings Possible Causes The door is opened when the dishwasher is Door open LED1、LED2 flash operating Water inlet malfunction Water inlet LED1、LED4 flash Water...

  • Page 17: Malfunction Diagnostic

    7. Malfunction Diagnostic Wiring Diagram...
  • Page 18 7.1Connector of PCBA...
  • Page 19 7.2 Dishwasher Strip Circuits The following individual circuits are for use in diagnoses. Do not continue with the diagnoses of the appliance if a fuse is blown, a circuit breaker is tripped, or if there is less than a 230 volt power supply at the wall outlet. ■...
  • Page 20 Fill and Over Flow power switch power switch PCBA CN2-1 CN3-1 inlet valve Inlet relay door switch Over Flow 30W max (Pin1 and Pin3 closes in 230V/50Hz normal position;Pin1 and Pin2 close when 3.5-4.0K ohm over-flow) Dispenser power switch power switch PCBA CN2-4 Dispenser...

  • Page 21: Trouble Shooting Guide

    8 Trouble shooting guide Water inlet malfunction...
  • Page 22 Water drainage malfunction...
  • Page 23 Temperature malfunction E4 Malfunction CN5-6 and CN5-5 short or open circuit? Temperature short or open circuit? Replace control wire Replace TS Power on E4 ? Replace PCB Maintenance record...
  • Page 24 Overflow Malfunction E5 Malfunction CN3-1 and CN3-2 Tilt the dishwasher short circuit？ backward for 10° Leakage? Overflow floater be locked Replace the overflow switch Replace the leakage Reassemble the component overflow floater Power on Power on E5 ? E5 ? Replace Wire cable Power on E5 ?
  • Page 25 Water leakage malfunction...
  • Page 26 Heating element malfunction CN1 short or open cuicrit? The heater ok? Replace heater The control wire Power on Replace PCB Maintenance record Note: E2 is water inlet E3 is water drainage E4 is temperature sensor E5 is overflow E6 is water leakage E7 is heating element...
  • Page 27 Warning Electrical Shock Hazard! Disconnect electrical power before installing dishwasher. Failure to do so can result in death or electrical shock. Specifications Electrical Supply: Lower Spray Arm Rotation:32 to42 rpm (Under load)50Hz,220-240VAC Supply Water Flow Rate: Upper Spray Arm Rotation:42 to 52 rpm To fill about 4.0L in 1 minute...

  • Page 28: Net Dimension

    9. Net dimension Technical data Width 60 cm Depth 60 cm Height 85 cm Capacity 12 standard place settings Mains water pressure 0.04-1.0MPa Power voltage 220-240V~ 50Hz Total absorbed power 1850W Maximum current intensity...
