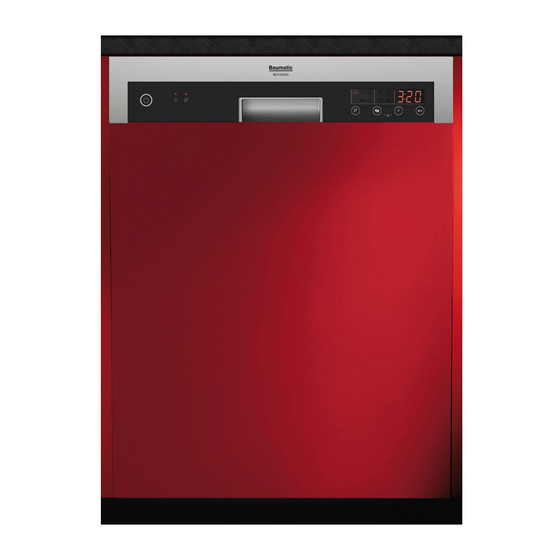

- Page 1 BDWS59SS 60 cm Semi- integrated full height electronic dishwasher...
- Page 2 USER MANUAL FOR YOUR BAUMATIC BDWS59SS 60 cm Semi- integrated full height electronic dishwasher NOTE : This User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance. Please keep it in a safe place so that it is easily available for future reference;...
-
Page 3: Table Of Contents
Connecting to the water outlet Connecting to the power supply 35 - 36 Applying the condensation strip Installing the decorative plinth Levelling the appliance Securing the dishwasher Before first use My appliance isn’t working Baumatic consumables Technical data Contact details... -
Page 4: Environmental Note
This should be undertaken by a competent person. Disable the door lock to make sure that children cannot get stuck inside the appliance. o The packaging materials that Baumatic uses are environmentally friendly and can be recycled. o Please discard all packaging material with due regard for the... -
Page 5: Important Safety Information
General Safety o Repairs to your appliance must only be carried out by a Baumatic engineer or one of its authorised service agents. Any attempt by an inexperienced person to repair the appliance, could result in injury or damage to your dishwasher. - Page 6 This appliance is only designed to wash normal domestic wash loads. If you use your dishwasher in any other way or it is incorrectly used, then Baumatic accepts no liability for any damage that might be caused and any guarantee will be void.
- Page 7 Child Safety o Your dishwasher should only be used by adults. You should not allow children in the area of the machine unsupervised. You should not let them touch the controls or play with the appliance. o It could be possible for a child or pet to gain access to the dishwasher if the door is left open.
-
Page 8: Specifications
Specifications Product dimensions Height: 820 - 870 mm Width: 596 mm Depth: 575 mm Aperture dimensions Height: 825 mm (min) Width: 600 mm Depth: 595 mm (min) Product specifications o 12 Place settings o 6 functions: Normal Intensive Economy 1 Hour Rapid Rinse o 4 temperatures: 40°C, 45°C, 46°C, 60°C,... -
Page 9: Electrical Details
o Delay timer o LED display o Self-cleaning stainless steel micro-filter o Anti-leak device o Anti-flood device o Height adjustable upper basket o Collapsible plate racks o Adjustable feet o Residual drying o Concealed heating element o 3 in 1 option o Quiet operation (49 dB) Energy efficiency details Energy efficiency class:... -
Page 10: Description Of The Appliance
Description of the appliance Control panel ON/OFF button Rinse aid indicator neon Program selection button Salt indicator neon 3 in 1 function button Delay start button 3 in 1 indicator Start / Pause button 10) Washing indicator light LED display 11) Child lock indicator 12) Drying indicator light... -
Page 11: Using Your Dishwasher
Using your dishwasher Before first use o Install the appliance as per the installation instructions contained within this booklet. o Add water to the water softener compartment and then add approximately 2Kg specialist dishwasher salt to the dishwasher. After this you should set the water softener level. o Fill the rinse aid dispenser and then set the rinse aid dosage. -
Page 12: Setting The Water Softener Level
o Refit and fully tighten the water softener cap. o The salt required warning light will go out approximately 2-6 hours after you have filled the water softener with salt. When the salt indicator neon lights on the control panel, then you should follow the filling with dishwasher salt procedure again. -
Page 13: Filling With Rinse Aid
Filling with rinse aid The rinse aid is released during the final rinse and it helps to prevent water from forming droplets on your dishes. These droplets will lead to spots and streaks being left on items after the wash program has completed. o Your dishwasher is designed to utilise liquid rinse aid. -
Page 14: Setting The Rinse Aid Level
Setting the rinse aid level The amount of rinse aid that the dishwasher requires also depends on the hardness of your water. You should experiment with the rinse aid setting, until you find a level that gives the best results. o On first wash... - Page 15 o The section marked 1 in the diagram is for the main wash cycle detergent. Only one detergent tablet should be placed in the dispenser at any one time. If you are using detergent powder or liquid, you should follow detergent manufacturer’s recommendations.
-
Page 16: Loading The Upper Basket
Loading the upper basket The upper basket is most suited to washing delicate and light dishware, such as glasses, coffee & tea cups, saucers, plates, bowls and shallow pans (that are not heavily soiled). Cups Glasses Saucers Small serving bowl Medium serving bowl Large serving bowl Serving spoon... -
Page 17: Loading The Lower Basket
Loading the lower basket The lower basket is most suited to washing larger and more heavily soiled items, such as saucepans, saucepan lids and serving dishes. You can also load bowls and a variety of plates into the lower basket. H. -
Page 18: The Cutlery Basket
The cutlery basket Cutlery should be placed inside of the cutlery basket. The cutlery basket should then be placed in the appropriate position in the lower basket. Teaspoons Dessert spoons Soup spoons Forks Knives Serving fork Gravy ladle o For the best washing performance, cutlery should be placed through the slots in the top of the cutlery basket. - Page 19 The following items are NOT suitable for washing inside a dishwasher:- o Cutlery with a handle of mother-of-pearl, wood, horn or china. o Plastic items that are not resistant to heat. o Cutlery that consists of glued parts that are not resistant to heat. o Cutlery items or crockery that are bonded.
-
Page 20: Program Table
Program table o The NORMAL program is suitable for cleaning a typical load of dirty dishes and is the most efficient in terms of its combined energy and water consumption. Program Program Description Detergent Wash Water Energy information of cycle pre/main Times* (kWh) -
Page 21: Setting A Wash Program
Setting a wash program Make sure that the “before first use” section has been followed. o Check whether the appliance needs rinse aid or salt adding to it. o Pull out the top and bottom baskets, then load them in accordance with the loading instructions. -
Page 22: At The End Of A Wash Program
o After a few seconds, you will hear the appliance begin to fill with water and the wash program will have started. At the end of a wash program o A buzzer will sound six times. o Use the ON/OFF button to switch the dishwasher off. o We would advise waiting for at least a few minutes before unloading the dishwasher to avoid handling items which will still be very hot and more susceptible to breakage. -
Page 23: Rinse Aid And Salt Indicator Neons
IMPORTANT: Wait for 5 seconds before pressing the program selection button, otherwise the appliance may not function correctly. o Press the program selection button to choose an appropriate wash program for the load that you are washing. The relevant program indicator neon will light to show which program you have selected. -
Page 24: Saving Energy Using Your Dishwasher
Saving energy using your dishwasher Loading dishes o Refer to the relevant section of this manual for instructions on placing items in the dishwasher for the most efficient cleaning. o Only run the dishwasher when it is full for optimum energy and water usage. -
Page 25: Cleaning And Maintenance
Cleaning and maintenance IMPORTANT: The appliance should be disconnected from your mains supply before commencing any cleaning process. The filter system Your appliance is fitted with three levels of filtering; these are located in the base of the dishwasher for ease of access. Main filter Coarse filter Fine filter... -
Page 26: Cleaning The Spray Arms
2. Pull out the main filter and rinse this under the tap to remove any food debris that is trapped in it. 3. Place all filters back in their original position. 4. You must turn the coarse filter clockwise to lock it back into position. -
Page 27: Cleaning The Door
Cleaning the door o To clean the edge around the outside of the door, you should use a soft, damp cloth only. o To prevent water from penetrating the door lock or electrical components, DO NOT use a spray cleaner of any kind. o DO NOT use any abrasive cleaner or scouring pads on the inner or outer surfaces, as they may cause damage to them. -
Page 28: General Troubleshooting
Utensils are not secure in the Ensure that everything is loaded as per baskets or something small has Baumatic’s loading instructions. dropped into the basket... - Page 29 Motor hums If the dishwasher is not going to be used for a period of time, then you should make sure that the appliance is set on a wash program once a week. Otherwise the seal around the motor may dry out and cause noise.
-
Page 30: Installation
Installation IMPORTANT: THIS INSTALLATION MUST COMPLETED BY A SUITABLY QUALIFIED PERSON. BAUMATIC ONLY SANCTION INSTALLATION GIVEN THIS INSTRUCTION MANUAL. SHOULD DISPOSE PACKAGING ENVIRONMENTALLY FRIENDLY MANNER. Aperture requirements... -
Page 31: Preparing And Connecting The Furniture Door
Installation stages 1. Preparing and connecting the furniture door 2. Adjusting the tension of the door spring 3. Connecting to the mains water supply 4. Connecting to the water outlet 5. Connecting to the power supply 6. Applying the condensation strip 7. - Page 32 o Screw the 2 fixing plugs onto the furniture door. o Assemble the furniture door onto the dishwasher door, ensuring that the fixing bushes locate into the slots on the dishwasher door. o Lift the furniture door upwards so it locks into place on the dishwasher door.
-
Page 33: Adjusting The Tension Of The Door Spring
Adjusting the tension of the door spring o The door of the dishwasher is attached to springs. These are set at the factory to ensure that they are at the proper tension, so that the door can open and close smoothly. o After the furniture door has been fitted, you will need to adjust the tension of the door spring. -
Page 34: Connecting To The Mains Water Supply
Connecting to the mains water supply IMPORTANT: Do not connect the appliance to your mains water supply using an old or an existing water inlet hose. The inlet hose supplied with the dishwasher is the ONLY one that should be us DO NOT CONNECT THE WATER INLET HOSE TO A HOT WATER TAP. -
Page 35: Connecting To The Water Outlet
Connecting to the water outlet o Secure the drain hose, so that it cannot move whilst the dishwasher is in use. o Place the end of the drain hose on your drain pipe. Push it a short way down into your drain pipe. o IMPORTANT: Do not insert the drain hose too deeply into the pipe, as this may cause siphoning. -
Page 36: Applying The Condensation Strip
o Consult the rating plate, located on the right hand side of the drop down door BEFORE making the electrical connections. Ensure that the voltage reaching the plug is the same as that on the rating plate. o DO REMOVE RATING PLATE INFORMATION ON IT IS IMPORTANT. -
Page 37: Installing The Decorative Plinth
Installing the decorative door/skirting board (Ornamental plates) -
Page 38: Levelling The Appliance
Levelling the appliance o IMPORTANT: Your dishwasher must be level for it to operate properly. o Make sure that the dishwasher is supported whilst it is being levelled, otherwise it may tip over. o The rear feet can be adjusted by using the adjusting screw at the front of the appliance. -
Page 39: Securing The Dishwasher
Securing the dishwasher The dishwasher must be secured to the worktop. o Standard worktop: Secure dishwasher to the underside of the worktop both sides appliance by using wood screws provided. o You should screw through the holes in the pre-drilled brackets in the top and sides of the dishwasher. -
Page 40: My Appliance Isn't Working
Or any installation oth an the one specified by Baumatic Ltd. has been completed. Please refer to the conditions of guarantee th at appear on the arranty card that you receive with the appliance. -
Page 41: Baumatic Consumables
BC005 Stainless Steel Cleaner and Protector (250 ml) o BC007 E-Cloth – General Purpose Clot o BC008 Microwave Cover To order a Baumatic consumable product please call 0123 54 37 244 and quote the product code. You can also order online from... -
Page 42: Technical Data
Data Manufacturer BAUMATIC LTD Model Number BDWS59SS Standard Place Settings Energy Efficiency Class (1) Annual Energy Consumption (2) 289 kWh Energy Consumption of the Standard 0.92 kWh Cleaning Cycle Power Consumption of Off Mode 0.34 W Power Consumption of Left-On Mode 0.90 W... -
Page 43: Contact Details
United Kingdom Czech Repu blic Baumatic Ltd., Baumatic CR spol s.r.o. Baumatic Buildings, Lípovà 665 6 Bennet Road, 60 01 Liberec 4 Reading, Berkshire Czech Republic G2 0QX United Kingdom 420 483 577 200 www.baum atic.cz Sales Telep hone (0118) 933 6900...
