Summary of Contents for Baumatic BDWI660

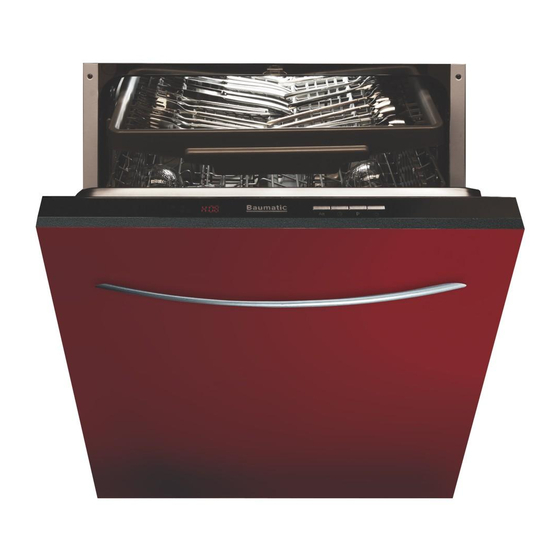

- Page 1 BDWI660 60 cm Fully integrated full height dishwasher...
- Page 2 USER MANUAL FOR YOUR BAUMATIC BDWI660 60 cm Fully integrated full height dishwasher NOTE : This User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance. Please keep it in a safe place so that it is easily available for future reference;...
-
Page 3: Table Of Contents
5 – 7 Specifications 8 – 11 Product and aperture dimensions Product specifications 8 – 9 Electrical details Baumatic consumables Description of the appliance Control panel Using your dishwasher 11 - 26 Before first use Filling with dishwasher salt 11 – 12... -
Page 4: Environmental Note
This should be undertaken by a competent person. Disable the door lock to make sure that children cannot get stuck inside the appliance. o The packaging materials that Baumatic uses are environmentally friendly and can be recycled. o Please discard all packaging material with due regard for the... -
Page 5: Important Safety Information
General Safety o Repairs to your appliance must only be carried out by a Baumatic engineer or one of its authorised service agents. Any attempt by an inexperienced person to repair the appliance, could result in injury or damage to your dishwasher. - Page 6 This appliance is only designed to wash normal domestic washloads. If you use your dishwasher in any other way or it is incorrectly used, then Baumatic accepts no liability for any damage that might be caused and any guarantee will be void.
- Page 7 o Any packaging that is removed from the machine should be kept away from children. o All detergents should be kept out of children’s reach in a safe place. o Some water will remain inside the dishwasher when it has completed a wash cycle.
-
Page 8: Specifications
Specifications Product dimensions Height: 815 – 865 mm Width: 598 mm Depth: 550 mm Aperture dimensions Height: 820 – 870 mm Width: 600 mm Depth: 580 mm (MIN) Product specifications o 14 Place settings o 6 programs: Normal Intensive Economy Glass Rapid 1 hour... -
Page 9: Electrical Details
o Electronic aqua stop o Delay start function o Residual drying o Alternative wash function o Concealed heating element o Self-cleaning stainless steel micro-filter o Anti-leak device o Anti-flood device o Height adjustable upper basket o Collapsible plate racks o Adjustable feet Energy efficiency details Energy efficiency class: Washing performance class: A... -
Page 10: Description Of The Appliance
Description of the appliance Top spray arm Cutlery basket Upper basket Inner pipe Lower basket Salt container Detergent dispenser Cup shelf Lower spray arm Filter assembly Inlet pipe connector Drain pipe Adjuster... -
Page 11: Control Panel
Control panel LED display Alternative wash button Delay start button Program button ON/OFF button Using your dishwasher Before first use o Install the appliance as per the installation instructions contained within this booklet. o Fill the water softener with 1 litre of tap water and then fill with specialist dishwasher salt. - Page 12 IMPORTANT: It is only necessary to do this when you fill the container with salt for the first time. o Pour salt into the water softener, using the funnel that is supplied with the appliance. You should add approximately 1.5 kg of salt into the water softener.
-
Page 13: Setting The Water Softener Level
Setting the water softener level It is possible to regulate the amount of salt that the water softener will release during a wash cycle. The water softener should be set to a level that is appropriate for the hardness of your water (please refer to the table below). -
Page 14: Filling With Rinse Aid
Filling with rinse aid The rinse aid is released during the final rinse and it helps to prevent water from forming droplets on your dishes. These droplets will lead to spots and streaks being left on items after the wash program has completed. o Your dishwasher is designed to utilise liquid rinse aid. -
Page 15: Setting The Rinse Aid Level
Setting the rinse aid level The amount of rinse aid that the dishwasher requires also depends on the hardness of your water. You should experiment with the rinse aid setting, until you find a level that gives the best results. o On the first wash cycle, we would recommend that the rinse aid level is set to number 4. -
Page 16: Concentrated Detergent
o Open the lid that closes over the detergent dispenser by pushing the release button. The lid will spring open. Place the detergent inside of the dispenser. o The section marked A in the diagram is for the main wash cycle detergent. -
Page 17: Detergent Tablets
o This wash program is specifically suited to the dirt-dissolving properties of the enzymes of concentrated detergent. For this reason, the NORMAL program, in which concentrated detergent is used, can achieve the same results achieved in the INTENSIVE program. Detergent tablets o Different brands of detergent tablets dissolve at different speeds. -
Page 18: Adjusting The Upper Basket
Adjusting the upper basket Your dishwasher has an adjustable upper basket which you can alter to the most suitable position for the items you are going to wash in the upper and lower baskets. o The height of the upper basket can be adjusted by placing the wheels on a different height of the rails. -
Page 19: Loading The Lower Basket
Loading the lower basket The lower basket is most suited to washing larger and more heavily soiled items, such as saucepans, saucepan lids and serving dishes. You can also load bowls and a variety of plates into the lower basket. o Saucepans and serving bowls must always be placed with their bases upwards. -
Page 20: Folding Spikes Of Lower Basket
Folding spikes of lower basket o The bottom rack has prongs that can be folded downwards, to allow for easier loading of larger saucepans and serving bowls. The cutlery basket Cutlery should be placed inside of the cutlery basket, separately from each other. -
Page 21: Loading Dishes And Cutlery
Loading dishes and cutlery Household cloths, sponges or any other object that may absorb water SHOULD NOT be washed in a dishwasher. o Remove leftovers and soften the remnants of burnt food in pans, prior to loading dishes in the appliance. o Once the dishwasher has been loaded, check that the spray arms can move freely. -
Page 22: Program Table
The following items are not always suitable for washing inside a dishwasher:- o Stoneware should only be washed if the manufacturer of the item has marked it as dishwasher safe. o Plastic items (such as lunchboxes) should only be washed if the manufacturer has marked it as dishwasher safe. -
Page 23: Setting A Wash Program
pans. A (60°C) standard Drying daily cycle. ECONOMY** For lightly Pre-wash 5/30g 0.93 soiled loads, Wash such as (50°C) plates, Rinse (60°) glasses, Drying 3 in 1 bowls and lightly soiled pans. GLASS For lightly Pre-wash 0.95 13.5 soiled loads Wash such as (40°C) -
Page 24: Changing A Wash Program
o Add detergent o Turn the appliance on by using the ON/OFF button (5). o IMPORTANT: Wait for 5 seconds before pressing the program selection button, otherwise the appliance may not function correctly. o Press the program button (4) to choose an appropriate wash program for the load that you are washing. -
Page 25: At The End Of A Wash Program
o The program light will stop blinking and a buzzer will sound every minute until the door is closed again. o Add the forgotten dishes to the upper or lower basket. o Close the dishwasher door. After about 10 seconds the wash program will continue automatically. -
Page 26: Alternative Wash Function
o Use the delay start button (3) to choose a delay start time of between 1 and 24 hours in the future. The delay time will show in the LED display. o Close the door firmly, so that you hear the door lock click shut. o When the programmed delay start time has elapsed, the dishwasher will automatically begin the chosen wash program. -
Page 27: Saving Energy Using Your Dishwasher
Saving energy using your dishwasher Loading dishes o Refer to the relevant section of this manual for instructions on placing items in the dishwasher for the most efficient cleaning. o Only run the dishwasher when it is full for optimum energy and water usage. -
Page 28: Cleaning And Maintenance
Cleaning and maintenance IMPORTANT: The appliance should be disconnected from your mains supply before commencing any cleaning process. The filter system Your appliance is fitted with three levels of filtering; these are located in the base of the dishwasher for ease of access. Main filter Coarse filter Fine filter... -
Page 29: Cleaning The Filters
Cleaning the filters For best performance and results, the entire filter assembly should be thoroughly cleaned regularly (ideally after each wash cycle). 1. Turn the coarse filter anti-clockwise and then lift it upwards. Rinse out this section under a tap to remove any food debris that remains in it. -
Page 30: Cleaning The Spray Arms
Cleaning the spray arms The spray arms should be cleaned regularly, to prevent hard water deposits from clogging the spray arm jets and bearings. o To remove the upper spray arm, hold the nut and rotate the arm clockwise to remove it. o To remove the lower spray arm, gently pull it upwards. -
Page 31: Cleaning The Door
Cleaning the door o To clean the edge around the outside of the door, you should use a soft, damp cloth only. o To prevent water from penetrating the door lock or electrical components, DO NOT use a spray cleaner of any kind. o DO NOT use any abrasive cleaner or scouring pads on the inner or outer surfaces, as they may cause damage to them. - Page 32 IMPORTANT: If any other error codes appear, you should not attempt to clear it yourself and contact the Baumatic Customer Care Department. IF THE FAULT CODE REAPPEARS AFTER FOLLOWING THE ABOVE ADVICE AND CLEARING THE FAULT CODE.
-
Page 33: General Troubleshooting
General troubleshooting PROBLEM POSSIBLE WHAT TO DO CAUSES Dishwasher Fuse blown or the circuit Replace the fuse or reset the doesn’t start. breaker acted. circuit breaker. Remove any other appliances sharing the same circuit with the dishwasher. Power supply is not Make sure the dishwasher is turned on. - Page 34 dishwashers for the risk of foaming or suds. There are rust The affected items are Avoid washing these items in stains on the not corrosion resistant. the dishwasher and look for cutlery. dishwasher-safe replacements in the future. A RAPID program was Always run a RAPID program not run after dishwasher without any dishes in the...
- Page 35 Detergent left Dishes are blocking the Re-load the dishes properly. in the detergent dispenser. dispenser. The dishes are Improper loading of Load the dishwasher as not drying. crockery. suggested in the relevant instructions. Too little rinse-aid was Increase the amount of rinse-aid used.
-
Page 36: Installation
Installation IMPORTANT: THIS INSTALLATION MUST COMPLETED BY A SUITABLY QUALIFIED PERSON. BAUMATIC ONLY SANCTION INSTALLATION GIVEN THIS INSTRUCTION MANUAL. SHOULD DISPOSE PACKAGING ENVIRONMENTALLY FRIENDLY MANNER. Aperture requirements... -
Page 37: Installation Stages
o The aperture that your dishwasher needs to be installed into should resemble the one shown in the drawings on the previous page. o There should be less than a 5 mm gap between the top of the dishwasher and the underneath of the worktop. The height of the aperture required will vary between 820 –... - Page 38 o Use the installation template supplied with the appliance to mark up and then drill out the necessary holes in the furniture door. o Attach the upper and lower hooks onto the furniture door. o Lift the furniture door towards the dishwasher door, ensuring that the upper and lower hooks locate into the slots on the outside of the dishwasher door.
-
Page 39: Adjusting The Tension Of The Door Spring
Adjusting the tension of the door spring o The door of the dishwasher is attached to springs. These are set at the factory to ensure that they are at the proper tension, so that the door can open and close smoothly. o After the furniture door has been fitted, you will need to adjust the tension of the door spring. -
Page 40: Connecting To The Mains Water Supply
Connecting to the mains water supply IMPORTANT: Do not connect the appliance to your mains water supply using an old or an existing water inlet hose. The inlet hose supplied with the dishwasher is the ONLY one that should be used. o The inlet hose will be located inside the cabinet of the dishwasher. -
Page 41: Connecting To The Power Supply
o Secure the drain hose, so that it cannot move whilst the dishwasher is in use. o Place the end of the drain hose on your drain pipe. Push it a short way down into your drain pipe. The drain pipe must have a minimum diameter of 40 mm. -
Page 42: Applying The Condensation Strip
Applying the condensation strip o The condensation strip must be fitted to the underside of the worktop to protect it against the ingress of moisture. The strip will deflect steam that rises from your appliance, away from the underneath of the worktop. o The condensation strip will be located inside of your dishwasher. -
Page 43: Levelling The Appliance
o Carefully slide the dishwasher back into position, underneath the worktop. Levelling the appliance o IMPORTANT: Your dishwasher must be level for it to operate properly. o Make sure that the dishwasher is supported whilst it is being levelled, otherwise it may tip over. o Rotate the adjustable feet to level the appliance accordingly. -
Page 44: Securing The Dishwasher
Securing the dishwasher The dishwasher must be secured to the worktop, this can be done in one of two ways:- o Standard worktop- Secure dishwasher underside of the worktop by using two wood screws (A). o You should screw through the holes in the brackets at the top of the dishwasher cabinet. -
Page 45: Before First Use
Before first use You should check the following before using the appliance for the first time:- o That the dishwasher is level and fixed in position. o That the water tap is fully open. o That there are no leaks at either end of the drain or inlet hoses. o That the inlet and outlet hose are fully tightened. -
Page 46: Baumatic Consumables
BC005 Stainless Steel Cleaner and Protector (250 ml) o BC007 E-Cloth – General Purpose Cloth o BC008 Microwave Cover To order a Baumatic consumable product please call 0123 5437 244 and quote the product code. You can also order online from eshop.baumatic.co.uk... -
Page 47: Technical Data
Technical Data Manufacturer BAUMATIC LTD Model Number BDWI660 Standard Place Settings Energy Efficiency Class (1) Annual Energy Consumption (2) 266 kWh Energy Consumption of the Standard 0.93 kWh Cleaning Cycle Power Consumption of Off Mode 0.45 W Power Consumption of Left-On Mode 0.55 W... -
Page 48: Contact Details
United Kingdom Baumatic Ltd., Baumatic Buildings, 6 Bennet Road, Czech Republic Reading, Berkshire Baumatic CR s.r.o. RG2 0QX Lípová 665, United Kingdom 460 01, Liberec 4 Czech Republic Sales Telephone (0118) 933 6900 +420 483 577 200 Sales Fax (0118) 931 0035 www.baumatic.cz...
