  • Page 1 BDW1W/SS DISHWASHER...
  • Page 2 BAUMATIC BDW1W/SS dishwasher user manual IMPORTANT! PLEASE READ THIS MANUAL AND KEEP IT FOR FUTURE REFERENCE! THIS MANUAL CONTAINS SECTIONS OF SAFETY INSTRUCTIONS, OPERATING INSTRUCTIONS & TROUBLESHOOTING TIPS, ETC. BAUMATIC BDW1W/SS – DISHWASHER 60CM FULL HEIGHT DISHWASHER INSTRUCTION MANUAL CAREFULLY READING IT BEFORE USING THE DISHWASHER WILL HELP...

  • Page 3: Table Of Contents

    BAUMATIC BDW1W/SS dishwasher user manual CONTENTS • SAFETY FIRST! SAFETY INFORMATION .……………..…………3 *Please read this before using your dishwasher! BEFORE CALLING • KNOWING YOUR FOR SERVICE DISHWASHER CONTROL PANEL ………………………..……..…4 REVIEWING THE SECTION ON DISHWASHER FEATURES …………..………….4 TROUBLESHOOTING TIPS WILL...

  • Page 4: Safety Information

    BEFORE DISCARDING IT. • DURING THE GUARANTEE PERIOD ONLY BAUMATIC SERVICE ENGINEERS OR AN AUTHORISED AGENT OF BAUMATIC SHOULD CARRY OUT REPAIRS ON THIS UNIT. • DO NOT USE IF THE SUPPLY CORD IS DAMAGED. • FOR INSTALLATION PROCEDURE PLEASE CONSULT PAGES 24 –...

  • Page 5: Control Panel

    BAUMATIC BDW1W/SS dishwasher user manual USING YOUR DISHWASHER FOR THE FIRST TIME! CONTROL PANEL POWER SWITCH: Turns the Power supply ON & OFF. LANGUAGE BUTTON: Select from English, Italian, French, Spanish & German by pressing this button. RINSE AID WARNING LIGHT: Add more rinse aid as the indicator on the front panel lights up.
  • Page 6 BAUMATIC BDW1W/SS dishwasher user manual Note on chemicals used by the dishwasher • Your dishwasher is equipped with an adjustable rinse aid and salt container. Using individual detergents, rinse aid and salt will give the best possible results as this will give the correct dosage of each chemical to suit your needs.

  • Page 7: Detergent

    BAUMATIC BDW1W/SS dishwasher user manual SETTING THE WATER SOFTENER LEVEL YOU CAN ADJUST THE AMOUNT OF SALT USED BY THE DISHWASHER TO SOFTEN WATER TO GET THE BEST WASHING RESULTS, BASED ON THE HARDNESS OF WATER IN YOUR AREA. THERE IS A RING ON THE NECK OF THE CONTAINER.

  • Page 8: Rinse Aid

    BAUMATIC BDW1W/SS dishwasher user manual • THE RINSE AID IS RELEASED DURING THE RINSE AID FINAL RINSE TO PREVENT WATER FROM FORMING DROPLETS ON YOUR DISHES THAT CAN CAUSE SPOTS AND STREAKS. IT ALSO IMPROVES DRYING BY ALLOWING WATER TO FALL OFF THE DISHES.

  • Page 9: Loading Your Dishwasher

    BAUMATIC BDW1W/SS dishwasher user manual LOADING NOTE: YOUR FOR BEST PERFORMANCE, FOLLOW THESE LOADING GUIDELINES. FEATURES AND DISHWASHER APPEARANCE OF RACKS & CUTLERY BASKETS MAY VARY FROM YOUR MODEL. BEFORE LOADING! • REMOVE ALL SCRAPS OF FOOD. • EMPTY DRINKS & LIQUIDS FROM CUPS.
  • Page 10 BAUMATIC BDW1W/SS dishwasher user manual HOW TO USE THE UPPER RACK THE UPPER RACK IS FOR MORE DELICATE POSITION THE DISHES AND LIGHTER DISHWARE SUCH COOKWARE SO THAT THEY DO NOT GLASSES, COFFEE & TEA CUPS, SAUCERS, GET MOVED BY THE SPRAY OF...
  • Page 11 BAUMATIC BDW1W/SS dishwasher user manual ***NOTE***: THE UPPER RACK HAS SIDE FLAPS (PICTURED AT LEFT ABOVE BASKET). THERE ARE 4 (2 ON EACH SIDE). THESE CAN BE ADJUSTED INTO 2 POSITIONS = POSITION 1 (HIGH) AND POSITION 2 (LOW). TO MOVE THE FLAPS BETWEEN THESE...
  • Page 12 BAUMATIC BDW1W/SS dishwasher user manual CUTLERY BASKET CUTLERY SHOULD BE PLACED IN THE CUTLERY BASKET WITH HANDLES ALWAYS POINTING DOWNWARD (AT THE BOTTOM). VERY LONG UTENSILS (LADLES, etc.) SHOULD BE PLACED HORIZONTALLY AT THE FRONT OF THE UPPER RACK. Forks...

  • Page 13: Starting A Wash Cycle

    BAUMATIC BDW1W/SS dishwasher user manual STARTING A WASH CYCLE STARTING A WASH CYCLE MAKE SURE THAT THE PLUG OF THE APPLIANCE IS INSERTED INTO THE WALL SOCKET. MAKE SURE THAT THE WATER SUPPLY IS TURNED ON TO FULL PRESSURE. LOAD THE DISHWASHER (SEE THE SECTION ENTITLED ‘LOADING YOUR DISHWASHER’).
  • Page 14 22 grams OVERFLOW PROTECTION YOUR BAUMATIC DISHWASHER HAS AN OVERFILL PROTECTION DEVICE WHICH AUTOMATICALLY SHUTS OFF THE INLET VALVE AND STARTS THE DRAIN PUMP IF THE WATER OVERFLOWS. IF THIS OCCURS THEN TURN OFF THE MAINS WATER SUPPLY BEFORE CALLING THE SERVICE DEPARTMENT. IF THERE IS WATER IN THE BASE PAN BECAUSE OF AN OVERFILL OR SMALL LEAK, THE WATER SHOULD BE REMOVED BEFORE RESTARTING THE DISHWASHER.

  • Page 15: Unloading At The End Of A Cycle

    BAUMATIC BDW1W/SS dishwasher user manual WHAT YOU WILL SEE ON THE DISPLAY: SHOWS THE SELECTED WASHING PROGRAM (From Left): INTENSIVE, NORMAL, ECONOMY, RINSE, GLASS, RAPID, PRE-RINSE. INFORMATION DISPLAY: YOU CAN GET INFORMATION FROM READING WHAT IS SHOWN ON THIS, SUCH AS WASHING PROGRAM, ERROR, DOOR-OPEN, ETC.

  • Page 16: Filtering System

    BAUMATIC BDW1W/SS dishwasher user manual FILTERING SYSTEM FOR YOUR CONVENIENCE, WE HAVE PLACED THE FILTERING SYSTEM WITHIN EASY REACH INSIDE THE TUB. THE FILTER REMOVES BITS OF FOOD TRAPPED IN THE FILTER FROM THE WASH WATER SO IT CAN BE RECIRCULATED DURING THE CYCLE.
  • Page 17 BAUMATIC BDW1W/SS dishwasher user manual CLEANING THE FILTERS • THE FILTER ASSEMBLY MUST BE KEPT CLEAN FOR BEST PERFORMANCE. You should remove the larger bits of food trapped in the filter after each wash cycle by rinsing the semicircular filter and cup under running water.
  • Page 18 BAUMATIC BDW1W/SS dishwasher user manual HOW TO KEEP YOUR DISHWASHER IN SHAPE , leave the door slightly ajar so that moisture and odours are not trapped FTER VERY inside. before cleaning or performing maintenance. Never run the risk of electric EMOVE THE shocks.

  • Page 19: Before You Call For Service

    BAUMATIC BDW1W/SS dishwasher user manual BEFORE YOU CALL FOR SERVICE … CHECKING AGAINST THE CHARTS BELOW MAY FIX YOUR PROBLEM. PROBLEM POSSIBLE CAUSES WHAT TO DO • Replace fuse or reset circuit breaker. • Fuse blown, or the circuit breaker acted •...
  • Page 20 BAUMATIC BDW1W/SS dishwasher user manual PROBLEM POSSIBLE CAUSES WHAT TO DO • Use only special dishwasher Suds in the Tub! • Improper detergent detergent to avoid suds. • Always wipe up rinse agent spills • Spilled rinse agent immediately. Stained tub Interior! •...
  • Page 21 BAUMATIC BDW1W/SS dishwasher user manual PROBLEM POSSIBLE CAUSES WHAT TO DO Cloudiness on • Combination of soft • Use less detergent if you have soft water and too much water and select a shorter cycle to glass! detergent clean the glassware.
  • Page 22 BAUMATIC BDW1W/SS dishwasher user manual PROBLEM POSSIBLE CAUSES WHAT TO DO Black or grey • Aluminium utensils • Use a mild abrasive cleaner to have rubbed against marks on dishes! eliminate those marks by hand. dishes Water standing in •...

  • Page 23: Error Codes

    BAUMATIC BDW1W/SS dishwasher user manual ERROR CODES - WHAT THEY MEAN * YOUR DISHWASHER MAY EXPERIENCE A FAULT. SHOULD THIS HAPPEN, A CODE CONSISTING OF ‘E’ & A NUMBER FROM 1-7 EXCEPT 5 CAN BE DISPLAYED. USE THIS TABLE TO UNDERSTAND WHAT IS WRONG.

  • Page 24: Characteristics

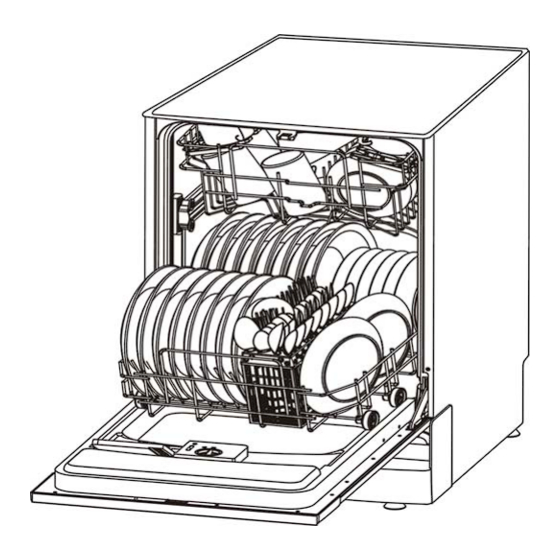

    BAUMATIC BDW1W/SS dishwasher user manual DISHWASHER CHARACTERISTICS The BAUMATIC BDW1 dishwasher model is based firmly on convenience. Apart from having the same general workings as other household dishwashers, it has several extra features. Rinse aid Warning Overflow protection – Indicator -...

  • Page 25: How To Install

    BAUMATIC BDW1W/SS dishwasher user manual INSTALLATION INSTRUCTIONS NOTE: APPLIANCE SHOULD ONLY BE FITTED BY A TRAINED TECHNICIAN INSTALLING YOUR DISHWASHER a) PREPARATION Before you install your appliance, make sure that the place you have chosen to fit it is: • Near the existing power socket.
  • Page 26 BAUMATIC BDW1W/SS dishwasher user manual b) PLACING AND FITTING YOUR DISHWASHER’S OPTIONAL FURNITURE DOOR The furniture door (an optional accessory fitted to match your kitchen décor available from your kitchen unit dealer) can be attached to the front of the dishwasher according to the following diagram.
  • Page 27 BAUMATIC BDW1W/SS dishwasher user manual...
  • Page 28 BAUMATIC BDW1W/SS dishwasher user manual TENSION ADJUSTMENT OF THE DOOR SPRING Your dishwasher’s outer door is attached to springs. These are set at the factory to ensure they’re at the proper tension so that the door can open and close smoothly and conveniently.
  • Page 29 BAUMATIC BDW1W/SS dishwasher user manual d) NEXT, CONNECT THE WATER INLET (SEE FIGURE BELOW): Connect the cold water supply hose to a threaded ¾ inch connector and make sure that it is fastened tightly in place. Attach tube C to the cold water supply A.

  • Page 30: Final Checklist Before Starting

    BAUMATIC BDW1W/SS dishwasher user manual f) NOW YOU ARE READY TO CONNECT THE POWER CORD. WARNING! ELECTRICITY CAN BE DANGEROUS. PLEASE READ THE FOLLOWING CAREFULLY: ELECTRICAL CONNECTION Electrical Requirements The dishwasher is designed for operation on an adequately wired individual 220-240V AC, 50Hz system.
  • Page 31 BAUMATIC BDW1W/SS dishwasher user manual g) NOW, PUT THE DISHWASHER ON THE SLIDE RAILS (These are supplied so your appliance can be pushed into place easily and to protect your floor surface from pressure points). See figure at bottom of page.

  • Page 32: Contact Details

    REAR FEET. THIS CAN BE ACHIEVED USING A LEVER AND FULCRUM. TAKE GREAT CARE WHEN ATTEMPTING TO MOVE OR TILT YOUR DISHWASHER IN ANY WAY. NOTE: BAUMATIC WILL NOT BE LIABLE FOR ANY INJURY OR DAMAGE INCURRED WHILST YOU ATTEMPT TO MOVE YOUR DISHWASHER.
  • Page 33 BAUMATIC BDW1W/SS dishwasher user manual DISHWASHER CABINET AND SECURE THE DISHWASHER TO THE FURNITURE HOUSING. PUT THE RUBBER CAP OVER THE SCREW. NOTE: DO NOT PUT ANY WEIGHT FROM THE DISHWASHER ON THESE SCREWS – ENSURE YOUR DISHWASHER’S WEIGHT RESTS ENTIRELY ON ITS FEET.

  • Page 34: Conditions Of Guarantee

    In addition, your appliance is covered by a 5 year parts warranty. Baumatic Ltd will provide free of charge the parts required to repair the appliance, only if they are fitted by a Baumatic engineer, for any defect that arises due to faulty materials or workmanship within a period of 5 years from the original purchase date.
  • Page 35 BAUMATIC BDW1W/SS dishwasher user manual Thank you for buying Baumatic. Baumatic Ltd Make-up for your kitchen Headquarters Baumatic Ltd. Baumatic Buildings, 6 Bennet Road, Reading, Berkshire RG2 0QX, United Kingdom Sales Telephone +44 118 933 6900 Sales Fax +44 118 931 0035...
