SAFETY NOTICE:
If this appliance is not properly installed, a house fire
may result. For your safety, follow the installation
directions. Contact local building or fire officials about
restrictions and installation inspection requirements
in your area.
Dragon Wholesaling Pty. Ltd.
Unit 4, 16 Lexington Drive
Bella Vista NSW
Australia 2153

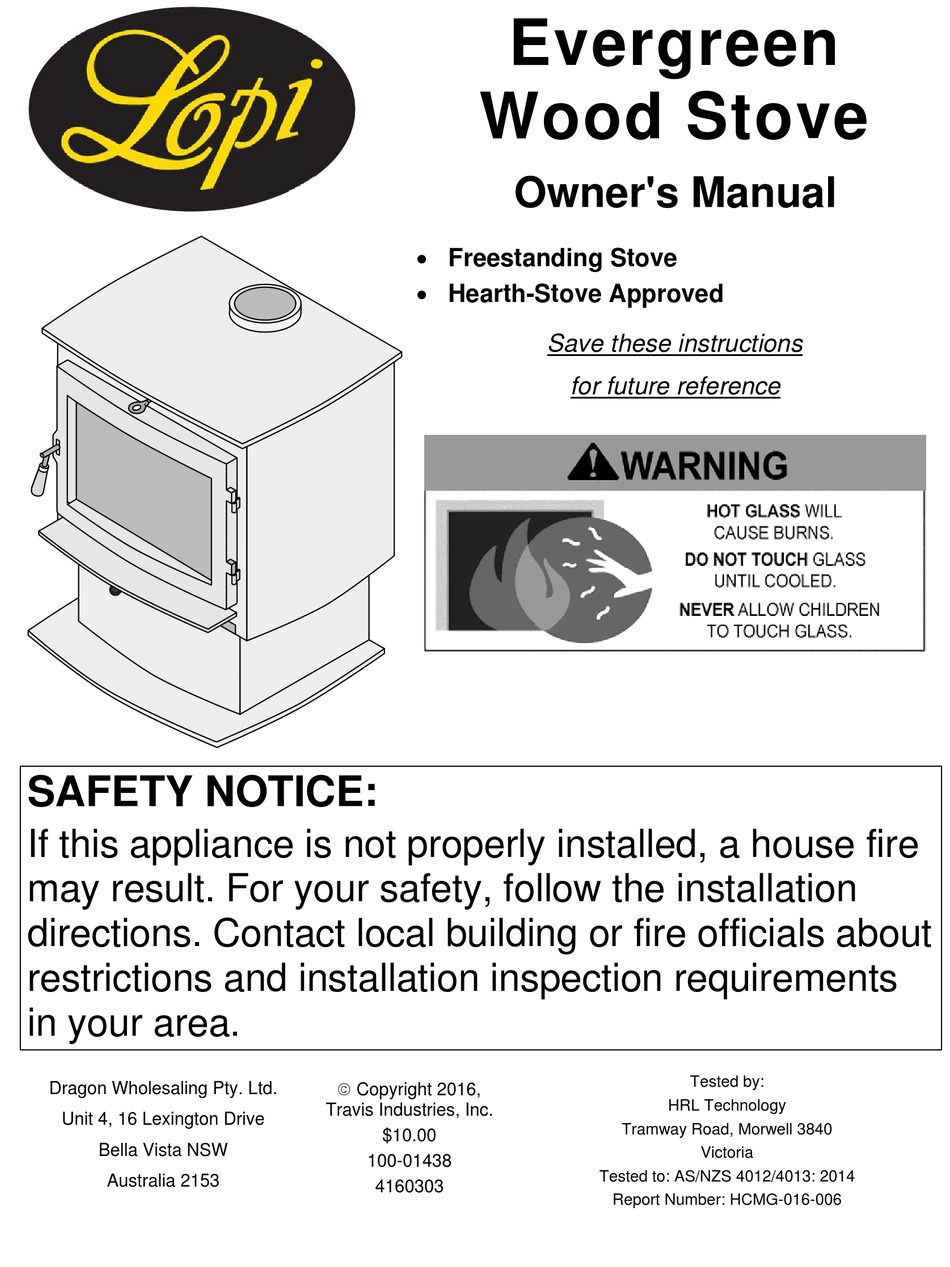

Wood Stove
Freestanding Stove
Hearth-Stove Approved
Copyright 2016,
Travis Industries, Inc.
$10.00
100-01438
4160303
Evergreen
Owner's Manual
Save these instructions
for future reference
HRL Technology
Tramway Road, Morwell 3840
Tested to: AS/NZS 4012/4013: 2014
Report Number: HCMG-016-006
Tested by:
Victoria
Advertisement
Table of Contents
Related Manuals for Lopi Evergreen
Summary of Contents for Lopi Evergreen
- Page 1 Evergreen Wood Stove Owner's Manual Freestanding Stove Hearth-Stove Approved Save these instructions for future reference SAFETY NOTICE: If this appliance is not properly installed, a house fire may result. For your safety, follow the installation directions. Contact local building or fire officials about restrictions and installation inspection requirements in your area.
-
Page 2: Introduction
Introduction Introduction We welcome you as a new owner of a Lopi Evergreen wood-burning stove. In purchasing an Evergreen you have joined the growing ranks of concerned individuals whose selection of an energy system reflects both a concern for the environment and aesthetics. The Evergreen is one of the finest appliances the world over. -
Page 3: Table Of Contents
Table of Contents Ash Removal ..........20 Introduction ............2 Ash Pan .............. 20 Important Information ........2 Re-Loading the Stove ........22 Installation Options .......... 6 Overnight Burn ..........22 Features ............6 ... - Page 4 Safety Precautions The viewing door must be Gasoline or other flammable closed and latched during liquids must never be used to operation. start the fire or "Freshen Up" the fire. Do not store or use Smoke from this appliance may gasoline or other flammable activate a smoke detector when liquids in the vicinity of this...
- Page 5 Safety Precautions Do not place clothing or other flammable items on or near this appliance. Never try to repair or replace This wood heater has a any part of this appliance unless manufacturer-set minimum low instructions are given in this burn rate that must not be manual.
-
Page 6: Installation Options
Features & Specifications Installation Options Features Freestanding 0.0577 cubic meter (2.04 Cubic Foot) Firebox Volume Optional GreenStart Igniter Single Operating Control High-Tech Blower Accepts Logs Up to 521mm (20.5") Long Steel Plate Construction (6.3mm & 4.7mm) ... -
Page 7: Planning The Installation
Stove Installation (for qualified installers only) SAFETY NOTICE: Please read this entire manual before you install and use your new room heater. Failure to follow instructions may result in property damage, bodily injury, or even death. Contact local building or fire officials about restrictions and installation inspection requirements in your area. -
Page 8: Floor Protection Requirements
Stove Installation (for qualified installers only) Floor Protection Requirements Floor protection must extend to the sides, rear, and front of the stove (see “Clearances” below for minimum floor protection). Floor protection must be non-combustible and have a thermal resistance equal to 9mm Bellis Board. Stove Placement Requirements Clearances may be reduced by methods specified in NFPA 211, listed wall shields, pipe shields, or other means approved by local building or fire officials. -
Page 9: Chimney Connector Requirements
Stove Installation (for qualified installers only) Chimney Connector Requirements Chimney connector is required from the flue collar of the stove to the factory-built chimney or masonry chimney. The chimney connector must be 152mm (6”) diameter and a minimum 24 gauge black steel, or one of the reduced-clearance connectors listed on page 8. -
Page 10: Chimney Requirements
Stove Installation (for qualified installers only) Chimney Requirements DO NOT CONNECT THIS UNIT TO A CHIMNEY FLUE SERVING ANOTHER APPLIANCE. DO NOT CONNECT TO OR USE IN CONJUNCTION WITH ANY AIR DISTRIBUTION DUCTWORK UNLESS SPECIFICALLY APPROVED FOR SUCH INSTALLATIONS ... -
Page 11: Chimney Termination Requirements
Stove Installation (for qualified installers only) Chimney Termination Requirements Must have an approved cap (to prevent water from entering) Must not be located where it will become plugged by snow or other material Must terminate at least 914mm (3') above the roof and at least 610mm (2') above any portion of the roof within 3.048 meters (10') (see Figure 2) Chimney must extend 2' Slanted Roofs... -
Page 12: Standard Ceiling With A Factory-Built Chimney
Stove Installation (for qualified installers only) Chimney Cap Standard Ceiling (See the section "Chimney with a Factory- Termination Requirements" Follow the chimney Built Chimney for more details) manufacturer's instructions and clearances for roof penetrations. A storm collar and flashing are required Chimney Sections (some require a radiation shield). -
Page 13: Exterior Factory-Built Chimney
Stove Installation (for qualified installers only) Exterior Factory-Built Chimney A vertical rise of 1.8796 meters (74”) of chimney connector is required, measured from the floor, before entering a Class ‘A’ wall penetration. For those wishing to pass the chimney through the lower wall, a NFPA 211 wall pass-through may be used (if approved by local building codes). -
Page 14: Hearth Stove Installation
Stove Installation (for qualified installers only) NOTE: The entire fireplace and Cap and flashing prevents Hearth Stove chimney must be clean, undamaged, water from entering. and meet all local building codes (UBC, Installation etc.). Damage must be repaired prior to installation. -
Page 15: Safety Notice
Operating Your Appliance Safety Notice If this appliance is not properly installed, a house fire may result. For your safety, follow the installation directions. Contact local building or fire officials about restrictions and installation inspection requirements in your area. Read and follow all of the warnings on pages 4 and 5 of this manual. Do not operate this stove with the ash pan door open. -
Page 16: Opening The Door
Operating Your Appliance Opening the Door The door becomes hot during use. Use a glove to open the door if the handle is hot. Do not operate this stove with the door open. A fire hazard will result. To prevent smoke from entering the room, open the air control and bypass (see instructions below) before opening the door. -
Page 17: Starting A Fire
Operating Your Appliance Starting a Fire Use of the optional GreenStart igniter will greatly simplify this process. See page 36. Since the dawn of time man has debated the best way to start a fire. Some use the boy-scout "tee-pee"; some prefer the "tic-tac-toe"... -
Page 18: Adjusting The Burn Rate
Operating Your Appliance Adjusting the Burn Rate Use the air control slider to control the burn rate of the stove. See the illustration below for details. Approximate Air Control Settings Overnight Burn Fully In Medium Low Burn 5mm Out Medium High Burn 10mm Out High Burn Fully Out... -
Page 19: Understanding Your Heater's Combustion System
Operating Your Appliance Understanding Your Heater’s Combustion System This heater uses a dual combustion system detailed below: Primary Combustion: This is the combustion (fire) that takes place directly on the wood. Primary combustion determines how fast the fire burns. Air for primary combustion is supplied through the air control. When you adjust the air control you control the amount of air that reaches the fire and creates primary combustion. -
Page 20: Ash Removal
Operating Your Appliance Ash Removal Whenever ashes get 76.2-101.6mm (3 to 4) inches deep in your firebox or ash pan, and when the fire has burned down and cooled, remove excess ashes. Leave an ash bed approximately 1 inch deep on the firebox bottom to help maintain a hot charcoal bed. Let the stove cool completely before removing ashes (wait at least two hours after the last coal has extinguished). - Page 21 Operating Your Appliance Ashpan Removal – Pedestal Version Pull on the left side of the pedestal to disengage the door from the magnet, then swing the door open. Slide the ashpan out and use the included handle and lifting rod to remove the ashpan. Ashpan Removal –...
-
Page 22: Re-Loading The Stove
Operating Your Appliance Re-Loading the Stove Follow the directions below to minimize smoke spillage while re-loading the stove. Open the air control all the way (pull it out). Open the bypass. Open the door slightly. Let the airflow inside the firebox to stabilize before opening the doors fully. Load wood onto the fire. -
Page 23: Hints For Burning
Operating Your Appliance Hints for Burning Get the appliance hot before adjusting to low burn Use smaller pieces of wood during start-up and high burns to increase temperature Use larger pieces of wood for overnight or sustained burns ... -
Page 24: Do Not Burn List
Operating Your Appliance Do Not Burn List This heater is designed to burn natural wood only. Higher efficiencies and lower emissions generally result when burning air dried seasoned hardwoods, as compared to softwoods or to green or freshly cut hardwoods. DO NOT BURN: (1) Garbage;... -
Page 25: Troubleshooting
Operating Your Appliance Troubleshooting Problem Possible Cause Smoke Enters Room During Open the bypass and air control (pg. 18). Start-Up Cold Air Blockage - burn a piece of newspaper to establish a draft. If the flame is not getting enough air, a small crack in the door is all that is needed. -
Page 26: Daily Maintenance (While Stove Is In Use)
Maintaining Your Appliance Failure to properly maintain and inspect your appliance may reduce the performance and life of the appliance, void your warranty, and create a fire hazard. Use only specified components. Use of unauthorized components may result in property damage, injury, or even death. Establish a routine for the fuel, wood burner and firing technique. -
Page 27: Monthly Maintenance (While Appliance Is In Use)
Maintaining Your Appliance Monthly Maintenance (while appliance is in use) Make sure the appliance has fully cooled prior to conducting service. Door and Glass Inspection The door must form an air-tight seal to the firebox for the stove to work correctly. Inspect the door gasket to make sure it forms an air-tight seal to the firebox. -
Page 28: Creosote - Formation And Need For Removal
Maintaining Your Appliance Creosote - Formation and Need for Removal When wood is burned slowly, it produces tar and other organic vapors, which combine with expelled moisture to form creosote. The creosote vapors condense in the relatively cool chimney flue of a slow- burning fire. -
Page 29: Door Parts
Maintaining Your Appliance Door Parts ID # Description Qty. Part # ID # Description Qty. Part # RTV High Temp. 600° Silicone 99900427 Glass 250-03605 Door Gasket 250-02832 Glass Gasket 99900405 Screws (8) 10-24 x ½” 250-03656 Door Handle Assy. 250-03606 Door Retainer 250-03657... -
Page 30: Firebox Parts
Maintaining Your Appliance Firebox Parts ID # Description Qty. Part # ID # Description Qty. Part # Secondary Air Tubes 98900247 Baffle Insulation Protectors 250-03659 Air Tube Pins 250-03658 Bypass Support 250-03594 Front Baffle Support 250-03597 Bypass Slider 250-03596 Baffle Plates (ceramic) 250-03598 Bypass Yoke 250-03590... -
Page 31: Air Tube Removal & Replacement
Maintaining Your Appliance Air Tube Removal & Replacement VIEW FROM THE FRONT VIEW FROM THE REAR Air Tube Air Channe Air Tube Bolt Air Tube Pin Air Channel Air Tube Bolt AIR TUBE REMOVAL TUBE SIZING Front = 25.4mm (1”) Hole Spacing Middle Front = 3.175mm (1/8”) Hole Spacing 3/8"... -
Page 32: Firebrick Removal & Replacement
Maintaining Your Appliance Firebrick Removal & Replacement Do not pry firebricks - they chip and crack easily. Remove the firebricks by lifting them out by the bottom edges as shown below (the photos do not show the side firebricks). Clean the firebox before replacing the firebricks. - Page 33 Limited 7 Year Warranty To register your Dragon Wholesaling 7 Year Warranty, complete the enclosed warranty card and mail it within ten (10) Australia days of the appliance purchase date to Dragon Wholesaling, Unit 4, 16 Lexington Drive, Bella Vista NSW 2153 .
-
Page 34: If Warranty Service Is Needed
Limited 7 Year Warranty CONDITIONS & EXCLUSIONS This new appliance must be installed by a qualified installer. It must be installed, operated, and maintained at all times in accordance with the instructions in the Owner’s Manual. Any alteration, willful abuse, accident, neglect, or misuse of the product shall nullify this warranty. 2. -
Page 35: Listing Label
Listing Information Listing Label LOPI EVERGREEN TESTED BY: HRL TECHNOLOGY Tramway Road, Morwell 3840 Victoria MAXIMUM AVERAGE HEAT OUTPUT BURNING HARDWOOD = 8.9 KW OVERALL AVERAGE EFFICIENCY BURNING HARDWOOD = 65% WHEN TESTED IN ACCORDANCE WITH AS/NZS 4012/4013 APPLIANCE EMISSION FACTOR BURNING HARDWOOD = 0.8 g/Kg TESTED TO: AS/NZS 4012/4013: 2014 Manufactured Exclusively for: DRAGON WHOLESALING PTY. -
Page 36: Optional Rear Blower (Part # 99000143)
Optional Equipment Optional Rear Blower (Part # 99000143A) A rear blower is available for your stove. This accessory pushes heated air into the room. Contact your dealer for details. GreenStart™Woodstove Igniter (Part # 94400951A) An optional GreenStart™ igniter is available for your stove. This accessory starts your fire with a simple push of the button. -
Page 37: Greenstart Igniter Installation Addendum
Optional Equipment GreenStart Igniter Installation Addendum This stove may use the optional GreenStart igniter. When installing, follow the instructions listed under the “Cape Cod” heading in the installation instructions included with the igniter. When installing, make sure to accommodate the following: (a) Pry out this cover plate on the back of the stove. - Page 38 Index Adjusting the Burn Rate ........18 Heating Specifications ........6 Air Tube Removal & Replacement ....31 Hints for Burning ..........23 Ash Pan ............20 Installation Options ..........6 Ash Removal ............ 20 Listing Label ............. 35 Baffle Removal & Replacement ....... 30 Monthly Maintenance ........
