VISIX Time of Flight Quick Start Guide | VX-VTOF-01
1 Part Names and Positions

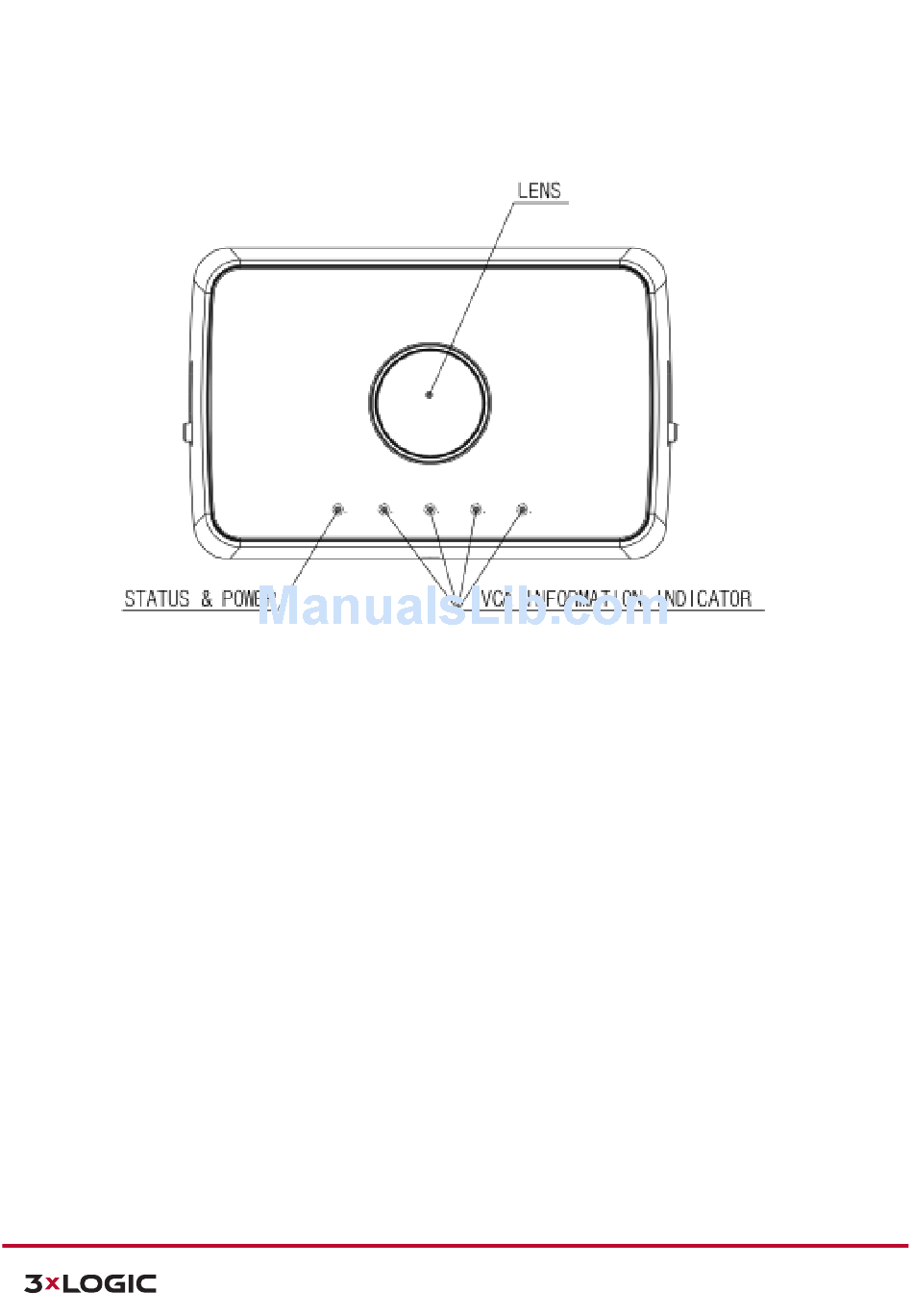

Please check names and positions of each part with the following image.
Lens: Lens is located inside the marked circle. It forms a 3D image
by working with the IR illuminators on its sides.
Status & Power LED: The light indicates whether it is powered on
and operating normally.
VCA Information Indicator
