LifeSpan ST-12 Owner's Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
OWNER'S MANUAL
IMPORTANT!
PLEASE READ THIS MANUAL CAREFULLY BEFORE USING THE BIKE

Advertisement

loading
Need help?

Need help?

Do you have a question about the ST-12 and is the answer not in the manual?

Questions and answers

Related Manuals for LifeSpan ST-12

Summary of Contents for LifeSpan ST-12

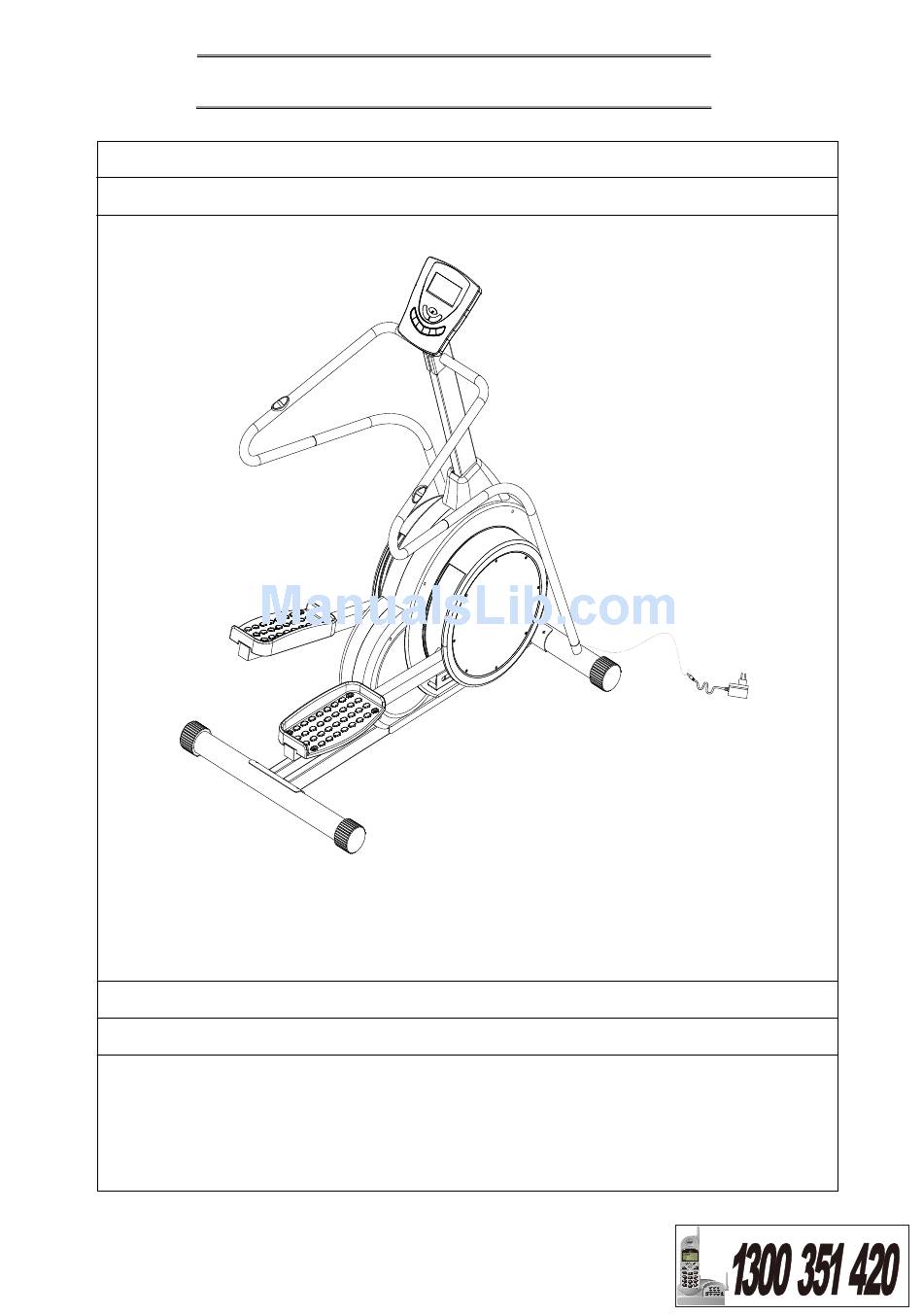

  • Page 1 OWNER’S MANUAL IMPORTANT! PLEASE READ THIS MANUAL CAREFULLY BEFORE USING THE BIKE...

  • Page 2: Important Safety Information

    Important Safety Information Please keep this manual in a safe place for easy reference. 1. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained and used properly.

  • Page 3: Explode View

    EXPLODE-VIEW:...
  • Page 4 EXPLODE-VIEW FOR THE CHAIN COVER:...
  • Page 5 ePARTS LIST NAME DESCRIPTION Q’TY Handlebar foam Φ30×Φ40×1240 Hand pulse Washer Φ12×d6×1.5 Bolt ST4.2×18 Handlebar Handlebar post join Bolt M8*57 Washer Φ16×d8×1.5 Middle handlebar Bolt M6*15 Washer Φ12×d6×1.5×R16 Bolt M4*12 Spring washer Front bottom tube Rolling End cap Φ76 Bolt M8*90 Arc-washer Φ20×d8.5×R40...
  • Page 6 Bolt M5*10 Sensor wire Tension wire M10x1.25 Bolt M6x40 U shape piece Flywheel Bearing 6000Z Idler Idler bracket Bolt M8*15*L5.5 Screw M8*23 Bolt M6x52 Bolt M8*15 Washer Φ30×d8×1.5 Bearing 6004Z Pedal tube Bolt M6*15 Spring washer Washer Φ30×d6×1.5 Transportation wheel Φ49×44.5 M10x1.0 Crank...
  • Page 7 Adapter Chain cover End cap Dial Bolt ST4*8 Bolt ST4.2*12 Bolt ST4.8*25 Washer ASSEMBLE: Decoration cover NAME Q’TY DESCRIPTION Wrench Wrench S=13、14、15 Decoration cover...
  • Page 8 Step 1: Lock front bottom tube (15) and rear bottom tube (25) to main frame (22) with bolt (17), washer (18), and nut (9).
  • Page 9 Step 2: Lock pedal (24) to L&R pedal tube (51L&R) with bolt (11).
  • Page 10 Step 3: Put handlebar post join (6) into decoration cover (19)，connect trunk wire（30b）to （31a） ， then lock handlebar post join (6) to main frame (22) with bolt (7), washer (8), nut (21), tighten handlebar post join with bolt (20), washer (8).
  • Page 11 Step 4: Lock middle handlebar (10L/R) to front bottom tube (15) with bolt (11), washer (12).，but do not tighten too closely；...
  • Page 12 Step 5: Lock handlebar(L/R) into middle handlebar（10L/R）with bolt（11）and washer（12） ，but do not tighten too closely；lock handlebar(L/R) to handlebar post join (6) with bolt(7),washer(8),spring washer(14) and nut(9).then tighten bolt(11) , including tighten bolt(11) in the step 4.
  • Page 13 Step 6: Connect computer wire (29) and trunk wire 1 (30a), lock computer (26) to computer bracket with bolt (13); connect hand pulse wire 2 (28) and hand pulse 1 (27), put hand pulse 1 (27) into computer. Please Note: ensure that all part are well fastened to avoid injury before use.

  • Page 14: Warranty Registration

    SERVICING: IF YOU FAIL TO COMPLY WITH LIFESPAN’S MAINTENANCE AND SERVICING STEPS ABOVE, YOU MAY VOID YOUR WARRANTY. IF YOU REQUIRE A SKILLED LIFESPAN REPRESENTATIVE TO UNDERTAKE ONE OF THE STEPS ABOVE, PLEASE EMAIL US AT lifespanfitness@hotmail.com.
