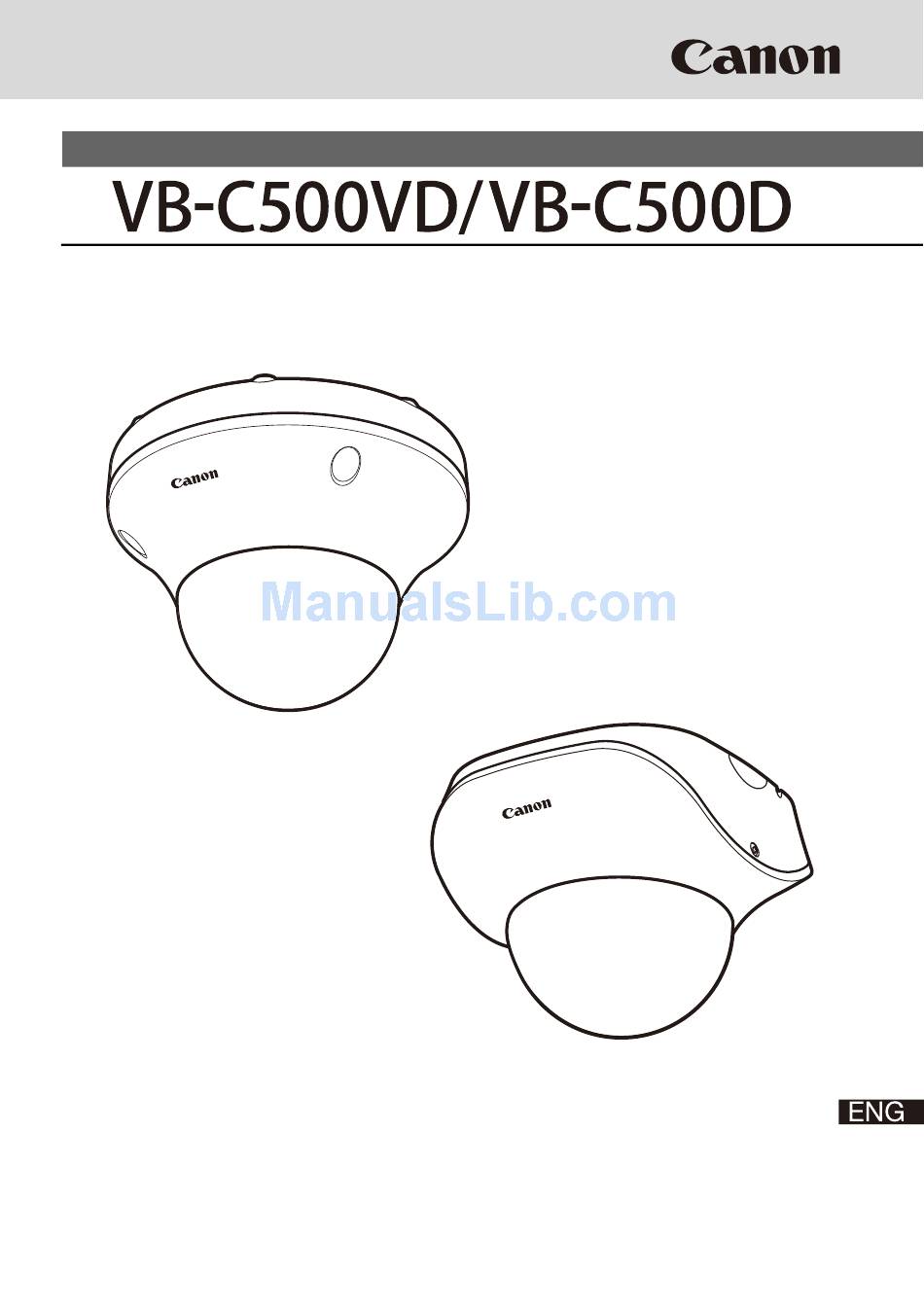

NETWORK CAMERA
Start Guide
Please read carefully Start Guide and the Operation Guide.
Especially be sure to read "Safety Precautions" before using the
network camera. Keep this guide in a readily accessible location
for future reference.

Advertisement

   Related Manuals for Canon VB-C500VD

   Summary of Contents for Canon VB-C500VD

  • Page 1: Network Camera

    NETWORK CAMERA Start Guide Please read carefully Start Guide and the Operation Guide. Especially be sure to read "Safety Precautions" before using the network camera. Keep this guide in a readily accessible location for future reference.

  • Page 2: Introduction

    Disclaimer To the full extent permitted by laws and regulations, neither Canon Inc. nor any of its subsidiaries or affiliates shall be responsible for any financial losses that may be incurred as a result of the loss of recorded information or images, regardless of the internal or external cause of the loss.

  • Page 3

    3. This document has been prepared with utmost attention to accuracy. If you have any comment, however, please contact the Customer Service Center indicated on the back cover. 4. Canon shall assume no liability for any outcome of using this product, regardless of Items 2 and 3 above.

  • Page 4: Trademark Notice

    Malfunction, failure of RM-Lite or other factors may cause problems, such as recording failure, recorded data corruption or loss. Canon shall have no liability whatsoever for any loss or damages incurred by the user as a result of such problems.

  • Page 5

    For more information about the recycling of this product, please contact your local city office, waste authority, approved scheme or your household waste disposal service or visit www.canon-europe.com/weee. (EEA: Norway, Iceland and Liechtenstein) MPEG-4 NOTICE ABOUT THE MPEG-4 VISUAL STANDARD: THIS PRODUCT IS LICENSED UNDER...

  • Page 6: Open Source Software

    Introduction Open Source Software The product (VB-C500VD/VB-C500D and bundled RM-Lite Viewer) contains Open Source Software modules. See OpenSourceSoftware.pdf on the bundled Setup CD-ROM for details. Each module’s license conditions are also available in the License folder on the same Setup CD-ROM.

  • Page 7: Table Of Contents

    Symbols Used for Safety Precautions ............... xi Safety Precautions .................xii Maintenance ....................xvii Chapter 1 Before Use Features of VB-C500VD/VB-C500D ............ 1-2 Bundled Software ................. 1-5 VB Initial Setting Tool ..................1-5 VBAdmin Tools ....................1-5 VB-C500 Viewer ..................... 1-6 Network Video Recording Software RM-Lite ..........

  • Page 8

    Installation Procedure for Direct Mounting on a Ceiling/Wall ....... 2-16 Installation Procedure for In-Ceiling with a Ceiling/Wall ......2-27 Chapter 3 Appendix External Dimensions ................3-2 VB-C500VD ....................3-2 VB-C500VD/VB-C500D .................. 3-3 Recessed Mounting Kit SR500-S-VB (Option) ..........3-3 Main Specifications ................3-4 Input/Output Terminals ................ 3-6 External Device I/O Terminals ................

  • Page 9: Checking Of Bundled Items

    : Installer for Network Video Recording Software RM-Lite* LICENSE : Folder containing various license information BundledSoftware : Folder containing license provisions for VB-C500VD/VB-C500D built-in software* OpenSourceSoftware : Folder containing license provisions for bundled software* SOUND : Folder containing sample audio files...

  • Page 10: Operation Manuals

    The VB-C500VD/VB-C500D comes with Start Guide (this document) and Operation Guide included in the Setup CD-ROM. Start Guide (This Document) The safety precautions to be followed when using the VB-C500VD/VB-C500D, types of bundled software, operating environment, installation method, initial setting of the camera, etc., are explained.

  • Page 11: How To Read This Document

    How to Read This Document The screenshots used in the Start Guide and Operation Guide are mainly from Windows Vista and Windows 7. Unless otherwise specified, the same screens apply for other operating systems. Symbols Used for Safety Precautions In this document, the following symbols are used to indicate important items the user should know to use this product safely.

  • Page 12: Safety Precautions

    Safety Precautions The following explains the items that must be observed when using the VB-C500VD/VB-C500D. If they are not observed, injury, death and/or property damage may occur. Read the following information carefully and observe the instructions without fail. Important Warnings CAUTION TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK).

  • Page 13

    If such changes or modifications should be made, you could be required to stop operation of the equipment. Canon U.S.A., Inc. One Canon Park, Melville, New York 11747, U.S.A. Tel No. 1-800-OK-CANON (1-800-652-2666) Canadian Radio Interference Regulations This Class B digital apparatus complies with Canadian ICES-003.

  • Page 14: Precautions For Installation

    • Do not install the VB-C500VD/VB-C500D on the uneven, inclined, or other unstable surface. • (VB-C500VD) Do not install the network camera to the place where is not strong enough or where is easily affected by vibration. Otherwise, the vandal resistant feature may not be made the best use of.

  • Page 15: Precautions For Use

    Canon will assume no liability for any accident or damage resulting from use of the VB-C500VD/VB-C500D in the aforementioned devices or systems. • Do not capture the sun, halogen lamps and other very bright light sources or subjects.

  • Page 16

    These are support functions for monitoring. They do not guarantee monitoring with very high accuracy, however, as they might not work as accurately as expected under certain conditions. Canon will assume no liability for any accident or damage resulting from use of these functions.

  • Page 17: Maintenance

    Safety Precautions Maintenance Turn off the power before cleaning the camera ( P. 2-7). Cleaning of Exterior 1. Dampen a soft cloth with water or diluted neutral detergent and wipe the soiled areas gently. 2. Wipe with a dry cloth. Cleaning of Lens Use a commercial lens cleaner to remove soiling on the lens surface.

  • Page 18

    Safety Precautions xviii...

  • Page 19: Before Use

    Before Use The following explains the features of this camera, bundled software, operating environment, and name and function of each part.

  • Page 20: Features Of Vb-c500vd/vb-c500d

    The VB-C500VD incorporates alloyed aluminum and polycarbonate plastics of 3.5 mm thickness on its exterior. In addition, the VB-C500VD's body has a mechanism that helps it absorb shocks during impacts. Special screws used in the VB-C500VD's dome case are hard to loosen, making it more difficult for the VB-C500VD to be tampered with.

  • Page 21

    In JPEG, image can be distributed in three sizes (640x480, 320x240, 160x120) at the same time. High Quality Video of Moving Subjects The VB-C500VD/VB-C500D utilizes a progressive-scan CCD to allow for the capture of noise- less, high quality video of moving subjects. Selectable Metering Modes for Various Shooting Conditions Image can be captured by switching the metering mode* to one of three options, including Center-weighted, Average and Spot, according to the shooting condition of the camera.

  • Page 22

    Features of VB-C500VD/VB-C500D Image Upload Function and Event Notification using E-Mail or Audio Events generated by the motion detection function or an external input device are used as triggers to upload images temporarily recorded in the camera to the specified location via FTP/HTTP/SMTP (e-mail), or for a notification to be sent via HTTP/SMTP (e-mail).

  • Page 23: Bundled Software

    VB Initial Setting Tool P. 2-10) Carries out initial settings for VB-C500VD/VB-C500D. It is installed from Setup CD-ROM P. 2-4). Users other than Administrators need not install this tool. VBAdmin Tools "Overview of VBAdmin Tools" in Operation Guide) VBAdmin Tools are for visually setting motion detection and for displaying logs taken by the camera.

  • Page 24: Vb-c500 Viewer

    VB-C500 Viewer "Overview of VB-C500 Viewer" in Operation Guide) VB-C500VD/VB-C500D Viewer is for displaying video captured by this camera and controlling the camera. User authority settings for [Administrator], [Authorized User], and [Guest User] can be made, and [Authorized User] and [Guest User] control privilege restrictions applied, on the VB-C500VD/VB-C500D setting page.

  • Page 25

    RM-Lite Storage Server RM-Lite Viewer For RM-Lite, following cameras can also be registered and used. Supported VB-M40, VB-M600VE, VB-M600D, VB-M700F, VB-C500VD/VB-C500D, cameras VB-C60, VB-C300, VB-C50i/VB-C50iR, VB-C50FSi, VB-C50Fi Note To add a RM-Lite Viewer, you need to purchase an optional RM-Lite Additional Viewer...

  • Page 26

    Bundled Software Key Functional Limitations of RM-Lite and RM-64/RM-25/RM-9 Features RM-Lite RM-64/RM-25/RM-9 Connecti Max. number of cameras 64/25/9 on to camera Storage Recording formats JPEG only JPEG, MPEG-4, H.264 Server Max. recording frame rate 5 fps 30 fps * Recording schedule Weekly schedule recording Weekly schedule recording Special Day schedule...

  • Page 27

    VB-C500 Viewer VB-C500VD / VB-C500D JPEG Microphone Network (sold separately) Audio Speaker Audio from the microphone connected to the VB-C500VD/VB-C500D can be listened from the viewer speaker. RM-Lite Viewer Audio Transmission/Reception (Two-way Communication) RM-Lite Viewer VB-C500VD / VB-C500D JPEG/MPEG-4 Microphone...

  • Page 28: Operating Environment

    Operating Environment For the latest information on this product (firmware, bundled software, operation manuals, operating environment, etc.), visit our website. VB Initial Setting Tool, VBAdmin Tools, VB-C500 Viewer Windows XP Home Edition/Professional SP3 32bit Windows Server 2003 Standard SP2 32bit Windows Server 2003 R2 Standard SP2 32bit Windows Vista Ultimate/Business/Enterprise/Home Premium SP1 32/64bit Windows Vista Ultimate/Business/Enterprise/Home Premium SP2 32/64bit...

  • Page 29: Network Video Recording Software Rm-lite

    Operating Environment Network Video Recording Software RM-Lite Intel XEON 3060 2.4 GHz, Intel Core 2 Duo 2.4 GHz or higher, or an Intel CPU of equivalent class that meets the following requirements. Clock: 2.4 GHz or higher L2 cache: 4 MB or higher Core count: 2 or more Windows Server 2003 R2 Standard SP2 32bit Windows Vista Ultimate/Business/Enterprise/Home Premium SP2 32/64bit...

  • Page 30: Notes On Operating Environment

    Notes on Operating Environment Notes on Use When the [Windows Firewall] Function is Enabled When [VB Initial Setting Tool] is started, the [Windows Security Alert] dialog box may appear. If the [Windows Security Alert] dialog box appeared, click [Unblock]. Once this button is clicked, this warning dialog box will no longer appear. If the [Windows Security Alert] dialog box is not displayed, the warning function of the Windows firewall may be disabled.

  • Page 31: Notes On Use With Windows Server 2003/windows Server 2008

    Notes on Operating Environment 3. The [Add a Program] dialog box appears. Click [VB Initial Setting Tool], and then click [OK]. Notes on Use with Windows Server 2003/Windows Server 2008 Registering the Camera's Top page as a Trusted Site In Windows Server 2003 and Windows Server 2008, the security level for Internet sites and intranet sites on Internet Explorer is set to [High] by default.

  • Page 32

    Clear the [Require server verification (https:) for all sites in this zone] check box, if currently selected. 3. Enter the IP address of the VB-C500VD/VB-C500D under [Add this Web site to the zone], and then click [Add]. For details on registering trusted sites, click the [Learn more about Internet Explorer's Enhanced Security Configuration...] in the dialog box in step 1 and see the displayed...

  • Page 33: Notes On Use With Windows Server 2008

    Notes on Operating Environment 3. Click [Trusted sites], and then click [Sites]. The [Trusted sites] dialog box appears. This completes the process of registering the camera's top page as a trusted site. Notes on Use with Windows Server 2008 Enabling the Sound Function to Use Audio In Windows Server 2008, the sound function is disabled by default.

  • Page 34

    Notes on Operating Environment If [Control Panel] is displayed in a classic view, double-click [Sound]. 2. Click [Sound]. 3. An [Audio Service Not Running] message appears. Click [Yes]. 4. The [Sound] dialog box appears. Click the [Playback] tab to confirm that an audio device has been installed.

  • Page 35: Notes On Use With Windows Vista Or Later

    Notes on Operating Environment Notes on Use with Windows Vista or Later The following restrictions apply when the VB-C500VD/VB-C500D is used with Windows Vista or later operating systems. Video Storage Folder Do not specify the Windows folder or Program Files folder on the system drive as the folder for storing snapshots and specified video files.

  • Page 36: Name And Function Of Each Part

    Notes on Operating Environment Name and Function of Each Part Dome Case/Inner Cover/Camera Interior VB - C500VD VB - C500D (1) Dome case (5) Zoom adjustment knob (2) Inner cover (6) Rotation lock screw (3) Varifocal lens (7) Pan lock screw Horizontal viewing angle 82°...

  • Page 37

    (14) (15) (16) (13) (10) Reset switch (14) Zoom lock screw (VB-C500VD only) Turn on the power while pushing this Locks the zoom adjustment knob to the switch. Continue to push the switch for set position. 5 seconds or more to restore all factory (15) Zoom lock plate (VB-C500VD only) settings except for the date and time.

  • Page 38

    Notes on Operating Environment Bottom The serial number and the MAC address required for network settings are specified on the bottom of the camera. Write down these information before installing the camera. VB - C500VD VB - C500D (17) (17) (18) (19) (19)

  • Page 39: Optional Items

    Optional Items Purchase optional items separately as necessary. Audio Interface Cable WA500-VB Use this interface cable (UL VW-1 Cable) to connect the camera to an audio input/output device (speaker, microphone, etc.). Cable marker The long end (has cable marker) from the bifurcation point in the cable corresponds to the audio output terminal.

  • Page 40: I/o Interface Cable Wc500-vb

    Optional Items I/O Interface Cable WC500-VB Use this interface cable (UL VW-1 Cable) to connect the camera to a contact input/output device (sensor, warning lamp, etc.). For details, see "External Device I/O Terminals" ( P. 3-6). Power Interface Cable WP500-VB Use this interface cable (UL VW-1 Cable) to connect the camera to an optional AC adapter (PA-V17/PA-V18) or external power supply.

  • Page 41: Recessed Mounting Kit Sr500-s-vb

    Optional Items Recessed Mounting Kit SR500-S-VB The Recessed Mounting Kit is a dedicated option for VB-C500VD/VB-C500D. Use example AC Adapter PA-V17/PA-V18 Use this adapter when a PoE HUB or external power supply is not used. RM-Lite Additional Viewer License RM-Lite Additional Viewer License is an additional license needed to install RM-Lite Viewer to each PC.

  • Page 42: Network Video Recording Software Rm-64/rm-25/rm-9

    Example of RM-64/RM-25/RM-9 Viewer screen The VB-C500VD/VB-C500D can also be used with Network Video Recorder VK-series v2.0 or later. However, the RM-series and VK-series are not compatible with each other. This camera comes with RM-Lite, which is a simplified version of RM-64/RM-25/RM-9 ( 1-6).

  • Page 43: Initial Setting And Installation Of Camera

    Initial Setting and Installation of Camera The following explains how to install the camera. First, install the necessary software from the bundled Setup CD-ROM. Next, connect the camera to the network and perform initial setting of the camera. Check the video using VB-C500 Viewer, and then install the camera.

  • Page 44: Flow Of Setup

    Step 2 Connect the camera to the network Connect the VB-C500VD/VB-C500D and PC to the network ( P. 2-6). If a PoE HUB or Midspan is used, consult your Canon sales representative. VB - C500D LAN cable PoE HUB The figure shows an example of connection via a PoE HUB.

  • Page 45: Install The Camera

    Start VB Initial Setting Tool and perform initial setting of the camera ( P. 2-10). Check the image using VB-C500 Viewer ( P. 2-13). VB-C500 Viewer VB Initial Setting Tool window Step 4 Install the camera Install the VB-C500VD/VB-C500D securely ( P. 2-15).

  • Page 46: Step 1 Install The Software

    Step 1 Install the Software Install the Necessary Software First, install the necessary software from the bundled Setup CD-ROM ( P. 1-5). Software for Initial Setting and Management of the Camera Type Overview VB Initial Setting This software is used to configure initial camera settings ( P. 2-10). Tool Users other than Administrators need not install this tool.

  • Page 47

    Step 1 Install the Software Install VB Initial Setting Tool, which is required for the inital setting of the camera. 1. Insert Setup CD-ROM bundled with the camera in the CD-ROM drive of the PC, and perform the following procedure. (1) After confirming that all other applications have been closed, click the [Start] menu and then select [My Computer].

  • Page 48: Step 2 Connect The Camera To The Network

    Here, an example of connecting one camera to a PC via a HUB is explained. VB-C500VD/VB-C500D has built-in PoE (Power over Ethernet). The power can be supplied to the camera, via a LAN cable, from a PoE HUB conforming to IEEE 802.3af.

  • Page 49

    The power interface cable can be connected with no polarity. This camera has no power switch. If the power is supplied by the PoE via a LAN cable on the VB-C500VD/VB-C500D, disconnect and connect the LAN cable to the HUB receiving the power, to turn the power [ON]/[OFF].

  • Page 50

    Step 2 Connect the Camera to the Network Note When turning off the power and then turning it back on, wait for at least 5 seconds before turning on the power. If the power is turned on too quickly, the camera may not operate correctly.

  • Page 51

    Step 2 Connect the Camera to the Network Use of External Power Supply An AC adapter, or 12-VDC or 24-VAC input can be used for the external power supply. Connect the bundled power interface cable (WP500-VB) as shown below. Screwdriver Tightening torque: 0.4N·m (3.54lbf·in) (max.) Stripping length...

  • Page 52: Step 3 Perform Initial Setting Of The Camera

    Step 3 Perform Initial Setting of the Camera Perform Initial Setting of the Camera Set the network for the VB-C500VD/VB-C500D using VB Initial Setting Tool. 1. Launches VB Initial Setting Tool. Double-click the [VB Initial Setting Tool] icon on the desktop.

  • Page 53

    Step 3 Perform Initial Setting of the Camera 3. Enter the user name "root" and default password "camera," and then enter the IP address and subnet mask you want to set. If the default gateway is not set, clear the [Enter a default gateway address] check box. When the setting is complete, click [OK].

  • Page 54

    Step 3 Perform Initial Setting of the Camera Note To obtain an IP address from the DHCP server, first you need to set an address using VB Initial Setting Tool, which enables to communicate with the PC for setting. Then, change the [IP Address Setting] for LAN to [Auto (DHCP)] in [Network] in the Setting page.

  • Page 55: Check The Video Captured By The Camera

    Step 3 Perform Initial Setting of the Camera Check the Video Captured by the Camera When the initial setting is complete, check the video captured by the camera using VB-C500 Viewer. At this time, set the network options on the PC according to the IP address and subnet mask set in the camera.

  • Page 56

    Step 3 Perform Initial Setting of the Camera 3. The viewer starts and video captured by the camera is displayed. Note Clicking [Setting Page] or [Admin Viewer] on the top page of the camera displays each user authentication window. The factory default user name and password are as follows: User name: root Password: camera Authentication Window Accessed via Authentication Window Accessed via...

  • Page 57: Step 4 Install The Camera

    • Do not install the VB-C500VD/VB-C500D on the uneven, inclined, or other unstable surface. • (VB-C500VD) Do not install the network camera to the place where is not strong enough or where is easily affected by vibration. Otherwise, the vandal resistant feature may not be made the best use of.

  • Page 58: Installation Procedure For Direct Mounting On A Ceiling/wall

    LAN cable Connect to the network Ceiling board VB-C500VD/VB-C500D * The figure shows VB-C500D. 1. Use the bundled template to determine the installation position of the camera. Confirm the capturing direction of the camera and determine the positions of camera mounting screws, as well as wiring holes if necessary, using the supplied template.

  • Page 59

    Step 4 Install the Camera 2. Remove the dome case. VB-C500VD Loosen the three dome case lock screws using the bundled dome case lock screw wrench. VB-C500D Loosen the two dome case lock screws on the side face of the camera. Loosen the screws until they are sticking out.

  • Page 60

    Step 4 Install the Camera 4. Affix the safety wire to the camera and also to the installation location (anchor or structure in the ceiling, etc.). * The figure shows VB-C500D. Note The wire direction is different depending on how the camera is installed. 5.

  • Page 61

    Step 4 Install the Camera VB-C500VD Concealing the Wiring in a Ceiling Cut out the tabs on the cable cover. Guide the interface cables through as in the figure below, and affix the cable cover with a screw. I/O interface cable Cut out the tabs.

  • Page 62

    Step 4 Install the Camera Note Affix each interface cable in the specified groove, as shown below. If the cable is not properly installed, it may come off and cause the camera to malfunction. Affixing groove for cable Affixing groove for cable Affixing groove for cable Power Audio...

  • Page 63

    Step 4 Install the Camera VB-C500D Concealing the Wiring in a Ceiling Cut out the tabs. Guide the interface cables through the groove as in the figure below, and affix the cable cover with a screw. I/O interface cable Cut out the tabs. Audio interface Power interface cable...

  • Page 64

    Step 4 Install the Camera Wiring on a Ceiling Cut out the side face of the cable cover with the V-shaped groove. Guide the interface cables out towards the side face of the camera, and affix the cable cover with a screw. Cut out the Cut out the side face of the cover.

  • Page 65

    Step 4 Install the Camera 6. Connect the LAN cable, and also connect each external device using a cable. Connect the LAN cable that has been guided through the wiring hole, to the LAN cable on the camera side. If necessary, connect the audio, I/O or power interface cable to each external device. 7.

  • Page 66

    Adjust the focus by moving the focus ring. When all adjustments are complete, tighten the zoom lock screw and focus lock screw to lock the focus and viewing angle. * The zoom lock screw operation applies to VB-C500VD only. Zoom adjustment knob Zoom lock screw...

  • Page 67

    Step 4 Install the Camera Focus Adjustment Method To adjust the focus, press the reset switch to enter the installation mode. Accurate focus adjustment can be performed in the installation mode. Also note that video output is enabled in the installation mode. Procedure •...

  • Page 68

    Step 4 Install the Camera 11. Install the inner cover. VB-C500VD Remove the damper lock plate. 12. Place the dome case on the camera, and affix it by tightening the dome case lock screws. 2-26...

  • Page 69: Installation Procedure For In-ceiling With A Ceiling/wall

    In-Ceiling bracket Backside ceiling bracket Recessed Mounting Cover Ceiling board VB-C500VD/VB-C500D * The figure shows VB-C500D. To install the camera inserted into a ceiling/wall, use an Recessed Mounting Kit SR500-S-VB (optional). Assemble the in-ceiling bracket before installation. See Recessed Mounting Kit SR-500-S-VB Assembly Instructions, which is supplied with the Recessed Mounting Kit, for assembly instructions.

  • Page 70

    Step 4 Install the Camera 2. Use the In-Ceiling Template supplied with the Recessed Mounting Kit to determine the installation position of the camera. Confirm the camera angle, and then use the supplied template to open screw holes for the Backside Ceiling Bracket and in-ceiling bracket.

  • Page 71

    6. Adjust the camera angle and focus in the same manner as in steps 8 to 12 of "Installation Procedure for Direct Mounting on a Ceiling/Wall", and install the dome case. VB-C500VD Remove the damper lock plate before installing the dome case.

  • Page 72

    Step 4 Install the Camera 7. Install the recessed mounting cover. Align the mark ( ) on the recessed mounting cover with the mark (I) on the in-ceiling bracket, and turn the cover clockwise up until the mark (I) on the recessed mounting cover to affix the bracket in position.

  • Page 73: Chapter 3 Appendix

    Appendix This section explains the external dimensions, specifications, external device input/output terminals, audio input/output terminals, etc.

  • Page 74: External Dimensions

    External Dimensions VB-C500VD Bottom 4- 4.6mm (0.16- 0.18 in) 76mm (2.99 in)

  • Page 75: Vb-c500vd/vb-c500d

    External Dimensions VB-C500VD/VB-C500D Bottom 4- 4.6mm 148mm (5.83 in) (0.16- 0.18 in) 110mm (4.33 in) Recessed Mounting Kit SR500-S-VB (Option) 3- 5.0mm (0.12- 0.20 in) 98mm (3.86 in) 8-M4.0mm (0.31-M0.16 in) 76mm (2.99 in) 110mm (4.33 in)

  • Page 76: Main Specifications

    IPv4 : TCP/IP, UDP, HTTP, FTP, SNMP (MIB2), SMTP (client), DHCP (client), DNS (client), ARP, ICMP, POP3, NTP, SMTP authentication, WV-HTTP (Canon's original protocol) Protocol IPv6 : TCP/IP, UDP, HTTP, FTP, SMTP (client), DNS (client), ICMPv6, POP3, NTP, SMTP...

  • Page 77

    Exterior materials: alloyed aluminum, polycarbonate plastics Shock shock absorbing mechanism None resistance Estimated shock resistant: 50J (impact strength) specifications * Based on Canon's test method AC adapter (option) Model PA-V17 PA-V18 Input 100-240 V AC, 50/60 Hz 100-240 V AC, 50/60 Hz 13 V DC, max.

  • Page 78: Input/output Terminals

    Input/Output Terminals The various input/output terminals of the camera are located inside the cable cover at the bottom of the camera. To connect the camera to an audio input/output device, contact input/output device, AC adapter or external power supply, use dedicated interface cables. All interface cables come with dedicated terminals for connection with the camera.

  • Page 79

    Input/Output Terminals Color of spare Type of corresponding Color of spare Type of corresponding wire terminal wire terminal Black OUT2_B Yellow IN2_- Brown OUT2_A Green IN2_+ OUT1_B Blue IN1_- Orange OUT1_A White IN1_+ External Device Input Terminals (IN1, IN2) There are two sets of external device input terminals (IN1, IN2), where each set consists of two terminals.

  • Page 80: Audio Input/output Terminals

    Input/Output Terminals Internal Connection Diagram +3.3V Ω Ω Ω External device Input terminal: µ IN1, IN2 External Output terminal: device OUT1, OUT2 Applicable wire for external device cable Single wire of AWG No. 28 to 22 Conductor size Φ0.32 to 0.65 mm (Φ0.013 to 0.026 in) Strip the cable by approx.

  • Page 81

    Input/Output Terminals Audio Input, Used as Both LINE IN and MIC IN (Monaural Input) Connects the camera to a microphone. As for audio input of this camera, two types of microphones, LINE IN and MIC IN types, are supported. Note that the camera only has one audio input.

  • Page 82

    Input/Output Terminals Note Switch the LINE IN/MIC IN setting on the Setting page according to the microphone specification. See "Audio Input" ( Operation Guide). If a wrong input is used, the camera or microphone may be damaged. Be sure to set the correct input.

  • Page 83

    Input/Output Terminals 3-11...

  • Page 84

    CANON INC. CANON EUROPA N.V. 30-2, Shimomaruko 3-chome, Ohta-ku, Tokyo Bovenkerkerweg 59, 1185 XB Amstelveen, 146-8501, Japan The Netherlands YT1-1421-002 © CANON INC. 2013...
