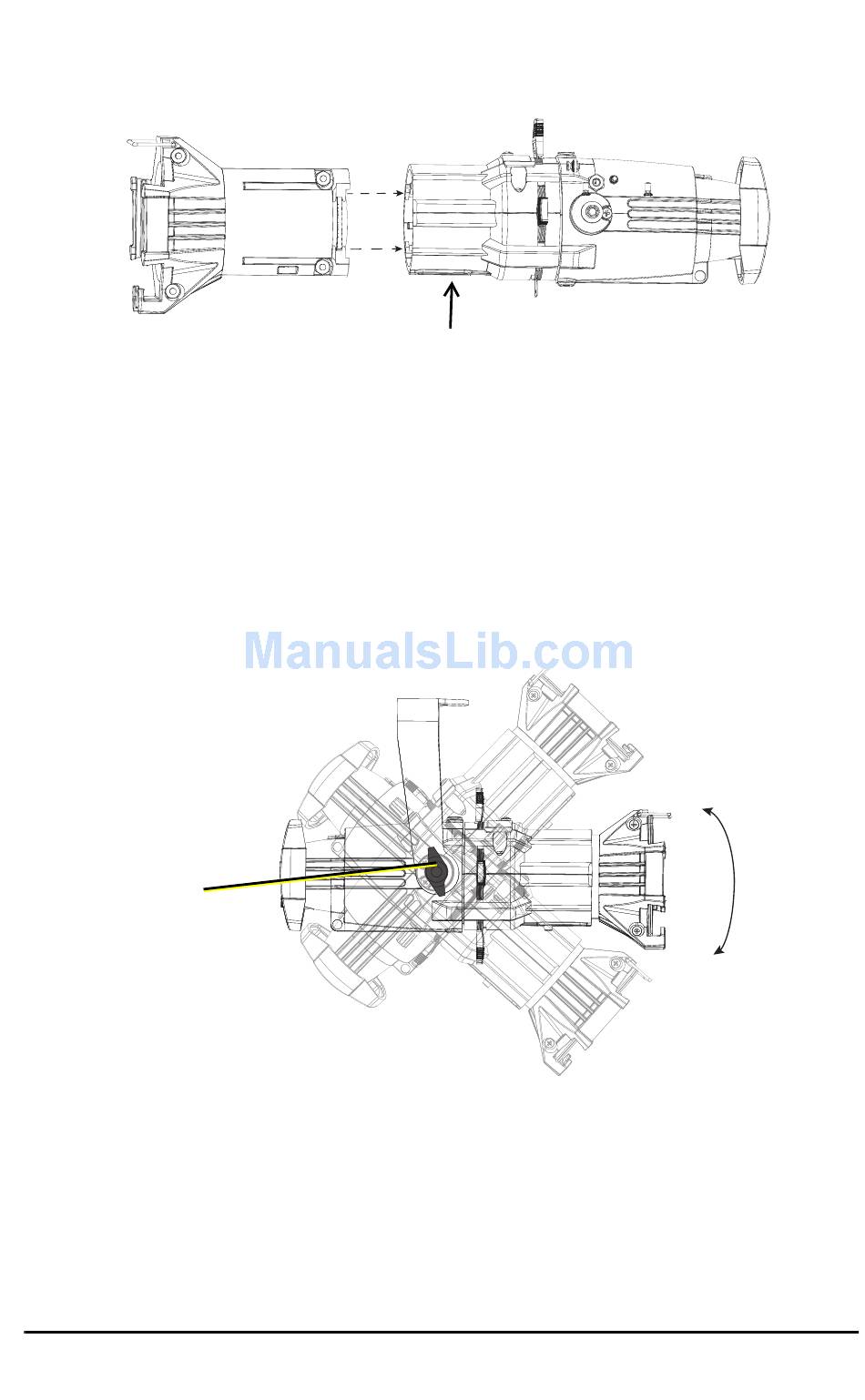

Install Lens Tube

A lens tube must be installed prior to use of the Source Four Mini LED. There

are four lens tube sizes available; 19°, 26°, 36°, and 50°.

Step 1:

Step 2:

Step 3:

Adj usting the yoke position

The Source Four Mini LED provides multi-positioning capabilities within its

yoke for overall fixture angle.

Setting the angl e with the yoke

Yoke locking

knob

Step 1:

Step 2:

Step 3:

ETC User Manual

Beam focus knob

Unscrew the beam focus knob from the loose lens tube.

Slide the lens tube into the shutter barrel.

Install the beam focus knob.

Loosen the yoke locking knob. Do not remove the knob.

Tilt the fixture to the desired position.

Tighten the yoke locking knob to secure position.
