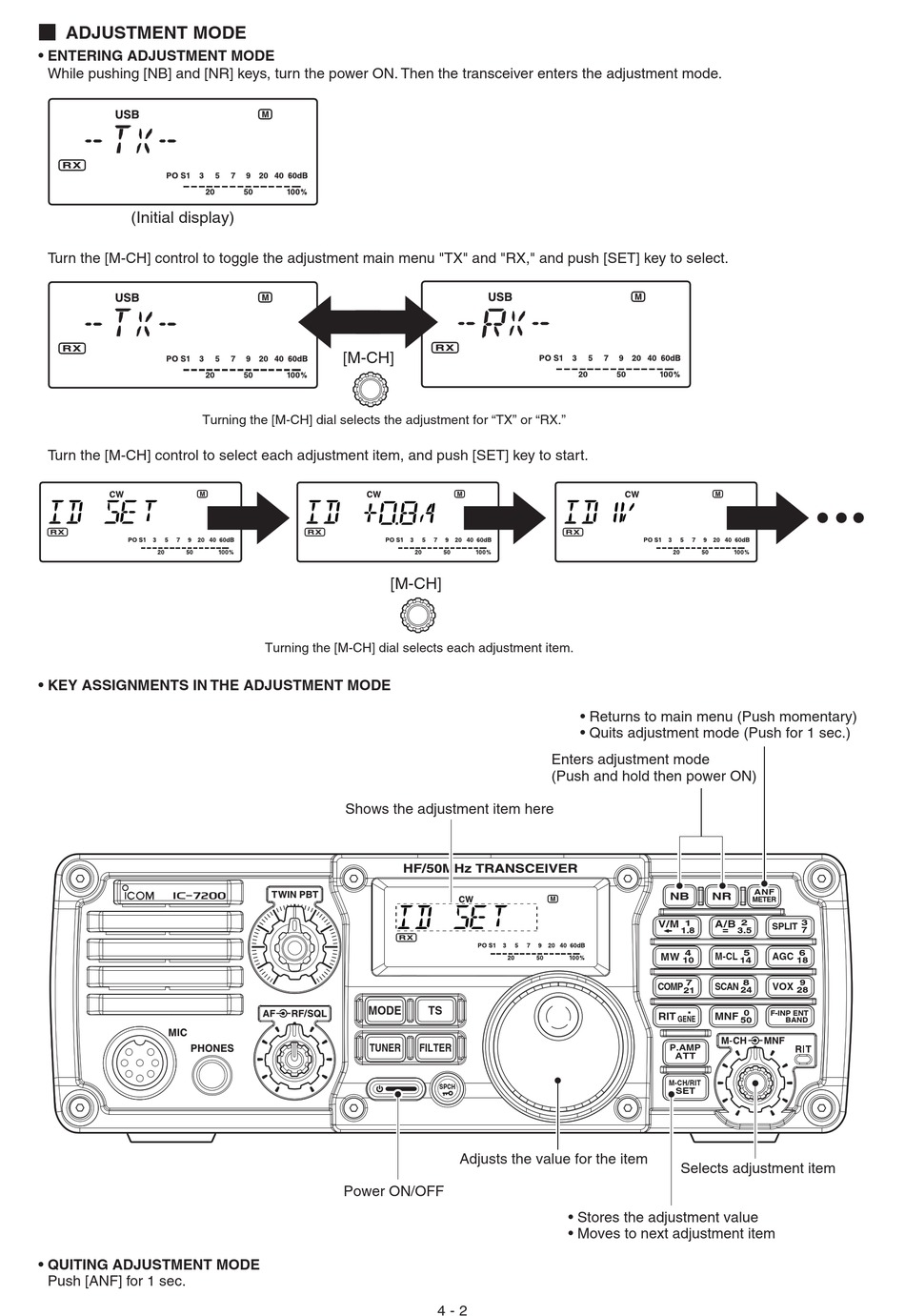

¤ ADJUSTMENT MODE
• ENTERING ADJUSTMENT MODE
While pushing [NB] and [NR] keys, turn the power ON. Then the transceiver enters the adjustment mode.
(Initial display)
Turn the [M-CH] control to toggle the adjustment main menu "TX" and "RX," and push [SET] key to select.
Turning the [M-CH] dial selects the adjustment for "TX" or "RX."
Turn the [M-CH] control to select each adjustment item, and push [SET] key to start.
• KEY ASSIGNMENTS IN THE ADJUSTMENT MODE
• QUITING ADJUSTMENT MODE
Push [ANF] for 1 sec.
[M-CH]
[M-CH]
Turning the [M-CH] dial selects each adjustment item.
Shows the adjustment item here
TS
MODE
TUNER FILTER
Power ON/OFF
• Returns to main menu (Push momentary)
• Quits adjustment mode (Push for 1 sec.)
Enters adjustment mode
(Push and hold then power ON)
SPCH
Adjusts the value for the item
• Stores the adjustment value
• Moves to next adjustment item
4 - 2
ANF
NB NR
METER
1 2 3
V/M A/B
SPLIT
= 7
1.8 3.5
4 5 6
MW M-CL AGC
10 14 18
7 8 9
COMP SCAN VOX
21 24 28
.
0
F-INP ENT
RIT MNF
GENE
50 BAND
P.AMP
ATT
M-CH/RIT
SET
Selects adjustment item
