Icom IC-7200 Service Manual page 113

[MIC BOARD] (MC)
REF ORDER
NO. NO.
J1 6510000191 FM214-8SS (P)-1
J2* 6510019971 52808-1071
[PHONE] (PH)
REF ORDER
NO. NO.
J1 6510023891 S-G4617#01F
J2* 6510019971 52808-1071
[VR-A BOARD] (VA)
REF ORDER
NO. NO.
R1 7210002910 RV-310 (RK0972210 10KB/10KB)
R2 7210002960 RV-313 (RK0972210 10KB/10KB) *
J1* 6510026670 IMSA-6281S-06A-G
[VR-B BOARD] (VB)
REF ORDER
NO. NO.
J1* 6510020711 52793-1070
S1 2250000640 TP96D96E20-22F-B103-3015
[LOGIC UNIT] (L)
REF ORDER
NO. NO.
J1* 6510018971 B4B-PH-SM4-TB (LF) (SN)
J3* 6510019971 52808-1071
J4* 6510019971 52808-1071
J5* 6510019971 52808-1071
J101* 6510024151 50FY-BMT-TB (LF) (SN)
J102* 6510024151 50FY-BMT-TB (LF) (SN)
J301* 6510019971 52808-1071
DS1 5030003090 S11325
EP2 8930076650 SRCN-3015-SP-N-W
MP1 8210024710 3015 REFLECTOR
MP2 8930074390 3015 LCD HOLDER
MP3 8930075470 3015 LCD FILTER
[MAIN UNIT] (M)
REF ORDER
NO. NO.
J1* 6510024151 50FY-BMT-TB (LF) (SN)
J2* 6510024151 50FY-BMT-TB (LF) (SN)
J4* 6510024151 50FY-BMT-TB (LF) (SN)
J5* 6510024151 50FY-BMT-TB (LF) (SN)
J6* 6510024151 50FY-BMT-TB (LF) (SN)
J7* 6510007020 TMP-J01X-V6
J8* 6450000140 HSJ0807-01-010
J9* 6450000140 HSJ0807-01-010
J11* 6510019971 52808-1071
J1531* 6510025840 AXN316C038P
J3201* 6510026540 UBB-4R-D14T-4D (LF) (SN)
J3203* 6510014961 B2B-ZR-SM4-TF (LF) (SN)
EP504* 6910002161 CASE-BM7H-LF
EP541* 6910002161 CASE-BM7H-LF
EP551* 6910002161 CASE-BM7H-LF
EP2561* 6910002161 CASE-BM7H-LF
EP2566* 6910002161 CASE-BM7H-LF
MP1 8930077690 3015 MAIN EARTH SPRING
MP1 8930077690 3015 MAIN EARTH SPRING
MP1 8930077690 3015 MAIN EARTH SPRING
MP1 8930077690 3015 MAIN EARTH SPRING
MP1 8930077690 3015 MAIN EARTH SPRING
MP1 8930077690 3015 MAIN EARTH SPRING
MP551 8930076610 3015 LS SPRING
MP581 8930057870 2429 EARTH SPRING
MP1521 8930070510 THERMALLY SHEET (BF)
MP2501* 8510015770 2590 DSP CASE
MP2541 8930070510 THERMALLY SHEET (BF)
MP2801* 8510015880 2590 S2LO CASE
MP3201 8930068000 SHIELD SPONGE (AT)
MP3201 8930068000 SHIELD SPONGE (AT)
MP3201 8930068000 SHIELD SPONGE (AT)
MP3201 8930068000 SHIELD SPONGE (AT)
MP3201 8930068000 SHIELD SPONGE (AT)
MP3201 8930068000 SHIELD SPONGE (AT)
MP3202 8930078630 FERRITE SHEET (AB)
DESCRIPTION QTY.
DESCRIPTION QTY.
DESCRIPTION QTY.
DESCRIPTION QTY.
DESCRIPTION QTY.
DESCRIPTION QTY.
[USA]
[EUR]
[FRA]
[ITR]
[ESP]
[EUR-01]
[USA]
[EUR]
[FRA]
[ITR]
[ESP]
[EUR-01]
[RF UNIT] (RF)
REF ORDER
NO. NO.
1 RL1 6330001721 ATN207-K1
1 RL501 6330001721 ATN207-K1
J5* 6510024151 50FY-BMT-TB (LF) (SN)
J6* 6510024151 50FY-BMT-TB (LF) (SN)
J7 6510007020 TMP-J01X-V6
J8 6510007020 TMP-J01X-V6
J10 6510007020 TMP-J01X-V6
J501 6450001641 TCS5044-0141177
J502 6450001130 JPJ2042-01-110
1 J503 6510023900 LGR4619-7000
1
MP1 8930075430 3015 ANT SPRING
[PA UNIT] (PA)
REF ORDER
NO. NO.
RL1 6330001600 ALD112
1
1
J4* 6510024151 50FY-BMT-TB (LF) (SN)
J8 6510007020 TMP-J01X-V6
1
J9 6510007020 TMP-J01X-V6
J12 6510001920 1490R
J13 6510009890 PD054-04M
J131* 6510014961 B2B-ZR-SM4-TF (LF) (SN)
J132* 6510014961 B2B-ZR-SM4-TF (LF) (SN)
F1 5220000400 FHA010-01F
F2 5210000940 1205
1
WS1 8600036641 SX2242 J12 13PA-1
W40 8900018210 OPC-1942
1
8900018220 OPC-1943
8900018220 OPC-1943
8900018220 OPC-1943
8900018220 OPC-1943
8900018220 OPC-1943
8900017860 OPC-1857
8900017860 OPC-1857
8900017860 OPC-1857
MP4 8930075440 3015 RUG SPRING
1
MP5 8930075440 3015 RUG SPRING
1
MP39 8930073470 THERMALLY SHEET (BK)
1
1
1
1

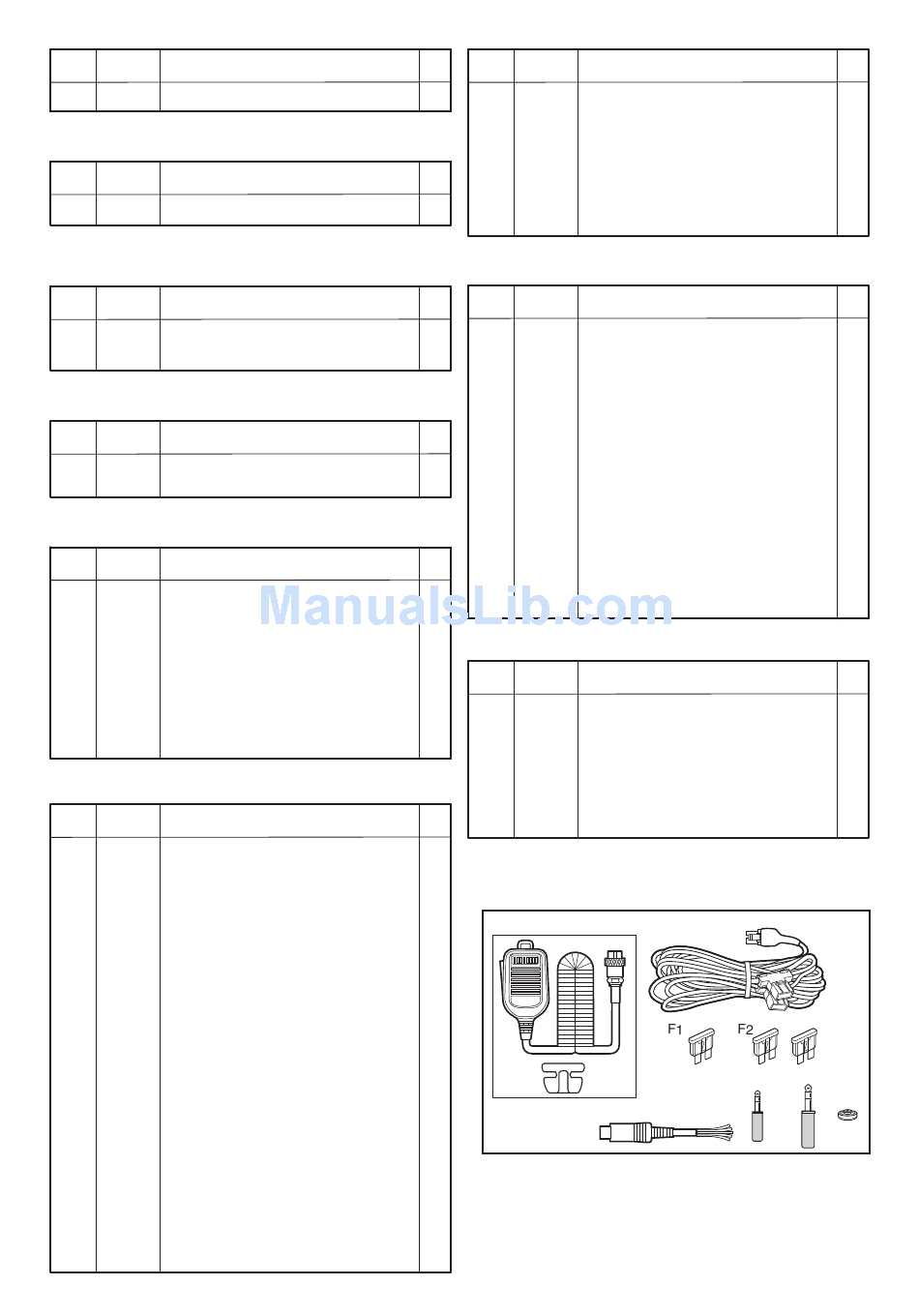

[ACCESSORIES]
1
REF ORDER
1
NO. NO.
2
P1 5610000410 AP-319
P2 5610000420 AP-338
1
†
1
MC1 – HM-36-1
1
F1 5210000840 ATC 30
F2 5210000940 1205
W1 8900013980 OPC-1457
W2 8900006110 OPC-596
MP2 8930076480 3015 JACK CAP
1 *: Refer to "BOARD LAYOUTS" for the location.
1
**: Refer to "GENERAL WIRING" for the location.
1
†
1 : Optional product.
1
1
1
1
MC1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
W2
1
1
1
1
1
1
1
1
1
1
1
1
1
1
6 - 2
DESCRIPTION QTY.
DESCRIPTION QTY.
[USA]
[EUR]
[FRA]
[ITR]
[ESP]
[EUR-01]
[KOR]
[CHN]
[EXP]
DESCRIPTION QTY.
W1
P1 P2
MP2
