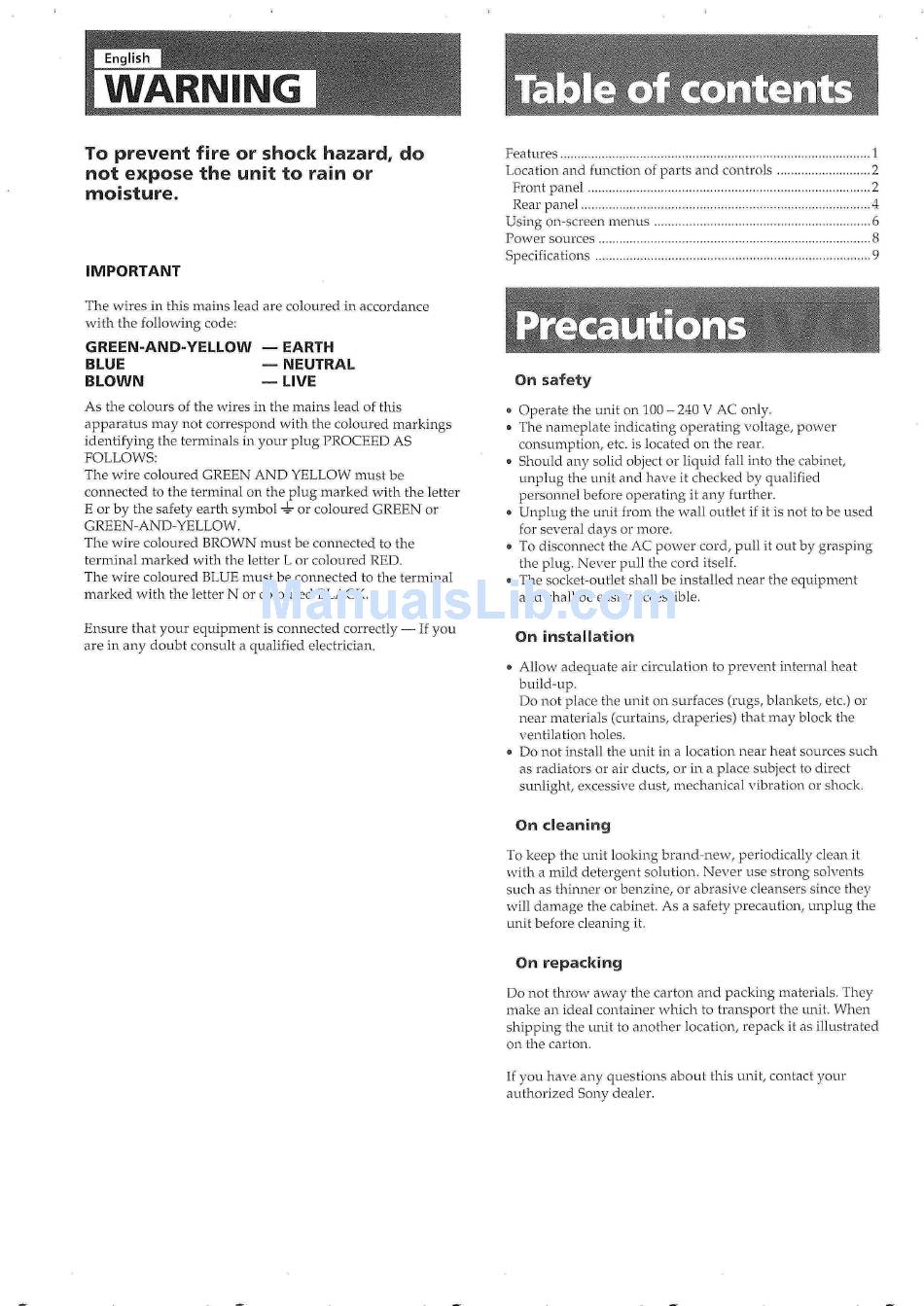

To prevent fire or shock hazard, do
not expose the unit to rain or
moisture.
IMPORTANT
Features
1
Location and function of parts and controls
2
Front panel
2
Rear panel
4
Using on-screen menus
6
Power sources
8
Specifications
9
The wires in this mains lead are coloured in accordance
with the following code:
GREEN-AND-YELLOW — EARTH
BLUE
— NEUTRAL
BLOWN
— LIVE
As the colours of the wires in the mains lead of this
apparatus may not correspond with the coloured markings
identifying the terminals in your plug PROCEED AS
FOLLOWS:
The wire coloured GREEN AND YELLOW must be
connected to the terminal on the plug marked with the letter
E or by the safety earth symbol + or coloured GREEN or
GREEN-AND-YELLOW.
The wire coloured BROWN must be connected to the
terminal marked with the letter L or coloured RED.
The wire coloured BLUE must be connected to the terminal
marked with the letter N or coloured BLACK.
Ensure that your equipment is connected correctly — If you
are in any doubt consult a qualified electrician.
On safety
• Operate the unit on 100 - 240 V AC only.
8 The nameplate indicating operating voltage, power
consumption, etc. is located on the rear.
® Should any solid object or liquid fall into the cabinet,
unplug the unit and have it checked by qualified
personnel before operating it any further.
8 Unplug the unit from the wall outlet if it is not to be used
for several days or more.
® To disconnect the AC power cord, pull it out by grasping
the plug. Never pull the cord itself.
® The socket-outlet shall be installed near the equipment
and shall be easily accessible.
On installation
® Allow adequate air circulation to prevent internal heat
build-up.
Do not place the unit on surfaces (rugs, blankets, etc.) or
near materials (curtains, draperies) that may block the
ventilation holes.
® Do not install the unit in a location near heat sources such
as radiators or air ducts, or in a place subject to direct
sunlight, excessive dust, mechanical vibration or shock.
On cleaning
To keep the unit looking brand-new, periodically clean it
with a mild detergent solution. Never use strong solvents
such as thinner or benzine, or abrasive cleansers since they
will damage the cabinet. As a safety precaution, unplug the
unit before cleaning it.
On repacking
Do not throw away the carton and packing materials. They
make an ideal container which to transport the unit. When
shipping the unit to another location, repack it as illustrated
on the carton.
If you have any questions about this unit, contact your
authorized Sony dealer.
