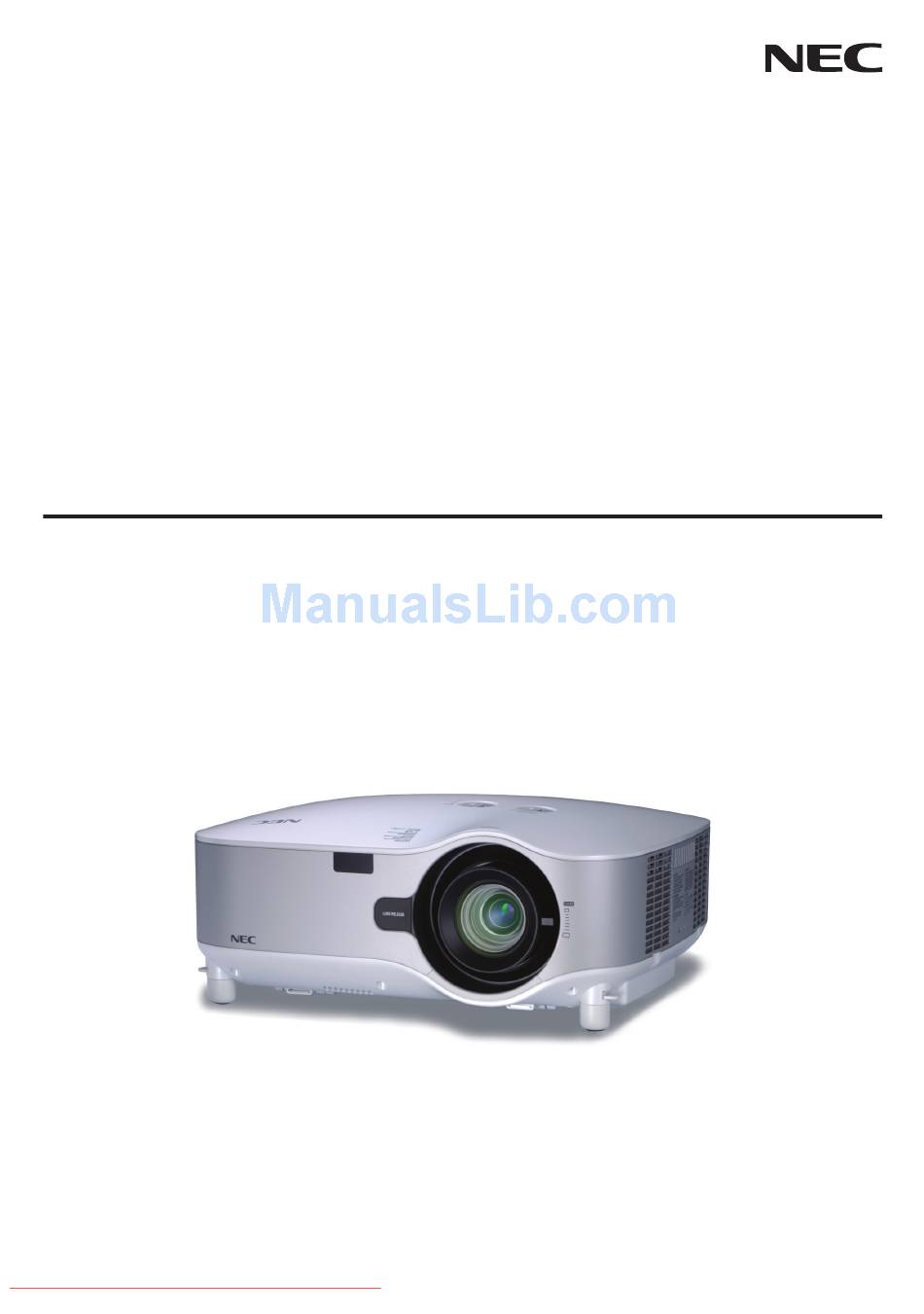

LCD Projector
NP3150/NP2150/NP1150
NP3151W
User's Manual
Downloaded From projector-manual.com NEC Manuals

Advertisement

Table of Contents
loading

Related Manuals for NEC NP3150

Summary of Contents for NEC NP3150

  • Page 1 LCD Projector NP3150/NP2150/NP1150 NP3151W User’s Manual Downloaded From projector-manual.com NEC Manuals...
  • Page 2 (3) Great care has been taken in the preparation of this manual; however, should you notice any questionable points, errors or omissions, please contact us. (4) Notwithstanding article (3), NEC will not be responsible for any claims on loss of profit or other matters deemed to result from using the Projector.

  • Page 3: Important Information

    Important Information Safety Cautions Precautions Please read this manual carefully before using your NEC NP3150/NP2150/NP1150/NP3151W projector and keep the manual handy for future reference. Your serial number is located on the bottom of your projector. Record it here: CAUTION To turn off main power, be sure to remove the plug from power outlet.
  • Page 4 The mark on the electrical and electronic products only applies to the current European Union Member States. Downloaded From projector-manual.com NEC Manuals...

  • Page 5: Important Safeguards

    The Federal Communications Commission does not allow any modifications or changes to the unit EXCEPT those specified by NEC Display Solutions of America, Inc. in this manual. Failure to comply with this government regulation could void your right to operate this equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
  • Page 6 • Turn off the projector and unplug the power cable if the projector is not to be used for an extended period of time. • When using a LAN cable: For safety, do not connect to the connector for peripheral device wiring that might have excessive voltage. Downloaded From projector-manual.com NEC Manuals...

  • Page 7: Lamp Replacement

    CAUTION: When removing the lamp from a ceiling-mounted projector, make sure that no one is under the projector. Glass fragments could fall if the lamp has been burned out. Downloaded From projector-manual.com NEC Manuals...
  • Page 8 (but not through window panes with built-in metallic mesh). The radio waves do not pass through iron reinforcing bars, metal or concrete, however, so the USB Wireless LAN Unit cannot be used for communicating through walls or floors made with these materials. Downloaded From projector-manual.com NEC Manuals...
  • Page 9 SAR compliance has been established in typical laptop computer(s) with USB slot, and product could be used in typical laptop computer with USB slot. Other application like handheld PC or similar device has not been verified and may not compliance with related RF exposure rule and such use shall be prohibited. Downloaded From projector-manual.com NEC Manuals...
  • Page 10 Guyane and La Reunion: outdoor use not allowed in band 2400 - 2420 MHz. Hereby, NEC Display Solutions, Ltd. declares that this USB Wireless LAN Unit (Model: NP01LM) is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

  • Page 11: Table Of Contents

    2. Installation and Connections ..............12  Setting Up the Screen and the Projector ..............12 Selecting a Location [NP3150/NP2150/NP1150]........... 12 Selecting a Location [NP3151W] ................13  Making Connections ....................14 Connecting Your PC or Macintosh Computer ............14 Connecting an External Monitor ................
  • Page 12  Operating the Viewer Function from the Projector (playback) ........66 Projecting slides (Viewer) ..................66 Operating Viewer Menu ..................66 Setting Option for Viewer ..................68 THUMBNAILS menu ....................68 Exiting Viewer ......................69  Changing Background Logo ..................70 Downloaded From projector-manual.com NEC Manuals...
  • Page 13  Replacing the Lamp....................124 8. Using Optional Lenses ................127  Table of Throw Distances and Screen Sizes for Optional Lenses ........127  Lens Shift Adjustable Range ..................129  Replacing with Optional Lens ..................130 Downloaded From projector-manual.com NEC Manuals...
  • Page 14 PC Control Codes ....................146 Cable Connection ....................146 PC Control Connector (D-SUB 9P) ..............147  Removing and Attaching the USB Wireless LAN Unit ..........148 9 Troubleshooting Check List ..................150  TravelCare Guide ....................... 152 Downloaded From projector-manual.com NEC Manuals...

  • Page 15: Introduction

    • anti-theft screw for lens x 1 For North America only (24V00841) Registration card Limited warranty For Europe only Installed USB wireless LAN unit Guarantee policy North America: NP01LM3 (7N970062) Europe: NP01LM2 (7N970061) Joint module (9N999080) Downloaded From projector-manual.com NEC Manuals...

  • Page 16: Introduction To The Projector

    Enjoy crisp and sharp large screen display from your PC, workstation or Macintosh computer, DVD player, VCR, satellite hookup, HDTV source, as well as images from your USB storage device. The NP3150/ NP2150/NP1150/NP3151W provides for enhanced security options to help deter projector theft and provides for full projector control through the PC control port (D-Sub 9 Pin) and LAN support.

  • Page 17: About This User's Manual

    The fastest way to get started is to take your time and do everything right the first time. Take a few minutes now to review the user’s manual. This may save you time later on. At the beginning of each section of the manual you’ll find an overview. If the section doesn’t apply, you can skip it. Downloaded From projector-manual.com NEC Manuals...

  • Page 18: Part Names Of The Projector

    If you use the projector with the USB Wireless LAN Unit in the area where the use of wireless LAN equipment is prohibited, re- move the USB Wireless LAN Unit from the projector. (→ page 148) * To stop emitting radio waves from the USB Wireless LAN Unit during standby mode, select [POWER-SAVING] from [STANDBY MODE]. Downloaded From projector-manual.com NEC Manuals...

  • Page 19: Bottom

    When moving the projector or when it is not in use, cover the lens with the lens cap. NOTE: To stand the projector on its end, do so by holding the cabinet, not by holding the carrying handle. Doing so can cause damage to the carrying handle. lock Downloaded From projector-manual.com NEC Manuals...
  • Page 20 3. Press down the left and right locks to set the carrying handle in place. • To place back the carrying handle, press up the left and right locks and pull down the carrying handle. Downloaded From projector-manual.com NEC Manuals...

  • Page 21: Top Features

    . EXIT Button 5. USB Indicator Lights when a USB memory is inserted into the USB port. NOTE: The USB indicator will not light when non-USB stor- age devices such as USB mouse devices are inserted. Downloaded From projector-manual.com NEC Manuals...

  • Page 22: Terminal Panel Features

    8. mONITOR OUT Connector (mini D-Sub 5 pin) 4. USB Wireless LAN unit (→page 48) (→page ) NOTE: A dummy cover is provided on this location of the projector without the USB Wireless LAN Unit. Downloaded From projector-manual.com NEC Manuals...

  • Page 23: Part Names Of The Remote Control

    9. LAmp mODE Button (→ page 3) DOWN PICTURE 3D REFORM 30. AUTO ADJ. Button (→ page 3) PIC-MUTE HELP 3. pAGE Up/DOWN Buttons (→ page 39) 3. 3D REFORm Button (→ page 30, 40) 33. hELp Button (→ page 3) Downloaded From projector-manual.com NEC Manuals...

  • Page 24: Battery Installation

    • Ensure that you have the batteries’ polarity (+/–) aligned correctly. • Do not use new and old batteries together, or use different types of batteries together. • Dispose of used batteries according to your local regulations. Downloaded From projector-manual.com NEC Manuals...

  • Page 25: Using The Remote Control In Wired Operation

    Connect one end of the supplied remote cable to the REMOTE mini jack and the other end to the remote jack on the remote control. NOTE: Connecting the remote cable to the REMOTE mini jack on the terminal panel will make the wireless operation unavailable. REMOTE USB(LAN) Downloaded From projector-manual.com NEC Manuals...

  • Page 26: Installation And Connections

     Setting Up the Screen and the Projector Selecting a Location [NP3150/NP2150/NP1150] The further your projector is from the screen or wall, the larger the image. The minimum size the image can be is approximately 30 inches (0.76 m) measured diagonally when the projector is roughly 41 inches (1.0 m) from the...

  • Page 27: Selecting A Location [Np3151W]

    TIP: The screen sizes above are intermediate values between tele (minimum display area) and wide (maximum display area) when the standard lens is used. Image size can be adjusted with the zoom adjustment up to a maximum of 15%. For optional lenses, see page 128. Downloaded From projector-manual.com NEC Manuals...

  • Page 28: Making Connections

    Usually, the combination of the ‘Fn” key along with one of the 12 function keys gets the external display to come on or off. For example, NEC laptops use Fn + F3, while Dell laptops use Fn + F8 key combinations to toggle through external display selections.
  • Page 29 With the implementation of HDCP, there may be cases in which certain content is protected with HDCP and might not be displayed due to the decision/intention of the HDCP community (Digital Content Protection, LLC). Downloaded From projector-manual.com NEC Manuals...

  • Page 30: Connecting An External Monitor

    AUDIO OUT jack outputs the last audio signal. The sound level remains the same as the last one. • Selecting [POWER-SAVING] in [STANDBY MODE] stops outputting a video signal from the MONITOR OUT connector during standby mode. This causes the AUDIO OUT jack to stop outputting sound. Downloaded From projector-manual.com NEC Manuals...

  • Page 31: Connecting Your Dvd Player With Component Output

    LECT] → [COMPUTER 1 (or 2)] → [COMPONENT]. • When connecting to the COMPUTER 2 IN, use a commercially available RCA (female)-to-BNC(male) adapter. NOTE: Refer to your DVD player’s owner’s manual for more information about your DVD player’s video output requirements. Downloaded From projector-manual.com NEC Manuals...

  • Page 32: Connecting Your Vcr

    NOTE: Refer to your VCR owner’s manual for more information about your equipment’s video output requirements. NOTE: An image may not be displayed correctly when a Video or S-Video source is played back in fast-forward or fast-rewind via a scan converter. Downloaded From projector-manual.com NEC Manuals...

  • Page 33: Connecting To A Network

    2. Installation and Connections Connecting to a Network The NP3150/NP2150/NP1150/NP3151W comes standard with a LAN port (RJ-45) which provides a LAN connec- tion using a LAN cable. The USB Wireless LAN Unit also provides a wireless LAN connection. To use a LAN con- nection, you are required to assign an IP address to the projector.
  • Page 34 To make connection with a wireless LAN via a wireless access point, you need to select the Infrastructure mode. From the menu, select [SETUP] → [INSTALLATION] → [NETWORK SETTINGS] → [WIRELESS] → [ADVANCED] → [CONNECTION] → [NETWORK TYPE] → [INFRASTRUCTURE]. Downloaded From projector-manual.com NEC Manuals...
  • Page 35 Ad Hoc mode. From the menu, select [SETUP] → [INSTALLATION] → [NETWORK SETTINGS] → [WIRELESS] → [ADVANCED] → [CONNECTION] → [NETWORK TYPE] → [AD HOC]. The Ad Hoc mode complies with IEEE802.11 standard. Downloaded From projector-manual.com NEC Manuals...

  • Page 36: Connecting The Supplied Power Cable

    TIP: To turn off the AC power supply when the projector is powered on, use a power strip equipped with a switch and a breaker. TIP: The projector can be unplugged during its cool down period after it is turned off. Downloaded From projector-manual.com NEC Manuals...

  • Page 37: Projecting An Image (Basic Operation)

    Steady green / Blinking green Steady green orange light light light Press this button for a minimum of 2 seconds. (→ page 132) NOTE: When no signal is available, a blue, black or logo screen is displayed. Downloaded From projector-manual.com NEC Manuals...

  • Page 38: Note On Startup Screen (Menu Language Select Screen)

    Failing to do so could result in no power to the projector. (There will be no stand-by LED) Should this happen, unplug the power cable and plug it in again. Turn on the main power switch. Downloaded From projector-manual.com NEC Manuals...

  • Page 39: Selecting A Source

    Press any one of the COMPUTER 1/2/3, COMPONENT, VIDEO, S-VIDEO, COMPUTER VIDEO VIEWER VIEWER or NETWORK buttons. COMPONENT S-VIDEO NETWORK SELECT LASER L-CLICK R-CLICK MOUSE FREEZE ASPECT LAMP MODE AUTO ADJ. VOLUME MAGNIFY PAGE DOWN Downloaded From projector-manual.com NEC Manuals...

  • Page 40: Adjusting The Picture Size And Position

    NOTE*1: Adjust the throw angle (the height of an image) when the image position is higher than the lens shift adjustable range. NOTE*2: See “  Correcting Keystone Distortion” on page for Keystone. * In the above drawings, cables are omitted for clarity. Downloaded From projector-manual.com NEC Manuals...

  • Page 41: Adjusting The Position Of A Projected Image

    NOTE: Lens shift is not available with the NP01FL optional lens. The NP01FL should be used only for "zero degree" applica- tions. Desktop front projection Normal projection Position Vertical shift Max. 0.5V 0.5V 0.1H 0.1H Width of projected image Ceiling front projection Vertical shift Shift to left Shift to right Max. 0.5V Downloaded From projector-manual.com NEC Manuals...

  • Page 42: Adjusting The Focus (Focus Ring)

    • Rotate the focus ring to make focus adjustment. Focus ring LENS RELEASE Finely adjusting the size of an image (Zoom lever) • Rotate the zoom lever to adjust the image size on the screen. Zoom lever LENS RELEASE Downloaded From projector-manual.com NEC Manuals...

  • Page 43: Adjusting The Tilt Foot

    Do not use the tilt-foot for purposes other than originally intended. Misuses such as using the tilt foot to carry or hang (from the wall or ceiling) the projector can cause damage to the projector. Downloaded From projector-manual.com NEC Manuals...

  • Page 44: Correcting Keystone Distortion

    4. Press the SELECT  button to select [HORIzONTAL] and then use the SELECT  or  so that the top and bottom sides of the pro- jected image are parallel. • adjust the horizontal keystone distortion. Downloaded From projector-manual.com NEC Manuals...
  • Page 45 3D REFORM button for a minimum of 2 seconds to reset the Cornerstone correction setting values. • The 3D Reform feature can cause an image to be slightly blurred because the correction is made electronically. Downloaded From projector-manual.com NEC Manuals...

  • Page 46: Optimizing An Rgb Image Automatically

     button when an image is enlarged by using the LASER MAGNIFY (+) button or when the menu is displayed. L-CLICK R-CLICK MOUSE FREEZE ASPECT LAMP MODE AUTO ADJ. increase volume VOLUME MAGNIFY PAGE DOWN PICTURE 3D REFORM decrease volume PIC-MUTE HELP Downloaded From projector-manual.com NEC Manuals...

  • Page 47: Using The Laser Pointer

    On this model, an applicable projector selector switch (1) is not used. Switch (2) ON......Enabled.(the.laser.lights.when.the.LASER.button.is.pressed).[Factory.default] OFF......Disabled.(the.laser.does.not.light.even.when.the.LASER.button.is.pressed) Disable the laser when using in an environment in which the unit is accessible to children. Downloaded From projector-manual.com NEC Manuals...

  • Page 48: Turning Off The Projector

    Make sure that the main power is turned off. 1. Unplug the power cable. 2. Disconnect any other cables. 3. Retract adjustable tilt feet if extended. 4. Cover the lens with the lens cap. Downloaded From projector-manual.com NEC Manuals...

  • Page 49: Convenient Features

    3. Press the MAGNIFY (-) button. SELECT each time the MagnifY (-) button is pressed, the image is reduced. LASER L-CLICK R-CLICK MOUSE FREEZE ASPECT LAMP MODE AUTO ADJ. VOLUME MAGNIFY PAGE DOWN PICTURE 3D REFORM PIC-MUTE HELP Downloaded From projector-manual.com NEC Manuals...

  • Page 50: Changing Lamp Mode

    ECO MODE Steady Green light Select this mode to increase the lamp life (approx. 80% Brightness (light output) on NP3150/NP3151W and approx. 88% Brightness (light output) on NP2150/NP1150) NOTE: • The projector is always in [NORMAL MODE] for one minute after the lamp is turned on and while the POWER indicator is blink- ing green.

  • Page 51: Using A Usb Mouse

    • Click [Clock] symbol to display the [DATE, TIME PRESET] menu. • Click [Network] symbol to display the [NETWORK SETTINGS] menu. (→ page 105) • Click [Mouse] symbol to display the [MOUSE] menu. • Click [?] to display a selection of the selected menu item. Downloaded From projector-manual.com NEC Manuals...

  • Page 52: Using The Optional Remote Mouse Receiver (Np01Mr)

    NOTE: Wait at least 5 seconds after disconnecting the mouse receiver before reconnecting it and vice versa. The computer may not identify the mouse receiver if it is repeatedly connected and disconnected in rapid intervals. Downloaded From projector-manual.com NEC Manuals...
  • Page 53 MOUSE L-CLICK (or R-CLICK) button. To cancel it, press the MOUSE R-CLICK (or L-CLICK) button. TIP: You can change the Pointer speed on the Mouse Properties dialog box on the Windows. For more information, see the user documentation or online help supplied with your computer. Downloaded From projector-manual.com NEC Manuals...

  • Page 54: Correcting Horizontal And Vertical Keystone Distortion (Cornerstone)

    2 seconds to reset the [KEYSTONE] adjustments. 5. Use the SELECT  button to select one icon () which points in the direction you wish to move the projected image frame. 6. Press the ENTER button. Downloaded From projector-manual.com NEC Manuals...
  • Page 55 NOTE: During 3D Reform adjustment, [ASPECT RATIO] and [SCREEN] may not be available. Should this happen, first reset the 3D Reform data and then do each setting. Second repeat the 3D Reform adjustment. Changing [ASPECT RATIO] and/or [SCREEN] setting can limit [3D REFORM] in its adjustable range. Downloaded From projector-manual.com NEC Manuals...
  • Page 56 If the projection angle is the same as in the last use, the previous correction setting values are retained in the memory. NOTE: Using 3D Reform correction can cause the image to be slightly blurred because the correction is made electronically. Downloaded From projector-manual.com NEC Manuals...

  • Page 57: Using Picture In Picture (Pip) Function

    This option allows you to select the position of a sub picture in the main picture. Use the SELECT  or  button to select the sub picture’s position and press the ENTER button. The options are: top-left, top-right, bottom-left, and bottom-right. NOTE: • The default setting is [BOTTOM-RIGHT]. Downloaded From projector-manual.com NEC Manuals...
  • Page 58 1. Press the PIP button on the remote control. the sub picture will be displayed in the main picture. sub picture 2. Press the PIP button again to display the main picture only. NOTE: The main picture’s sound will be output. Downloaded From projector-manual.com NEC Manuals...

  • Page 59: Preventing Unauthorized Use Of The Projector

    2. Press the SELECT  button to highlight the [SETUP] submenu and press the ENTER button. The page tab [BASIC] will be highlighted. 3. Press the SELECT  button twice to highlight the page tab [INSTALLATION]. Downloaded From projector-manual.com NEC Manuals...
  • Page 60 6. Press the SELECT  button four times to highlight [SECURITY-SETTINGS] and press the ENTER button. The Security screen will be displayed. 7. Press the SELECT  button once to highlight the Keyword entry box and press the ENTER button. The Software keyboard will be displayed. Downloaded From projector-manual.com NEC Manuals...
  • Page 61 “” will be displayed in the keyword entry box. 8-5. Press the enter button. 9. Press the SELECT  button once to highlight [OFF] and press the SELECT  button to highlight [ON]. Downloaded From projector-manual.com NEC Manuals...

  • Page 62: Checking If Security Is Enabled

    “” (asterisk) will appear. Keyword appears as asterisks so the real key- word is hidden. 8. After entering your keyword, highlight [OK] and press the ENTER button. the software keyboard will disappear. this will allow you to operate the projector. Downloaded From projector-manual.com NEC Manuals...

  • Page 63: Disabling The Security

    NOTE: Do not forget your keyword. However, if you forget your keyword, NEC or your dealer will provide you with your Release Code upon proof of ownership.

  • Page 64: Limiting Access Level To Available Menu Items

    NOTE: Do not forget your password. If you forget your password, ask your administrator. If your administrator forget the pass- word, ask NEC or your dealer. NEC or your dealer will provide you with your Release Code (24 character length) upon proof of ownership.
  • Page 65 • Make a note of your password. 5. Place a checkmark on [ENABLE]. the account will be made available. 6. Select [OK]. this will complete adding a user. NOTE: Up to 12 user names can be created. Downloaded From projector-manual.com NEC Manuals...
  • Page 66 NOTE: Do not forget your password. If you forget your password, ask your administrator. If your administrator forget the pass- word, ask NEC or your dealer. NEC or your dealer will provide you with your Release Code (24 character length) upon proof of ownership.

  • Page 67: L Operation Using An Http Browser

    IP address of the projector has been set in the “HOSTS” file of the computer being used. Example 1: When the host name of the projector has been set to “pj.nec.co.jp”, http://pj.nec.co.jp/index.html is specified for the address or the entry column of the URL.

  • Page 68: Structure Of The Http Server

    SHARPNESS  ....Increases the sharpness adjustment value. SHARPNESS  ....Decreases the sharpness adjustment value. • The functions that can be controlled will vary depending on the signal being input to the projector. (→ page 81) Downloaded From projector-manual.com NEC Manuals...
  • Page 69 LAMP HOURS USED..Displays how many hours the lamp has been used. FILTER HOURS USED ..Displays how many hours the filter has been used. ERROR STATUS ....Displays the status of errors occurring within the projector. Downloaded From projector-manual.com NEC Manuals...

  • Page 70: M Projecting Your Computer's Screen Image From The Projector Via A Network

    1. With the projector turned on, press the SOURCE button. the input selection window appears. another way to display the input selection window is to press the netWOrK button on the remote control. the netWOrK screen will be displayed. go to step 3. Downloaded From projector-manual.com NEC Manuals...
  • Page 71 Changing the resolution of Windows Vista screen to the information on [DISpLAY RESOLUTION] in the NETWORK pROJECTOR screen. 1. Click [Start] from the desktop of Windows Vista. 2. Click [Control Panel]. 3. Click [Adjust screen resolution] displayed under [Appearance and Personalization]. Downloaded From projector-manual.com NEC Manuals...
  • Page 72 “Connect to a network Projector” window appears. 5. Click [→ Search for a projector (recommended)]. in the “available projectors” box, “nP3150 series” is displayed. 6. Click [NP3150 Series]. the message “enter the password for the projector that you selected.” is displayed at the bottom of the window.
  • Page 73 (Input example: http://10.32.97.61/lan) and “Projectorpassword” (Input example: 82291627) displayed in the screen projected from the projector. Exiting the Network projector Operation 1. Click [Projecting: NP3150 Series] in the Windows Vista task bar. 2. Click [Disconnect]. the network Projector function is stopped.

  • Page 74: N Using The Projector To Operate Your Computer Via A Network

    NOTE: We do not warrant that the USB port of the projector will support all USB devices in the market. Connect the USB wireless receiver to the USB port (Type A) of the projector. Make all necessary settings for your wireless keyboard and mouse. Downloaded From projector-manual.com NEC Manuals...
  • Page 75 Remote Desktop box and click [OK]. Checking the Ip address on Windows Vista 1. Click [Start] from the desktop of Windows Vista. 2. Click [Control Panel]. 3. Click [View network status and tasks] displayed under [Network and Internet]. Downloaded From projector-manual.com NEC Manuals...
  • Page 76 1. With the projector turned on, press the SOURCE button. the input selection window appears. another way to display the input selection window is to press the netWOrK button on the remote control. the netWOrK screen will be displayed. go to step 3. Downloaded From projector-manual.com NEC Manuals...
  • Page 77 Use the wireless keyboard connected to the projector to operate Windows Vista. NOTE: When the projection is made with the remote desktop function, the background color of the desktop is changed to black. Downloaded From projector-manual.com NEC Manuals...
  • Page 78 3. Press the SOURCE button of the projector to select an input terminal other than [NETWORK]. When using the remote control, press a button other than the netWOrK button. Downloaded From projector-manual.com NEC Manuals...

  • Page 79: Using The Viewer

    Both PNG and GIF format support non-interlaced images only. “Index” file is a file created using the Ulead Photo Explorer 8.0 contained on the supplied NEC User Supportware 5 CD-ROM. See the supplied “User Supportware 5 User’s Guide” for installing the Ulead Photo Explorer 8.0 on your computer.

  • Page 80: Operating The Viewer Function From The Projector (Playback)

    90 degrees counterclockwise. Plays back slides. rotates the image 90 degrees stops auto Play while you clockwise. are playing back slides. Downloaded From projector-manual.com NEC Manuals...
  • Page 81 Cursor (yellow) information number of files Highlight........Indicates.the.selected.folder.or.drive. List.of.folders......Indicates.folders.contained.on.a.USB.memory. Information........Indicates.information.of.the.selected.file.or.folder. Folder:.folder.name,.number.of.files,.creation.date.(month/day/year),.creation.time.(hour:minute: second). File:.file.name,.slide.number/number.of.displayable.slides.in.a.folder,.creation.date.(month/day/ year),.creation.time.(hour:minute:second),.file.size. Number.of.files......Indicates. number. of. displayable. slides. in. the. selected. folder.. The. maximum. number. of. images. recognized.as.slides.within.one.directory.is.about.250. Thumbnail/file.name....Indicates.thumbnails.and.names.contained.in.a.folder. Cursor........Indicates.the.selected.slide. Scroll.bar........Used.to.view.folders.or.files.not.visible.in.the.window. Downloaded From projector-manual.com NEC Manuals...

  • Page 82: Setting Option For Viewer

    To close the THUMBNAILS menu, press the EXIT button. The THUMBNAILS menu includes the following commands: Play..... Plays.back.automatically.or.manually.depending.on.the.setting.in.Options..This.allows.you.to.move.on.to. the.next.slide.when.[MANUAL].is.selected.in.the.[PLAy.MODE]. Logo....Replace. the. default. background. logo. with. another. logo. in. JPEG,. BMP,. non-interlaced. GIF. or. non-inter- laced.PNG.format. Options....Displays.the.Viewer.setting.options. Downloaded From projector-manual.com NEC Manuals...

  • Page 83: Exiting Viewer

    Viewer slide to the video picture then back to the Viewer slide simply by using the VIEWER button. NOTE: Even if you switch the current Viewer source to another source, the current slide is retained. When you return back to the Viewer, you will get the slide that has been retained. Downloaded From projector-manual.com NEC Manuals...

  • Page 84: Changing Background Logo

    You can change the default background logo using the Viewer feature. NOTE: File size must be 256KB or less. Maximum file resolution is 1024 x 768 for NP3150/NP2150/NP1150 and 1280 x 800 for NP3151W. File formats other than JPEG, BMP, non-interlaced GIF or non-interlaced PNG are not available.

  • Page 85: Using On-Screen Menu

    NOTE: When a menu or message is displayed, several lines of information may be lost, depending on the signal or settings. 8. Press the MENU button to close the menu. To return to the previous menu, press the EXIT button. Downloaded From projector-manual.com NEC Manuals...

  • Page 86: Using Advanced Menu And Basic Menu

    CANCEL....Cancels.the.selection EXIT......Deletes.a.character. ENTER....Makes. your. input. take. effect. and. closes.the.input.screen. When using the mouse: Point to a character and click it. [BS]......Deletes.a.character. [ ]......Makes. your. input. take. effect. and. closes.the.input.screen. Downloaded From projector-manual.com NEC Manuals...

  • Page 87: Menu Tree

    HORIzONTAL,.VERTICAL CORNERSTONE. PIP. PIP.POSITION:.TOP-LEFT,TOP-RIGHT,.BOTTOM-LEFT,.BOTTOM-RIGHT. WALL.COLOR. OFF,.BLACKBOARD,.BLACKBOARD.(GRAy),.LIGHT.yELLOW,.LIGHT.GREEN,.LIGHT BLUE,.SKy.BLUE,.LIGHT.ROSE,.PINK LAMP.MODE. NORMAL,.ECO OFF.TIMER. OFF,.0:30,.1:00,.2:00,.4:00,.8:00,.12:00,.16:00 TOOLS. PROGRAM.TIMER,.CORNERSTONE,.ENTRy.LIST,.[DATE,.TIME.PRESET],.[MOUSE],.[HELP] LOGOFF LANGUAGE. ENGLISH,.DEUTSCH,.FRANçAIS,.ITALIANO,.ESPAñOL,.SVENSKA,.SUOMI,.NORSK, NEDERLANDS,.TüRKçE,.POLSKI,. .,.MAGyAR,. PORTUGUêS,. .,.DANSK,. MENU. COLOR.SELECT. COLOR,.MONOCHROME SOURCE.DISPLAy. ON,.OFF MESSAGE.DISPLAy. ON,.OFF TIME.DISPLAy. ON,.OFF MENU.DISPLAy.TIME. MANUAL,.AUTO.5.SEC,.AUTO.15.SEC,.AUTO.45.SEC BACKGROUND. BLUE,.BLACK,.LOGO FILTER.MESSAGE. OFF,.100[H],.200[H],.500[H],.1000[H] Downloaded From projector-manual.com NEC Manuals...
  • Page 88 HORIzONTAL.FREQUENCy,.VERTICAL.FREQUENCy,.SyNC.TyPE,.SyNC.POLARITy,.SCAN.TyPE WIRED.LAN. IP.ADDRESS,.SUBNET.MASK,.GATEWAy,.MAC.ADDRESS WIRELESS.LAN.(1). IP.ADDRESS,.SUBNET.MASK,.GATEWAy,.MAC.ADDRESS WIRELESS.LAN.(2). SSID,.NETWORK.TyPE,.WEP/WPA,.CHANNEL,.SIGNAL.LEVEL VERSION.(1). PRODUCT,.SERIAL.NUMBER,.LAN.UNIT.TyPE,.LAN.UNIT.VERSION VERSION.(2). FIRMWARE,.DATA,.FIRMWARE2,.DATA2 RESET. CURRENT.SIGNAL,.ALL.DATA,.ALL.DATA.(INCLUDING.ENTRy.LIST),.CLEAR.LAMP.HOURS,.CLEAR.FILTER.HOURS NOTE: *1 Default SCREEN TYPE is 4:3 SCREEN for NP3150/NP2150/NP1150 and WIDE SCREEN for NP3151W. *2 POSITION is not available with NP3151W. Downloaded From projector-manual.com NEC Manuals...

  • Page 89: Menu Elements

    Highlight....Indicates.the.selected.menu.or.item.. Solid.triangle..Indicates.further.choices.are.available..A.highlighted.triangle.indicates.the.item.is.active.. Tab......Indicates.a.group.of.features.in.a.dialog.box..Selecting.on.any.tab.brings.its.page.to.the.front. Radio.button... Use.this.round.button.to.select.an.option.in.a.dialog.box. Check.box....Place.a.checkmark.in.the.square.box.to.turn.the.option.On.. Slide.bar....Indicates.settings.or.the.direction.of.adjustment. OK.button....Press.to.confirm.your.setting..you.will.return.to.the.previous.menu. Cancel.button..Press.to.cancel.your.setting..you.will.return.to.the.previous.menu. Close.button... Click.to.close.the.window.and.saving.changes.(USB.mouse.only). Help.button..... Indicates.that.help.about.that.feature.is.available.(USB.mouse.only)..Press.the.HELP.button.on.the.remote. control.to.display.help. Return.symbol..Indicates.the.software.keyboard.is.available. Downloaded From projector-manual.com NEC Manuals...

  • Page 90: Menu Descriptions & Functions [Source]

    This feature enables you to make presentations using a USB memory that contains captured images and slides cre- ated with the exclusive Ulead Photo Explorer 8.0 for NEC contained on the CD-ROM. See the supplied NEC Wired and Wireless Network Setup Guide for installing the Ulead Photo Explorer 8.0 for NEC.
  • Page 91 3. Use the SELECT  button to select [STORE] and press the ENTER button. You can edit signals on the [ENTRY LIST]. LOAD...... Enables.you.to.select.a.signal.from.the.list. STORE....Enables.you.to.store.the.currently.projected.signal. CUT......Enables.you.to.remove.a.selected.signal.from.the.list.and.place.it.on.the.“clipboard”.in.the.projector. COPy...... Enables.you.to.copy.a.selected.signal.from.the.list.and.place.it.on.the.“clipboard”.in.the.projector. PASTE..... Enables.you.to.paste.the.signal.placed.on.the.“clipboard”.to.any.other.line.of.the.list. EDIT......Enables.you.to.change.SOURCE.NAME,.INPUT.TERMINAL,.LOCK,.and.SKIP. Downloaded From projector-manual.com NEC Manuals...
  • Page 92 1) The CUT and PASTE buttons on the [ENTRY LIST] screen 2) The INPUT TERMINAL button on the [ENTRY EDIT] screen NOTE: When all the signals in the [ENTRY LIST] are deleted, the currently projected signal will be also deleted except locked sig- nals. Downloaded From projector-manual.com NEC Manuals...

  • Page 93: Menu Descriptions & Functions [Adjust]

    PROFESSIONAL..Saves.all.the.settings.of.[PICTURE].for.each.input.. [pRESET] This option allows you to adjust neutral tint for yellow, cyan or magenta. There are six factory presets optimized for various types of images, you can set user adjustable settings. Downloaded From projector-manual.com NEC Manuals...

  • Page 94: Detail Settings

    This allows you to adjust the white balance. Contrast for each color (RGB) to adjust the white level of the screen; Brightness for each color (RGB) is used to adjust the black level of the screen. Downloaded From projector-manual.com NEC Manuals...
  • Page 95 Preset numbers and [REFERENCE] within the [DETAIL SETTINGS] screen when [STANDARD] is selected in [MODE]. The settings and adjustments under [DETAIL SETTINGS] within the [PRESET] screen that are not currently select- ed will not be reset. Downloaded From projector-manual.com NEC Manuals...

  • Page 96: [Image Options]

    6. Using On-Screen Menu [IMAGE OPTIONS] Adjusting Clock and phase [CLOCK/phASE] This allows you to manually adjust CLOCK and PHASE. CLOCK....Use.this.item.to.fine.tune.the.computer.image.or.to.remove.any.vertical.banding.that.might.appear..This. function.adjusts.the.clock.frequencies.that.eliminate.the.horizontal.banding.in.the.image. This.adjustment.may.be.necessary.when.you.connect.your.computer.for.the.first.time. PHASE....Use.this.item.to.adjust.the.clock.phase.or.to.reduce.video.noise,.dot.interference.or.cross.talk..(This.is. evident.when.part.of.your.image.appears.to.be.shimmering.) Use.[PHASE].only.after.the.[CLOCK].is.complete. Downloaded From projector-manual.com NEC Manuals...
  • Page 97 Adjusts the image location horizontally and vertically. Selecting Overscan percentage [OVERSCAN] Select overscan percentage (0%, 5% and 10%) for signal. Projected image Overscaned by 10% NOTE: When [NATIVE] is selected in [RESOLUTION], [OVERSCAN] is not available. Downloaded From projector-manual.com NEC Manuals...
  • Page 98 [ASPECT RATIO] or [SCREEN] setting may raise concern about the infringement of copyrights which are protected by copyright law. Downloaded From projector-manual.com NEC Manuals...
  • Page 99 ASPECT RATIO 16:9 16:10 15:9 4:3 SCREEN ASPECT RATIO 16:9 16:10 15:9 WIDE SCREEN [NP3151W] VIDEO LETTERBOX SQUEEZE ASPECT RATIO LETTERBOX WIDE SCREEN ZOOM 4:3 SCREEN ASPECT RATIO LETTERBOX WIDE SCREEN ZOOM 4:3 FILL WIDE SCREEN Downloaded From projector-manual.com NEC Manuals...
  • Page 100 15:9 4:3 SCREEN ASPECT RATIO 16:9 16:10 15:9 WIDE SCREEN Selecting Resolution [RESOLUTION] [AUTO]: Displays an RGB signal to fit the screen in the projector’s native resolution (NP3150/NP2150/NP1150: 1024 x 768 pixels/NP3151W: 1280 x 800 pixels). [NATIVE]: Displays an RGB signal in its true resolution. Example: When a source with 800 x 600 pixels is selected using the NP3150: [NATIVE] [AUTO] • When [NATIVE] is selected, [OVERSCAN] and [ASPECT RATIO] are not available. • [RESOLUTION] is not available under the following conditions: - When [SCREEN TYPE] is set for the resolution other than the projector’s native resolution.

  • Page 101: [Video]

    ON......Turns.on.the.3.dimensional.separation.feature. NOTE: Only available for NTSC 3.58 video signals. Adjusting Contrast Enhancement [CONTRAST ENhACEmENT] This function uses properties of the eye to improve picture contrast. Adjust this function to the desired level of enhancement. Downloaded From projector-manual.com NEC Manuals...

  • Page 102: [Sound]

    3D Surround adjustment. If this happens, return the adjustments of the projector to the factory default (Bass:0, Treble: 0, 3D Sur- round: Off). Downloaded From projector-manual.com NEC Manuals...

  • Page 103: Menu Descriptions & Functions [Setup]

    Selecting this item will display the Keystone setting menu. You can correct vertical distortion manually from the menu. (→ page 30) Changes will be saved even when you turn off the projector. NOTE: When [CORNERSTONE] is selected, [KEYSTONE] is not available. Downloaded From projector-manual.com NEC Manuals...
  • Page 104 This function allows you to view two different signals simultaneously. PIP POSITION: This option allows you to select the position of a sub picture in the main picture. The options are: top-left, top-right, bottom-left, and bottom-right. (→ page 43) Downloaded From projector-manual.com NEC Manuals...
  • Page 105 Select this mode to increase the lamp Steady Green light life (approx. 80% Brightness (light output) on NP3150/NP3151W and approx. 88% Brightness (light output) on NP2150/NP1150). NOTE: If the projector is overheated in Normal mode, there may be a case where the Lamp mode will be forced into the Eco mode to protect the projector.
  • Page 106 • The projector has a built-in clock. The clock will keep working for about two weeks after the main power is turned off. If the main power is not supplied to the projector for two weeks or more, the built-in clock stops working. Downloaded From projector-manual.com NEC Manuals...
  • Page 107 DAy........Select. days.of.the.week.for.the.program.. To. execute. the. program. from.Monday. to.Friday,. select. [MON-FRI].To.execute.the.program.in.everyday.basis,.select.[EVERyDAy]. TIME........Set.the.time.to.execute.the.program..Enter.time.in.24-hour.format. FUNCTION......Select.a.function.to.be.executed..Selecting.[POWER].will.allow.you.to.turn.on.or.off.the.projector. by.setting.[ADVANCED.SETTINGS]..Selecting.[SOURCE].will.allow.you.to.select.a.video.source.by. setting.[ADVANCED.SETTINGS]. ADVANCED.SETTINGS..Select.power.on/off.or.a.type.of.video.source.for.the.selected.item.in.[FUNCTION]. REPEAT......Place. a. check. mark. to. repeat. the. program. continuing. basis.. To. use. the. program. this. week. only,. clear.the.check.mark. Downloaded From projector-manual.com NEC Manuals...
  • Page 108 2. Press the SELECT  button to select [] or []. 3. Press the ENTER button a few times to select a row to which you wish to move the program. The order of the programs will be changed. Downloaded From projector-manual.com NEC Manuals...
  • Page 109 This option lets you to change your USB mouse settings. The mouse settings feature is available for USB mouse only. Choose the settings you want: MOUSE.BUTTON..[RIGHT.HAND].or.[LEFT.HAND] MOUSE.SENSITIVITy. . . [FAST],.[MEDIUM].or.[SLOW] Using [hELp] (→ page 36) Downloaded From projector-manual.com NEC Manuals...
  • Page 110 PASSWORD → No setting See “Limiting Access Level to Available Menu Items” on page for entering a user name and assigning a password. Selecting menu Language [LANGUAGE] You can choose one of 21 languages for on-screen instructions. Downloaded From projector-manual.com NEC Manuals...

  • Page 111: [Menu]

    NOTE: The message for filter cleaning will be displayed for one minute when the projector is turned on or off. To cancel the mes- sage, press any button on the projector cabinet or the remote control. NOTE: Your setting will not be affected even when [RESET] is done from the menu. Downloaded From projector-manual.com NEC Manuals...

  • Page 112: [Installation]

    Selecting projector Orientation [ORIENTATION] This reorients your image for your type of projection. The options are: desktop front projection, ceiling rear projec- tion, desktop rear projection, and ceiling front projection. DESKTOP FRONT CEILING REAR DESKTOP REAR CEILING FRONT Downloaded From projector-manual.com NEC Manuals...
  • Page 113 • After changing the screen type, check the setting of [ASPECT RATIO] in the menu. (→page 84) • [POSITION] is not available when [4:3 SCREEN] is selected for [SCREEN TYPE] or when [LETTERBOX] is selected for [ASPECT RATIO]. Downloaded From projector-manual.com NEC Manuals...
  • Page 114 An asterisk will be displayed. The Software keyboard appears. Use the Software keyboard to type a password on the [ENTER PASS- WORD] screen and press the ENTER button. The [CONFIRM PASSWORD] screen will be displayed. Downloaded From projector-manual.com NEC Manuals...
  • Page 115 When [ACCOUNT LOCK] is set to [OFF], you can set it to [ON]. The [ACCOUNT] setting is available only when [ACCOUNT LOCK] is set to [OFF]. NOTE: If you forget your password, consult with your administrator. ACCOUNT See page 51. Downloaded From projector-manual.com NEC Manuals...
  • Page 116 3. Use the SELECT  or  button to select [OK] , then press the ENTER button. The [ARE YOU SURE?] message will appear. 4. Use the SELECT  or  button to select [YES] and press the ENTER button. The Security function takes effect. Downloaded From projector-manual.com NEC Manuals...
  • Page 117 3. Enter your keyword in the Release Code input screen. You can view the projected image. NOTE: Do not forget your password. However, if you forget your keyword, NEC or your dealer will provide you with your Release Code. See more information at the end of this section.
  • Page 118 The Release Code input screen will be displayed as well as your Request Code (24 alphanumeric charac- ters). NOTE: NEC or your dealer will provide you with your Release Code in exchange for your registered password and Request Code. See more information at the end of this section.
  • Page 119 CAUTION • Consult with your network administrator about these settings. • The NP3150/NP2150/NP1150/NP3151W series projectors distributed in some areas and countries do not come standard with the USB Wireless LAN Unit. If you purchase the projector without the USB Wireless LAN Unit installed and need to present to the pro- jector via a wireless connection, the optional USB Wireless LAN Unit must be installed.
  • Page 120 If the OS is Windows Vista, input of logon password as “Administrator” may be prompted. [GENERAL] This page allows you to specify a unique projector name and to check the current status of the LAN settings. Downloaded From projector-manual.com NEC Manuals...

  • Page 121: Projector Name

    NOTE: The [PROJECTOR NAME] will not be affected even when [RESET] is done from the menu. Using Software Keyboard 1.to.0.and Characters..Use.to.type.in.password.or.keyword. MODE..... Selects.one.of.three.modes.for.numbers,.alphabet.and.special.characters. SP......Inserts.a.space BS......Deletes.one.character.backward <<......Returns.to.the.previous >>......Advances.to.the.next OK......Executes.the.selection CANCEL....Cancels.the.selection (→.page.72) Downloaded From projector-manual.com NEC Manuals...
  • Page 122 Disabling this option allows you to register the IP address or subnet mask number obtained from your network administrator. IP.ADDRESS... Set.your.IP.address..Press. .to.display.the.software.keyboard.and.type.in.12.numeric.characters. SUBNET.MASK..Set.your.subnet.mask.number..Press. .to.display.the.software.keyboard.and.type.in.12.numeric.characters. GATEWAy....Set.the.default.gateway.of.the.network.connected.to.the.projector..Press. .to.display.the.software.keyboard. and.type.in.12.numeric.characters. DNS.CONFIGURATION. . . Type.in.the.IP.address.of.DNS.server.on.the.network.connected.to.the.projector..12.numeric.characters. are.used. RECONNECT... Use.this.button.to.retry.to.connect.the.projector.to.a.network..Try.this.if.you.have.changed.[PROFILES]. Downloaded From projector-manual.com NEC Manuals...
  • Page 123 ADVANCED..... Displays. the. Advanced. menu. which. includes. various. setting. for. wireless. LAN. connection. (NETWORK. TyPE.and.SECURITy)..See.the.Advanced.menu.later.on. RECONNECT... Use.this.button.to.retry.to.connect.the.projector.to.a.network..Try.this.if.you.have.changed.[PROFILES]. NOTE: If you select [EASY CONNECTION] from [PROFILES], you cannot make settings to DHCP and its following items except [CHANNEL] in [ADVANCED]. Downloaded From projector-manual.com NEC Manuals...
  • Page 124 TIP: When you select [INFRASTRUCTURE], make sure that the projector and your access point are on the same channel; when you select [AD HOC], make sure that the projector and your computer are on the same channel. Downloaded From projector-manual.com NEC Manuals...
  • Page 125 * Hexadecimal uses 0 to 9 and A to F. * When setting in a hexadecimal digit, up to 10 characters can be set in 64 bit, and up to 26 characters in 128 bit. Downloaded From projector-manual.com NEC Manuals...
  • Page 126 Select [TKIP] or [AES]. KEY: Enter encryption key when selecting [WPA-PSK] or [WPA2-PSK] is selected in [SECU- RITY TYPE]. Key length must be eight or greater and 63 or less. [DOmAIN] HOST.NAME... Type.in.a.hostname..Up.to.15.alphanumeric.characters.can.be.used. DOMAIN.NAME..Type.in.domain.name.of.the.network.connected.to.the.projector..Up.to.60.alphanumeric.characters.can.be. used. Downloaded From projector-manual.com NEC Manuals...
  • Page 127 MAIL] is not available. • Be sure to highlight [OK] and press the ENTER button before executing [TEST MAIL]. NOTE: To use the Mail Alert feature on wireless LAN connection, select [INFRASTRUCTURE] for [NETWORK TYPE]. Downloaded From projector-manual.com NEC Manuals...
  • Page 128 Normal mode. • When [PROGRAM TIMER] is turned on, the [STANDBY MODE] setting is ignored. • Your setting will not be affected even when [RESET] is done from the menu. NORMAL......Power.indicator:.Orange.light/Status.indicator:.Green.light POWER-SAVING.....Power.indicator:.Orange.light/Status.indicator:.Off Downloaded From projector-manual.com NEC Manuals...

  • Page 129: [Options]

    • Using the projector at altitudes less than approximately 5500 feet/1600 meters and setting to [HIGH ALTITUDE] can cause the lamp to overcool, causing the image to flicker. Switch [FAN MODE] to [AUTO]. • Your setting will not be affected even when [RESET] is done from the menu. Downloaded From projector-manual.com NEC Manuals...
  • Page 130 Setting monitor out connector [out terminal] this option allows you to determine which rGB or component source is output from the monItor out connector during Standby mode. Last....... the.signal.from.the.last.Computer.1,.Computer.2.or.Component.input.will.be.output.to.the.moni- tor.out.connector. Computer.1,.2..the.signal.from.the.Computer.1.or.Computer.2.input.will.be.output.to.the.monitor.out.connector. Component..the.signal.from.the.Component.input.will.be.output.to.the.monitor.out.connectors. Downloaded From projector-manual.com NEC Manuals...

  • Page 131: Menu Descriptions & Functions [Info.]

    • The message to the effect that the lamp should be replaced will be displayed for one minute when the projector is turned on or off. To dismiss this message, press any button on the projector or the remote control. Lamp Life NORMAL 2000 Hours (Min.) 3000 Hours (Max.) Downloaded From projector-manual.com NEC Manuals...

  • Page 132: [Source (1)]

    6. Using On-Screen Menu [SOURCE (1)] INPUT TERMINAL SIGNAL TYPE VIDEO TYPE SOURCE NAME ENTRY NO. [SOURCE (2)] HORIZONTAL FREQUENCY VERTICAL FREQUENCY SYNC TYPE SYNC POLARITY SCAN TYPE Downloaded From projector-manual.com NEC Manuals...

  • Page 133: [Wired Lan]

    SUBNET.MASK..Indicates.the.subnet.mask.of.the.projector.when.the.LAN.port.(RJ-45).is.used. GATEWAy....Indicates.the.gateway.of.the.network.connected.to.the.projector.when.the.LAN.port.(RJ-45).is.used. MAC.ADDRESS..Indicates.the.MAC.address.of.the.LAN.port.(RJ-45).. [WIRELESS LAN (1)] This page shows information on settings for the USB Wireless LAN unit IP.ADDRESS... Indicates.the.IP.address.of.the.projector.when.the.USB.Wireless.LAN.unit.is.used. SUBNET.MASK..Indicates.the.subnet.mask.of.the.projector.when.the.USB.Wireless.LAN.unit.is.used. GATEWAy....Indicates.the.gateway.of.the.network.connected.to.the.projector.when.the.USB.Wireless.LAN.unit.is.used. MAC.ADDRESS..Indicates.the.MAC.address.of.the.USB.Wireless.LAN.unit. Downloaded From projector-manual.com NEC Manuals...

  • Page 134: [Wireless Lan (2)]

    SSID....... Indicates.the.identifier.(SSID).for.your.wireless.LAN. NETWORK.TyPE..Indicates.that.[EASy.CONNECTION],.[INFRASTRUCTURE].or.[AD.HOC].is.selected.for.your.communica- tion.method. WEP/WPA....Indicates.your.selected.datalength.encryption:.On.or.Off CHANNEL....Indicates.the.channel.you.selected.in.the.[SITE.SURVEy]..The.channel.must.match.for.all.wireless.devices. communicating.on.your.wireless.LAN. SIGNAL.LEVEL..Indicates.receiving.condition.of.radio.signal.level.while.you.are.using.a.wireless.LAN.connection.. . [VERSION (2)] [VERSION (1)] FIRMWARE PRODUCT DATA SERIAL NUMBER LAN UNIT TYPE FIRMWARE2 DATA2 LAN UNIT VERSION Downloaded From projector-manual.com NEC Manuals...

  • Page 135: Menu Descriptions & Functions [Reset]

    HELP button on the remote control for 10 seconds to reset the lamp clock back to zero. Do this only after replacing the lamp. Resetting the Filter Usage hours [CLEAR FILTER hOURS] Resets the filter usage back to zero. NOTE: Elapsed time of the filter use will not be affected even when [RESET] is done from the menu. Downloaded From projector-manual.com NEC Manuals...

  • Page 136: Maintenance

    Replace the lamp before replacing the filters. NOTE: When you replace the lamp, it is also wise to replace the filter. The filter comes in the same package with your replacement lamp. 1. Pull to remove the filter cover. Downloaded From projector-manual.com NEC Manuals...

  • Page 137: Cleaning The Cabinet And The Lens

    2. Clean the cabinet periodically with a damp cloth. If heavily soiled, use a mild detergent. Never use strong detergents or solvents such as alcohol or thinner. 3. Use a blower or lens paper to clean the lens, and be careful not to scratch or mar the lens. Downloaded From projector-manual.com NEC Manuals...

  • Page 138: Replacing The Lamp

    Do not touch them as the pieces of glass may cause injury. If this happens, contact your NEC dealer for lamp replacement.
  • Page 139 3. Insert a new lamp housing until the lamp housing is plugged into the socket. CAUTION Do not use a lamp other than the NEC replacement lamp NP06LP. Order this from your NEC dealer. Secure it in place with the two screws.
  • Page 140 If this happens, press the HELP button on the remote control for 10 seconds to reset the lamp clock back to zero. When the lamp time clock is reset to zero, the LAMP indicator goes out. Note for US Residents The lamp in this product contains mercury. Prease dispose according to Local, State or Federal Laws. Downloaded From projector-manual.com NEC Manuals...

  • Page 141: Using Optional Lenses

    8. Using Optional Lenses Five optional lenses are available for the NP3150/NP2150/NP1150/NP3151W. See the information described on this page to buy the appropriate lens for your screen size and throw distance. See page for installing the lens.  Table of Throw Distances and Screen Sizes for Optional Lenses...
  • Page 142 Referring to the diagram on page 143, “H” is 2.2 m/84.8". Therefore, the projection distances of 100 inches are from 2.2 m/84.8" × 1.9 to 2.2 m/84.8" × 3.1 = from 4.18 m/164.6" to 6.82 m/268.5". NOTE: Distances may vary +/-5% Downloaded From projector-manual.com NEC Manuals...

  • Page 143: Lens Shift Adjustable Range

    NOTE: Lens shift is not available with the NP01FL optional lens. The NP01FL should be used only for "zero degree" applications. Desktop front projection Normal projection Position Vertical shift Max. 0.5V 0.5V 0.1H 0.1H Width of projected image Ceiling front projection Vertical shift Shift to left Shift to right Max. 0.5V Downloaded From projector-manual.com NEC Manuals...

  • Page 144: Replacing With Optional Lens

    When replacing the standard lens (with an optional lens) and then re-installing the standard lens back into the projector, the standard lens must go back to its original projector from which it was removed. If you remove the standard lens from one NP3150/NP2150/NP1150/NP3151W projector and re-install it into an- other NP3150/NP2150/NP1150/NP3151W projector, performance may be compromised.
  • Page 145 Rotate the lens until you feel it click into place. Using the anti-theft screw to prevent theft of the lens Tighten the supplied anti-theft screw on the front bottom. hole of anti-theft screw for lens unit Downloaded From projector-manual.com NEC Manuals...

  • Page 146: Appendix

    • Move the projector to a cooler location if the room where you are presenting is particularly too warm. • Clean the ventilation holes if they are clogged with dust. • Wait about 60 minutes until the inside of the projector becomes cool enough. Downloaded From projector-manual.com NEC Manuals...
  • Page 147 •. Make.sure.there.are.no.obstacles.between.you.and.the.projector. •. Stand.within.22.feet.(7.m).of.the.projector..(→.page.10) •. Check.if.one.or.more.remote.sensors.are.enabled..Select.[SETUP].→.[INSTALLATION].→.[REMOTE.SEN- SOR].from.the.menu..See.page.114. •. If.the.remote.control.cable.plug.is.inserted.into.the.REMOTE.mini.jack,.the.remote.control.does.not.function. wirelessly..See.page.11. Indicator.is.lit.or.blink- •. See.the.POWER/STATUS/LAMP.Indicator..(→.page.132) Vertical.stripes.in.RGB. •. Press.the.AUTO.ADJUST.button.on.the.projector.cabinet.or.the.AUTO.ADJ..button.on.the.remote.control..(→. mode page.32) •. Adjust.the.computer.image.manually.with.the.[CLOCK]/[PHASE].in.[ADJUST].→.[IMAGE.OPTIONS]..(→.page.82) USB.mouse.does.not. •. Make.sure.that.your.USB.mouse.is.properly.connected.to.the.projector..(→.page.37) work . The.projector.may.not.support.some.brands.of.a.USB.mouse. •. Some.menu.items.cannot.be.operated.with.a.USB.mouse. For more information contact your dealer. Downloaded From projector-manual.com NEC Manuals...
  • Page 148 Usually, the combination of the ‘Fn” key along with one of the 12 function keys gets the external display to come on or off. For example, NEC laptops use Fn + F3, while Dell laptops use Fn + F8 key combinations to toggle through external display selections.

  • Page 149: Specifications

    NP3151W: 0.74" p-Si TFT active-matrix with Micro Lens Array (Aspect ratio 16:10) Resolution NP3150/NP2150/NP1150: 1024  768 pixels* up to UXGA with scaling technology (up to 1400  1050 @ 60 Hz on DVI-D) NP3151W: 1280 x 800 pixels* up to UXGA with scaling technology (up...
  • Page 150 9. Appendix Power Consumption NP3150/NP3151W : 490W in Lamp Normal mode NP2150/NP1150 : 460W in Lamp Normal mode NP3150/NP3151W/NP2150/NP1150 : 410W in Lamp Eco mode/26W in Standby/5W in Power-saving * Effective pixels are more than 99.99%. mechanical Installation Orientation: Desktop/Front, Desktop/Rear, Ceiling/Front, Ceiling/Rear Dimensions 15.7"...
  • Page 151 Weight 0.042 lbs/19 g Environmental Considerations Operational Temperatures : 41° to 104°F / 5° to 40°C, 20% to 80% humidity (non-condensing) Storage Temperatures : 14° to 122°F (-10° to 50°C), 20% to 80% humidity (non-condensing) Downloaded From projector-manual.com NEC Manuals...
  • Page 152 LAN Unit (Model: NP01LM) tyyppinen laite on direktiivin 1999/5/EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen mukainen. Portuguese NEC Display Solutions, Ltd. declara que este USB Wireless Unit (Model: NP01LM) está conforme com os requisitos essenciais e outras disposições da Directiva 1999/5/CE.

  • Page 153: Cabinet Dimensions

    9. Appendix  Cabinet Dimensions 399/15.7" Unit: mm/inch Downloaded From projector-manual.com NEC Manuals...

  • Page 154: Screen Size And Projection Distance

    The lower chart shows that the vertical distance between the projector foot and the screen top is approximately 1.5 m (59"). The projection angle can be adjusted up to 10°. (The lower chart shows that the projector is placed in a horizontal position) Downloaded From projector-manual.com NEC Manuals...

  • Page 155: [Np3151W]

    The lower chart shows that the vertical distance between the projector foot and the screen top is approximately 1.4 m/55 inches. The projection angle can be adjusted up to 10°. (The lower chart shows that the projector is placed in a horizontal position) Downloaded From projector-manual.com NEC Manuals...
  • Page 156 492.5 - 655.8 0-305 0-120.0 500" 15.65 - 20.83 616.2 - 820.2 0-381 0-150.0 H2 = Screen height (V) - H1 Screen center 88 mm/3.47" Lens center Projector foot Screen botto m NOTE: Distances may vary +/-5%. Downloaded From projector-manual.com NEC Manuals...
  • Page 157 518.0 - 689.6 0-269.2 0-106.0 500" 16.46 - 21.91 648.0 - 862.6 0-336.5 0-132.5 H2 = Screen height (V) - H1 Screen center 88 mm/3.47" Lens center Projector foot Screen botto m NOTE: Distances may vary +/-5%. Downloaded From projector-manual.com NEC Manuals...

  • Page 158: Pin Assignments Of D-Sub Computer 1 Input Connector

    Green or Sync on Green Blue Ground Ground Red Ground Cr Ground Green Ground Y Ground Blue Ground Cb Ground No Connection Sync Signal Ground No Connection Bi-directional DATA (SDA) Horizontal Sync or Composite Sync Vertical Sync Data Clock Downloaded From projector-manual.com NEC Manuals...

  • Page 159: Compatible Input Signal List

    D: Images above flagged with “D” are supported by digital signal. NOTE: • An image with higher or lower resolution than the projector’s native resolution (NP3150/NP2150/NP1150: 1024 x 768, NP3151W: 1280 x 800) will be displayed with scaling technology. • Some composite sync signals may not be displayed correctly.

  • Page 160: Pc Control Codes And Cable Connection

    Communication Protocol Baud.rate..........38400.bps Data.length........8.bits Parity..........No.parity Stop.bit..........One.bit X.on/off..........None Communications.procedure....Full.duplex NOTE: Depending on the equipment, a lower baud rate may be recommended for long cable runs. Downloaded From projector-manual.com NEC Manuals...

  • Page 161: Pc Control Connector (D-Sub 9P)

    NOTE 2: Jumper “Request to Send” and “Clear to Send” together on both ends of the cable to simplify cable connection. NOTE 3: For long cable runs it is recommended to set communication speed within projector menus to 9600 bps. Downloaded From projector-manual.com NEC Manuals...

  • Page 162: Removing And Attaching The Usb Wireless Lan Unit

    1. Press POWER ON/STAND BY button to set the projector to Stand-by mode, then press the “O (off)” side of the main power switch of the projector. 2. Loosen and remove two screws. Downloaded From projector-manual.com NEC Manuals...
  • Page 163 6. Insert the USB Wireless LAN Unit slowly into the USB port on the rear panel of the projector. NOTE: After inserting, make sure the bottom of the USB Wireless LAN unit is firmly seated against the cabinet. 7. Tighten the two screws. Downloaded From projector-manual.com NEC Manuals...

  • Page 164: Troubleshooting Check List

    No. obstacles. between. the. sensor. of. the. projector. and. the. remote.control. Control.Panel.Lock.is.not.turned.on.or.is.disabled.in.the.menu. Projector. is. placed. near. a. fluorescent. light. that. can. disturb. Still. unchanged. even. though. you. press. and. hold. the. EXIT. the.infrared.remote.controls. button.for.a.minimum.of.10.seconds. Batteries.are.new.and.are.not.reversed.in.installation.. If.present.on.the.remote.control,.projector.selector.switch.is. not.used. Downloaded From projector-manual.com NEC Manuals...
  • Page 165 Synch.type. .Separate...Composite .Sync.on.Green Computer STATUS.Indicator: Manufacturer: Steady.light. .Orange...Green Model.number: Flashing.light. [..].cycles Remote.control.model.number: Notebook.PC../.Desktop. Native.resolution: Refresh.rate: Video.adapter: Other: Projector dVd player Video equipment Signal cable VCR,.DVD.player,.Video.camera,.Video.game.or.other NEC.standard.or.other.manufacturer’s.cable? Model.number:......Length:....inch/m Manufacturer: Distribution.amplifier Model.number: Model.number: Switcher Model.number: Adapter Model.number: Downloaded From projector-manual.com NEC Manuals...

  • Page 166: Travelcare Guide

    This warranty allows customers to receive service on their product at 9) Other conditions stipulated in the warranty included with the the NEC and NEC-designated service stations in the countries listed product also apply. herein when temporarily traveling internationally for business or plea- sure.
  • Page 167 Email Address: tehgh@rsc.ap.nec.com.sg WEB Address: http://www.nec.com.sg/ap (Regions Covered) Singapore NEC Systems Integration Malaysia Sdn Bhd Address: Ground Floor, Menara TA One, 22, Jalan P. Ramlee, 50250 Kuala Lumpur, Malaysia Telephone: +6 03 2178 3600 (ISDN) Fax Line: +6 03 2178 3789 Email Address: necare@nsm.nec.co.jp...
  • Page 168 9. Appendix P-1/ Date: TO: NEC or NEC’s Authorized Service Station: (Company & Name with signature) Dear Sir (s), I would like to apply your TravelCare Service Program based on attached registration and qualification sheet and agree with your following conditions, and also the Service fee will be charged to my credit card account, if I don’t return the Loan units within the specified period.
  • Page 169 Application Sheet. list price to Credit Cards, which price will be informed by NEC Autho- rized Service Stations. Please see the attached listing of contacts for 1) Repair and Return: each country to arrange for pickup of the loan unit.
