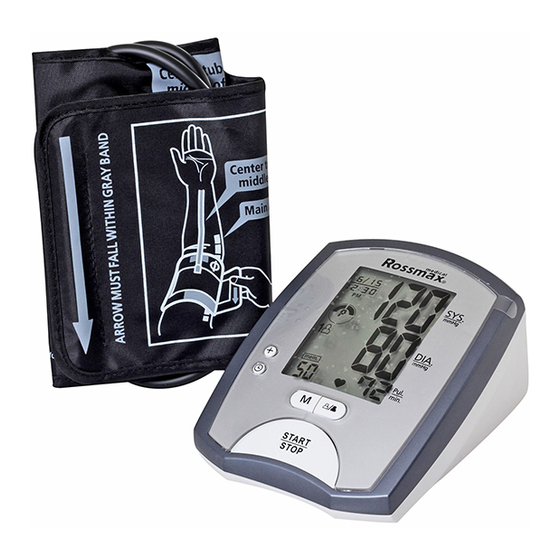

- Page 1 Model:MJ 701 f Superior Accuracy Real Fuzzy Hypertension Risk Indicator Irregular Heartbeat Detector 2 Users Up to 120 Memories with Date/Time Stamp Lifetime Calibration Service...
-
Page 2: Table Of Contents
Do not use this device on infants or neonates. This unit is protected against manufacturing defects by an established International Warranty Program. For warranty information, you can contact the manufacturer, Rossmax International Ltd. or your local distributors. Attention: Consult the accompanying documents. -
Page 3: Name/Function Of Each Part
Name/Function of Each Part Real Fuzzy Measuring Technology This unit uses the oscillometric method to detect your blood pressure. Before the cuff starts inflating, the device will establish a baseline cuff pressure equivalent to the air pressure. This unit will determine the appropriate inflation level based on pressure oscillations, followed by cuff deflation. -
Page 4: About Blood Pressure
Supplementary requirements for electro-mechanical blood pressure measuring systems EN 1060-4: 2004 Non-invasive sphygmomanometers - Part 4: Test Procedures to determine the overall system accuracy of automated noninvasive sphygmomanometers. This blood pressure monitor was designed for long service time. To ensure continued accuracy, it’s recommended that all digital blood pressure monitors require re-calibration. -
Page 5: Blood Pressure Fluctuation
Blood Pressure Standard It is important that you consult with your physician regularly. Your physician will tell you your normal blood pressure range as well as the point at which you will be considered at risk. For reliable monitoring and reference of blood pressure, keeping longterm records is recommended. Please download the blood pressure log (chart for recording and tracking crucial info : date, time, blood pressure, pulse rate and body condition) at www.rossmaxhealth.com. - Page 6 Icons: Hypertension Risk Indicator: Compares blood pressure against guidelines. Memory Zone 1: Appears when the monitor is operated in memory zone 1 Memory Zone 2: Appears when the monitor is operated in memory zone 2 Weak Battery Mark: Appears when batteries should be replaced Pulse Mark: Shows the pulse rate per minute Irregular Heartbeat (IHB) Detector: The appearance of this symbol signifies that an irregular heartbeat was detected...
-
Page 7: Hypertension Risk Indicator
Hypertension Risk Indicator The National High Blood Pressure Education Program Coordinating Committee has developed a blood pressure standard, classifying blood pressure ranges into 4 stages. This unit is equipped with innovative blood pressure risk indicator, which visually indicates the assumed risk level (prehypertension / stage 1 hypertension / stage 2 hypertension) of the result after each measurement. -
Page 8: Installing Batteries
Installing Batteries Press down and lift the battery cover in the direction of the arrow to open the battery compartment. Install or replace 4 “AA” sized batteries in the battery compartment according to the indications inside the compartment. Replace the battery cover by clicking in the bottom hooks first, then push in the top end of the battery cover. -
Page 9: Applying The Cuff
Applying the Cuff Unwrap the arm cuff, leaving the end of the cuff through the D-ring of the cuff. Put your left arm through the cuff loop. The color strip indication should be positioned closer to you with the tube pointing in the direction of your arm (Fig. 1). Turn your left palm upward and place the edge of the arm cuff at approximately 1.5 to 2.5 cm above the inner side of the elbow joint (Fig. -
Page 10: Measurement Procedures
Plug in the cuff connecting tube into the unit (Fig. 5). Lay your arm on a table (palm upward) so the cuff is at the same height as your heart. Make sure the tube is not kinked (Fig. 6). This cuff is suitable for your use if the arrow falls within the solid color line as shown on the right (Fig. - Page 11 Measurement Procedures Press the User-Switching key to select memory zone 1 or memory zone 2. After a memory zone is selected, press the START/STOP key to reset the monitor so it can start measurement in the chosen memory zone. Press the START/STOP key. All digits will light up, checking the display functions.
-
Page 12: Recalling Values From Memory
This monitor will re-inflate automatically to approximately 220 mmHg if the system detects that your body needs more pressure to measure your blood pressure. Note: This monitor automatically switches off approximately 1 minute after last key operation. To interrupt the measurement, simply press the START/STOP or Memory key; the cuff will deflate immediately. -
Page 13: Clearing Values From Memory
Clearing Values from Memory Press the User-Switching key to select memory zone 1 or memory zone 2. Continue to press and hold the Memory key for approximately 5 seconds, then the data in the pre-designated memory zone can be erased automatically. Time Adjustment To adjust the date/ time in the monitor, press the key. -
Page 14: Data Transfer To Pc Ready (Optional)
Data Transfer to PC Ready (Optional) Accessories for data transfer to PC including: BP MANAGER software CD-ROM connecting cable (USB) instruction manual are packaged and sold separately from the blood pressure monitor. Troubleshooting If any abnormality should arise during use, please check the following points. Symptoms Check Points Correction... -
Page 15: Cautionary Notes
This unit is not field serviceable. You should not use any tool to open the device nor should you attempt to adjust anything inside the device. If you have any problems, please contact the store or the doctor from whom you purchased this unit or please contact Rossmax International Ltd. -
Page 16: Emc Guidance And Manufacturer's Declaration
EMC guidance and manufacturer’s declaration Guidance and manufacturer’s declaration-electromagnetic emissions The MJ701f is intended for use in the electromagnetic environment specified below. The customer or the user of the MJ701f should assure that it is used in such an environment. Emission test Compliance Electromagnetic environment-guidance... - Page 17 Guidance and manufacturer’s declaration-electromagnetic immunity The MJ701f is intended for use in the electromagnetic environment specified below. The customer or the user of the MJ701f should assure that is used in such and environment. Immunity test IEC 60601 test level Compliance level Electromagnetic environment- guidance...
- Page 18 Recommended separation distance between portable and mobile RF communications equipment and the MJ701f The MJ701f is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the MJ701f can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the MJ701f as recommended below, according to the maximum output power of the communications equipment.
- Page 19 Blood Pressure Log Store the reading in memory zone: Name: Age: Weight: Date Time mmHg Pulse Body Condition...
- Page 20 Blood Pressure Log Store the reading in memory zone: Name: Age: Weight: Date Time mmHg Pulse Body Condition...
- Page 21 Blood Pressure Log Store the reading in memory zone: Name: Age: Weight: Date Time mmHg Pulse Body Condition...
