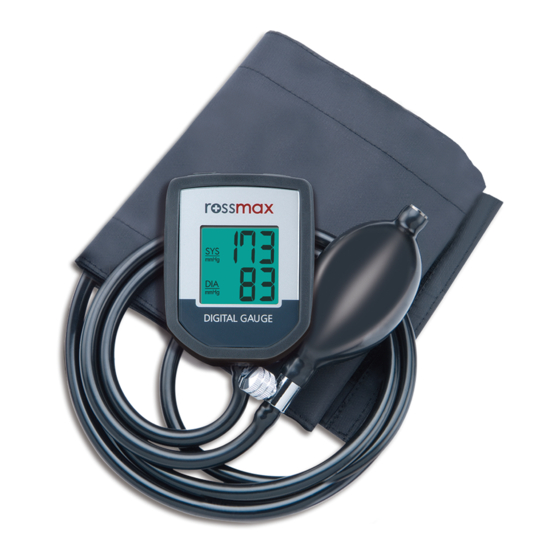

Rossmax MANDAUS II Instruction Manual

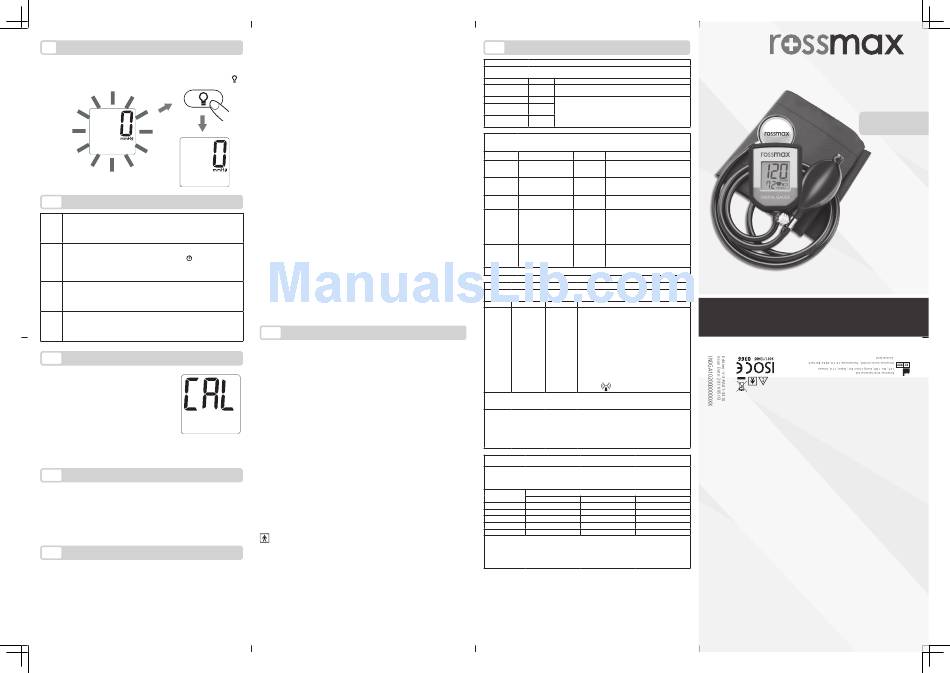

9. Back light Control
The default is to have the back light on once the pressure is in-
flated over 30 mmHg, and throughout the measurement pro-
cess. To switch the back light off at any time, press the "
key.

10. Error Messages

Heartbeat rate detection error. The cuff is deflated
Err
too rapidly. Please keep the deflation rate among 2-3
mmHg per second.
A pressure of over 15 mmHg remaining for more than 3
minutes is detected. Please press the " " key to switch
EE
the unit off, or the unit will automatically switch off
after 60 seconds.
Data Error. Please remove and reload the batteries. If
E3
error keeps occurring, return the device to the local
distributor or service center.
The cuff is inflated to a pressure over 299 mmHg. Please
5
01
open the valve immediately to rapidly exhaust the air in
the cuff.
3
11. Maintenance
4
If the unit is used for over 10,000 times,
the calibration reminding message (CAL)
will appear every time the unit is switched
on. It is recommended that calibration be
completed every two years. Only the man-
ufacturer or an authorized service techni-
cian is qualified for the calibration service.
Please contact the manufacturer, Rossmax
International Ltd. or your local distributors. (The PC Link socket
for calibration purpose is inside the battery compartment.)

12. Safety Information

1. Rossmax Mandaus II are exclusively designed for blood pres-
sure measurement at the upper arm or thigh on healthy skin.
2. Please do not inflate to more than 300 mmHg.
3. Do not take your blood pressure for more than 3 minutes.
4. Wait for at least 2 minutes before repeated measurements.

13. Cautionary Notes

1. The unit contains high-precision assemblies. Therefore, avoid ex-
treme temperatures, humidity, and direct sunlight. Avoid drop-
ping or strongly shocking the main unit, and protect it from
dust.
2. Clean the blood pressure monitor body and the cuff carefully
with a slightly damp, soft cloth. Do not press. Do not wash the
cuff or use chemical cleaner on it. Never use thinner, alcohol or
petrol (gasoline) as cleaner.
3. Leaky batteries can damage the unit. Remove the batteries when
the unit is not used for a long time.
4. The unit should not be operated by children so to avoid hazard-
ous situations.
5. If the unit is stored near freezing, allow it to acclimate at room
"
temperature before use.
6. Mandaus II is not field serviceable. You should not use any tool
to open the device nor should you attempt to adjust anything
inside the device. If you have any problems, please contact who
you purchased Mandaus II from or please contact Rossmax Inter-
national Ltd.
7. To stop operation at any time, open the air release valve, and the
air in the cuff will be rapidly exhausted.
8. Please note that this is a home healthcare product only and it is
not intended to serve as a substitute for the advice of a physician
or medical professional.
9. Do not use this device for diagnosis or treatment of any health
problem or disease. Measurement results are for reference only.
Consult a healthcare professional for interpretation of pressure
measurements. Contact your physician if you have or suspect any
medical problem. Do not change your medications without the
advice of your physician or healthcare professional.
10. Electromagnetic interference: The device contains sensitive elec-
tronic components. Avoid strong electrical or electromagnetic
fields in the direct vicinity of the device (e.g. mobile telephones,
microwave ovens). These may lead to temporary impairment of
measurement accuracy.
11. Dispose of device, batteries, components and accessories accord-
ing to local regulations.
12. This monitor may not meet its performance specification if stored
or used outside temperature and humidity ranges specified in

Specifications.

6
14. Specifications
Power Source : DC 3V Two AAA Batteries
Measurement Range : Pressure: 0-299 mmHg;
Pulse: 30-240 beats/min
Accuracy : Pressure:
0°C~17°C, 34°C~46°C: ±6 mmHg
18°C~33°C: ±3 mmHg
Pulse: ±5% of reading
Pressure Sensor : Semi-conductor
Inflation : Manual Inflation
Deflation : Manually operated deflation valves
Auto-shut-off : 1 min. after last key operation
Back light auto-shut-off : 15 sec. after last key operation
Operation environment : 0°C~46°C (32°F~115°F);
85% RH max
Storage environment : -34°C~65°C (-30°F~149°F);
85% RH max
Dimensions : 78(L) x 63(W) x 48(H) mm
Weight : 90g (Mandaus II)
267g [Mandaus II+Rossmax Gauge
Cuff (M)]
Limited users : Adult users
: Type BF
Device and cuff are designed to pro-
vide special protection against electri-
cal shocks.
*Specifications are subject to change without notice.
EMC guidance and manufacturer's declaration
15.
Guidance and manufacturer's declaration-electromagnetic emissions
The Mandaus II is intended for use in the electromagnetic environment specified below.
The customer or the user of the Mandaus II should assure that it is used in such an environment.
Emission test Compliance Electromagnetic environment-guidance
RF emissions CISPR 11 Group 1 The Mandaus II uses RF energy only for its internal function. Therefore, its RF emissions
are very low and are not likely to cause any interference in nearby electronic equipment.
RF emissions CISPR 11 Class B The Mandaus II is suitable for use in all establishments, including domestic establish-
ments and those directly connected to the public low-voltage power supply network that
Harmonic emissions Not applicable
supplies buildings used for domestic purposes.
IEC 61000-3-2
Voltage fluctuations/flicker Not applicable
emissions IEC 61000-3-3
Guidance and manufacturer's declaration-electromagnetic immunity
The Mandaus II is intended for use in the electromagnetic environment specified below.
The customer or the user of the Mandaus II should assure that it is used in such an environment.
Immunity test IEC 60601 test level Compliance level Electromagnetic environment-guidance
Electrostatic dis- ± 6 kV contact ± 6 kV contact Floors should be wood, concrete or ceramic tile. If
charge (ESD) IEC ± 8 kV air ± 8 kV air floors are covered with synthetic material, the relative
61000-4-2 humidity should be at least 30%
Electrical fast ± 2kV for power supply lines Not applicable Mains power quality should be that of a typical com-
transient/burst IEC ± 1kV for input/output lines Not applicable mercial or hospital environment.
61000-4-4
Surge IEC ± 1kV line(s) to line(s) Not applicable Mains power quality should be that of a typical com-
61000-4-5 ± 2kV line(s) to earth Not applicable mercial or hospital environment.
Voltage Dips, short <5% UT(>95% dip in UT) for 0,5 Not applicable Mains power quality should be that of a typical
interruptions and cycle commercial or hospital environment. If the user of
voltage variations 40% UT(60% dip in UT) for 5 Not applicable the Mandaus II requires continued operation during
on power supply cycles power mains interruptions, it is recommended that
input lines IEC 70% UT(30% dip in UT) for 25 Not applicable the Mandaus II be powered from an uninterruptible
61000-4-11 cycles power supply or a battery.
<5% UT(>95% dip in UT) for 5 s Not applicable
Power frequency 3 A/m 3 A/m Power frequency magnetic fields should be at levels
(50/60 Hz) mag- characteristics of a typical location in a typical com-
netic field IEC mercial or hospital environment.
61000-4-8
NOTE: UT is the a.c. mains voltage prior to application of the test level.
Guidance and manufacturer's declaration-electromagnetic immunity
The Mandaus II is intended for use in the electromagnetic environment specified below.
The customer or the user of the Mandaus II should assure that is used in such and environment.
Immunity test IEC 60601 test level Compliance level Electromagnetic environment-guidance
Portable and mobile RF communications equipment should be used
no closer to any part of the Mandaus II, including cables, than the
recommended separation distance calculated from the equation
applicable to the frequency of the transmitter.
Recommended separation distance:
Conducted RF 3 Vrms d = 1,2 √P
IEC 61000-4-6 150 KHz to 80 MHz Not applicable
d = 1,2 √P 80MHz to 800 MHz
d = 2,3 √P 800MHz to 2,5 GHz Where P is the maximum output power
Radiated RF 3 V/m 3 V/m rating of the transmitter in watts (W) according to the transmitter manu-
IEC 61000-4-3 80MHz to 2,5 GHz facturer and d is the recommended separation distance in metres (m).
Field strengths from fixed RF transmitters, as determined by an electro-
magnetic site survey, a should be less than the compliance level in each
frequency range. b
Interference may occur in the vicinity of equipment marked with the fol-
lowing symbol:
NOTE1: At 80 MHz and 800 MHz, the higher frequency range applies.
NOTE2: These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from
structures, objects and people.
a. Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless) telephones and land mobile radios, ama-
teur radio, AM and FM radio broadcast and TV broadcast cannot be predicted theoretically with accuracy. To assess the electromag-
netic environment due to fixed RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in
the location in which the Mandaus II is used exceeds the applicable RF compliance level above, the Mandaus II should be observed
to verify normal operation. If abnormal performance is observed, additional measures may be necessary, such as re-orienting or
relocating the Mandaus II.
b. Over the frequency range 150 kHz to 80 MHz, field strengths should be less than 3 V/m.
Recommended separation distance between
portable and mobile RF communications equipment and the Mandaus II
The Mandaus II is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer
or the user of the Mandaus II can help prevent electromagnetic interference by maintaining a minimum distance between portable and
mobile RF communications equipment (transmitters) and the Mandaus II as recommended below, according to the maximum output
power of the communications equipment.
Rated maximum output Separation distance according to frequency of transmitter / m
power of transmitter / W
150 kHz to 80 MHz / d = 1,2 √P 80 MHz to 800 MHz / d = 1,2 √P 800 MHz to 2,5 GHz / d = 2,3 √P
0,01 0,12 0,12 0,23
0,1 0,38 0,38 0,73
1 1,2 1,2 2,3
10 3,8 3,8 7,3
100 12 12 23
For transmitters rated at a maximum output power not listed above, the recommended separation distance d in meters (m) can be es-
timated using the equation applicable to the frequency of the transmitter, where P is the maximum output power rating of the transmitter
in watts (W) according to the transmitter manufacturer.
NOTE1: At 80 MHz and 800 MHz, the separation distance for the higher frequency range applies.
NOTE2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from
structures, objects and people.
GA102
Model:
MANDAUS II
EN
Instruction Manual
www.rossmaxhealth.com
