Front Panel

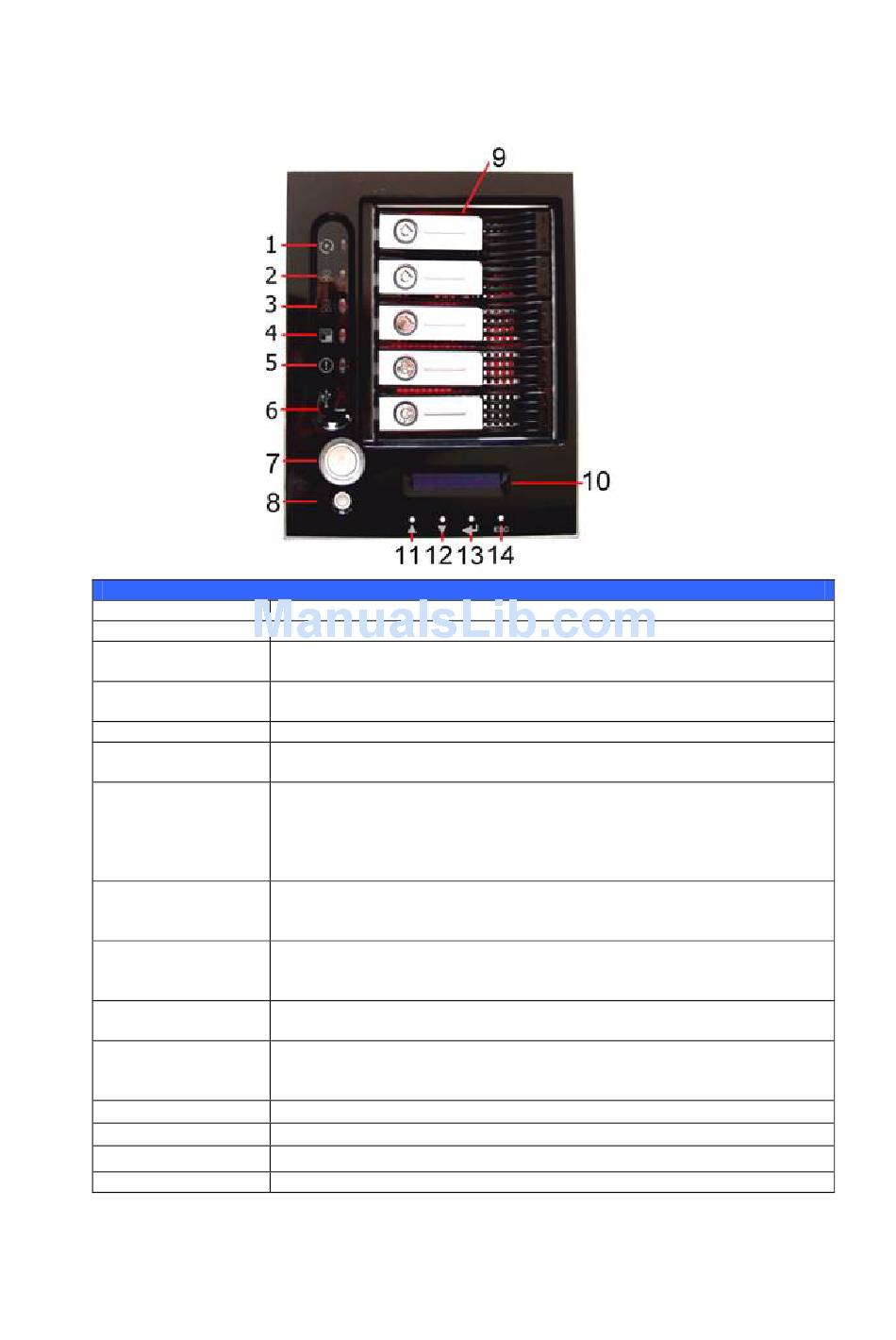

The Thecus N5200PRO's front panel has the device's controls, indicators, and
hard disk trays:
Front Panel
Item
DOM LED
WAN LED
LAN LED
USB Copy LED
Busy LED
USB Port
Power Button
Reset Button
HDD Trays
LCD Display
Up Button
▲
Down Button
▼
↵
Enter Button
Escape Button ESC
Description
• Solid orange: system is being upgraded
• Solid green: network link
• Blinking green: network activity
• Solid green: network link
• Blinking green: network activity
• Solid blue: files are being copied from a USB storage device
• Blinking orange: system startup or system maintenance; data
currently inaccessible
• USB 2.0 port for compatible USB devices, such as digital
cameras, USB disks, USB printers, and USB wireless dongles*
Note: For supported USB wireless dongles, please contact
support@thecus.com
• Power on/off N5200PRO
• Solid blue: Device is powered on
• Blinking blue: eSATA hard disk is connected and active
• Resets the N5200PRO
• Press for five seconds during boot process to reset IP address
and admin password
• Five 3.5" SATA HDD trays
• Locks are provided for added security
• Displays current system status and warning messages
• Displays hostname, WAN/LAN IP address, RAID status, and
current time
• Push to scroll up when using the LCD display
• Push to scroll down when using the LCD display
• Push to confirm information entered into the LCD display
• Push to leave the current LCD menu
