- Page 1 ANTEA 50E SCRUBBING MACHINES USE AND MAINTENANCE MANUAL ORIGINAL INSTRUCTION DOC. 10066345 - Ver. AA - 11-2016...
-
Page 3: Table Of Contents
CONTENTS SAFETY WARNINGS FOR WET/DRY CONTENTS .......................3 VACUUM CLEANER SAFETY WARNINGS FOR WET/DRY VACUUM CLEANER ........3 Before using the appliance for the first DANGER LEVELS ........................3 CONNECTION TO THE ELECTRICITY GRID ................4 time, read and comply with these safety USE - EMPLOYMENT ......................... -
Page 4: Connection To The Electricity Grid
CONNECTION TO THE ELECTRICITY GRID DANGER: • To reduce the risk of fire, electric shocks or injury, please read and follow the safety instructions and warning indications before using. This appliance has been designed to be safe when it is used for cleaning in the manner specified. - Page 5 the appliance. • If the appliance is used in dangerous areas (e.g. petrol stations), the relative safety standards must be observed. The appliance must never be used in environments with a potentially explosive atmosphere. • In order to avoid short-circuits when working in the vicinity of electrical components, do the following: avoid the use of non-insulated tools;...
- Page 6 • Never leave the appliance unattended when it is connected to the mains socket. Take the plug out of the socket when not used and before any maintenance. • Burning or smouldering objects. • In low temperatures, the appliances should not be used outdoors. CAUTION: •...
-
Page 7: Transport
openings are obstructed. • Keep the appliance's openings free of any dust, lint, hairs, or any other foreign materials that could reduce the airflow. • Do not remove or alter any labels affixed to the appliance. • This appliance has not been approved for use on public streets or roadways. •... -
Page 8: Accessories And Spare Parts
this appliance is only designed for dry use, and must not be used or stored outdoors in damp conditions. ACCESSORIES AND SPARE PARTS CAUTION: Only use accessories and spare parts that have been authorised by the manufacturer. Original accessories and spare parts ensure the appliance can be used safely and without any fault. CABLE EXTENSION CAUTION: Only use the materials expressly recommended by the... -
Page 9: Symbols Used In The Manual

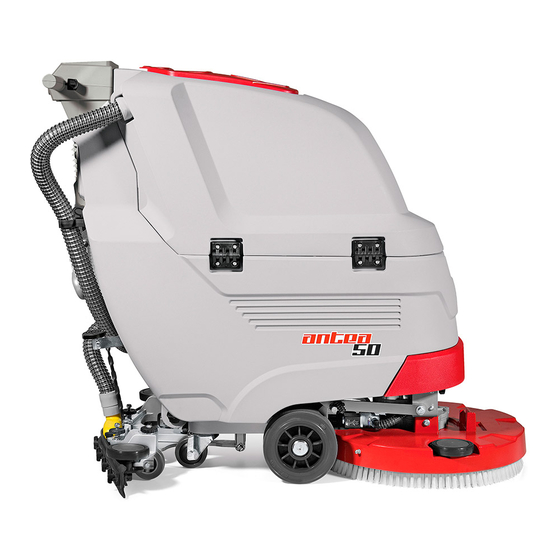

(written on the relevant plate). TECHNICAL DESCRIPTION The ANTEA 50E is a scrubbing machine that cleans a wide range of flooring and dirt types by means of the mechanical action of the discoidal brush and the chemical action of a water-detergent solution. It is capable of cleaning a wide range of floors and types of dirt, moving forward collecting the dirt that has been removed and the detergent solution that has not been absorbed by the floor. -
Page 10: Symbols Used On The Appliance
SYMBOLS USED ON THE APPLIANCE PREPARING THE APPLIANCE SYMBOLS PRESENT ON THE REGISTRATION PLATE HANDLING THE PACKED APPLIANCE Since the packaging elements (plastic bags, staples, etc.) are a Maximum gradient symbol: potential source of danger, they should not be left within the reach of Used on the registration plate of the device, to indicate the maximum gradient that can be children, disabled persons, etc. -
Page 11: Appliance Safety
ASSEMBLING THE SPLASH GUARD BRUSH HEAD For packaging reasons, the brush head splash guard is supplied disassembled from the device, and must be assembled on the brush head body as follows: 1. Take all necessary steps to ensure that the device is in a safe condition (see "MACHINE SAFETY ’”). -
Page 12: Detergent Solution
The solution tank can be filled with water in three different ways: SCRUBBING WITH DRYING To carry out “SCRUBBING AND DRYING” tasks, proceed as follows: • Removing the cap/measuring device (3) and filling the solution tank by means of a rubber hose or a bucket (Fig.3). -
Page 13: Drying
DRYING To carry out “DRYING” tasks, proceed as follows: 1. Carry out all the checks in the paragraph “STARTING WORK”. 2. Lower the squeegee unit by means of the lever (1) on the back of the appliance (Fig.1). 3. By activating the dead man's lever (2), the machine will start to move (Fig.2). 4. -
Page 14: Checking And Cleaning The Recovery Tank
6. Remove the squeegee body from the slits in the squeegee connector (Fig.4). CHECKING AND CLEANING THE RECOVERY TANK 7. Thoroughly clean the squeegee body vacuum chamber (5) with a jet of water, and then with a damp Proceed as follows to empty the recovery tank: cloth (Fig.5). -
Page 15: Checking And Maintaining The Recovery Tank Filter-Float
CHECKING AND CLEANING THE SOLUTION TANK Proceed as follows to empty the solution tank: 1. Take the device to the dedicated maintenance area. 2. Take all necessary steps to ensure that the device is in a safe condition (see "MACHINE SAFETY’”). -
Page 16: Checking And Cleaning The Vacuum Hose
TROUBLESHOOTING CHECKING AND CLEANING THE VACUUM HOSE Careful cleaning of the vacuum hose guarantees better cleaning of the floor as well as a longer vacuum This chapter lists the most common problems linked with the use of the appliance. If you are unable to motor life. -
Page 17: Disposal
• Brushes FLOOR SCRUBBING MACHINES • Felt mod. ANTEA 50E • Electric and electronic parts* • Batteries comply with the requirements of the following Directives: • Plastic parts (tanks and handlebars) •... - Page 18 NOTES...
- Page 20 COMAC S.p.A. - Via Maestri del Lavoro, 13 - 37059 S. Maria di Zevio - Verona - Italy Tel. +39 045 8774222 – Fax +39 045 8750303 – E-mail:com@comac.it www.comac.it...
