30
5
Zoom (downscan) / Range (sidescan) icons
6
Range scale
Setting up the image
Use the StructureScan menu options to set up the image. When the
cursor is active, some options on the StructureScan menu are
replaced with cursor mode features. Select Clear cursor to return
to the normal StructureScan menu.

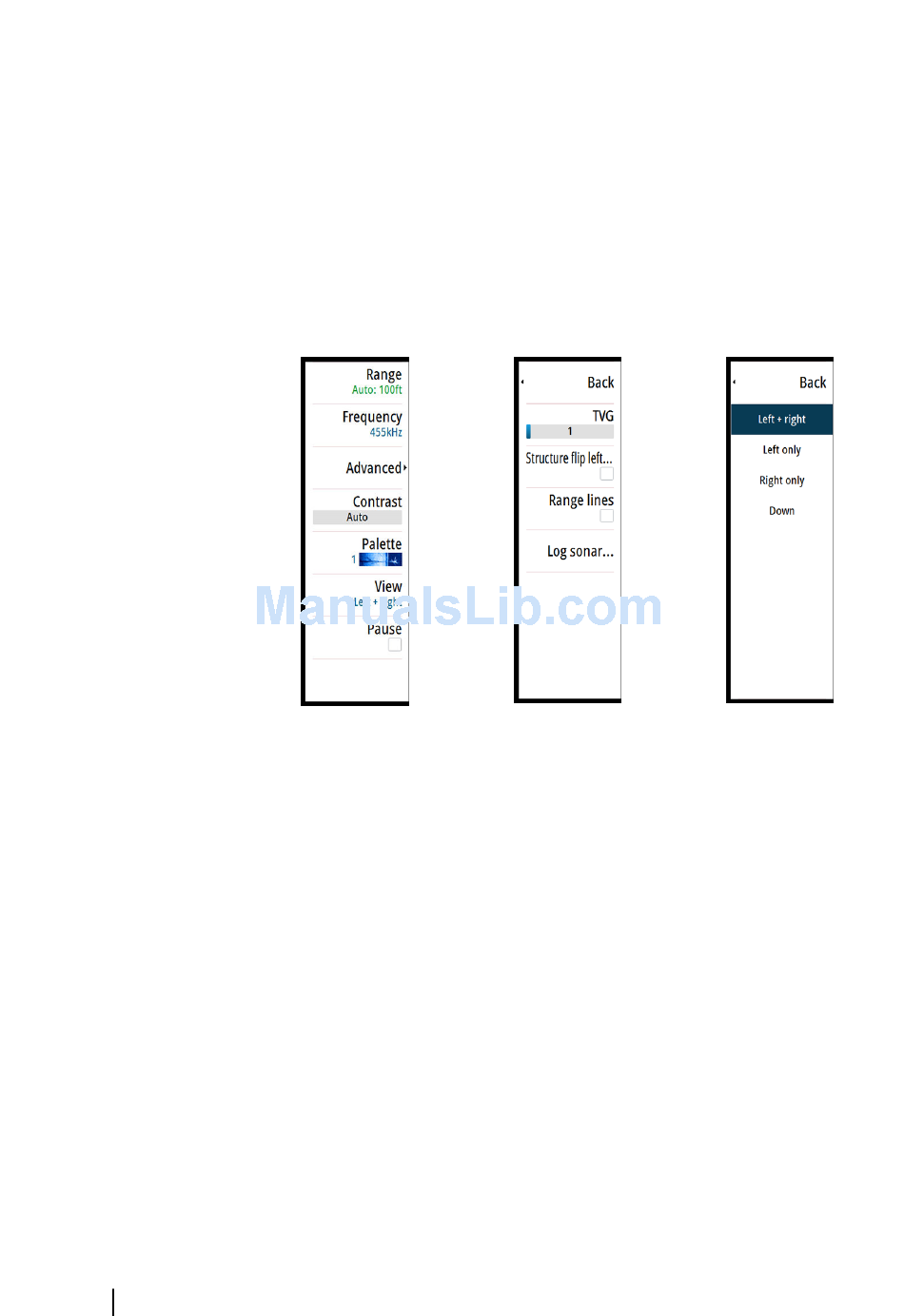

Main menu
StructureScan
| GO XSE Getting Started
Advanced menu
View menu
