FEATURES:
• 1/2.9" Sony CMOS
• 2.0 MegaPixel With full 1080p/720p HD-SDI Output (SMPTE 292M)
• 40 850nm Dynamic Intensity IR LEDs with 150' Range
• 2MegaPixel IR Corrected 2.8-12mm Varifocal Lens Included
• Mechanical IR Cut Filter (True Day/Night)
• 16:9 Video format
• Advanced OSD Functions: WDR, 3D-DNR, Night Watch DSS Low Light
Color Technology, ACE (Adaptive Color Enhancement), Motion Detection,
Privacy, Digital Zoom, HLM, Flip, Mirror
• 100% Pure Digital Transmission of video data
• Up to 700' HD Transmission Range (Depending on
cable characteristics and integrity)
• 12VDC / 24VAC Dual Voltage Operation
• Available in Ivory or Black

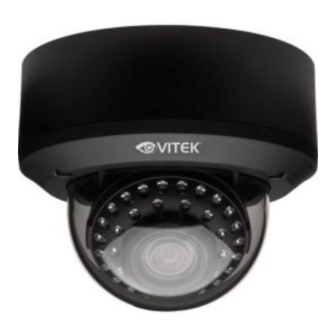

VTD-HOCR2812/V
2.0MP HD-SDI Vandal Resistant
Varifocal WDR Dome Camera
Advertisement
Related Manuals for Vitek VTD-HOCR2812
Summary of Contents for Vitek VTD-HOCR2812
- Page 1 VTD-HOCR2812/V 2.0MP HD-SDI Vandal Resistant Varifocal WDR Dome Camera FEATURES: • 1/2.9” Sony CMOS • 2.0 MegaPixel With full 1080p/720p HD-SDI Output (SMPTE 292M) • 40 850nm Dynamic Intensity IR LEDs with 150’ Range • 2MegaPixel IR Corrected 2.8-12mm Varifocal Lens Included •...
- Page 3 OSD controls are located inside the camera. 1. Depress the joystick to enter the setup menu. • The Setup menu is now displayed on the monitor...
- Page 4 MENU MENU Select any function you Modes can be changed wish to change by by pushing the joystick pushing the joystick Up Left or Right. or Down 3. When finished programing camera select EXIT to save values.
- Page 5 • When the SETUP menu screen is displayed, select EXPOSURE by pushing the joystick up or down so that EXPOSURE is highlighted. • When the SETUP menu screen is displayed, select EXPOSURE by pushing the joystick up or down so that EXPOSURE is highlighted. Decrease Level Increase Level the type of the lens can be set to either DC or Manual.
- Page 6 by using the joystick up or down so that the arrow indicates White Bal. joystick. When Halogen or other specialty lighting is used. Increase or Decrease Level. Increase or Decrease Level. Increase or Decrease Level.
- Page 7 MENU Set from 0-10 (set to high and color will fade) Turns Mirror / Flip On or Off. Adjustable digital zoom from 0~127x.
- Page 8 to prevent bright lights from washing out the picture i.e. headlights Increase or decrease the level of HLM...
- Page 9 The Wide Dynamic Range feature improves the overall picture balance beyond the Backlight Compensation feature. It creates an optimal balance of brightness and color by combining images from a bright area (high shutter speed) and images from a dark area (low shutter speed).
- Page 10 • Reduces noise level in low light conditions. MENU MIDDLE MENU...
- Page 11 MENU MENU...
- Page 12 MENU Set output frame to 25 or 30 (PAL/NTSC). (Can be set to 50 or 60 at 720P mode) To help Compensate for dead pixels...
- Page 13 (In this mode the OSD might flicker) Adjust the focus while in zoom mode to better focus the camera Factory Default...
-
Page 14: Installation
DIMENSIONS 3.94” 5.39” 2.89” 5.79” 6.08” INSTALLATION HD-SDI DVR HDMI... - Page 15 SPECIFICATIONS Sensor 1/2.9” Sony CMOS (IMX122LQJ) Resolution 2.0 MegaPixel (1080p / 720p) More than 52 dB (AGC Off) Video Output 1x HD-SDI (BNC) / 1x SD CVBS (BNC) IR Illuminators 40 IR LEDs IR Color Temp. 850nm IR Range 150’ Dynamic Intensity IR LEDs Lens MegaPixel IR Corrected 2.8-12mm Varifocal...
- Page 16 VITEK products carry a three (3) year limited warranty. VITEK warrants to the purchaser that products manufactured by VITEK are free of any rightful claim of infringement or the like, and when used in the manner intended, will be free of defects in materials and workmanship for a period of three (3) years, or as otherwise stated above, from the date of purchase by the end user.
