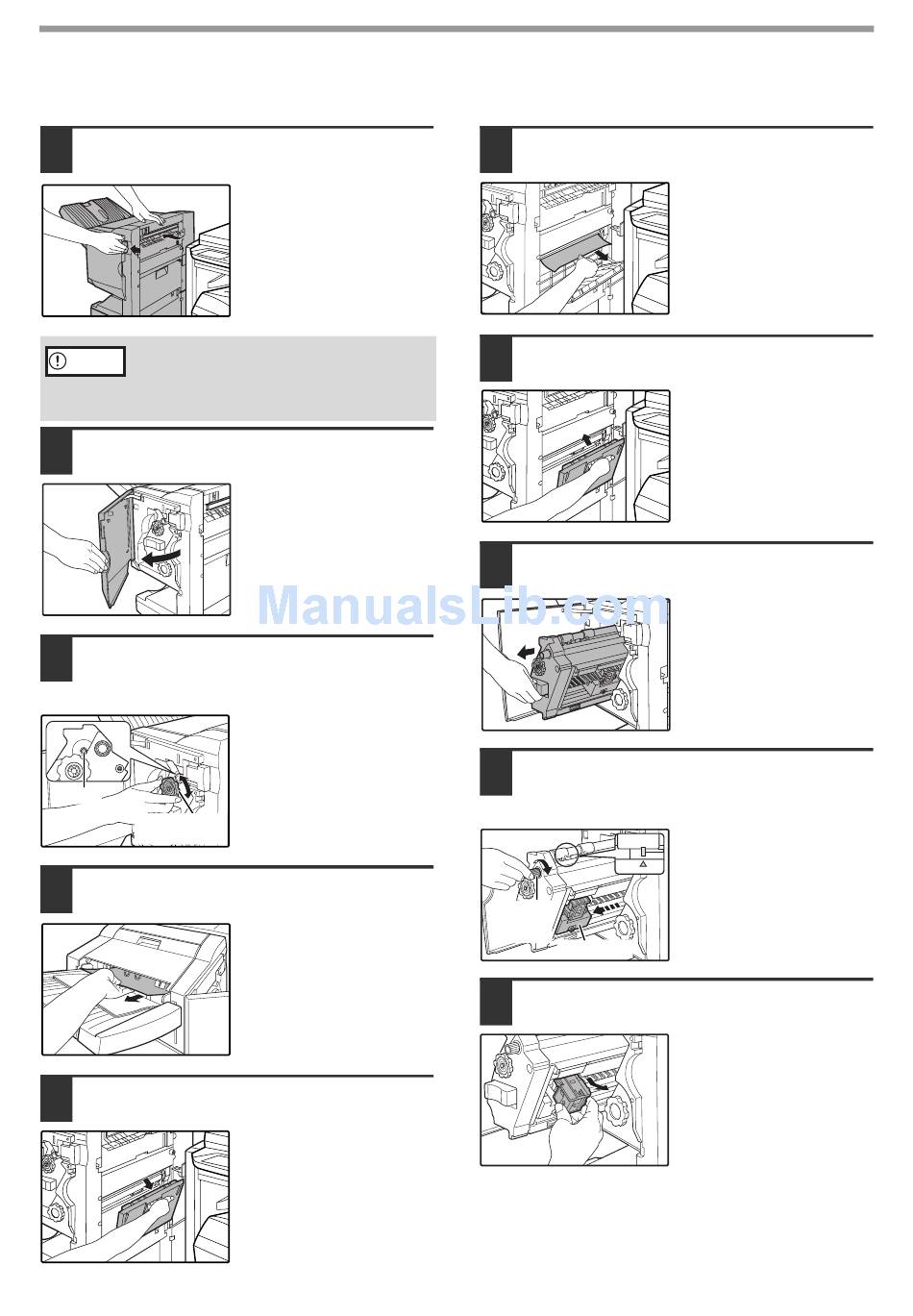

I Removing a staple jam
1
Press the detach button and separate the
saddle stitch finisher from the machine.
The saddle stitch finisher and the
Caution
machine are connected at the rear.
Exercise caution when pulling them
apart.
2
Open the front cover.
3
Rotate roller rotating knob C until the
blue indicator appears as shown
below.
Blue
Roller rotating
knob C
4
Remove the paper from the stapler
compiler.
5
Open the saddle stitch section cover.
6
Remove any misfed paper.
7
Close the saddle stitch section cover.
8
Pull the stapler section forward.
9
Rotate roller rotating knob A in the
direction of the arrow to move the
staple unit all the way forward.
Roller
rotating
knob A
Staple unit
10
Remove the staple box.
Remove the paper
gently without tearing it.
Rotate the roller rotating
knob A until the triangle
mark and indicator are
aligned as shown in the
illustration.
