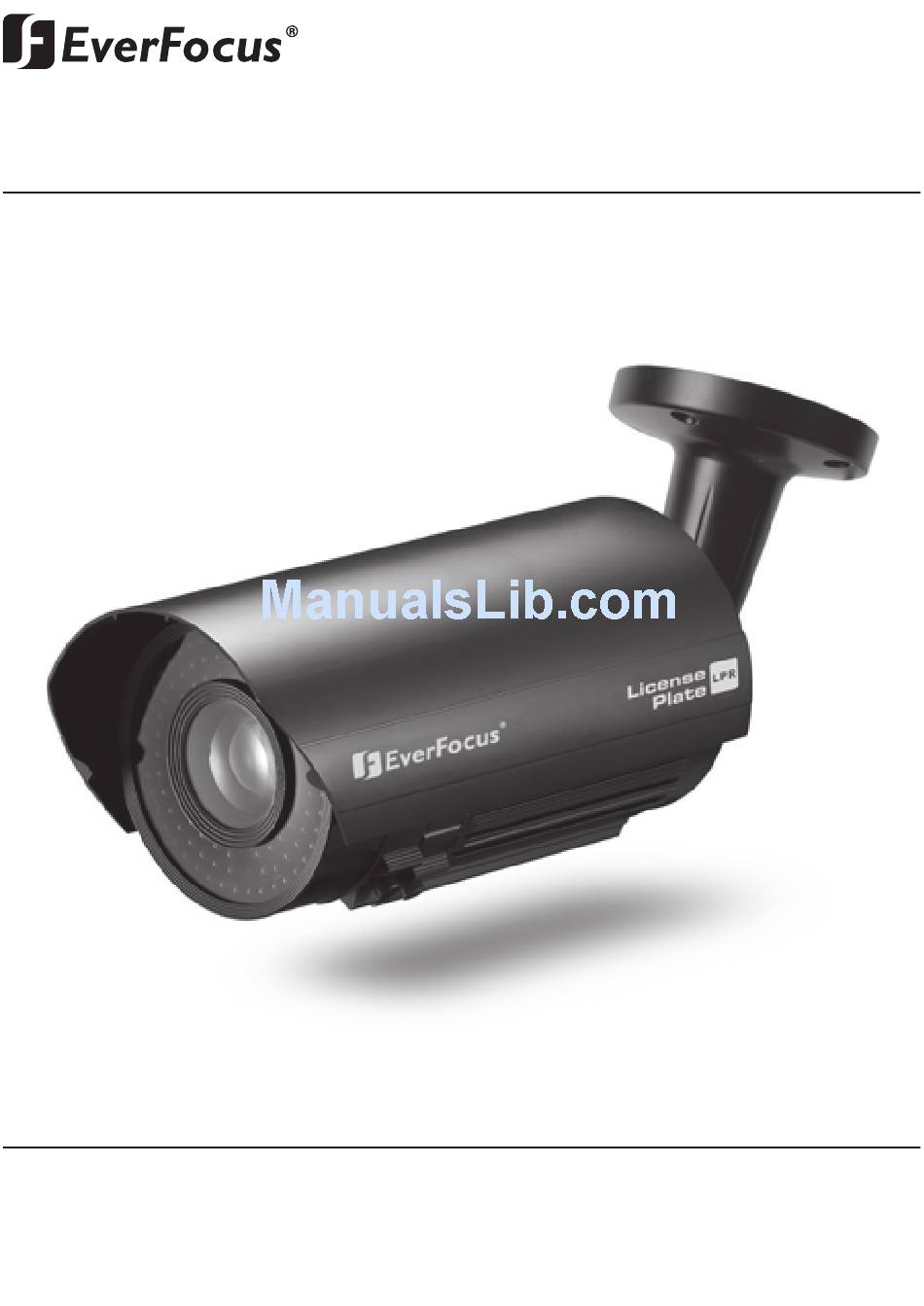

- Page 1 E Z - P LATE CA M 2 High Contrast Long Range License Plate Capture Camera I NS TAL L AT IO N & O PERATIO N M A NU A L Before attempting to connect or operate, please read and follow these instructions.
-
Page 2: Osd Menu Functions
C on te n ts 1 . CA UTIO NS 2 . FEATURE S 3 . IT EMS P RO VI DE D IN T H E B O X 4 . COMPONENT A ND CON TRO L NAMES AND F UN CT I O N S 5 . - Page 3 1 . C a u ti o n s This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions; 1. T hi s devi ce ma y n o t ca u se h a rm f u l i n te r fe r e n ce . 2.
-
Page 4: Correct Disposal Of This Product (Waste Electrical & Electronic Equipment)
1 . C a u ti o n s Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicate that it should not be disposed with other household wastes at the end of its working life. - Page 5 2 . F e a t u re s • 1/3" Sony Super-HAD ⅡCCD • OSD Menu system customizes performance to match application • High Resolution 600TV Lines • Special filter and IR LEDs provide maximum readability despite headlight glare •...
- Page 6 Compon e n t a n d Co n trol Na me s and Func ti ons ② ② ① ⑦ ③ ⑤ ⑧ ⑥ ④ ① Sunshield ② Mounting Bracket ③ IR LED : 100ea ④ External Zoom and Focus adjustments ⑤...
-
Page 7: Adjusting Camera Position
5 . In s t a l la t i o n • ADJUSTING CAMERA POSITION 360° 360° 90° * 1st Axis * 2nd Axis * 3rd Axis Loosen socket head allen screws to change angle and/or rotate body about base. WARNING ! To prevent injury, this apparatus must be securely attached to the mounting surface with sufficient... - Page 8 5 . In s t a l la t i o n • CONNECTIONS (1) DUAL(DC12V/AC24V) Power Supply 24VAC/ 1 A min. (Recommended) 12VDC/ 1.5 A min. (Optional) DVR OR OTHER CCTV EQUIPMENT HANDHELD VIDEO TEST POINT CONNECTION VIDEO IN When you install the camera, please seal the end of cable to protect the camera connections from humidity problems.
-
Page 9: Osd Menu Structure
6 . OS D Fu nc t i on s OSD Menu Structure • O SD A cce ss To access OSD menu unscrew cover plate on bottom of camera, press “in” on joystick to access OSD Menu • MOD E - INSTALLATION SETUP Installation Mode provides a bright video... - Page 10 7 . In s t a l la t i o n G ui del i n e s C am era Hei g h t • Consider camera height in distance calculation. • Sharper angles will alter the appearance of the plate. Shallow angles are recommended) Camera Height (Ft) Horizontal Distance (Ft) Capture Distance(Ft)
- Page 11 7 . In s ta ll a t i o n G ui d e l in e s C amera A ng l e s • Vertical and horizontal angle must not exceed 30 degrees to achieve proper view of the license plate. C aptu re Zo n e •...
- Page 12 7 . In s t a l la t i o n G ui del i n e s L an e Widt h • Narrow lanes = less variation in plate location. • Wider lanes = more variation in plate location. •...
- Page 13 7 . In s t a l la t i o n G ui del i n e s D VR • Camera is fully compatible with industry standard DVRs. • Check compression settings. • For best results use non-conditional refresh compression. (i.e.
- Page 14 8 . Sp e c if i ca t i on s Signal Format NTSC Image Device 1/3" Sony Super HAD ⅡCCD Total Pixels 811(H) x 508(V) 795(H) x 596(V) Effective Pixels 768(H) x 494(V) 752(H) x 582(V) Inter. H/V 15.734KHz(H), 59.94Hz(V) 15.625KHz(H), 50Hz(V) H.Resolution...
- Page 15 9 . D im e n s i o n s unit: mm(inch) ø110(ø4.33) 317(12.48) 115.2(4.54) 185.85(7.31) Ф3.5(Ф0.14) 90 degree Bottom of Bracket...
- Page 16 Telford: 0845 430 8888 www.everfocus.in Fax: 020 8649 9907 uk.support@EverFocus.com Ihr EverFocus Produkt wurde Your EverFocus product is designed and manufactured with high quality entwickelt und hergestellt mit qualitativ materials and components which can hochwertigen Materialien und Komponenten, die recycelt und wieder be recycled and reused.
