Oki Data CONFIDENTIAL
1.2
Printer Engine Specifications
The inside of the printer is composed of the followings:
• Electrophotographic Processor
• Paper Paths
• Controller Block (CU and PU)
• Operator Panel
• Power Units (High-Voltage Unit and Low-Voltage Unit)

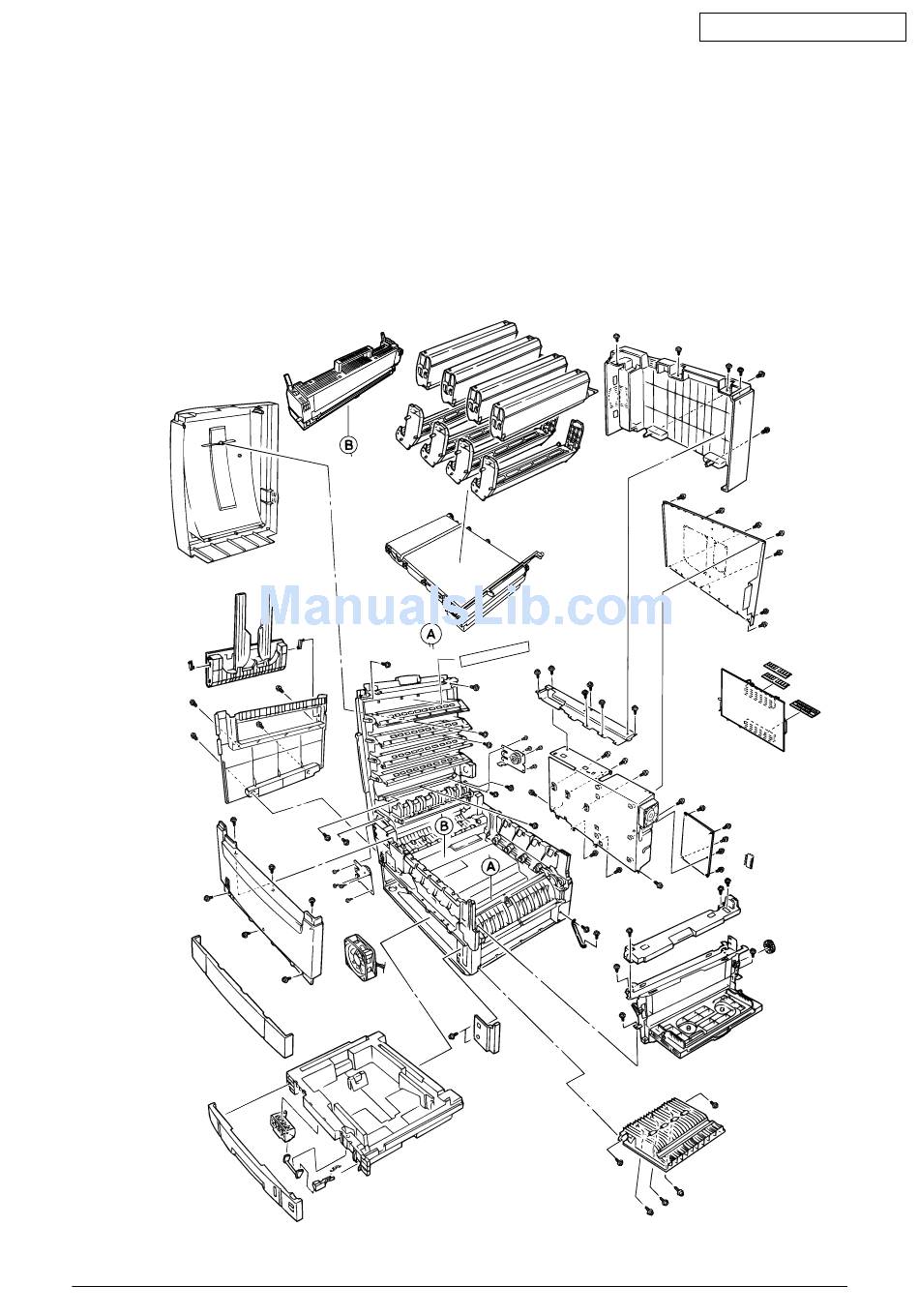

Figure 1-2 shows the printer configuration.
Figure 1.2
8 /
41956001TH Rev.6
