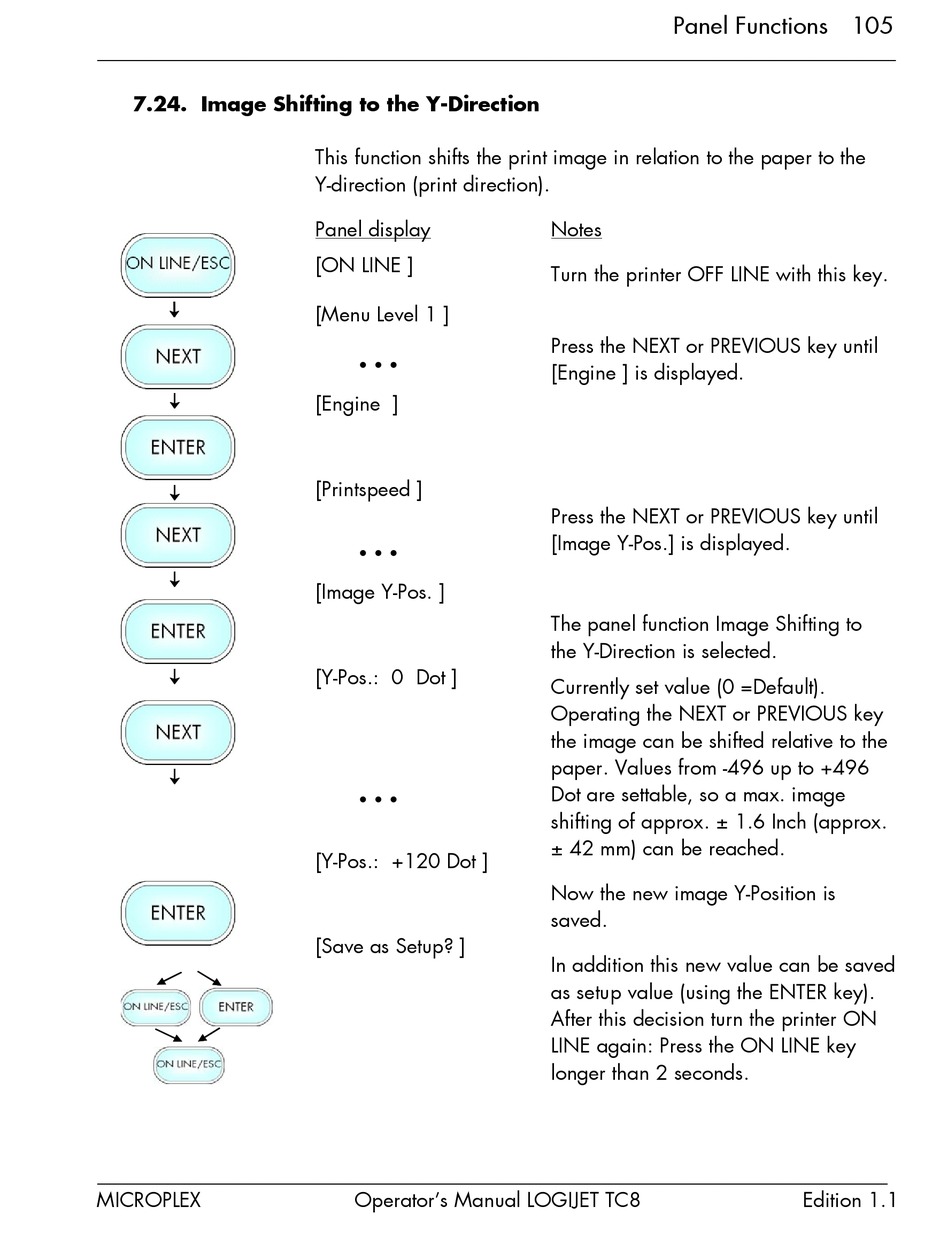

7.24. Image Shifting to the Y-Direction

_______________________________________________________________________________________________
MICROPLEX
This function shifts the print image in relation to the paper to the
Y-direction (print direction).
Panel display
[ON LINE ]
[Menu Level 1 ]
7 7 7
[Engine ]
[Printspeed ]
7 7 7
[Image Y-Pos. ]
[Y-Pos.: 0 Dot ]
7 7 7
[Y-Pos.: +120 Dot ]
[Save as Setup? ]
Operator's Manual LOGIJET TC8
Panel Functions 105
Notes
Turn the printer OFF LINE with this key.
Press the NEXT or PREVIOUS key until
[Engine ] is displayed.
Press the NEXT or PREVIOUS key until
[Image Y-Pos.] is displayed.
The panel function Image Shifting to
the Y-Direction is selected.
Currently set value (0 =Default).
Operating the NEXT or PREVIOUS key
the image can be shifted relative to the
paper. Values from -496 up to +496
Dot are settable, so a max. image
shifting of approx. ± 1.6 Inch (approx.
± 42 mm) can be reached.
Now the new image Y-Position is
saved.
In addition this new value can be saved
as setup value (using the ENTER key).
After this decision turn the printer ON
LINE again: Press the ON LINE key
longer than 2 seconds.
