146 Operator Maintenance
_______________________________________________________________________________________________
Upper sensor
(Transparent
sensor)
Lower sensor
(Reflex sensor)

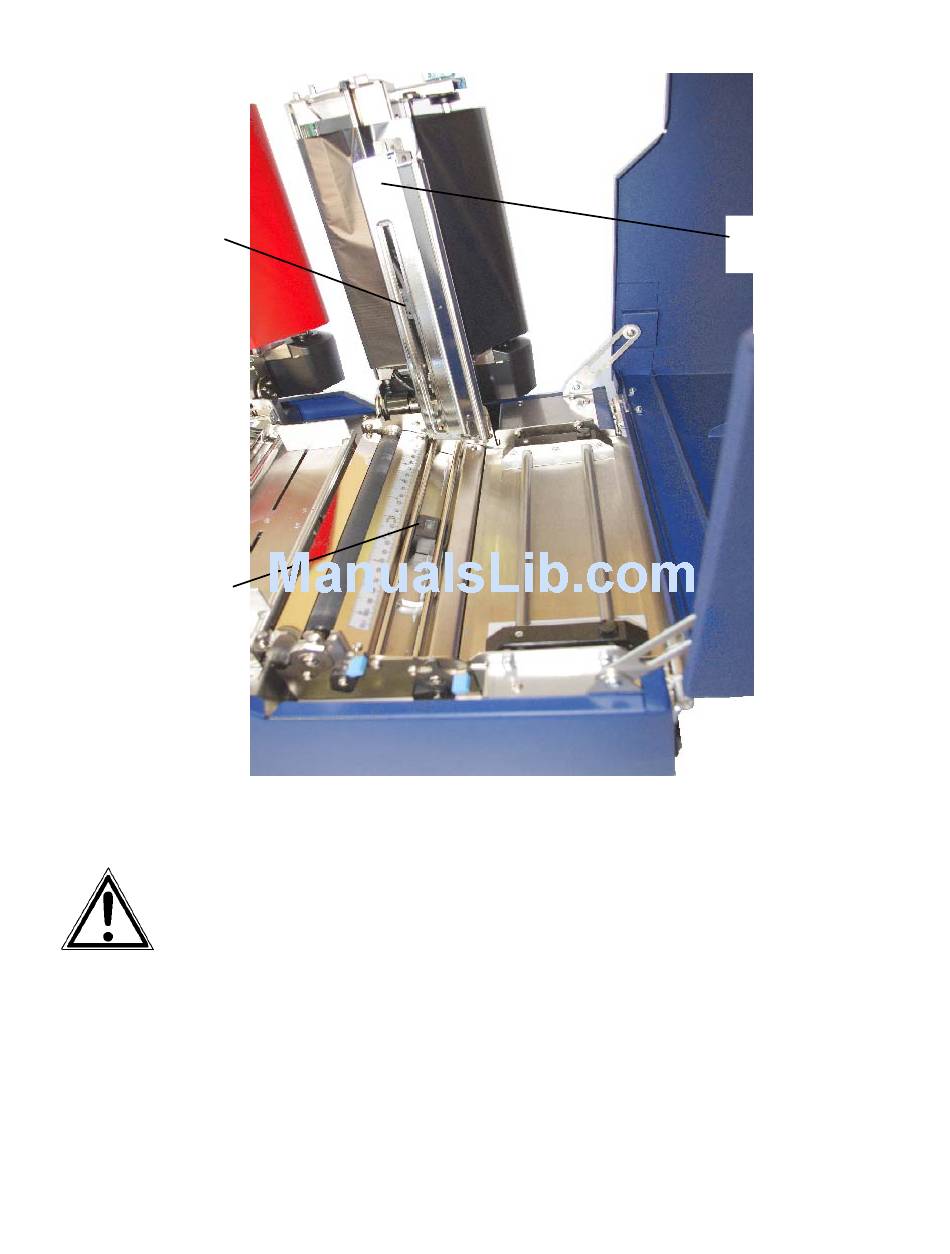

Fig. 8.1.4.c Position of Transparent sensor and Reflex sensor within the printer
_______________________________________________________________________________________________
MICROPLEX
5. Carefully clean the sensors with compressed air.
Do not use any sharp tools or detergents to clean the sensors!
Please pay attention to the hints given in chapter 8.1 !
6. Swivel the transparent sensor guide downward and push it down
gently until it clicks into place.
7. Swivel the printhead assembly downward and push it down
gently until it clicks into place.
8. Close the the printer's top cover. The printer is ready for printing
again.
Operator's Manual LOGIJET TC8
Transparent
sensor guide
Edition 1.1
