8.2 KMT21 ToUCh SCREEN fUNCTIoNS

HOME PAGE
INPUT PAGE
OUTPUT PAGE
ROUTING PAGES
PRESET PAGES

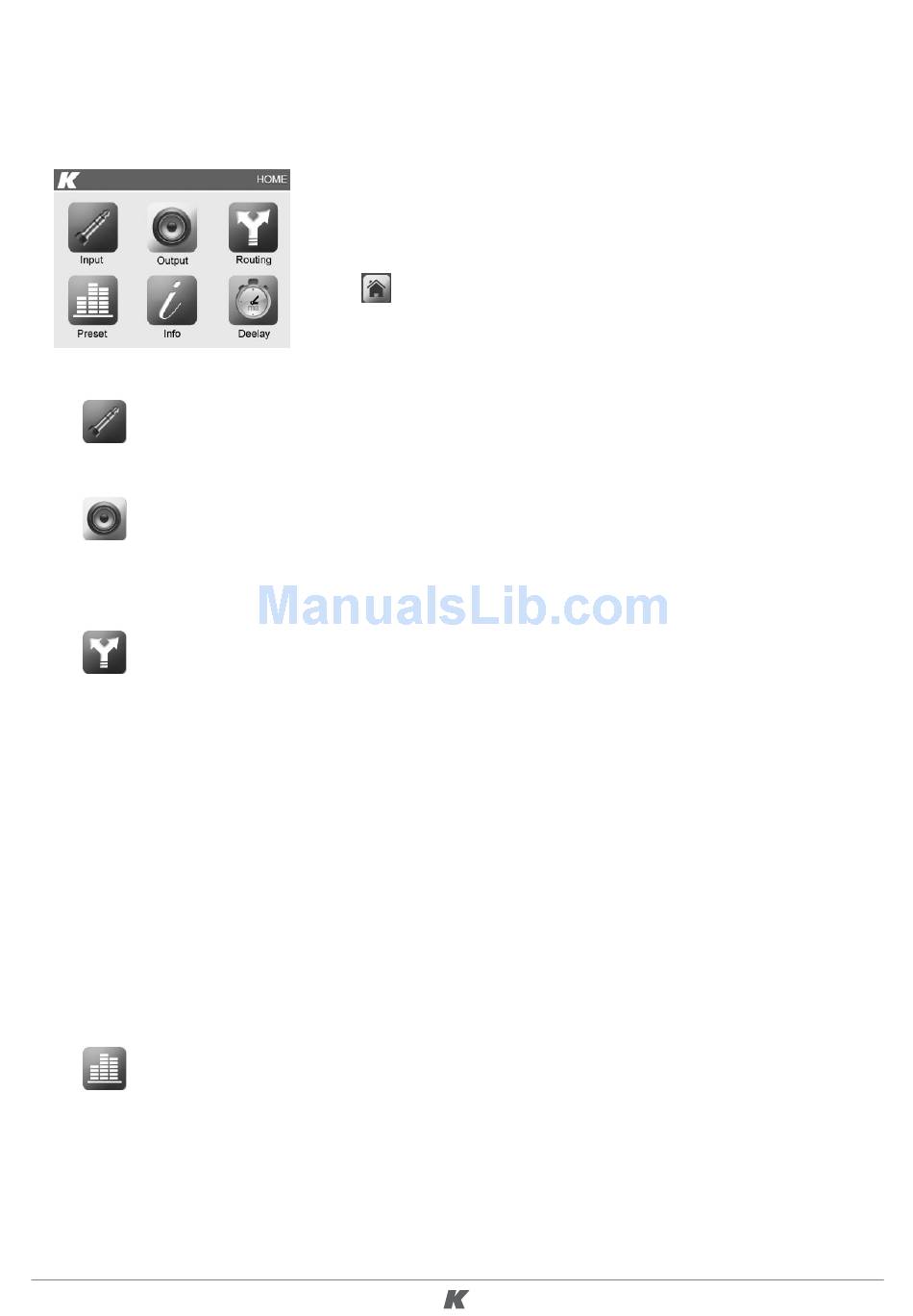

The main functions of the onboard DSP can be managed with
the integrated touch screen. Functions are grouped into six
pages, shown as icons on the Home page.
To reach the Home page from any other page,
touch the Home button.
The Input page allows users to independently manage the
amplitude of all the four input channels.
The Output page allows users to independently control the
amplitude of the signal routed to the Subwoofer, the Speaker
Output and the XLR DSP Output.
Three Routing pages allow users to manage the routing of the
four input channels to the three outputs (Subwoofer, Speaker
Out and XLR DSP Out) as well independently set output volume
and delay for each output.
The delay values set in the Routing pages are summed to the
global delay assigned on the Delay page.
The arrow buttons on the top right corner of the screen provide
access to individual Routing pages for the Subwoofer, Speaker
Out and XLR DSP Out.
Notes: The XLR DSP page does not provide control over delay
for this output.
Two Preset pages allow users to load presets stored on-board.
The arrow buttons on the top right corner of the screen provide
access to the Factory and User preset pages. The arrows are
also used to scroll through, select and load one of the available
presets.
