KMT21 / KMT21 Mark I

7.7 RS485 NETWoRK

The RS485 Link Input and The RS485 Link Output on the rear panel allow to create a network of K-array
devices that users can manage with a PC running the K-Framework software. All devices can be linked
with standard XLR cable.

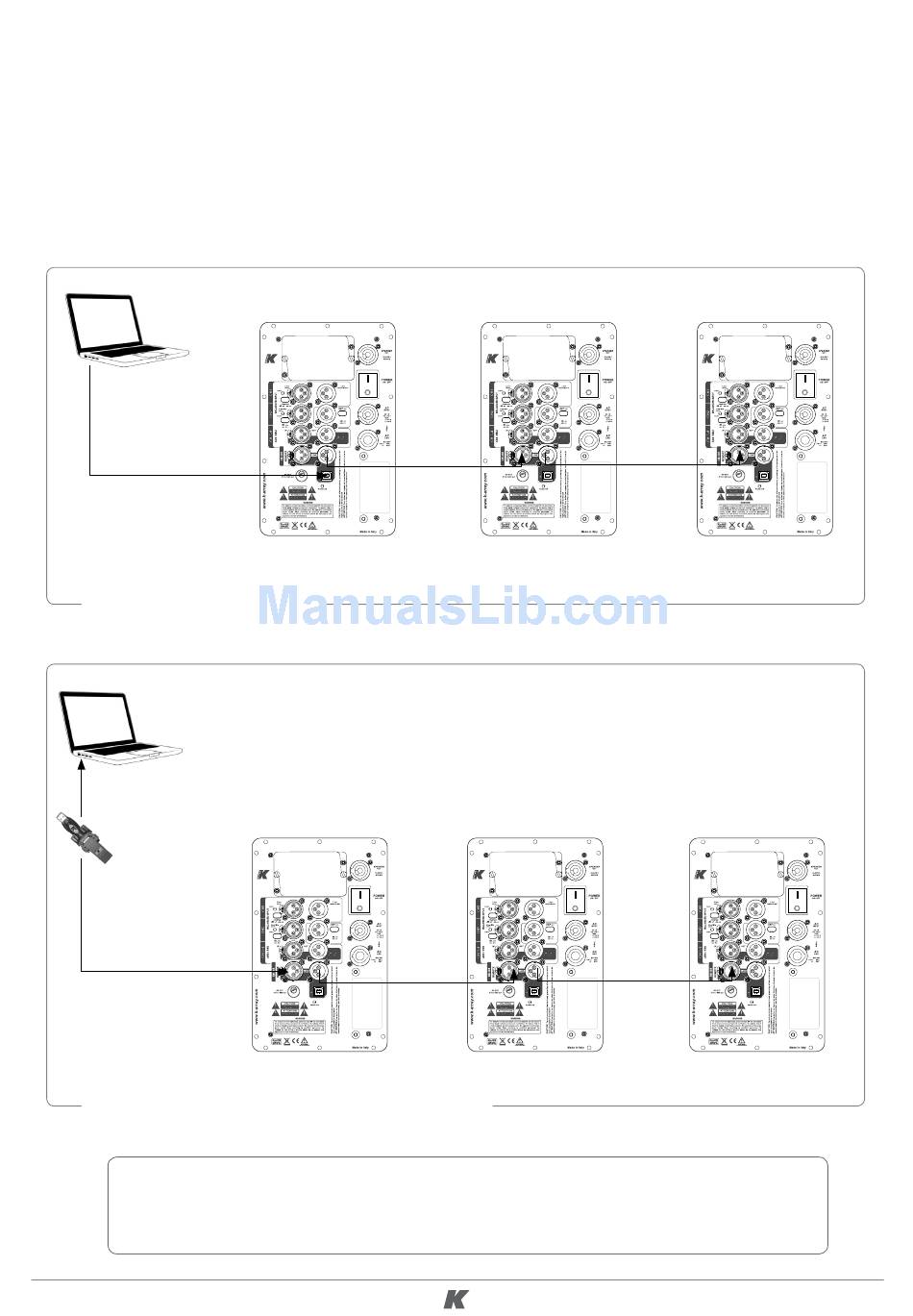

The PC can be connected to the network either with USB cable or XLR cable (requires K-USB USB-to-
RS485 adapter accessory) as shown in the diagrams below.
USB cable
PC connected via USB cable
K-USB
XLR cable
PC connected via XLR cable + K-USB accessory
Attention. Make sure that you have set a different ID number on each device
before connecting them to a PC running the K-framework. See the INFO section in
Chapter 8. for details.
5.5 A
2.9 A
1.6 14 A
230 3.5 16 A
XLR cable
5.5 A
2.9 A
1.6 14 A
230 3.5 16 A
XLR cable
5.5 A
2.9 A
1.6 14 A
230 3.5 16 A
XLR cable
5.5 A
2.9 A
1.6 14 A
230 3.5 16 A
XLR cable
Ver. 1.3
5.5 A
2.9 A
1.6 14 A
230 3.5 16 A
5.5 A
2.9 A
1.6 14 A
230 3.5 16 A
15
