MAGIC SWITCH: MS08 RETROFIT
DESCRIPTION
900 MHz Wireless Transmitter
TECHNICAL SPECIFICATIONS *
Technology
Detection Mode
Radiated Frequency
Radiated Power Density
Supply Voltage
Current Consumption
Output
Relay contact rating (max voltage)
Relay contact rating (max current)
Max switching power
Detection Range
Output Hold Time
Temperature Range
Material
Certification
Use of the device outside the intended application cannot be guaranteed by the manufacturer.
75.5821.00 MS08 RETROFIT 20141030
Wireless
Activation | Touchless | Activation Sensor
1
10MS08UR

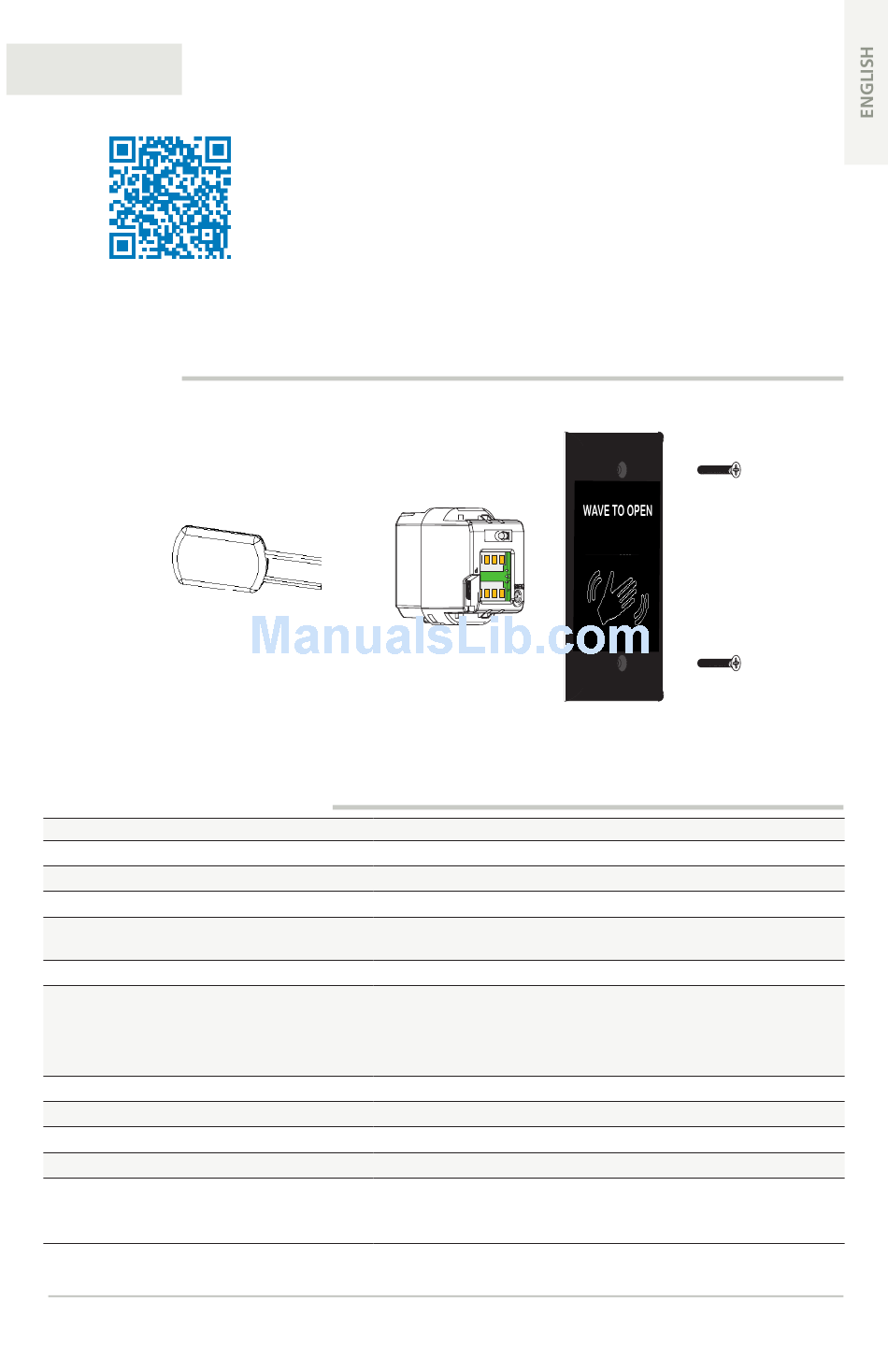

Includes single gang (shown) and double gang
faceplates and hardwired 900 MHz transmitter
1
The MS08 Retrofit Kit is designed to replace an existing, hardwired (2 wire), mechanical pushplate
with a touchless activation sensor. The exisiting 2 wires will be used to provide power to the sensor.
Microwave
Motion (bidirectional)
24.125 GHz
5 mW/cm
12-24 VAC +/-10% @ 50-60 Hz
12-24 VDC +30%/-10%
< 1.5 W
Relay with switch-over contact (voltage free)
60 VDC / 125 VAC
1 A (resistive)
30 W (DC) / 60 VA (AC)
4-24 inches (adjustable)
0.5 s (in pulse mode)
-4°F to +131°F
ASA, Nylon, PC
Electromagnetic compatibility (EMC) according to 2004/108/EC
FCC: G9B-MS08 / 2ABWS-10TD900PB
IC: 4680A-MS08 / 4680A-10TD900PB
Microwave
Motion
Sensor
Faceplate
2
* Specifications are subject to change without prior notice.
Screw
Screw
