BEA MS08 RETROFIT User Manual page 3

2

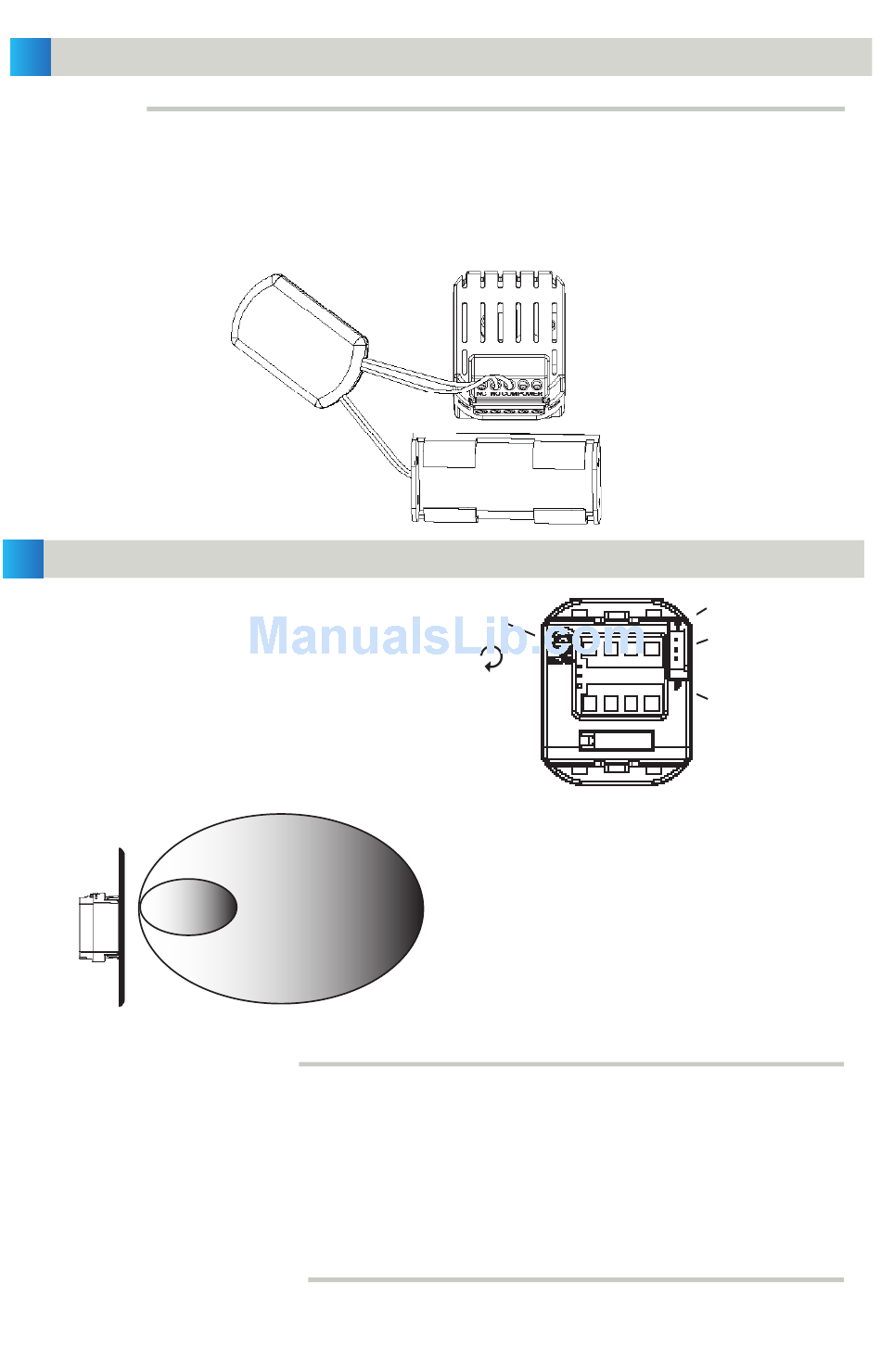

WIRING (continued)
WIRELESS
The 900 MHz wireless transmitter (10TD900PB) comes prewired to the MS08 sensor's NO (green)
and COM (white) terminals. The 900 MHz wireless transmitter is powered externally by two (2) AAA
batteries.
For the 900 MHz wireless programming instructions, please reference BEA User's Guide 75.5786
which comes with the 900 MHz wireless receiver (sold separately).
3
SETTINGS & ADJUSTMENTS
DETECTION ZONE - potentiometer
COUNTERCLOCKWISE - decrease (4'' minimum)
CLOCKWISE - increase (24'' maximum *)
OUTPUT MODE - slide switch
PULSE - switch down
TOGGLE - switch up
MS08
SENSOR FUNCTIONALITY
TIMED MODE - Recommended for automatic door applications. In Timed Mode, a detection
activates the relay and the relay holds for a predetermined amount of time adjusted by the Output
Time potentiometer (1 to 30 seconds, counterclockwise - decrease, clockwise -increase).
TOGGLE MODE - Recommended for switch applications. In Toggle Mode, a detection activates the
relay and a second detection deactivates the relay. The relay will hold indefinitely until a second
detection occurs.
WIRELESS FUNCTIONALITY
For the 900 MHz wireless programming instructions, please reference BEA User's Guide 75.5786
which comes with the 900 MHz wireless receiver (sold separately).
75.5821.00 MS08 RETROFIT 20141030
4"
24"
Sensing Filed
Potentiometer
4"
24"
* Maximum Detection Zone will
vary depending on size (area),
orientation, and speed of object as
well as environmental conditions.
Toggle Mode
Output Mode Switch
Pulse Mode
Page 3 of 4
