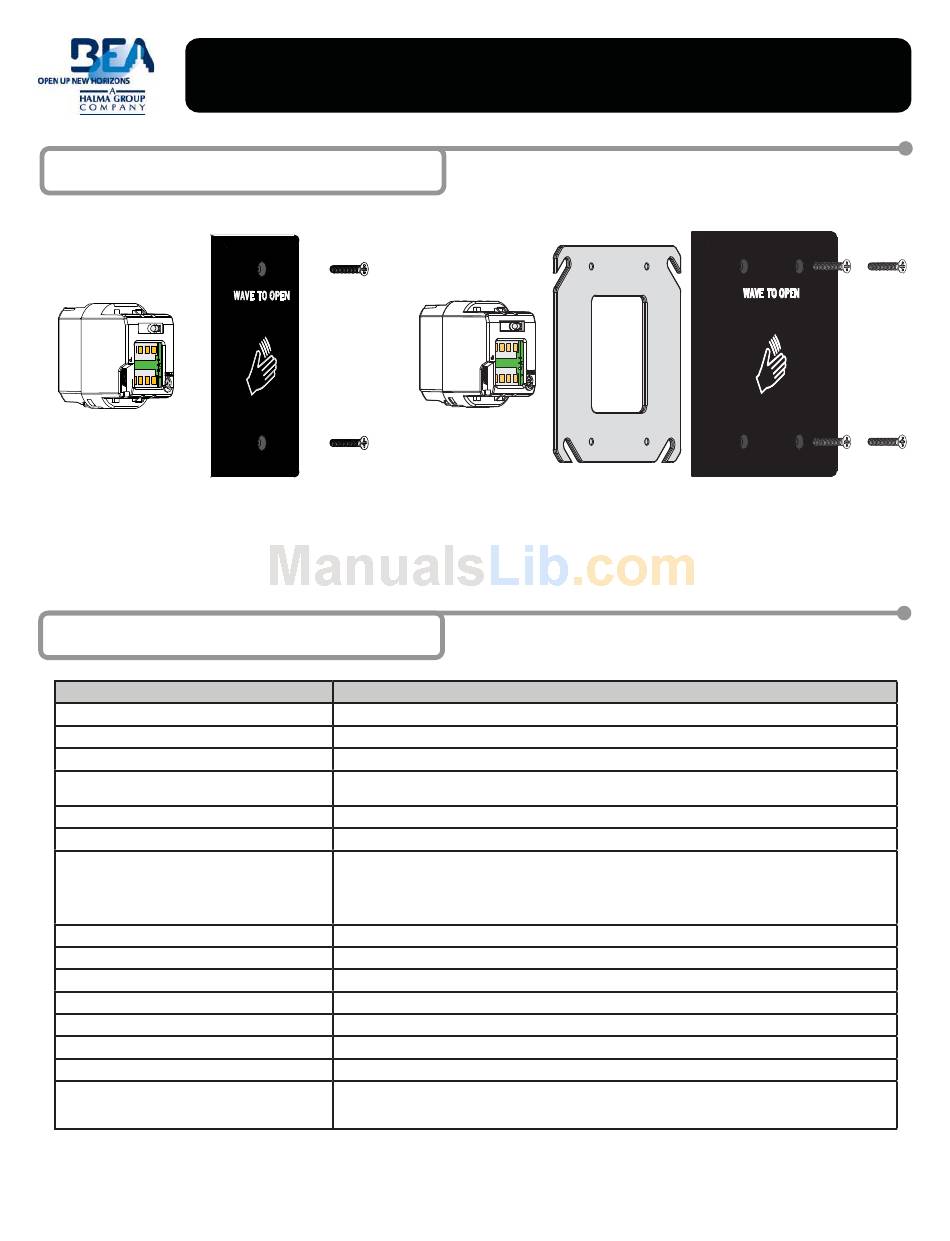

1 Description
Microwave
Motion
Sensor
SINGLE GANG
2 Specifi cations
DESCRIPTION
Technology
Radiated Frequency
Radiated Power Density
Supply voltage
Supply Frequency
Power Consumption
Output
Relay contact rating (max voltage)
Relay contact rating (max current)
Max switching power
Detection Range
Detection Mode
Output Hold Time
Temperature Range
Immunity
Weight
Material
Certifi cation
75.5265.01 20071031
MICROWAVE CONTACTLESS SWITCH FOR AUTOMATIC DOORS
Screw
Screw
Faceplate
MS-08 MAGIC SWITCH
SPECIFICATION
Microwave motion sensor
24.125 GHz
5 mW/cm²
12 to 24VAC ± 10%
12 to 24VDC +30% / -10%
50 to 60Hz
< 1.5W
Relay with switch-over contact (voltage free)
60 VDC/ 125 VAC
1A (resistive)
30W (DC)/ 60VA (AC)
4" to 24" (adjustable)
Motion (bidirectional)
0.5s (in pulsed mode)
-4°F to + 131°F
Immune to electrical and radio frequency interference
0.34 lbs.
ASA, Nylon, PC
Electromagnetic compatibility (EMC) according to 2004/108/EC
FCC: G9B-MS08
IC: 4680A-MS08
MS-08 MAGIC SWITCH
Microwave
Motion
Sensor
Adapter Ring
(10MS08U)
USER'S GUIDE
Faceplate
DOUBLE GANG
Screws
Screws
Page 1 of 3
