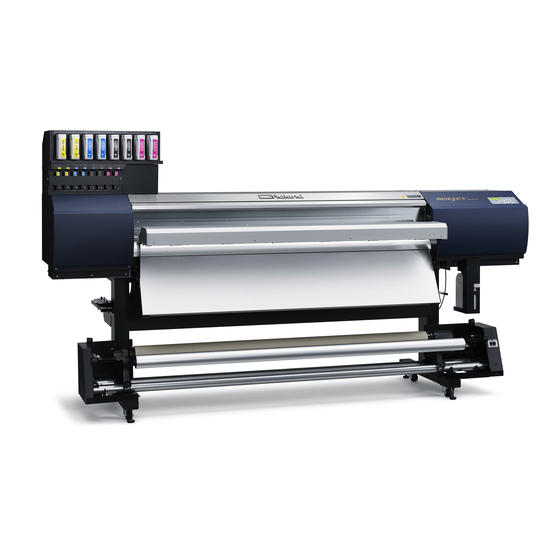

Roland Soljet EJ-640 Setup Manual
  1. Manuals
  2. Brands
  3. Roland Manuals
  4. Printer
  5. Soljet EJ-640
  6. Setup manual
Roland Soljet EJ-640 Setup Manual

Roland Soljet EJ-640 Setup Manual

Hide thumbs Also See for Soljet EJ-640:
Table of Contents

Advertisement

Quick Links

See also: User Manual
Thank you very much for purchasing this product.
 To ensure correct and safe usage with a full understanding of this product's performance, please be sure to read through this
manual completely and store it in a safe location.
 Unauthorized copying or transferral, in whole or in part, of this manual is prohibited.
 The contents of this manual and the specifications of this product are subject to change without notice.
 This manual and the product have been prepared and tested as much as possible. If you find any misprints or errors, please
inform Roland DG Corp.
 Roland DG Corp. assumes no responsibility for any direct or indirect loss or damage that may occur through use of this product,
regardless of any failure to perform on the part of this product.
 Roland DG Corp. assumes no responsibility for any direct or indirect loss or damage that may occur with respect to any article
made using this product.

Setup Guide

Advertisement

Table of Contents
loading

Related Manuals for Roland Soljet EJ-640

Summary of Contents for Roland Soljet EJ-640

  • Page 1: Setup Guide

     This manual and the product have been prepared and tested as much as possible. If you find any misprints or errors, please inform Roland DG Corp.  Roland DG Corp. assumes no responsibility for any direct or indirect loss or damage that may occur through use of this product, regardless of any failure to perform on the part of this product.

  • Page 3: Table Of Contents

    Step 4: Attaching the DU2-64 Arms ..................20 Step 5: Installing the Drain Bottle .....................21 Step 6: Removing the Retainer ....................23 Step 7: Installing the Roland Ink System ................24 Step 8: Connecting the Cables and Making Initial Settings ..........24 Step 9: Ink Filling ..........................28 5.

  • Page 5: Installation Environment

    1. Installation Environment Deciding On an Installation Site Install the machine in a quiet, stable location offering good operating conditions. An unsuitable location can cause accidents, fire, faulty operation, or breakdown. WARNING Install the machine in a location that is level, stable, and able to bear the weight of the machine.

  • Page 6: Temperature And Humidity

    1. Installation Environment Temperature and Humidity Maintain the specified temperature and humidity even when the machine is not in use. Failure to do so may result in malfunction. During operation: Temperature 15 to 32°C (59 to 90°F), humidity: 35 to 80%RH (no condensation) During non-operation: Temperature 5 to 40°C (41 to 104°F), humidity: 20 to 80%RH (no condensation) Installation Space The space shown in the figure is required in order to use this machine.

  • Page 7: Included Items

    2. Included Items The following items are included with the machine. Make sure they are all present before proceeding. Printer Unit Arms Stand legs Casters (2) Power cord(1) (1 each for right and left) (1 each for right and left) Stand stay (1) Shafts (2) Media holders/ Retaining...

  • Page 8: Roland Ink System

    Hexagonal Spanner maintenance guide (1) Software RIP (1) wrench(1) * Not required when using four colors (cyan, magenta, yellow, and black). Roland Ink System Unit (1) LED cover (1) Ink tube cover (top; 1) Subtank guard (1) Lower-right LED circuit...

  • Page 9: About The Symbols

    3. About the Symbols The meanings of the symbols used in this document are as follows. This symbol indicates instructions that must be followed in relation to opera- tion. Always follow these instructions to prevent accidents and damage due to misoperation. This symbol indicates things that must be checked visually in relation to operation.

  • Page 10: Assembly And Ink Filling

    4. Assembly and Ink Filling Checks before Operations CAUTION Unpacking and installation must be carried out by six or more people. Failure to observe this instruction may cause the machine to fall over, result- ing in injury. Completed drawing Necessary tools Commercially avail- Included items able item...

  • Page 11: Step 1: Assembling The Stand

    4. Assembly and Ink Filling Step 1: Assembling the Stand Procedure  Place the stand leg with the tabletop plate facing down, and then place the caster on top of the stand leg. Place the caster on the stand leg so that the surface without a slit faces the attachment surface of the stand leg. Caster Slit Attachment surface...
  • Page 12 4. Assembly and Ink Filling Press the caster in the direction indicated by the arrow, and then tighten the bolts fully in the four locations in the order of Use the pipe for the two locations indicated by Pipe Tighten fully Bolts: 4 Insert the stand leg fixing plate into the caster slit.
  • Page 13 4. Assembly and Ink Filling  Tighten the bolts in the order of to secure the plate. Tighten fully Bolts: 4   Assemble the opposing leg by following the same procedure from step to step  Position the stand legs parallel to each other and separated by approximately 1,800 mm (70.9 in.).
  • Page 14 4. Assembly and Ink Filling Adjust the installation width of the stand legs to match the stand stay attachment holes with the stand leg attachment positions. Stand stay Position the sur- face with attach- ment holes to face the tabletop plate side.
  • Page 15 4. Assembly and Ink Filling Tighten the bolts fully in the four locations on the side and then in the four locations on the top in the order of Tighten fully Make sure these are parallel. Make sure these are parallel.

  • Page 16: Step 2: Attaching The Machine

    4. Assembly and Ink Filling Step 2: Attaching the Machine Procedure  Place the machine on the stand. Arrange the stand so that the bent side of the tabletop plates ( ) are in the back.  Tighten the bolts in the two locations on the back and then in the two locations on the bottom in the order of to secure the machine to the stand.

  • Page 17: Step 3: Installing The Media Holders

    4. Assembly and Ink Filling Step 3: Installing the Media Holders Attach the arms.  Temporarily tighten two bolts on the stand leg. Tighten the bolts until they protrude by approximately 10 mm (0.4 in.).  Pass the temporarily tightened bolts through the slotted attachment holes of the arm. The left arm and right arm are shaped differently, so check the shape when attaching the arm to the leg.
  • Page 18 4. Assembly and Ink Filling While pressing the arm's bent surface onto the stand leg, temporarily tighten the bolts. Tighten temporarily Tighten the bolts fully in the order of (stand rear), (stand side). Tighten fully  Attach the opposing arm to the other leg by following the same procedure from step ...
  • Page 19 4. Assembly and Ink Filling Attach the media holder adjuster to the right arm as seen from the rear of the machine. Pass the protrusions of the media holder adjuster ( ) through the notches on the arm and then temporarily tighten the bolts so that the media holder adjuster does not fall off.
  • Page 20 4. Assembly and Ink Filling Attach the media holders.  Place the shafts on the arms. First insert the shafts into the holes on the right side as seen from the rear of the machine, and then place the shafts into the holes on the left side. ...
  • Page 21 4. Assembly and Ink Filling Move the right media holder to the right side of the shaft, and then loosely tighten the retaining screw. Retaining screw In the same manner, pass the shaft through the left media holder, and then loosely tighten the retaining screw.

  • Page 22: Step 4: Attaching The Du2-64 Arms

    * If you are not using the DU2-64 (optional dryer), this step is unnecessary. Proceed to "Step 5: Installing the Drain Bottle." For information about the DU2-64, contact your authorized Roland DG Corp. dealer. Attach the arms to the tabletop plates on the stand legs.

  • Page 23: Step 5: Installing The Drain Bottle

    4. Assembly and Ink Filling Step 5: Installing the Drain Bottle Procedure  Remove the drain tube cover (  Secure the bottle stand in place ( Use the bolts that were securing the drain tube cover in place to secure the bottle stand in place. Remove the drain bottle cap.
  • Page 24 4. Assembly and Ink Filling   Secure the drain tube cover that you removed in step in place at the position indi- cated in the figure. Use the screw already inserted into the machine to secure in place just the right side of the drain tube cover. Secure right side only.

  • Page 25: Step 6: Removing The Retainer

    4. Assembly and Ink Filling Step 6: Removing the Retainer  Make sure to remove the retainer. If it remains on the machine, faulty operation or breakdown may occur when the power is switched on.  Store the retainer because it is needed again when transporting the machine. Procedure ...

  • Page 26: Step 7: Installing The Roland Ink System

    4. Assembly and Ink Filling Step 7: Installing the Roland Ink System About this procedure This procedure must be performed by a suitably qualified service technician. Never attempt to perform this procedure yourself. CAUTION Leave this work to a suitably qualified worker.
  • Page 27 4. Assembly and Ink Filling  Connect both the power cord and the Ethernet cable (commercially available). Use a power plug adapter if the electrical outlet is a two-prong outlet. WARNING Connect the machine to an electrical outlet that complies with this ma- chine’s ratings (for voltage, frequency, and current).
  • Page 28 4. Assembly and Ink Filling Turn nut A until the base of the stand adjuster touches the floor. Perform the same operation for the other stand adjusters. Nut A Stand adjuster  When each adjuster is touching the floor, use a spanner to rotate nut A through one turn. Turn nut B until it comes in contact with nut C.
  • Page 29 4. Assembly and Ink Filling  Lock the stand casters. Close the front cover. Make the initial settings.  Switch on the main power switch.  Hold down and press the sub power switch.

  • Page 30: Step 9: Ink Filling

    4. Assembly and Ink Filling When the screen on the left is displayed, select the desired language, and then press Press to select the desired length unit, and then press  Select the desired temperature unit in the same way, and then press Step 9: Ink Filling Select the ink type.
  • Page 31 4. Assembly and Ink Filling Apply the cleaning liquid.  When the screen on the left is displayed, dip the cleaning stick in the cleaning liquid, and then apply the cleaning liquid to the parts shown in the figure. Area to apply ...
  • Page 32 4. Assembly and Ink Filling Perform the initial cleaning.  Insert SOL INK cleaning cartridges into slots 1 and 2.  Remove and insert the SOL INK cleaning cartridges ac- cording to the instructions shown on the screen. On the "FILLING INK..." screen, the remaining time of the process is displayed.
  • Page 33 4. Assembly and Ink Filling Fill the machine with ink.  Before you insert the ink cartridge for each color, gently shake the cartridge.  "EJ 4 COLOR": Insert ink cartridges into slots 1 to 8. "EJ 7 COLOR": Insert ink cartridges into the slots whose numbers are flashing.
  • Page 34 When this screen appears, filling with ink is finished. After this, the next step is to adjust the media holder adjuster. This procedure will be performed by a Roland DG service technician, so leave it up to them.

  • Page 35: Network Settings

    5. Network Settings Memo The examples used in the procedures for making the settings described in this section assume you are using one computer and one machine. The settings used in this section are merely example settings. The procedures and setting values described here may not be suitable for all operating environments.
  • Page 36 5. Network Settings  Click [Properties]. The [Ethernet Properties] dialog box appears. (On Windows 7, the [Local Area Connection Status] dialog box appears.) If the [User Account Control] dialog box appears, click [Continue].  Select [Internet Protocol Version 4 (TCP/ IPv4)], and then click [Properties].

  • Page 37: Step 2: Make The Network Settings On The Printer

    5. Network Settings  Select [Use the following IP address]. Enter the information as shown below, and then click [OK]. [IP address]: 192.168.0.XXX [Subnet mask]: 255.255.255.0 Here, "XXX" can be any number from 1 to 254. How- ever, be sure to specify a number that is different from the numbers used for other computers and devices.

  • Page 38: Set The Subnet Mask

    5. Network Settings  When you have finished making the setting, press Press The screen shown in the figure appears again. Set the subnet mask.  Press  Press twice.  Press to select the address number. [SUBNET MASK]: 255.255.255.000 For the subnet mask, make the setting the same value as the one used by the computer.

  • Page 39: Step 3: Make The Port Settings For The Software Rip

    Roland VersaWorks You can use the printing-test feature to check whether the connection to the network has been established. For information about how to carry out a printing test, refer to the documentation for Roland VersaWorks. Other software RIP Refer to the documentation for the software RIP you are using.
  • Page 44 R1-151009...
