It is important to note that the drain rate shown includes the make-up water,
mixed with the drain water, which tempers the drain water to 140°F (60°C) or
less.
The electrode steam process provides optimum efficiency because all resistance to
current passage is converted to usable energy. Unlike cal-rod or infrared humidifiers
which convert some of their capacities into unusable heat.

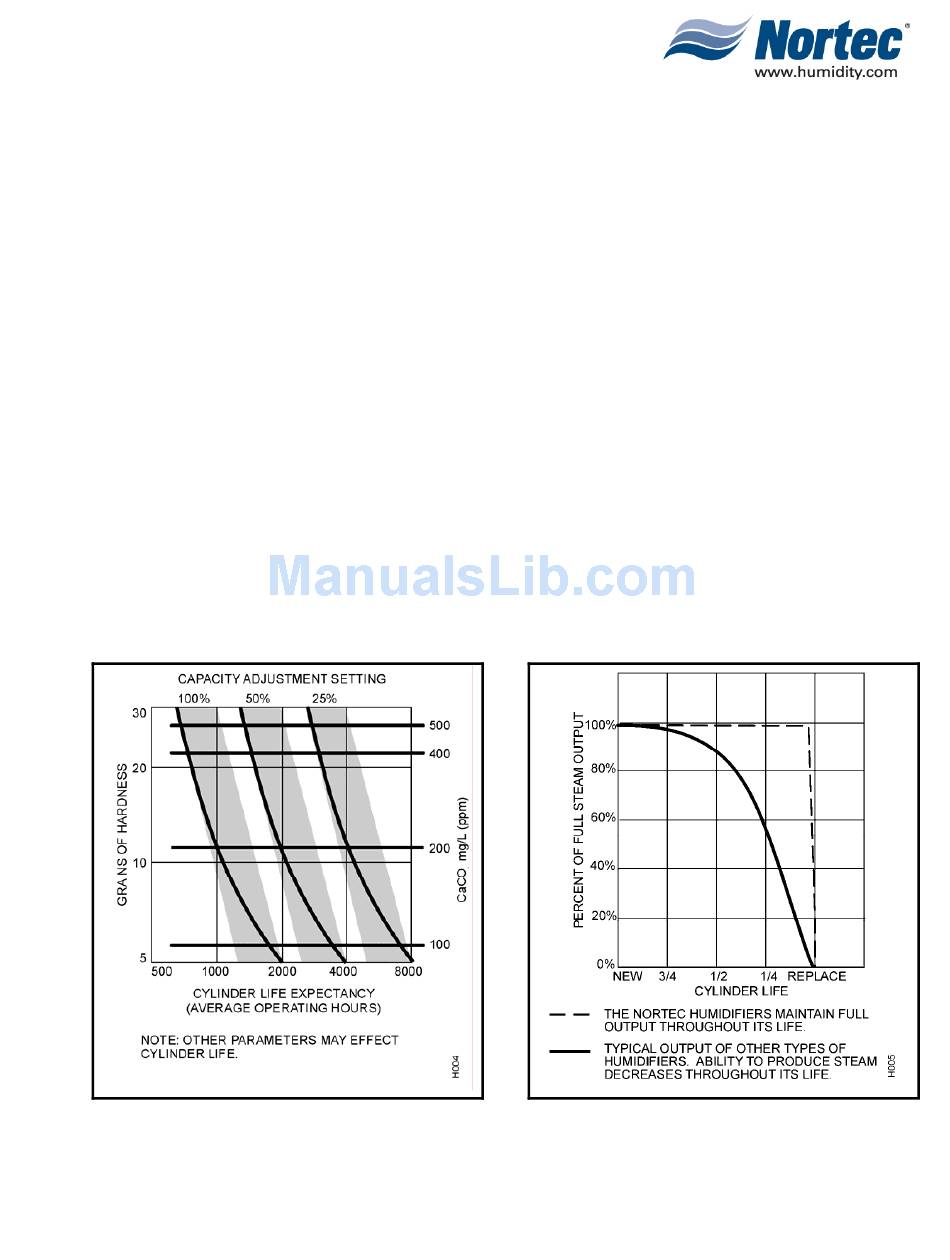

Figure 5. Capacity Setting & Cylinder Life
NOTE
Figure 6. Output vs Service Life
