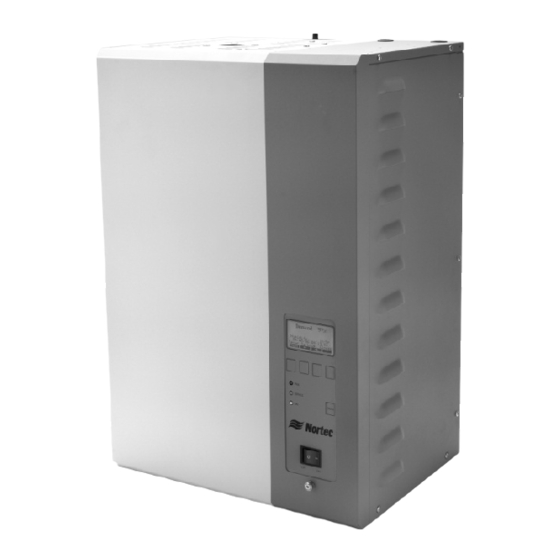

Nortec NHPC Engineer's Manual

Nh series electrode steam humidifier
Hide thumbs Also See for NHPC:
Table of Contents

Advertisement

Quick Links

See also: Operation & Installation Manual , Installation Manual
NH
Series
TM
NHTC / NHPC
ELECTRODE
STEAM HUMIDIFIER
Engineering Manual
2538144-B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NHPC and is the answer not in the manual?

Questions and answers

Related Manuals for Nortec NHPC

Summary of Contents for Nortec NHPC

  • Page 1 Series NHTC / NHPC ELECTRODE STEAM HUMIDIFIER Engineering Manual 2538144-B...
  • Page 2 Neither this document nor the information contained herein shall be reproduced used, or disclosed to others without the written authorization of WALTER MEIER LTD., except to the extent required for installation or maintenance of recipient’s equipment. All references to the NORTEC name should be taken as referring to WALTER MEIER LTD.

  • Page 3: Table Of Contents

    THE NHTC/NHPC ........

  • Page 4: Subject Page

    TYPICAL INSTALLATION LAYOUT FOR NHTC/NHPC ..... 58 NORTEC CONTROLLER DIMENSIONS ....... . . 58 10-20 SPECIFICATIONS HUMIDIFIERS .

  • Page 5: List Of Figures

    Figure 31. NORTEC Online Configuration Form ....... . . 59 Figure 32.
  • Page 6 Figure 3. Physical Data - NHTC/NHPC 005-030 ....... . 79 Figure 4.

  • Page 7: List Of Tables

    Modulating Control By NORTEC ........112...
  • Page 8 NORTEC OnLine Options ........
  • Page 9 10-00 INTRODUCTION 10-00 Page 1 2008-10-01...

  • Page 10: Figure 1. Nhtc

    Figure 1. NHTC 10-00 Page 2 2008-10-01...

  • Page 11: A. Proportional + Integral Auto-Adaptive Control System For The Nhtc/Nhpc

    On NHTC and NHPC models the drain automatically empties the steam cylinder if it is not operated for three days. Solid mineral scale sinks to the bottom of the cylinder which, when filled with residue, is easily removed and replaced.
  • Page 12 When supply water conductivity is extremely high (requiring substantially more drains), the NHTC/NHPC will see the pattern developing in cycles stored in memory. It will then initiate additional drains to adjust the contained water conductivity.

  • Page 13: Figure 2. Optimum Boiling Time

    Figure 2. Optimum Boiling Time Figure 3. Conductivity 10-00 Page 5 2008-10-01...

  • Page 14: Nh Capacity Adjustment

    B. NH CAPACITY ADJUSTMENT Each NORTEC NH Series humidifier is rated at its maximum output capacity. By means of the alphanumeric display and keypad on the NHTC/NHPC, the humidifiers can be adjusted to obtain an output between 20% and 100% of its rated capacity.

  • Page 15: Figure 4. Typical Auto-Adaptive Operation

    0. Store previous cycle’s drain decision in integral (l) memory. 1. Fill to A trigger (use all places below 1-10). 2. Boil to C trigger without timing to allow previous fill water to mix thoroughly during boiling. 3. Boil from C to D while monitoring time (T actual). 4.

  • Page 16: Capacity Setting & Cylinder Life Figure 6. Output Vs Service Life

    It is important to note that the drain rate shown includes the make-up water, mixed with the drain water, which tempers the drain water to 140°F (60°C) or less. The electrode steam process provides optimum efficiency because all resistance to current passage is converted to usable energy.

  • Page 17: Pre-Installation Equipment Verification

    3. PRE-INSTALLATION EQUIPMENT VERIFICATION A. GENERAL (1) Ensure the available voltage and phase correspond with humidifier voltage and phase as indicated on the humidifier’s specification label. (2) Ensure that the external fuse disconnect is sufficient size to handle the rated amperage as indicated on the humidifier’s specifications label.

  • Page 18: Figure 7. Typical Nhrs Installation

    Figure 6. Typical NHRS Installation (Sheet 1 of 2) 10-00 Page 10 2008-10-01...
  • Page 19 Figure 7. Typical NHRS Installation (Sheet 2 of 2) 10-00 Page 11 2008-10-01...

  • Page 20: Humidity, Steam Absorption And Distribution

    10-10 HUMIDITY, STEAM ABSORPTION DISTRIBUTION 10-10 Page 12 2008-10-01...

  • Page 21: Humidity

    1. HUMIDITY A. ESTIMATING THE HUMIDIFICATION LOAD Note: The humidification load can easily be calculated by using Nortec’s Humidification Engineering and Load-sizing Program (HELP). The softward can be downloaded at www.humidity.com (1) Relative humidity is the percentage of moisture in the volume of air at a given temperature, compared to the maximum amount of moisture that the volume of air can hold at the same temperature and atmospheric pressure.

  • Page 22: Table 1. Outdoor/Indoor Relative Humidity Conversion Chart

    Table 1. Outdoor/Indoor Relative Humidity Conversion Chart 100% -20° -10° -5° Chart shows what the residual indoor RH would be at 70°F under varying outdoor conditions if a proper humidification system were not installed in the building. Studies indicate that the recommended RH should be between 40% and 60% for optimum benefits to the occupants.

  • Page 23: Incoming Air Volume

    Table 3. Grains of Water Per Cubic Foot – Saturated Air (100% rh) °C °F Grains °C °F Grains -23 -10 2.86 2.97 3.08 3.20 3.32 3.44 1.24 3.56 1.56 3.69 1.95 3.83 2.04 3.97 2.13 4.11 2.21 4.26 2.29 4.41 2.38 4.56...

  • Page 24: Table 4. Design Outdoor Conditions

    Table 4. Design Outdoor Conditions State City Alabama Birmingham Mobile Arizona Flagstaff Phoenix Yuma Arkansas Little Rock California Eureka Fresno Los Angeles Sacramento San Diego San Francisco Colorado Denver Grand Junction Pueblo Connecticut New Haven Delaware Wilmington District of Washington Columbia Florida Jacksonville...
  • Page 25 Table 4. Design Outdoor Conditions (cont) State City New Jersey Atlantic City Newark Trenton New Mexico Albuquerque New York Albany Buffalo New York Rochester North Carolina Asheville Raleigh North Dakota Bismarck Ohio Cincinnati Cleveland Columbus Toledo Oklahoma Oklahoma City Oregon Baker Portland Pennsylvania...
  • Page 26 Table 4. Design Outdoor Conditions (cont) Province City Manitoba Brandon Churchill The Pas Winnipeg New Brunswick Campbellton Fredericton Moncton Saint John Newfoundland Corner Brook Gander Goose Bay St. John’s N.W.T. Frobisher Resolute Yellowknife Nova Scotia Halifax Sydney Yarmouth Ontario Thunder Bay Hamilton Kaspuskasing Kingston...

  • Page 27: Figure 1. Schematic Of A Typical Print Shop Hvac System

    (3) Using the natural ventilation method requires knowing the volume of the humidified space and the type of construction. A tightly constructed building will have a least one air change per hour. A loosely constructed building will have at least one and one half changes per hour, and this same building with a large a amount of incoming or exiting traffic will have at least two air changes per hour.
  • Page 28 (5) Using an exhaust air fan: (a) Formula 5 Assume the print shop has a 1,000 CFM fan to exhaust a drying room. The moisture required to humidify the drying room only is 1,000 x 5.08 x 60 min/hr _________________________ 7,000 grains/lb (Refer to Figure 1.) (6) Using an economizer cycle:...

  • Page 29: Table 5. Inside Relative Humidities At Which Moisture Will Condense On Windows

    (b) Formula 7 Assume that during the summer the HVAC system is in the cooling mode. The air leaving the cooling coil is at 55°F and 90% rh. In order to maintain the desired 47% rh in the space, moisture must be added using the following formula: Desired space 80°F 47% rh = 5.19 gr/ft 55°F 90% = 4.89 x 0.90...

  • Page 30: Table 6. Regain Of Hygroscopic Materials

    Table 5. Inside Relative Humidities At Which Moisture Will Condense On Windows (cont) Outside Inside Temperature (°F/°C) Temperature °F °C 15.5 18.3 Double Windows, Still Air NOTE: Bold areas indicate that moisture will be in the form of frost on windows. Table 6.

  • Page 31: Table 7. Design Indoor Conditions For Various Places, Products And Processes

    Table 7. Design Indoor Conditions For Various Places, Products and Processes Product and/or Process Abrasives Manufacturing Bowling Alleys Billiard Rooms Bread Flour and Powdered Product Storage Fermentation (Bread Dough) Retarding of Doughs Final Proof Counterflow Cooling Brewing Hop Storage Yeast Culture Room Candy Chocolate Pan Supply Air Enrober Room...
  • Page 32 Table 7. Design Indoor Conditions For Various Places, Products and Processes (cont) Product and/or Process Clean Rooms – Computer Rooms Computer Room Clean Room – General Clean Room – Critical Distilling Grain Storage General Manufacturing Aging Electrical Products Coil and Transformer Winding X-ray Tube Assembly Instruments Manufacture and Laboratory Thermostat and Humidistat Assembly and Calibration...
  • Page 33 Table 7. Design Indoor Conditions For Various Places, Products and Processes (cont) Product and/or Process Libraries and Museums Normal Reading and Viewing Rooms Rare Manuscript Storage Vaults Art Storage Areas Matches Manufacture Drying Storage Meat and Fish Beef (Fresh) Beef, Fish, Lamb and Pork (Frozen) Fish (Fresh) Lamb and Pork (Fresh) Mushrooms...
  • Page 34 Table 7. Design Indoor Conditions For Various Places, Products and Processes (cont) Product and/or Process Textiles Opening and Picking Cotton Man-Made Carding Cotton Wool Man-Made Silver and Ribbon Lapping Cotton Man-Made Combing Cotton Wool Man-Made Drawing Cotton and Wool Man-Made Roving Cotton Man-Made...

  • Page 35: Figure 2. Psychrometric Chart

    Figure 2. Psychrometric Chart 10-10 Page 27 2008-10-01...

  • Page 36: Steam Absorption And Distribution

    A. VARIABLES THAT AFFECT ABSORPTION DISTANCES (1) This manual will help in the design of a steam distribution system to provide the optimum performance from the humidifier and absorption of steam within the duct system. (2) Experience has shown that absorption of steam is affected primarily by the psychrometric conditions of the air based on how much residual capacity at a given air volume and temperature exist to hold the moisture being introduced.

  • Page 37: Figure 3. Steam Distributor Location

    Table 9. Typical Absorption Distances, Single Distributor, 100 lbs/hr Humidifier °F °C % RH 1000 1000 1000 2000 5000 (V) = Velocity at distributor location (D) = Absorption distance (visible steam) NOTE: This chart is for reference only; multiple distributors can reduce absorption distances.

  • Page 38: Calculating The Down Stream Humidity Level

    If the load calculation of this system requires a 100 lbs/hr unit, then due to the above possible conditions, the project requires a modulating high limit humidistat to limit the humidifier output to a maximum of 74 lbs/hr and maintain 80% rh. Example 2: Humidification load is 30 lbs/hr.

  • Page 39: Control Of Duct Or Plenum Saturation

    Maximum capacity of the NHTC/NHPC humidifier can be limited through the keypad. C. CONTROL OF DUCT OR PLENUM SATURATION (1) NORTEC always recommends the use of a high limit humidistat set at 85% relative humidity in combination with an air-proving switch to assure air movement. Both of these controls are wired in series across the primary control terminals of the humidifiers so that should either of these conditions not be satisfied the humidifiers cannot operate.

  • Page 40: Steam Runs And Condesnate Returns

    (2) Guidelines for installation are: (a) Locate humidifier as close as possible to the duct system. (b) NORTEC steam hose should only be used on short steam runs below 10 feet. (c) Minimize elbows and turns. (d) Ensure that no condensate produced in the steam line will remain trapped. Steam naturally flows upward and condensate naturally flows downward.

  • Page 41: Table 11. Steam Line Material

    Table 13. Recommended Condensate Line at Distributor(s) Dispersion Method Condensate Hose 1 x Steam Distributor d" NORTEC 1328840 3 x Steam Distributor* d" NORTEC 1328840 NOTE: When using more than one distributor, the condensate line should be trapped before it is joined together.

  • Page 42: Condensate Return

    NOTES: 1. This table gives the maximum recommended length of steam run by unit size. 2. The use of any steam line other than copper or NORTEC supplied steam hose will void the warranty and may adversely effect the operation of the humidifier.

  • Page 43: Figure 7. Steam Line Connection

    (2) Use vertical condensate leg of distributor only. Do not over-tighten clamp. (3) Drip stations on steam mains must be located at all low points in the system, at each elevation change and or directional change. (4) Horizontal runs of steam must have a 2"...
  • Page 44 (7) Vertical drop of the drip station should be 1.5 times the diameter of the steam main but no less then 12". (8) Install the P trap at the botom of the drip station. The P trap height is to be a minimum of 6 inches or 2 “...

  • Page 45: Steam Distributors (Asd, Bsd, Csd)

    4. STEAM DISTRIBUTORS (ASD, BSD, CSD) A. STEAM DISTRIBUTORS (1) NORTEC’s steam distributors, in use for over twenty years, are a proven design to suit applications for the introduction of atmospheric steam. (2) Features and benefits of steam distributors are: (a) Expanded diameter of tube to reduce steam velocity and the potential for condensate carryover into the duct.

  • Page 46: Distributor Locations And Mounting

    (c) CSD: 115 lbs/hr (45 kg/hr) C. DISTRIBUTOR LOCATIONS AND MOUNTING (1) NORTEC distributors can be mounted in air handlers, supply air ducts or return air ducts. Return air ducts should only be considered if all of the return air enters the building again and is not exhausted by the air handling device.

  • Page 47: Figure 12. Cutting Duct For Mounting

    Figure 12. Cutting Duct For Mounting Figure 13. Humidification Distance Nomogram 10-10 Page 39 2008-10-01...

  • Page 48: Location Of Steam Distributors Within An Air Handler

    UNLESS YOU KNOW THE EXACT ABORPTION DISTANCE REQUIRED FOR THE STEAM ABSORPTION INTO THE AIR STREAM, THE DISTRIBUTOR SHOULD BE LOCATED AT LEAST 8-10 FT (2-3 M) AWAY FROM ANY OBSTACLE IT MAY CONDENSE ON (ELBOW, DIFFUSER, FILTER, ETC.) (2) Duct vertical clearance requirements for standard steam distributors are as follows: (a) ASD - 8 in.

  • Page 49: Typical Applications

    The manufacturer recommends the appropriate distance modification factors when filters or humidification sensors are installed downstream. For applications that are outside of the Nomogram’s range, please consult a NORTEC representative. G. TYPICAL APPLICATIONS (1) Representations of typical applications are found in Figure 15 and Figure 16.

  • Page 50: Short Absorption Manifold (Sam-E)

    5. SHORT ABSORPTION MANIFOLD (SAM-e) A. GENERAL (1) NORTEC’s best performing steam absorption system for use in Air Handling Units and duct systems where short steam absorption distance is critical. (2) The SAM-e, Figure 17, distributes clean steam, precisely controlled, uniformly into the entire air stream, void of any condensate spray.

  • Page 51: Determining The Steam Absorption Distance

    (5) The features of the short absorption manifold are: (a) Inlets/Outlets located on same side, one access point required. (b) All stainless steel distributors and nozzles ensure permanent bond. (c) Stainless steel header with rubber grommet seals for easy installation of distribution tubes.

  • Page 52: Static Air Pressure

    2000 (1020) 0.12 (0.30) D. CONDENSATE LOSSES (1) The SAM-e will condense some of the steam generated by the NORTEC humidifiers. To compensate for this loss in capacity, we must increase the calculated humidification load accordingly. Refer to Table 16.

  • Page 53: Absorption Distances Diagrams

    Figure 19. Absorption Distance – 3" Centers Figure 20. Absorption Distance – 6" Centers Figure 21. Absorption Distance – 9" Centers Figure 22. Absorption Distance – 12" Centers 10-10 Page 45 2008-10-01...

  • Page 54: Correct Choice Of Product Applications (Within Sam-E)

    (2) NORTEC recommends the installation of a condensate drain on the steam inlet run prior to entering the SAM-e. Air Velocity fpm (cm/s) 500 (255) 1000 (510) NOTE: These values may increase or decrease due to many unknown conditions or variables. This is only a guideline.

  • Page 55: Figure 23. Sam-E Header

    (2) There is a selection of four types of steam tubes. Each are capable of distributing different capacities. To select the steam tube for your application refer to Table 17. Type A 15 lbs/hr (7 kg/hr) Type B 35 lbs/hr (16 kg/hr) Type B+ 55 lbs/hr...

  • Page 56: Sam-E Steam Inlet Configuration Selection

    SAM-e STEAM INLET CONFIGURATION SELECTION (1) Atmospheric Steam (NH, GS, SE) (a) The steam inlet, Figure 25, is determined by the selected humidifier. Refer to submittals, Chapter 10-30 to determine the size of steam outlet required. (b) For a typical SAM-e installation, see Figure 26.

  • Page 57: Table 18. Mini Sam-E Headers - 3

    Table 18. Mini SAM-e Headers – 3" Duct Width Steam Tubes Qty in. (cm) 12 (30.5) 18 (45.7) 24 (60.9) Table 19. Mini SAM-e Headers – 6" Duct Width Steam Tubes Qty in. (cm) 12 (30.5) 18 (45.7) 24 (60.9) *In-Duct TYPE MA TYPE MB...

  • Page 58: Figure 26. Typical Sam-E Installation For Atmospheric Steam Applications

    Figure 26. Typical SAM-e Installation for Atmospheric Steam Applications 10-10 Page 50 2008-10-01...

  • Page 59: Blower Packs (Bobp, Rmbp)

    (1) Optional blower packs are used to distribute steam to localized areas such as computer rooms or in areas that do not have a built-in air distribution system. (2) Blower packs are available integrally mounted on humidifier BOBP, (See Figure 27.) or detached and field-piped and wired to humidifier RMBP. (See Figure 28.)

  • Page 60: Table 22. Ceiling And Frontal Clearances For Blower Packs

    Table 22. Ceiling and Frontal Clearances for Blower Packs Minimum Number Of NH Series Model Blower Packs NOTES: 1. Remote mounted only. Four remote mounted blower packs are recommended on the 200 model. 2. Clearances based on 72°F at 35% RH. 10-10 Page 52 2008-10-01...

  • Page 61: Controls

    24-VAC, 2-A maximum signal. C. MODULATING CONTROLS (1) Modulating Controls are used to send a modulating demand signal to the NORTEC humidifier. Different models can accept different signals (see features section for each specific model) NORTEC supplied controllers send a 0-10 VDC demand signal. This signal can be used as a control and in some models can also be used as a modulating high limit.

  • Page 62: Outdoor Temperature Setback

    (d) Modulating Demand Signal Supplied by Others – A signal that is a linear demand signal that rises on need for humidity can be used in conjunction with NORTEC humidifiers. See features section for a list of which models can accept which signal) D.

  • Page 63: Positioning Controls And Sensors

    (1) NORTEC OnLine enables secure, internet based monitoring, simplifies interoperability and automated email service notification. Using standard Internet Explorer, version 6.0 or newer, NORTEC OnLine provides both monitoring and control, from any location with Internet access, for a period of one year. (See Figure 30.) During the service period, NORTEC OnLine will also generate automatic e-mails when scheduled service is required and/or abnormal operation occurs.

  • Page 64: Figure 30. Nortec Online Monitoring

    Figure 30. NORTEC OnLine Monitoring 10-10 Page 56 2008-10-01...

  • Page 65: Nortec Links

    Access to service history (m) Option to add up to seven slave humidifiers to each NORTEC OnLine module (n) Monitor up to eight humidifiers (one master, seven slaves) with one Internet connection (o) Up to three years of coverage can be purchased at time of order...

  • Page 66: Typical Installation Layout For Nhtc/Nhpc

    TYPICAL INSTALLATION LAYOUT FOR NHTC/NHPC (1) The following are examples of typical control installation possibilities. There are many more configurations possible, be sure to consider the application and positioning as a priority. Figures 33, 34, 35, and 36 show typical control installation.

  • Page 67: Figure 31. Nortec Online Configuration Form

    Connection String: ____________________ Humidifier Ordering Humidifier Unit Desired Unit Model/Size Designation Lead Humidifier Figure 31. NORTEC Online Configuration Form Date: Fax #: Page: RESPONSE REQUESTED Sales Order Number: ____________________ Settings for Static IP Connection: Module IP Address: Subnet Mask: Default Gateway Address: ____________________...

  • Page 68: Figure 32. Nortec Links Form

    Agent P.O. Number: ____________________ Desired NORTEC Links Option: BACnet/IP BACnet/MSTP Johnson N2 LonWorks Humidifier Ordering: For all GS/SE humidifiers equipped with NORTEC Links and NH units with BACNET/IP. 10-10 Page 60 2008-10-01 NORTEC LINKS FORM Date: Fax #: Page: RESPONSE REQUESTED...

  • Page 69: Figure 33. Humidifier Controlled By Air Proving, On/Off Duct Mounted High Limit And Modulating Wall Mounted Space Controller

    Figure 33. Humidifier Controlled by Air Proving, On/Off Duct Mounted High Limit and Modulating Wall Mounted Space Controller Figure 34. Humidifier Controlled by Air Proving, Modulating Duct Mounted High Limit and Modulating Wall Mounted Space Controller 10-10 Page 61 2008-10-01...

  • Page 70: Controller

    Figure 35. Humidifier Controlled by Air Proving, Modulating Duct Mounted High Limit and Modulating Wall Mounted Return Air Sensor with Wall Mounted Controller Figure 36. Humidifier Controlled by Air Proving, Duct Mounted High Limit Sensor and Modulating Duct Mounted Return Air Sensor with Networking Option...

  • Page 71: Specifications

    10-20 SPECIFICATIONS 10-20 Page 63 2008-10-01...

  • Page 72: B. Products

    1. HUMIDIFIERS A. GENERAL (1) Work Included (a) NORTEC NH Series electrode steam humidifier(s) as indicated on drawing(s) and as indicated on schedule(s). (b) Complete and operable humidification system (which meets applicable building codes). (c) Equipment start-up and project inspection by qualified factory trained representative.
  • Page 73 Integral electronics to ensure safe operation. High water sensor circuitry to prevent over filling. Efficient operation over a wide range of water conditions. Simple maintenance without disassembly or removal of humidifier. No specialized tools required. Full output and maximum energy efficiency through entire cylinder life.
  • Page 74 13 Removable door (no special tools required) to allow user full front access of plumbing and electrical sections. 14 Plumbing door interlock safety switch to allow power interruption when installing or servicing the humidifier. 15 Standard of acceptance NORTEC NHTC Series. 16 C-UL_US listed. 17 Spec (2) Humidifier Controls (NHTC and NHTC Outdoor)
  • Page 75 8-bits, no parity, one stop bit shall support the following variables: Change Cylinder – Indicates cylinder needs to be replaced (read). Channel 1 Input – Humidifier input value being supplied to channel 0- 100% (read/write). Channel 1 Set point – Control channel 1 setpoint for relative humidity in space 0-100% (read/write).
  • Page 76 (3) Remote Monitoring And Control Options (NHTC and NHTC OUTDOOR only) Reference: Section 15900 - Building Controls and Automation (a) NORTEC OnLine web based monitoring and control from any location with Internet access, using standard Internet Explorer, version 6.0 or newer.
  • Page 77 (9.5 mm) drain leg either back to the humidifier or to a convenient floor drain. (b) Wall Mounted Direct Steam Dispersion System – NORTEC Model(s) RMBP or BOBP (for NHTC and NHPC only) Packaged unit, wall mounted allows for direct space/room humidification when steam introduction into a ducted system is not feasible.

  • Page 78: C. Execution

    Blower pack may be remote mount or built-on the humidifier. (c) Short Absorption Manifold – NORTEC Model SAM-e Short Absorption Manifold designed for atmospheric steam humidifiers or pressurized steam from a boiler, to directly inject the steam into ducted air for humidification.
  • Page 79 (c) Proceed with installation only after unsatisfactory conditions have been corrected. (2) Installation (a) Install humidifiers and steam dispersion panels per manufacturers’ instructions. (b) Seal humidifier dispersion-tube duct penetrations with flange. (c) Install with required clearance for service and maintenance. (3) Commissioning (a) System verification testing is part of the commissioning process.
  • Page 80 Training of the owner’s operation and maintenance personnel is required in co-operation with the commissioning authority. Provide competent, factory authorized personnel to provide instruction to operation and maintenance personnel concerning the location, operation, and troubleshooting of the installed systems. The instruction shall be scheduled in coordination with the commissioning authority after submission and approval of formal training plans.
  • Page 81 10-30 SUBMITTALS 10-30 Page 73 2008-10-01...

  • Page 82: A. Introduction

    B. NH UNIT The different wiring connections to the humidifier unit can be found in Figure 2. All wiring is to be in accordance with existing national and local electrical codes. Performance data for single and double units can be found in Figure 3, Figure 4, and Figure 5.

  • Page 83: F. Controls

    (f) For blower pack dimensions refer to Figure 19, Figure 20, and Figure 21. F. CONTROLS NHTC/NHPC humidifiers can be easily modified to accept a control signal from a modulating humidity controller as supplied by others. Controller must have a built- in adjustable %rh set point.
  • Page 84 The humidifier shall be controlled directly using a humidity sensor (transducer) supplied by others. The sensor will be field wired to the humidifier for a direct control at the humidifier. The same sensor(s) can be shared in parallel to a Building Automation System for monitoring purposes.

  • Page 85: Figure 1. Low Voltage Control Terminal Strip

    Figure 1. Low Voltage Control Terminal Strip (11) A and B: Mount any wall humidistat (control or high limit) over a standard electrical box at a height similar to a typical thermostat. Any wall humidistat should be in a location representative of the overall space being humidified and not in the path of a blower pack or an air supply grille.

  • Page 86: Figure 2. Primary (Line) Voltage Wiring To Unit

    Figure 2. Primary (Line) Voltage Wiring to Unit 10-30 Page 78 2008-10-01...

  • Page 87: Figure 3. Physical Data - Nhtc/Nhpc 005-030

    Figure 3. Physical Data – NHTC/NHPC 005-030 10-30 Page 79 2008-10-01...

  • Page 88: Figure 4. Physical Data - Nhtc/Nhpc 050-100

    Figure 4. Physical Data – NHTC/NHPC 050-100 10-30 Page 80 2008-10-01...

  • Page 89: Figure 5. Physical Data - Nhtc/Nhpc 150-200

    Figure 5. Physical Data – NHTC/NHPC 150-200 10-30 Page 81 2008-10-01...

  • Page 90: Figure 6. Distributor Dimensions (3 Sheets)

    Unit Model Distributor Model No. of Cylinders No. of Outlets/Cylinder OD of Cylinder Outlet (NHTC,P,B) OD of Cylinder Outlet (NHSC/DI) Distributor Model ASD 12 2 (51) ASD18 2 (51) ASD 24 2.25 (57) ASD 30 2.25 (57) ASD 36 2.25 (57) ASD 42 2.5 (64) ASD 48...
  • Page 91 Distributor Model BSD 12 2 (51) BSD 18 2 (51) BSD 24 2.25 (57) BSD 30 2.25 (57) BSD 36 2.25 (57) BSD 42 2.5 (64) BSD 48 2.5 (64) BSD 54 2.5 (64) BSD 60 3 (76) BSD 66 3 (76) BSD 72 3 (76)
  • Page 92 Distributor Model CSD 24 1.75 (44) CSD 30 2 (51) CSD 36 2 (51) CSD 42 2.25 (57) CSD 48 2.25 (57) CSD 54 2.25 (57) CSD 60 2.5 (64) CSD 66 2.5 (64) CSD 72 2.5 (64) CSD 78 3 (76) CSD 84 3 (76)

  • Page 93: Figure 7. Sam-E General Dimensions

    Duct Width 45.7 13 1/8 33.3 14 7/8 61.0 19 1/8 48.6 20 7/8 76.2 25 1/8 63.8 26 7/8 91.4 31 1/8 79.1 32 7/8 106.7 37 1T/8 94.3 38 7/8 121.9 43 1/8 109.5 44 7/8 137.2 49 1/8 124.8 50 7/8 152.4...

  • Page 94: Figure 8. General Mini Sam-E Dimensions

    Duct Width 30.5 11 1/16 28.1 45.7 17 1/16 43.3 61.0 23 1/16 58.6 Figure 10. General Mini SAM-e Dimensions Duct Height 20.3 7 7/8 20.0 25.4 9 7/8 25.1 30.5 11 7/8 30.2 35.6 13 7/8 35.2 40.6 15 7/8 40.3 45.7 17 7/8...

  • Page 95: Figure 9. In-Duct/Ahu Installation Without Mounting Frame Installation

    Figure 11. In-Duct / AHU Installation Without Mounting Frame Installation 10-30 Page 87 2008-10-01...

  • Page 96: Figure 10. In-Duct/Ahu Installation With Mounting Frame Installation

    Figure 12. In-Duct / AHU Installation With Mounting Frame Installation 10-30 Page 88 2008-10-01...

  • Page 97: Figure 11. Outside Duct Installation Without Mounting Frame Installation

    Figure 13. Outside Duct Installation Without Mounting Frame Installation 10-30 Page 89 2008-10-01...

  • Page 98: Figure 12. Outside Duct Installation With Mounting Frame Installation

    Figure 13. In-Duct / AHU Installation With Mounting Frame Installation 10-30 Page 90 2008-10-01...

  • Page 99: Figure 14. Outside Duct Mounting Cover Plates

    Figure 14. Vertical Duct Installation Figure 15. Outside Duct Mounting Cover Plates 10-30 Page 91 2008-10-01...

  • Page 100: Figure 15. Atmospheric Sam-E Adapter Dimensions

    Figure 16. Atmospheric SAM-e Adapter Dimensions 10-30 Page 92 2008-10-01...
  • Page 101 Figure 17. Atmospheric Steam Header and Adapter Configuration 10-30 Page 93 2008-10-01...

  • Page 102: Figure 17. Physical Data For Remote Mounted Blower Pack

    Figure 18. Physical Data for Remote Mounted Blower Pack 10-30 Page 94 2008-10-01...

  • Page 103: Figure 18. Physical Data Units With Optional Built-On Blower Packs

    Figure 19. Physical Data Units with Optional Built-On Blower Packs 10-30 Page 95 2008-10-01...
  • Page 104 Figure 20. Physical Data Units with Optional Built-On Blower Packs 10-30 Page 96 2008-10-01...

  • Page 105: Figure 19. Wall Digital Humidistat

    12.2 10-30 Page 97 2008-10-01 Wall Digital Humidistat Dimensions Figure 21. Wall Digital Humidistat...

  • Page 106: Figure 20. Duct Sensor

    Duct Sensor Dimensions 20.0 11.2 Figure 22. Duct Sensor 10-30 Page 98 2008-10-01...

  • Page 107: Submittals

    (1) The following Tables 1 through 15 will enable the engineer to select components for this installation. Part No. 2522160 FILLCUP EXTENSION KIT NHTC/NHPC - 2 Required for 150 or 200 2522162 DRAIN WATER COOLER 005-020, to temper drain water below 120°F (49°C)

  • Page 108: Table 2. Common Accessories Universal

    Table 2. Common Accessories Universal Part No. 1458807 DOUBLE CHECK VALVE FOR WATER INLET LINE 1429527 DRAIN WATER SUMP PUMP (HIGH TEMPERATURE) 1329505 IN-LINE WATER FILTER 5 micron filter 1469595 POCKET HYGRO-THERMOMETER DIGITAL DISPLAY 1329561 REPLACEMENT WATER FILTERS 1 micron 1329506 REPLACEMENT WATER FILTERS 5 micron...

  • Page 109: Table 4. Steam Distributor Accessories

    Table 3. Steam Distributors (cont) Part No. 1506190 DISTRIBUTOR SST BSD 102 1506191 DISTRIBUTOR SST CSD 24 1506192 DISTRIBUTOR SST CSD 30 1506193 DISTRIBUTOR SST CSD 36 1506194 DISTRIBUTOR SST CSD 42 1506195 DISTRIBUTOR SST CSD 48 1506196 DISTRIBUTOR SST CSD 54 1506197 DISTRIBUTOR SST CSD 60 1506198...
  • Page 110 OD, must be used at low points in steam supply hose to prevent condensate build-up that would result in blockage, or to remove excessive condensate can be routed to fill cup if humidifier is below trap, or to any floor drain.

  • Page 111: Table 5. Sam-E Header

    Part No. 1503269 3" CENTERS, 18" (45.7 cm) WIDE 3 Steam tubes 1503270 3" CENTERS, 24" (61.0 cm) WIDE 5 Steam tubes 1503271 3" CENTERS, 30" (76.2 cm) WIDE 7 Steam tubes 1503272 3" CENTERS, 36" (91.4 cm) WIDE 9 Steam tubes 1503273 3"...
  • Page 112 Table 5. SAM-e Header (cont) Part No. 1503290 3" CENTERS, 144" (365.8 cm) WIDE 45 Steam tubes – – – 3" CENTERS, 144+" (365.8+ cm) WIDE Consult factory 1503309 6" CENTERS, 18" (45.7 cm) WIDE 2 Steam tubes 1503310 6" CENTERS, 24" (61.0 cm) WIDE 3 Steam tubes 1503331 6"...
  • Page 113 Part No. 1503328 6" CENTERS, 132" (335.3 cm) WIDE 21 Steam tubes 1503329 6" CENTERS, 138" (350.5 cm) WIDE 22 Steam tubes 1503330 6" CENTERS, 144" (365.8 cm) WIDE 23 Steam tubes – – – 6" CENTERS, 144+" (365.8+ cm) WIDE Consult factory 1506789 9"...

  • Page 114: Table 6. Adjustable Mounting Frame For Sam-E

    Table 5. SAM-e Header (cont) Part No. 1506803 12" CENTERS, 108" (274.3 cm) WIDE 9 Steam tubes 1506804 12" CENTERS, 120" (304.8 cm) WIDE 10 Steam tubes 1506805 12" CENTERS, 132" (335.3 cm) WIDE 11 Steam tubes 1506806 12" CENTERS, 144" (365.8 cm) WIDE 12 Steam tubes –...
  • Page 115 Table 7. SAM-e Tube Matrix (cont) Part No. 1503396 TYPE A, 66" (167.6 cm) WIDE 15 lbs/hr (7 kg/hr) 1503397 TYPE A, 72" (182.9 cm) WIDE 15 lbs/hr (7 kg/hr) 1503398 TYPE A, 78" (198.1 cm) WIDE 15 lbs/hr (7 kg/hr) 1503399 TYPE A, 84"...
  • Page 116 Table 7. SAM-e Tube Matrix (cont) Part No. 1503418 TYPE B, 66" (167.6 cm) WIDE 35 lbs/hr (16 kg/hr) 1503419 TYPE B, 72" (182.9 cm) WIDE 35 lbs/hr (16 kg/hr) 1503420 TYPE B, 78" (198.1 cm) WIDE 35 lbs/hr (16 kg/hr) 1503421 TYPE B, 84"...
  • Page 117 Table 7. SAM-e Tube Matrix (cont) Part No. 1509398 TYPE B+, 72" (182.9 cm) WIDE 55 lbs/hr (25 kg/hr) 1509399 TYPE B+, 78" (198.1 cm) WIDE 55 lbs/hr (25 kg/hr) 1509400 TYPE B+, 84" (213.4 cm) WIDE 55 lbs/hr (25 kg/hr) 1509401 TYPE B+, 90"...

  • Page 118: Table 8. Sam-E Inlet And Adapter Configurations

    1503486 Inlet Adapter Kit 8, SAM-e, 800 lbs/hr 8x1.75" NOTES: 1. Inlet/Adapter: Allows direct connection of the humidifier steam outlets to the SAM-e. Therefore, there is no adapter located at the humidifier. 2. Consult SAM-e Shop Drawings for more details.

  • Page 119: Table 9. Remote Blower Pack

    2530895 Remote Blower Pack 50 - 100 lbs/hr 2530894 Remote Blower Pack 50 - 100 lbs/hr Part No. 2522142 Built-on Blower Pack, NHTC/NHPC 005 2522143 Built-on Blower Pack, NHTC/NHPC 010-030 2522144 Built-on Blower Pack, NHTC/NHPC 010-030 2522145 Built-on Blower Pack, NHTC/NHPC 010-030...

  • Page 120: Table 11. Controls - On/Off

    Applies to NHTC 150 and 200 models only. NOTE: NORTEC NH Series humidifiers must have a closed circuit across terminals 8 and 10. NORTEC highly recommends the use of a high limit humidistat and air proving switch in series for this function.

  • Page 121: Table 13. Modulating Demand Signal By Others Single Channel

    2 - 10 Vdc dual channel Demand signal acceptance 2523097 0 - 20 Vdc dual channel Demand signal acceptance NOTE: : NHPC does not accept dual signal control Table 15. Modulation By Others: Transducer Signal (NHTC AND NHTC OUTDOOR ONLY) Part No.

  • Page 122: Table 16. Nortec Online Options

    2 - 10 Vdc dual channel Transducer signal acceptance 2523118 0 - 20 Vdc single channel Transducer signal acceptance 2523119 0 - 20 Vdc dual channel Transducer signal acceptance Table 16. NORTEC OnLine Options (NHTC only) Part No. 1509780 NORTEC ONLINE Static IP Option for NHTC...
  • Page 123 2522482 FUSING NHTC/PC 200/440-480/3 2522483 FUSING NHTC/NHPC 200/550-600/3 C. SCHEDULE Zone Label ___________ Zone Load ___________ Humidifier Output ______ External Protection _____ Humidifier Label _______ Humidifier Model _______ Voltage/Phase (VAC) ___ Requirement (A) _______ Demand By Nortec By Others Space Control...

  • Page 124: Warranty

    F.O.B. THE COMPANY’s factory, providing the defective part(s) is returned freight prepaid by the customer. Parts used for repairs are warranted for the balance of the term of the warranty on the original humidifier or 90 days, whichever is longer.
  • Page 125 SERIAL # CYLINDER # Cylinder Replacement Date (MM/DD/YYYY) U.S.A. Walter Meier (Climate USA) Inc. 826 Proctor Avenue Ogdensburg, NY 13669 TEL: 1-866-NORTEC-1 EMAIL: northamerica.climate@waltermeier.com WEBSITE: www.humidity.com Authorized Agent: CANADA Walter Meier (Climate Canada) Ltd. 2740 Fenton Road Ottawa, ON K1T 3T7...

This manual is also suitable for:

Nhtc

Table of Contents
