Installation and Operating Manual
IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED EXACTLY, A FIRE OR EXPLOSION
MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE.
Do not store or use gasoline or other fl ammable vapors and liquids in vicinity of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS:
Do not try to light any appliance.
Do not touch any electrical switch; do not use any phone in your building.
Immediately call your gas supplier from a neighbor's phone. Follow gas supplier's instructions
If you cannot reach your gas supplier, call fi re department.
Installation and service must be performed by a qualifi ed installer, service agency or gas supplier.
This is an unvented gas-fi red heater. It uses air (oxygen) from room in which it is installed. Provisions for
adequate combustion and ventilation air must be provided. Refer to section," Producing Adequate Air
For Combustion And Ventilation". This appliance may be installed in an aftermarket, permanently located,
manufactured (mobile) home, where not prohibited by local codes. This appliance is only for use with type
of gas indicated on rating plate. This appliance is not convertible for use with other gases.
Certifi ed for installations in the USA
Approved for installation in mobile homes

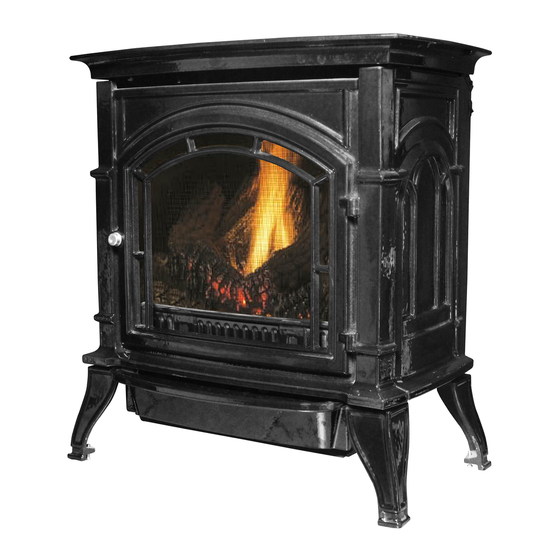

AGC500VF
WARNING
INSTALLER: Leave this manual with appliance.
CONSUMER: Retain this manual for future reference.
This appliance is intended for supplemental heating.
852404B-4504E

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AGC500VF and is the answer not in the manual?

Questions and answers
