Chapter 1
Note:
1. If the DSL LED is off, please check your Internet connection first. Refer to Connect Your Modem Router for more
information about how to make Internet connection correctly. If you have already made a right connection,
please contact your ISP to make sure your Internet service is available now.
2. If the Internet LED is off, please check your DSL LED first. If your DSL LED is also off, please refer to 1. If your DSL
LED is ON, please check your Internet configuration. You may need to check this part of information with your ISP
and make sure everything have been input correctly.
1 3 2

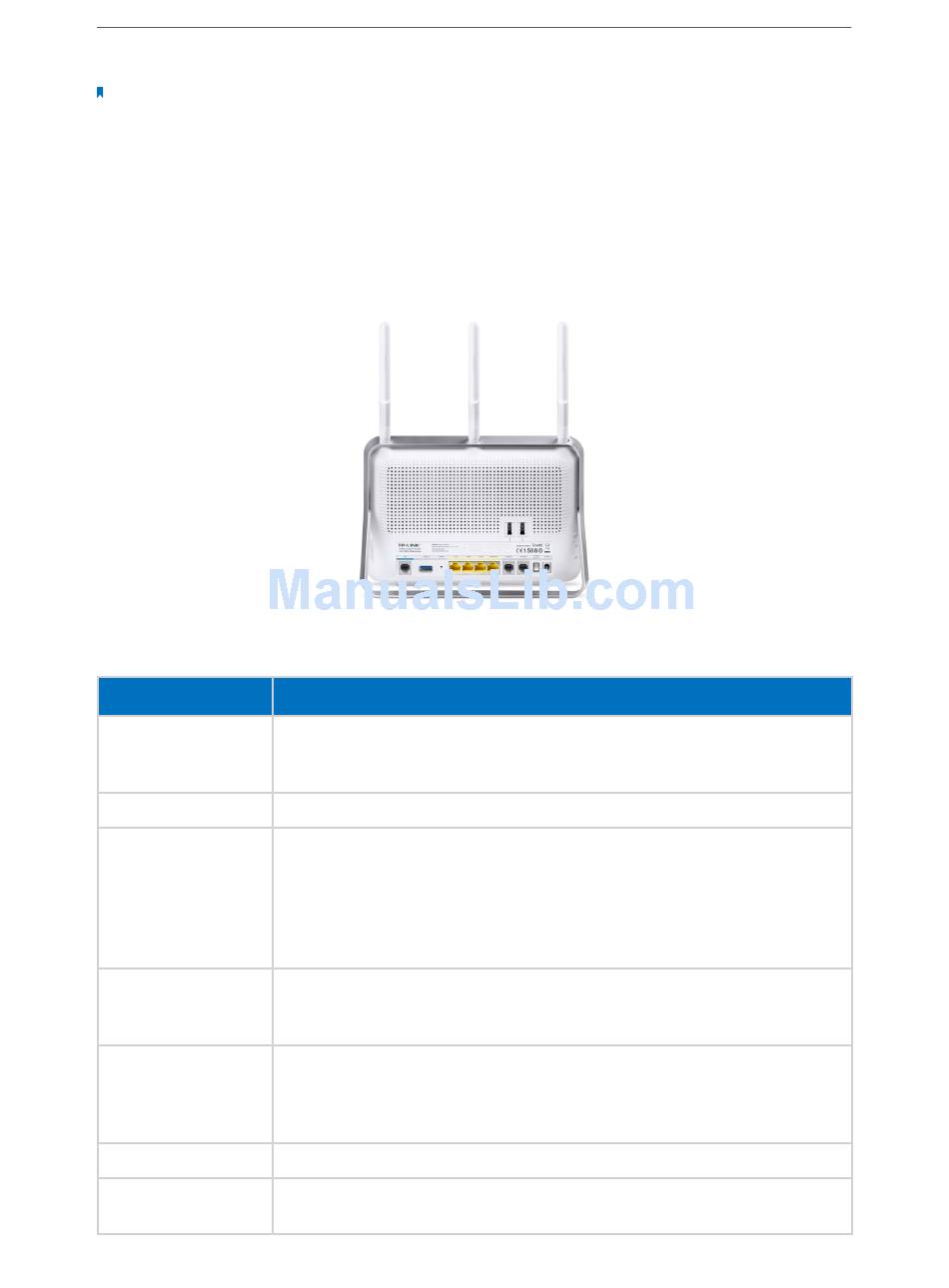

The Back Panel
The modem router's back panel shows the connection ports, buttons and antennas.
Refer to the following for detailed instructions.
Item
DSL
USB 3.0
RESET
LAN1, LAN2, LAN3,
LAN4/WAN
1(PHONE1),
2(PHONE2)
POWER ON/OFF
POWER
For connecting the modem router to the Internet. Connect the port to the
splitter or directly connect the port to the phone jack via a phone cable. For
details, please refer to
Connect Your Modem
For connecting to a USB storage device or a USB
There are two ways to reset the modem router's factory defaults.
Method one: With the modem router powered on, use a pin to press and hold
the RESET button for at least 8-10 seconds. And the modem router will reboot
to its factory default settings.
Method two: Restore the default settings from Backup & Restore of the
modem router's Web-based Management.
For connecting the modem router to your PC or other Ethernet network
devices. In wireless router mode you will be able to connect to Cable/FTTH/
VDSL/ADSL devices.
"TAE1" and "PHONE1" are the same communication interface in different
port forms. Connect your telephone to "TAE1" or"PHONE1" according to your
telephone interface.
The same applies to "TAE2" and "PHONE2".
The switch for the power. Press it to power on or off the modem router.
For connecting the modem router to power socket via the provided power
adapter.
Get to Know about Your Modem Router
Description
Router.
printer.
12
