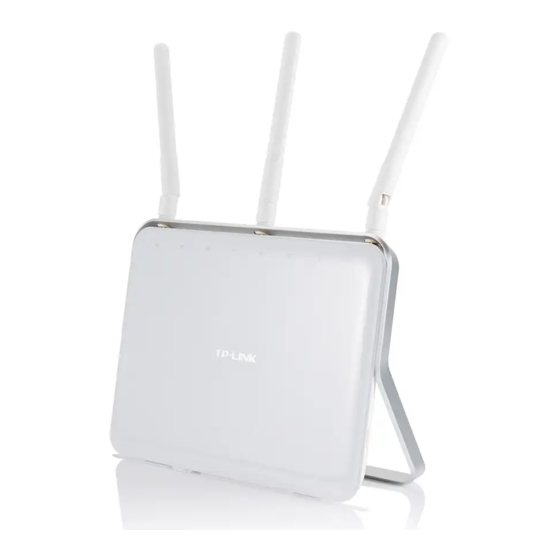

TP-Link Archer VR900 Installation Manual

Ac1900 wireless gigabit vdsl/adsl modem router
Hide thumbs Also See for Archer VR900:
1
2

Advertisement

Quick Links

Download this manual
Quick Installation Guide
AC1900 Wireless Gigabit
VDSL/ADSL Modem Router
7106505928 REV1.0.1

Connecting the Hardware

If you don't need the phone service, just directly connect the modem router
to the phone jack with a phone cable, then follow steps 3 and 4 to complete
the hardware connection.
Phone Jack
1
Connect the DSL splitter
to the phone jack.
DSL Splitter
Modem Router
2
Connect the modem router
to the DSL splitter.
Connect to the phone (Optional)
3
Turn on the modem router.
4
Verify that the following LEDs are
on and stable before continuing
with the configuration.
Note: The DSL LED
takes about
1 to 2 minutes to stabilize.
Power On
DSL
On
Power Adapter
