TP-Link Archer VR900 Installation Manual

Quick Installation Guide

AC1900 Wireless Dual Band Gigabit
VDSL/ADSL Modem Router

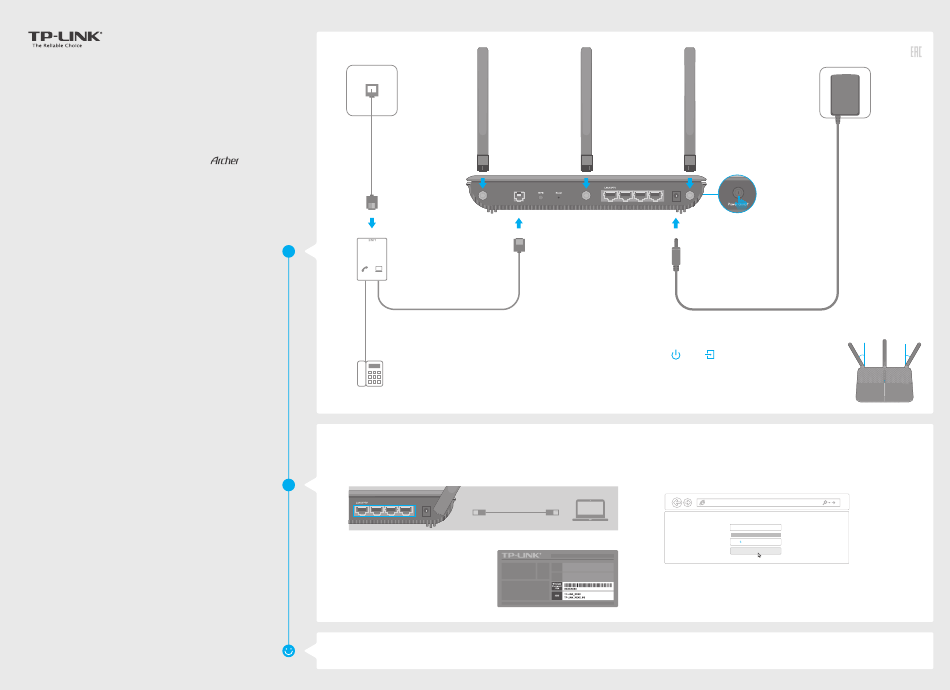

Connect the Hardware
Configure the Modem Router
Enjoy the Internet
Phone Jack
VR900
2
PHONE MODEM
DSL Splitter
If you don't need the phone service, just directly
connect the modem router to the phone jack with
the provided phone cable, then follow steps 3 and
Phone (Optional) 4 to complete the hardware connection.
1
Connecting your computer to the modem router via a wired or
wireless connection
Wired
DSL USB1 USB2 LAN2 LAN3 LAN4/WAN
Wireless
Connect wirelessly by using the SSID
(network name) and Wireless
Password printed on the product label
at the bottom of the modem router.
Now you can enjoy your Internet.
If you want more advanced settings, please refer to the User Guide on TP-LINK official website at http://www.tp-link.com.
DSL
3
Modem Router
Phone Cable
Ethernet Cable
Power
1
Attach the antennas.
LAN2 LAN3 LAN4/WAN Power
4
Push in to turn on the
modem router.
5
Verify that the following LEDs are on and stable
before continuing with the configuration.
Power On DSL On
Notes:
1. The DSL LED takes about 1 to 2 minutes to stabilize.
2. We recommends that the outside two antennas be
outward at about 30 degrees.
2
Configuring the modem router via a web browser
A Launch a web browser and type in http://tplinkmodem.net or 192.168.1.1.
Create a new password (1-15 characters) and click Save.
Note: If the login page does not appear, please refer to FAQ->Q1.
http://tplinkmodem.net
New Password
Low Middle High
Con rm Password
Save
B Enter the password you created and click Log in.
Note: For subsequent logins, you only need to enter the password that you have created.
Select your Region and Time Zone, then click Next. Follow the step-by-step
C
instructions of the Quick Setup to complete the initial configuration.
Power Adapter
30° 30°
