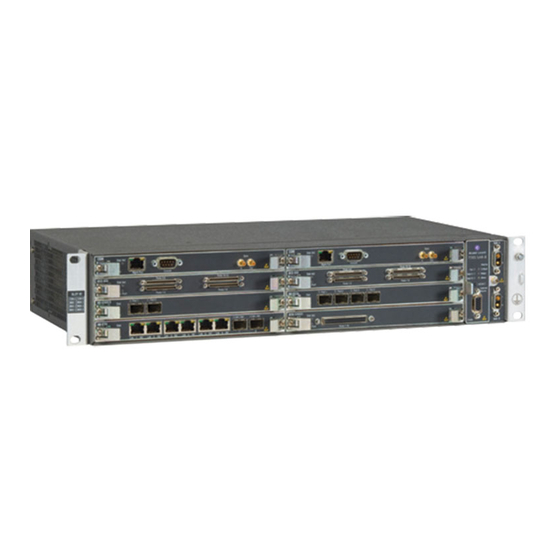

Page 1 I N T E R F A C E C O N F I G U R A T I O N G U I D E Alcatel-Lucent Proprietary This document contains proprietary information of Alcatel-Lucent and is not to be disclosed or used except in accordance with applicable agreements.
Page 2 The customer hereby agrees that the use, sale, license or other distribution of the products for any such application without the prior written consent of Alcatel-Lucent, shall be at the customer's sole risk. The customer hereby agrees to defend and hold Alcatel-Lucent harmless from any claims for loss, cost, damage, expense or liability that may arise out of or in connection with the use, sale, license or other distribution of the products in such applications.
Page 3: Table Of Contents
Alcatel-Lucent 7705 SAR Interface Configuration Process........
Page 4 Standards and Protocol Support ........... 221 Page 4 7705 SAR OS Interface Configuration Guide...
Page 5 7705 SAR-8 and 7705 SAR-F Comparison ........
Page 6 Show Multilink-bundle IMA ATM PVP Output Fields ........212 Page 6 7705 SAR OS Interface Configuration Guide...
Page 7 7705 SAR Interfaces ........
Page 8 List of Figures Page 8 7705 SAR OS Interface Configuration Guide...
Page 9: List Of Acronyms
ATM PVC ATM permanent virtual circuit Batt A battery A B-bit beginning bit (first packet of a fragment) Bellcore Bell Communications Research bidirectional forwarding detection 7705 SAR OS Interface Configuration Guide Page 9...
Page 10 Control and Processing Module (CPM is used instead of CSM when referring to CSM filtering – to align with CLI syntax used with other SR products) central processing unit cyclic redundancy check Page 10 7705 SAR OS Interface Configuration Guide...
Page 11 DSLAM digital subscriber line access multiplexer data termination equipment downstream unsolicited e911 enhanced 911 service E-bit ending bit (last packet of a fragment) ECMP equal cost multi-path Ethernet in the first mile 7705 SAR OS Interface Configuration Guide Page 11...
Page 12 Global System for Mobile Communications (2G) header error control HMAC hash message authentication code HSDPA high-speed downlink packet access HSPA high-speed packet access isolated bonding networks ICMP Internet control message protocol Page 12 7705 SAR OS Interface Configuration Guide...
Page 13 LLID loopback location ID link-state advertisement LSDB link-state database label switched path label switch router link-state request link-state update LSP ID to NHLFE media access control make-before-break 7705 SAR OS Interface Configuration Guide Page 13...
Page 14 BTS but used in 3G networks — term is used in UMTS (3G systems) while BTS is used in GSM (2G systems) NSSA not-so-stubby area operations, administration, and maintenance OAMPDU OAM protocol data units Page 14 7705 SAR OS Interface Configuration Guide...
Page 15 PVCC permanent virtual channel connection pseudowire PWE3 pseudowire emulation edge-to-edge quality of service RADIUS Remote Authentication Dial In User Service Radio Access Network remote defect indication random early discard 7705 SAR OS Interface Configuration Guide Page 15...
Page 16 SAR-8 7705 Service Aggregation Router - 8-slot chassis SAR-F 7705 Service Aggregation Router - fixed form-factor chassis SAToP structure-agnostic TDM over packet synchronous digital hierarchy service destination point shared explicit small form-factor pluggable (transceiver)
Page 17 UMTS Universal Mobile Telecommunications System (3G) user-to-network interface virtual circuit virtual channel connection VCCV virtual circuit connectivity verification virtual circuit identifier VLAN virtual LAN 7705 SAR OS Interface Configuration Guide Page 17...
Page 18 VPRN virtual private routed network virtual routing and forwarding table WCDMA wideband code division multiple access (transmission protocol used in UMTS networks) WRED weighted random early discard Page 18 7705 SAR OS Interface Configuration Guide...
Page 19: Preface
This guide is organized into functional chapters and provides concepts and descriptions of the implementation flow, as well as Command Line Interface (CLI) syntax and command usage. For hardware information on the 7705 SAR chassis and the adapter cards, including installation, connections, LEDs, and pinouts, refer to: •...
Page 20: List Of Technical Publications
Technical Support If you purchased a service agreement for your 7705 SAR router and related products from a distributor or authorized reseller, contact the technical support staff for that distributor or reseller for assistance. If you purchased an Alcatel-Lucent service agreement, contact your...
Page 21: Getting Started
Configuring the IOM and Card Slot on page 26 Adapter cards Configuring Adapter Cards on page 27 Ports Configuring Ports on page 29 Reference List of IEEE, IETF, and other Standards and Protocol Support on page 221 proprietary entities 7705 SAR OS Interface Configuration Guide Page 21...
Page 22: Notes On 7705 Sar-8 And 7705 Sar-F
Getting Started Notes on 7705 SAR-8 and 7705 SAR-F The 7705 SAR-8 and the 7705 SAR-F run the same operating system software. The main difference between the products is their hardware configuration. The 7705 SAR-8 has an 8-slot chassis that supports two CSMs, six adapter cards, and a Fan module. The...
Page 23 The +24 VDC version of the 7705 SAR-8 only supports version 2 of the 8-port Ethernet Adapter card. On the 7705 SAR-8, the CLI indicates the MDA type for the 8-port Ethernet Adapter card as a8-eth or a8-ethv2. On the 7705 SAR-F, the CLI indicates the MDA type for the 7705 SAR-F Ethernet ports as a8-ethv3, to distinguish it from the actual version 2 of the 8-port Ethernet Adapter card.
Page 24 Getting Started Page 24 7705 SAR OS Interface Configuration Guide...
Page 25: 7705 Sar Interfaces
Deploying Preprovisioned Components on page 41 • Configuration Notes on page 42 • Configuring Physical Components with CLI on page 43 • Card, Adapter Card, and Port Command Reference on page 69 7705 SAR OS Interface Configuration Guide Page 25...
Page 26: Configuration Overview
The 7705 SAR card slot ID is always 1 and the card type for the IOM is always iom-1g. On the 7705 SAR-8, the CSM, which can only be installed in slot A or B of the chassis, does not need to be provisioned. However, the IOM, which is virtualized in the 7705 SAR software, must be activated before the adapter cards and ports can be preprovisioned and configured.
Page 27: Configuring Adapter Cards
• 4-port OC3/STM1 Clear Channel Adapter card The 7705 SAR-8 supports up to six adapter cards: any combination of T1/E1 ASAP Adapter cards, Ethernet Adapter cards, or OC3/STM1 Clear Channel Adapter cards. These cards may be installed in the chassis in any combination that does not exceed the supported number.
Page 28: Channelized Adapter Card Support
Each 16-port T1/E1 ASAP Adapter card supports channelization down to DS0. Up to 24 channel groups are supported on a DS1 circuit and up to 32 channel groups on an E1 circuit. Page 28 7705 SAR OS Interface Configuration Guide...
Page 29: Configuring Ports
Before a port can be configured, the slot must be provisioned with a card type and the adapter card type must be specified. The 7705 SAR supports the following port types: • Ethernet — the 8-port Ethernet Adapter cards have six RJ-45 ports for 10/100BASE-T (Ethernet and Fast Ethernet) connections.
Page 30: Access And Network Ports
3G UMTS traffic from Node Bs. All member links of the IMA group must reside on the same card. The 2G traffic is transported across the PSN encapsulated in a TDM VLL. The 3G traffic is transported using ATM VLLs. Page 30 7705 SAR OS Interface Configuration Guide...
Page 31: Network Ports
The 7705 SAR supports both copper and fiber uplinks on the Ethernet Adapter card. Rate Limiting on Network Ethernet Ports The 7705 SAR supports egress rate limiting on uplink Ethernet ports. Rate limiting sets a hard limit on the amount of traffic that can leave the Ethernet port, which is useful when a mobile operator has leased a fixed amount of bandwidth.
Page 32: Port Features
N is larger than the maximum receive unit (MRU) for a single physical link. Once MLPPP has been successfully negotiated, the sending system is free to send PDUs encapsulated and/or fragmented with the MP header. Page 32 7705 SAR OS Interface Configuration Guide...
Page 33: Figure 1: Mlppp 24-Bit Fragment Format
19488 The required and default format for MP is the 24-bit format. During the LCP state, the 12-bit format can be negotiated. The 7705 SAR is capable of supporting and negotiating the alternate 12-bit frame format. The maximum differential delay supported for MLPPP is 25 ms.
Page 34 The Information field is zero or more octets. The Information field contains the datagram for the protocol specified in the protocol field. The MRRU will have the same default value as the MTU for PPP. The MRRU is always negotiated during LCP. Page 34 7705 SAR OS Interface Configuration Guide...
Page 35 Timers can be set to determine when link up and link down events are advertised; that is, up-to-down and down-to-up transitions of the interface are not advertised to upper-layer protocols (are dampened) until the configured timer has expired. 7705 SAR OS Interface Configuration Guide Page 35...
Page 36: Inverse Multiplexing Over Atm (Ima)
DS1 and DS3 or between E1 and E3) through the addition or removal of channels to or from the IMA group. The 7705 SAR supports the IMA protocol as specified by the Inverse Multiplexing for ATM (IMA) Specification version 1.1.
Page 37: Network Synchronization On Ports
This mode is immune to any packet delay variation (PDV) occurring on Layer 2 or Layer 3 links. Line timing is supported on the 7705 SAR-F T1/E1 ports and Ethernet SFP ports with SFPs that support Synchronous Ethernet. On the 7705 SAR-8, line timing is supported by the 16-port ASAP Adapter card and by the 8-port Ethernet v2 card on two Ethernet SFP ports with SFPs that support Synchronous Ethernet.
Page 38: Ethernet Oam
Ethernet links and quickly determine the location of failing links or fault conditions. Because some of the sites where the 7705 SAR will be deployed will only have Ethernet uplinks, this OAM functionality is mandatory. For example, mobile operators must be able to request remote loopbacks from the peer router at the Ethernet layer in order to debug any connectivity issues.
Page 39: Remote Loopback
Customers who subscribe to Epipe service might have customer equipment running 802.3ah at both ends. That is why the 7705 SAR is configured to tunnel received OAM PDUs to the other end through the existing network using MPLS or GRE. This is the default functionality and is not user-configurable.
Page 40: Mtu Configuration Guidelines
Observe the following general rules when planning your service and physical Maximum Transmission Unit (MTU) configurations. • The 7705 SAR must contend with MTU limitations at many service points. The physical (access and network) port, service, and SDP MTU values must be individually defined.
Page 41: Default Mtu Values
1572 1572 For more information on MTU (in particular, as they apply to services), refer to the 7705 SAR OS Services Guide. For information on encapsulation, refer to the 7705 SAR OS Quality of Service Guide. Deploying Preprovisioned Components...
Page 42: Configuration Notes
Ports cannot be provisioned until the IOM software is activated and the MDA type is specified. Reference Sources For information on supported IETF drafts and standards as well as standard and proprietary MIBS, refer to Standards and Protocol Support on page 221. Page 42 7705 SAR OS Interface Configuration Guide...
Page 43: Configuring Physical Components With Cli
Configuring Ports on page 53 • Service Management Tasks on page 66 → Modifying or Deleting an Adapter Card on page 66 → Deleting a Card on page 67 → Deleting Port Parameters on page 67 7705 SAR OS Interface Configuration Guide Page 43...
Page 44: Preprovisioning Guidelines
Preprovisioning Guidelines Preprovisioning Guidelines The 7705 SAR has two ports on the chassis to connect terminals for management access: a console port for a terminal connection and a management port for a Telnet connection. The console port is used to configure parameters locally through a direct connection from a system console.
Page 45: Maximizing Bandwidth Use
For command syntax, see Configuring Multilink PPP Bundles on page 61. To configure channelized ports for TDM, see Configuring Channelized Ports on page 7705 SAR OS Interface Configuration Guide Page 45...
Page 46: Basic Configuration
Basic Configuration Basic Configuration The basic 7705 SAR OS interface configuration must include the following tasks: • identify chassis slot (step in activating the IOM) • specify card type (step in activating the IOM) • identify adapter card (MDA) slot •...
Page 47 1 exit exit no shutdown exit no shutdown exit #-------------------------------------------------- echo "Port Configuration" #-------------------------------------------------- port 1/1/1 shutdown description "OC-3 SONET/SDH" sonet-sdh framing sonet clock-source node-timed no hold-time no loopback 7705 SAR OS Interface Configuration Guide Page 47...
Page 48 32 scramble trace-string "ALU 7705 SAR" report-alarm plop pplm puneq no report-alarm pais prdi prei signal-label 0x13 cell-format uni min-vp-vpi 0 exit no shutdown exit exit ddm-events exit Page 48 7705 SAR OS Interface Configuration Guide...
Page 49 1 shutdown description "DS0GRP" encap-type ipcp mtu 512 timeslots 2-32 crc 16 idle-cycle-flag flags no scramble no keepalive exit exit exit line-impedance 120 exit 7705 SAR OS Interface Configuration Guide Page 49...
Page 50: Common Configuration Tasks
ALU-1>config>card# mda 2 ALU-1>config>card>mda# mda-type a4-oc3 ALU-1>config>card>mda# exit ALU-1>config>card# mda 3 ALU-1>config>card>mda# mda-type a16-chds1 ALU-1>config>card>mda# exit ALU-1>config>card# mda 4 ALU-1>config>card>mda# mda-type a16-chds1 ALU-1>config>card>mda# exit ALU-1>config>card# mda 5 ALU-1>config>card>mda# mda-type a8-eth ALU-1>config>card>mda# exit Page 50 7705 SAR OS Interface Configuration Guide...
Page 51: Configuring Adapter Card Network Parameters
Network policies can optionally be applied to adapter cards. Network queue policies define the ingress network queuing at the adapter card node level. Network queue policies are configured in the config>qos context. For more information, refer to the 7705 SAR OS Quality of Service Guide.
Page 52: Configuring Adapter Card Clock Mode
ALU-B>config>card>mda# Configuring Adapter Card Clock Mode Clocking mode is defined at the adapter card level. In Release 2.0 of the 7705 SAR, only the T1/E1 ASAP Adapter card supports configuration of clocking mode and the only supported clocking mode is adaptive.
Page 53: Configuring Adapter Card Fabric Profile
• Configuring ATM Interface Parameters → ATM Interface Commands • Configuring Multilink PPP Bundles • Configuring Multilink ATM Inverse Multiplexing (IMA) Groups → IMA Groups → Configuration Notes → IMA Test Procedure 7705 SAR OS Interface Configuration Guide Page 53...
Page 54: Configuring Ethernet Port Parameters
A network port is network facing and participates in the service provider transport or infrastructure network processes. Use the following basic CLI syntax to configure Ethernet network mode port parameters. CLI Syntax: port port-id ethernet mode {access | network} network queue-policy name Page 54 7705 SAR OS Interface Configuration Guide...
Page 55 The following CLI syntax shows an example of configuring an Ethernet port for access mode. Example: config# port 1/1/2 config>port# description "Ethernet access port" config>port# ethernet config>port>ethernet# mode access config>port>ethernet# encap-type dot1q config>port>ethernet# exit config>port# no shutdown 7705 SAR OS Interface Configuration Guide Page 55...
Page 56: Configuring Channelized Ports
In the following example, MDA 3 and MDA 4 show a channelized DS1 adapter card. *A:7705:Dut-C# show mda =============================================================================== MDA Summary =============================================================================== Slot Provisioned Equipped Admin Operational Mda-type Mda-type State State ------------------------------------------------------------------------------- a4-oc3 provisioned a4-oc3 provisioned a16-chds1 a16-chds1 a16-chds1 a16-chds1 a8-eth a8-eth a8-eth a8-eth =============================================================================== *A:7705:Dut-C# Page 56 7705 SAR OS Interface Configuration Guide...
Page 57 Note: Encapsulation type is configured at the DS1 or E1 level; however, a port can only support one encapsulation type. When the first channel group is configured for encap-type, all other channel groups on the port are automatically configured with that encap-type. 7705 SAR OS Interface Configuration Guide Page 57...
Page 58: Configuring Sonet/Sdh Port Parameters
{32} description description no description encap-type {atm} mtu mtu no mtu [no] report-alarm [pais] [plop] [prdi] [pplm] [prei] [puneq] [no] scramble [no] shutdown signal-label value no signal-label trace-string [trace-string] Page 58 7705 SAR OS Interface Configuration Guide...
Page 59 Use the config info command to display port configuration information. ALU-B>config>info ..#-------------------------------------------------- echo "Port Configuration" #-------------------------------------------------- port 1/1/3 sonet-sdh path encap-type atm no shutdown exit exit ---------------------------------------------- 7705 SAR OS Interface Configuration Guide Page 59...
Page 60: Configuring Atm Interface Parameters
ATM encapsulation, and for IMA multilink bundles. ATM interface parameters allow users to configure characteristics of an ATM interface. The 7705 SAR supports configuration of the following ATM interface characteristics: • cell-format — allows the user to select the ATM cell format to be used on a given interface: UNI or NNI (NNI is not supported on SONET/SDH interfaces) •...
Page 61: Configuring Multilink Ppp Bundles
7705 SAR OS Interface Configuration Guide Page 61...
Page 62: Configuring Multilink Atm Inverse Multiplexing (Ima) Groups
The primary link is the member that has the lowest ifindex. When a member is added or deleted, the primary member may be changed based on ifindicies of all member links. Page 62 7705 SAR OS Interface Configuration Guide...
Page 63 (35 ms delay), 1 to 27 ms maps to 1 frame sequence number difference (70 ms delay), 28 to 50 ms maps to 2 frame sequence number difference (105 ms delay). 7705 SAR OS Interface Configuration Guide Page 63...
Page 64 7705 SAR Rx end of the channel. When a channel is deleted on the 7705 SAR end first, a small data loss will take place on the 7705 SAR Rx side (depending on the time required for the far end to deactivate its Tx on the link being deleted).
Page 65 7. Deleting a member link that is the same as the specified test-link, to stay in compliance with key point 4, will result in the test-link value being reset to default. 8. IMA test procedure configurations are not saved when the admin save command is executed. 7705 SAR OS Interface Configuration Guide Page 65...
Page 66: Service Management Tasks
1/1/2 config>port# shutdown config>port# exit config# card 1 config>card# mda 1 config>card>mda# shutdown config>card>mda# exit config>card# no mda 1 config>card# mda 1 config>card# mda-type a8-eth config>card>mda# no shutdown Page 66 7705 SAR OS Interface Configuration Guide...
Page 67: Deleting A Card
Use the following CLI syntax to delete a port provisioned for a specific adapter card. CLI Syntax: config> port port-id shutdown The following CLI syntax shows an example of deleting a port. Example: config# port 1/1/1 config>port# shutdown config>port# no port 1/1/1 7705 SAR OS Interface Configuration Guide Page 67...
Page 68 Service Management Tasks Page 68 7705 SAR OS Interface Configuration Guide...
Page 69: Card, Adapter Card, And Port Command Reference
Port Configuration Commands → Ethernet Commands → SONET/SDH Commands → Multilink Bundle and IMA Group Commands → TDM Commands → DS1 Commands → E1 Commands • Show Commands • Monitor Commands • Clear Commands 7705 SAR OS Interface Configuration Guide Page 69...
Page 70: Port Configuration Commands
Port Configuration Commands config — port {port-id | bundle-id} — no port {port-id | bundle-id} — [no] ddm-events — description description-string — no description — ethernet — sonet-sdh — multilink-bundle — — [no] shutdown Page 70 7705 SAR OS Interface Configuration Guide...
Page 71: Ethernet Commands
— mode {access | network} — no mode — mtu-bytes — no — network — queue-policy name — [no] report-alarm [signal-fail] [remote] [local] [no-frame-lock] [high-ber] — speed {10 | 100 | 1000} 7705 SAR OS Interface Configuration Guide Page 71...
Page 72 [loc] [lais] [lrdi] [lb2er-sd] [lb2er-sf] [slof] [slos] [lrei] — section-trace {increment-z0 | byte value | string string} — speed {oc3} — no speed — threshold {ber-sd | ber-sf} rate threshold-rate — no threshold {ber-sd | ber-sf} Page 72 7705 SAR OS Interface Configuration Guide...
Page 73 — [no] member port-id — minimum-links minimum-links — no minimum-links — mrru mrru — no mrru — red-differential-delay red-diff-delay [down] — no red-differential-delay — [no] short-sequence — yellow-differential-delay yellow-diff-delay — no yellow-differential-delay 7705 SAR OS Interface Configuration Guide Page 73...
Page 74 TDM Commands config — [no] port {port-id} — — buildout short — [no] — [no] — length {133 | 266 | 399 | 533 | 655} — line-impedance {75 | 100 | 120} Page 74 7705 SAR OS Interface Configuration Guide...
Page 75 {line | internal | fdl-ansi | fdl-bellcore | payload-ansi} — no loopback (DS1) — [no] remote-loop-respond (DS1) — [no] report-alarm {ais | los | oof | rai | looped} — [no] signal-mode {cas} — [no] shutdown 7705 SAR OS Interface Configuration Guide Page 75...
Page 76 — hold-time [up hold-time-up] [down hold-time-down] — no hold-time — no loopback (E1) — [no] report-alarm {ais | los | oof | rai | looped} — [no] signal-mode {cas} — [no] shutdown Page 76 7705 SAR OS Interface Configuration Guide...
Page 77: Show Commands
— mda-id — mda-id statistics [source-mda | destination-mda | fabric-port | fabric-global | all] — port port-id statistics — port port-id atm pvc [vpi[/vci]] statistics — port port-id atm pvp [vpi] statistics 7705 SAR OS Interface Configuration Guide Page 77...
Page 78: Command Descriptions
Card, Adapter Card, and Port Command Reference Command Descriptions • Configuration Commands on page 79 • Show Commands on page 127 • Monitor Commands on page 213 • Clear Commands on page 219 Page 78 7705 SAR OS Interface Configuration Guide...
Page 79: Configuration Commands
Multilink Bundle and IMA Group Commands on page 106 • ATM Interface Commands on page 112 • TDM Commands on page 114 • DS1 and E1 Commands on page 116 • DS1 and E1 Channel Group Commands on page 121 7705 SAR OS Interface Configuration Guide Page 79...
Page 80: Generic Commands
The operational state of the entity is disabled as well as the operational state of any entities contained within. Many objects must be shut down before they can be deleted. The no form of this command administratively enables an entity. Page 80 7705 SAR OS Interface Configuration Guide...
Page 81 7705 SAR Interfaces no shutdown Default card — no shutdown mda — shutdown port — 7705 SAR OS Interface Configuration Guide Page 81...
Page 82: Card Commands
This mandatory command is the first step in activating the IOM software: designating it a slot position in the chassis. On the 7705 SAR, the slot number is always 1. The IOM software must be activated before the adapter cards and ports can be configured.
Page 83 7705 SAR Interfaces Parameters card-type — the type of card to be configured and installed in the slot Values iom-1g 7705 SAR OS Interface Configuration Guide Page 83...
Page 84: Adapter Card Commands
A maximum of six 16-port T1/E1 ASAP Adapter cards, 8-port Ethernet Adapter cards, or 4-port OC3/STM1 Clear Channel Adapter cards can be installed in a 7705 SAR chassis. Only one adapter card can be provisioned per MDA slot. To modify an MDA slot, shut down all port associations.
Page 85 SFP ports can be used to provide timing for the SSU. When Synchronous Ethernet is disabled, the optical SFP ports are timed from a local oscillator. Refer to the 7705 SAR OS Basic System Configuration Guide for more information about Synchronous Ethernet.
Page 86: Interface Qos Commands
This command configures the ingress fabric policy, in either a network or access context, for the specified adapter card. The no form of this command reverts the fabric-policy-id to the default value. Default Parameters fabric-policy-id — an existing fabric policy ID Page 86 7705 SAR OS Interface Configuration Guide...
Page 87 This command specifies the network ingress queue policy that defines queue parameters such as CBS, high-priority-only burst size, MBS, CIR, and PIR rates, as well as forwarding class-to-queue mappings. The network queue policy is defined in the config>qos>network-queue context. Refer to the 7705 SAR OS Quality of Service Guide for more information. Default default Parameters name —...
Page 88: General Port Commands
{port-id | bundle-id} Description This command enables or disables digital diagnostic monitoring (DDM) events for the port. DDM is supported on Ethernet SFP ports and OC3 SONET SFP ports. Default no ddm-events Page 88 7705 SAR OS Interface Configuration Guide...
Page 89: Ethernet Port Commands
One use for limited mode is for multispeed gigabit ports to force gigabit operation while keeping autonegotiation enabled for compliance with IEEE 801.3. The no form of this command disables autonegotiation on this port. Default autonegotiate 7705 SAR OS Interface Configuration Guide Page 89...
Page 90 EtherType are added to the frame. Together, the TPID and TCI make up the VLAN tag. The no form of this command reverts the dot1q-etype value to the default. For more information on VLANs and VLAN tagging, refer to the 7705 SAR OS Services Guide. Default 0x8100 Parameters 0x0600 to 0xffff —...
Page 91 — specifies the transmit interval Values 1 to 600 (in 100 ms) multiplier — specifies the multiplier for the transmit-interval to set the local link down timer Values 2 to 5 7705 SAR OS Interface Configuration Guide Page 91...
Page 92 — ingress frames carry 802.1Q tags where each tag signifies a different service null — ingress frames will not use any tags to delineate a service. As a result, only one service can be configured on a port with a null encapsulation type. Page 92 7705 SAR OS Interface Configuration Guide...
Page 93 — specifies the 48-bit MAC address in the form aa:bb:cc:dd:ee:ff or aa-bb-cc-dd-ee-ff where aa, bb, cc, dd, ee, and ff are hexadecimal numbers. Allowed values are any non-broadcast, non-multicast MAC, and non-IEEE reserved MAC addresses. 7705 SAR OS Interface Configuration Guide Page 93...
Page 94 The no form of this command restores the default values. Default The default MTU value depends on the port type, mode, and encapsulation as listed in the following table. Page 94 7705 SAR OS Interface Configuration Guide...
Page 95 10 — sets the link to 10 Mb/s speed 100 — sets the link to 100 Mb/s speed 1000 — sets the link to 1000 Mb/s speed (only supported on GigE SFPs) 7705 SAR OS Interface Configuration Guide Page 95...
Page 96: Sonet/Sdh Port Commands
Description This command specifies the SONET/SDH framing to be either SONET or SDH. Default sonet Parameters sonet — configures the port for SONET framing sdh — configures the port for SDH framing Page 96 7705 SAR OS Interface Configuration Guide...
Page 97 Notes: Loopback mode changes on a SONET/SDH port can affect traffic on the remaining ports. Default no loopback Parameters line — sets the port into line loopback state internal — sets the port into internal loopback state 7705 SAR OS Interface Configuration Guide Page 97...
Page 98 — reports a line error condition raised by the remote end as a result of b1 errors received from this node. When configured, line error traps are raised but not cleared. Default line error traps are not issued Page 98 7705 SAR OS Interface Configuration Guide...
Page 99 For Release 2.0, this option is available, but may not be configured, since only one speed type is supported. The no form of this command reverts back to the default value. Default Parameters oc3 — sets the speed of the port to OC3 7705 SAR OS Interface Configuration Guide Page 99...
Page 100 — specifies the BER for signal failure rate threshold-rate — specifies the BER negative exponent (n in 10 ), expressed as a decimal integer Values 3 to 9 (10 to 10 Page 100 7705 SAR OS Interface Configuration Guide...
Page 101: Sonet/Sdh Path Commands
This command specifies a cyclic redundancy check on the SONET/SDH path. Default (the default is 32 when the encap-type is set to ATM; this default cannot be changed) Parameters 32 — use 32 bit checksum for the associated port/channel 7705 SAR OS Interface Configuration Guide Page 101...
Page 102 Description This command configures the maximum payload MTU size for a SONET/SDH port. When encap-type is atm, the path MTU value cannot be changed. Refer to the 7705 SAR OS Services Guide for information on configuring the path MTU. The no form of this command restores the default values.
Page 103 1s or all 0s and meets the needs of physical layer protocols that rely on sufficient transitions between 1s and 0s to maintain clocking. 7705 SAR OS Interface Configuration Guide Page 103...
Page 104 The no form of this command resets the string to its default. Default encap-type The default J1 value is ALU 7705 SAR. The value does not change when the changes. The J1 string contains all zeros for a non-provisioned path.
Page 105: Network Port Commands
This command specifies the network queue policy that defines queue parameters such as CBS, high- priority-only burst size, MBS, CIR, and PIR rates, as well as forwarding class-to- queue mappings. The network queue policy is defined in the config>qos>network-queue context. Refer to the 7705 SAR OS Quality of Service Guide for more information.
Page 106: Multilink Bundle And Ima Group Commands
Parameters fragment threshold — specifies the maximum fragment length in bytes (for MLPPP bundles) or the Tx frame size (for IMA bundles) Values 128, 256, or 512 bytes (MLPPP) 128 cells (IMA) Page 106 7705 SAR OS Interface Configuration Guide...
Page 107 The no form of this command removes the minimum link limit. Default Parameters minimum-link — the minimum link limit, expressed as an integer Values 1 to 8 7705 SAR OS Interface Configuration Guide Page 107...
Page 108 0 to 75 ms for IMA bundles down — transition the circuit that exceeded the differential delay to a down state (for example, remove it from the multilink bundle from an operational perspective) Page 108 7705 SAR OS Interface Configuration Guide...
Page 109 ATM cells to be transported as a number of lower-speed circuits. They are then reassembled as the original high-speed ATM channel. This command is only valid for IMA bundles. 7705 SAR OS Interface Configuration Guide Page 109...
Page 110 The no form of this command deletes the link from the test-pattern procedure. The test-pattern procedure must be shut down first. Default no test-link Parameters port-id — the port ID to be used to verify link connectivity within an IMA group Page 110 7705 SAR OS Interface Configuration Guide...
Page 111 This command configures the IMA version for the multilink bundle group. If there is a version mismatch between this IMA group and the far-end IMA group, the IMA group will go operationally down. In Release 2.0 of the 7705 SAR, only IMA version 1.1 is supported. Default Parameters IMA-version —...
Page 112: Atm Interface Commands
Syntax min-vp-vpi value Context config>port>multilink-bundle>ima>atm config>port>tdm>ds1>channel-group>atm config>port>tdm>e1>channel-group>atm config>port>sonet-sdh>path>atm Description This command sets the minimum allowable virtual path identifier (VPI) value that can be used on the ATM interface for a VPC. Default Page 112 7705 SAR OS Interface Configuration Guide...
Page 113 — the minimum allowable VPI value that can be used on the ATM interface for a VPC Values 0 to 4095 (NNI) (not supported on SDH/SONET ports) 0 to 255 (UNI) 7705 SAR OS Interface Configuration Guide Page 113...
Page 114: Tdm Commands
Once a channel has been configured for DS1, all ports on the T1/E1 ASAP Adapter card can only be configured for DS1. There cannot be a mix of DS1 and E1 channels on the same card. The no form of this command deletes the specified DS1 channel. Default None Page 114 7705 SAR OS Interface Configuration Guide...
Page 115 Before changing the line impedance of a port, the port must be shut down. Default 100 for DS1 120 for E1 Parameters Values 100 for DS1 120 or 75 for E1 7705 SAR OS Interface Configuration Guide Page 115...
Page 116: Ds1 And E1 Commands
The clock source setting also determines the node sync reference if the port is configured as one of the node sync references (config>system>sync-if-timing>{ref1 | ref2}> source-port command). Refer to the 7705 SAR OS Basic System Configuration Guide for more information. Note: If BITS is used as a timing reference on a dedicated T1/E1 port, the port must be configured as loop-timed.
Page 117 0 to 100 (in 100 ms) down hold-time-down — configures the hold-timer for link-down event dampening. A value of zero (0) indicates that a down transition is reported immediately. Values 0 to 100 (in 100 ms) 7705 SAR OS Interface Configuration Guide Page 117...
Page 118 — requests an FDL line loopback in accordance with the ANSI T1.403 specification fdl-bellcore — requests an FDL line loopback in accordance with the Bellcore TR-TSY-000312 specification payload-ansi — requests a payload loopback using ANSI signaling Page 118 7705 SAR OS Interface Configuration Guide...
Page 119 The no form of this command disables logging of the specified alarms. Parameters ais — reports alarm indication signal errors. When configured, ais alarms are not raised and cleared. Default ais alarms are issued 7705 SAR OS Interface Configuration Guide Page 119...
Page 120 Configure signal mode before configuring the Cpipe service to support T1 or E1 with CAS. Refer to the 7705 SAR OS Services Guide for information on configuring Cpipe service. This command is valid only when T1 framing is set to esf or sf, or E1 framing is set to g704 or no- crc-g704.
Page 121: Ds1 And E1 Channel Group Commands
Context config>port>tdm>ds1>channel-group config>port>tdm>e1>channel-group Description This command configures the encapsulation method used for the port on the T1/E1 ASAP Adapter card. This parameter can be set on both access and network ports. 7705 SAR OS Interface Configuration Guide Page 121...
Page 122 This command defines the data pattern to be transmitted (8-bit value) when the circuit emulation service is not operational or temporarily experiences underrun conditions. This command is only valid for CESoPSN services. Note: See the 7705 SAR OS Services Guide for information on CESoPSN services. Default all-ones...
Page 123 This command defines the signaling pattern to be transmitted (8-bit value) when the circuit emulation service is not operational or temporarily experiences underrun conditions. This command is only valid for CES with CAS. Note: See the 7705 SAR OS Services Guide for information on CESoPSN services. Default all-ones Parameters all-ones —...
Page 124 Access 1572 TDM (PPP/MLPPP) Network ppp-auto 1572 TDM (PPP/MLPPP) Access ipcp 1572 Parameters mtu-bytes — sets the maximum allowable size of the MTU, expressed as an integer Values 512 to 1572 bytes Page 124 7705 SAR OS Interface Configuration Guide...
Page 125 Values 1 to 255 scramble Syntax scramble no scramble Context config>port>tdm>ds1>channel-group config>port>tdm>e1>channel-group Description This command enables payload scrambling on channel groups. The command is applicable only if the encapsulation type is atm. 7705 SAR OS Interface Configuration Guide Page 125...
Page 126 Each member of the list can either be a single timeslot or a range of timeslots. Values 1 to 24 for DS1 interfaces 2 to 32 for E1 interfaces Page 126 7705 SAR OS Interface Configuration Guide...
Page 127: Show Commands
Show ATM IMA Group Commands on page 207 Note: Outputs for the show commands are examples only. Actual screen output may differ depending on card and port type, port mode (network or access) and encapsulation type configured. 7705 SAR OS Interface Configuration Guide Page 127...
Page 128: Table 5: Show Card State Output Fields
Card Output — The following tables list card output fields: • Table 4: "Show Card Output Fields" • Table 5: "Show Card State Output Fields" • Table 6: "Show Card Detailed Output Fields" • Table 7: "Show CSM Card Output Fields" Page 128 7705 SAR OS Interface Configuration Guide...
Page 129 Provisioned — there is no card in the slot but it has been preconfigured Failed — the installed card has operationally failed The number of ports available on the provisioned card Num Ports 7705 SAR OS Interface Configuration Guide Page 129...
Page 130 (for redundancy) Sample Output The following examples display the card state for a 7705 SAR-8 and a 7705 SAR-F. Note: The show card command for the 7705 SAR-F will always appear as shown because it has a fixed physical configuration.
Page 131 Software boot version The software version number Software version The date and time the most recent boot occurred Time of last boot The alarm conditions for the adapter card Current alarm state 7705 SAR OS Interface Configuration Guide Page 131...
Page 132 : simulated Software version : TiMOS-B-0.0.I536 both/i386 ALCATEL-LUCENT * Time of last boot : 2008/10/30 15:01:12 Current alarm state : alarm cleared Base MAC address : a4:58:01:00:00:00 Memory capacity : 2,039 MB =============================================================================== Page 132 7705 SAR OS Interface Configuration Guide...
Page 133 The amount of free space on the compact flash, in bytes Free space The CSM part number Part number The code used to identify the router CLEI code The CSM serial number Serial number 7705 SAR OS Interface Configuration Guide Page 133...
Page 134 The alarm conditions for the specific card Current alarm state The base MAC address of the hardware component Base MAC address The total amount of memory on the CSM, in bytes Memory capacity Page 134 7705 SAR OS Interface Configuration Guide...
Page 135 Software version : TiMOS-B-0.0.I536 both/i386 ALCATEL-LUCENT * Time of last boot : 2008/10/30 15:01:08 Current alarm state : alarm cleared Base MAC address : a4:58:02:00:00:00 Memory capacity : 2,039 MB ========================================================================== *A:ALU-1># 7705 SAR OS Interface Configuration Guide Page 135...
Page 136: Table 8: Show Mda Output Fields
MDA Output — The following tables list adapter card output fields: • Table 8: "Show MDA Output Fields" • Table 9: "Show Detailed MDA Output Fields" • Table 10: "Show MDA Fabric Statistics" • Table 11: "Show MDA With Fabric Statistics" Page 136 7705 SAR OS Interface Configuration Guide...
Page 137 Operational Mda-type Mda-type State State ------------------------------------------------------------------------------- a4-oc3 provisioned =============================================================================== *A:ALU-1># *A:ALU-1># show mda 1/4 =============================================================================== MDA 1/4 =============================================================================== Slot Provisioned Equipped Admin Operational Mda-type Mda-type State State ------------------------------------------------------------------------------- a16-chds1 a16-chds1 =============================================================================== *A:ALU-1># 7705 SAR OS Interface Configuration Guide Page 137...
Page 138 Indicates the protocols that can be run on the adapter card Capabilities The minimum channel size on the adapter card Min channel size The maximum channel size on the adapter card Max channel size Page 138 7705 SAR OS Interface Configuration Guide...
Page 139 The date and time the most recent boot occurred Time of last boot The alarm conditions for the specific adapter card Current alarm state The base MAC address of the hardware component Base MAC address 7705 SAR OS Interface Configuration Guide Page 139...
Page 140 Manufacturing string Manufacturing deviations Administrative state : up Operational state : provisioned Software version : N/A Time of last boot : N/A Current alarm state : alarm cleared Base MAC address =============================================================================== *A:ALU-1># Page 140 7705 SAR OS Interface Configuration Guide...
Page 141 Failure Reason : Mda initialisation complete failed mda 4 Software version : N/A Time of last boot : N/A Current alarm state : alarm active Base MAC address : a4:58:01:04:00:01 =============================================================================== *A:ALU-1># 7705 SAR OS Interface Configuration Guide Page 141...
Page 142: Table 10: Show Mda Fabric Statistics
In Profile forwarded — the number of in-profile packets/octets forwarded from the adapter card specified in the show mda command towards the fabric, then to the output adapter card (Source MDA in the output field) Page 142 7705 SAR OS Interface Configuration Guide...
Page 143 Dropped Packets/Octets — the number of dropped packets/octets switched over the fabric Note: The following octet counts are not supported: Fabric Port Dropped, Fabric Global Forwarded, and Fabric Global Dropped. N/A is displayed in these fields. 7705 SAR OS Interface Configuration Guide Page 143...
Page 144 Card, Adapter Card, and Port Command Reference Sample Output The following example shows the display if the keyword is used. source-mda *A:7705:Dut-C# show mda 1/5 statistics source-mda =============================================================================== Statistic of Source MDA 1/5 =============================================================================== ------------------------------------------------------------------------------- Destination MDA Packets Octets In Profile...
Page 145 7705 SAR Interfaces The following example shows the display if the keyword is used. dest-mda *A:7705:Dut-C# show mda 1/5 statistics dest-mda =============================================================================== Statistic of Destination MDA 1/5 =============================================================================== ------------------------------------------------------------------------------- Source MDA Packets Octets In Profile forwarded : In Profile dropped...
Page 146: Table 11: Show Mda With Fabric Statistics
Fabric Port Stats collect fabric port statistics enabled Sample Output The following example shows the display if the keyword is used. with-fabric-stats *A:7705:Dut-C# show mda with-fabric-stats Fabric Port Stats enabled : MDA 1/1 *A:7705:Dut-C# Page 146 7705 SAR OS Interface Configuration Guide...
Page 147 — displays Ethernet port information efm-oam — displays EFM OAM information detail — displays detailed information about the Ethernet port ppp — displays PPP protocol information for the port detail — provides detailed information 7705 SAR OS Interface Configuration Guide Page 147...
Page 148: Table 12: Show General Port Output Fields
Link Down — the port is physically present but does not have a link The configured MTU Cfg MTU The negotiated size of the largest packet that can be sent on the port or Oper MTU channel specified in octets Page 148 7705 SAR OS Interface Configuration Guide...
Page 149 - accs ipcp tdm 1/3/2 Down Ghost 1/3/2.1 Down Ghost 1 accs ipcp tdm 1/3/3 Down Ghost 1/3/4 Down Ghost 1/3/5 Down Ghost 1/3/6 Down Ghost 1/3/6.6 Down Ghost 1572 1572 - accs cem *A:ALU-1># 7705 SAR OS Interface Configuration Guide Page 149...
Page 150: Table 13: Show Port Count Output Fields
*A:ALU-1># show port 1/5 count detail =============================================================================== Port Statistics on Slot 1 =============================================================================== Port Ingress Ingress Egress Egress Packets Octets Packets Octets ------------------------------------------------------------------------------- 1/5/1 1/5/2 1/5/3 1/5/4 1/5/5 1/5/6 1/5/7 1/5/8 =============================================================================== *A:ALU-1># Page 150 7705 SAR OS Interface Configuration Guide...
Page 151: Table 14: Show Specific Port Output Fields (Sonet/Sdh Port)
The time since the last clear Last Cleared Time Enabled — digital diagnostic monitoring events is enabled for the DDM Events port Disabled — digital diagnostic monitoring events is disabled for the port 7705 SAR OS Interface Configuration Guide Page 151...
Page 152 For any interface that does not support protocol multiplexing, this counter will always be 0. Page 152 7705 SAR OS Interface Configuration Guide...
Page 153 BER SD Threshold BER SF Threshold Hold time up : 500 milliseconds Hold time down : 0 milliseconds =============================================================================== Port Statistics =============================================================================== Input Output ------------------------------------------------------------------------------- Packets Discards Unknown Proto Discards =============================================================================== *A:ALU-1># 7705 SAR OS Interface Configuration Guide Page 153...
Page 154: Table 15: Show Specific Port Output Fields (Ethernet Port)
False — the duplex and speed values are used for the link The maximum amount of egress bandwidth (in kilobits per second) that Egress Rate this Ethernet interface can generate Page 154 7705 SAR OS Interface Configuration Guide...
Page 155 The maximum amount of ingress bandwidth (in kilobits per second) Ingress Rate that this Ethernet interface can generate Traffic Statistics The total number of octets received and transmitted on the port Octets Input/Output 7705 SAR OS Interface Configuration Guide Page 155...
Page 156 The number of inbound packets chosen to be discarded to possibly free Discards up buffer space Input/Output Page 156 7705 SAR OS Interface Configuration Guide...
Page 157 The number of frames that are involved in a single collision, and are Sngl Collisions subsequently transmitted successfully The number of frames that are involved in more than one collision and Mult Collisions are subsequently transmitted successfully 7705 SAR OS Interface Configuration Guide Page 157...
Page 158 : unknown Egress Rate : Default Ingress Rate : n/a Configured Address : a4:58:01:05:00:01 Hardware Address : a4:58:01:05:00:01 Cfg Alarm Alarm Status =============================================================================== Traffic Statistics =============================================================================== Input Output ------------------------------------------------------------------------------- Octets Packets Errors =============================================================================== Page 158 7705 SAR OS Interface Configuration Guide...
Page 159 =============================================================================== Alignment Errors : Sngl Collisions FCS Errors Mult Collisions SQE Test Errors Late Collisions Excess Collisns Too long Frames Int MAC Tx Errs Symbol Errors Int MAC Rx Errs =============================================================================== *A:ALU-1># 7705 SAR OS Interface Configuration Guide Page 159...
Page 160: Table 16: Show Port Detail Output Fields (Sonet/Sdh Port)
The time since the last clear Last Cleared Time Enabled — digital diagnostic monitoring events is enabled for the DDM Events port Disabled — digital diagnostic monitoring events is disabled for the port Page 160 7705 SAR OS Interface Configuration Guide...
Page 161 The number of Loss of Signal errors The number of Loss of Clock errors The number of Loss of Frame errors The number of Out of Frame errors The number of B1 errors B1 Error 7705 SAR OS Interface Configuration Guide Page 161...
Page 162 For any interface that does not support protocol multiplexing, this counter will always be 0. Page 162 7705 SAR OS Interface Configuration Guide...
Page 163 ========================= ES-S SES-S SEFS-S CV-S B1 Error : ========================= =========================================== Sonet Line =========================================== Far End ------------------------------------------- ES-L SES-L UAS-L CV-L AIS-L RDI-L B2 Error : S1 Error : M1 Error : =========================================== 7705 SAR OS Interface Configuration Guide Page 163...
Page 164: Table 17: Show Port Detail Output Fields (Ethernet - Access Mode)
Hold time up timer value that reduces the number of link transitions reported to upper layer protocols. The last time that the operational status of the port changed state Last State Change Page 164 7705 SAR OS Interface Configuration Guide...
Page 165 The total number of packets that higher-level protocols requested be transmitted, and which were not addressed to a multicast or broadcast address at this sub-layer, including those that were discarded or not sent. 7705 SAR OS Interface Configuration Guide Page 165...
Page 166 FCS octets) that had either a bad Frame Check Sequence (FCS) with an integral number of octets (FCS Error) or a bad FCS with a non-integral number of octets (Alignment Error) Page 166 7705 SAR OS Interface Configuration Guide...
Page 167 Discards input/output — the number of inbound packets chosen to be discarded to possibly free up buffer space 7705 SAR OS Interface Configuration Guide Page 167...
Page 168 VLAN ID Statistics Note: The 7705 SAR counts both Ethernet packets with errors and valid Ethernet packets under Ethernet port statistics. For each received errored packet, both aggregate Ethernet statistics and the errored Ethernet statistics are incremented.
Page 169 Packets of 1519 or more Octets : =============================================================================== =============================================================================== Port Statistics =============================================================================== Input Output ------------------------------------------------------------------------------- Unicast Packets Multicast Packets Broadcast Packets Discards Unknown Proto Discards =============================================================================== =============================================================================== Port Discard Statistics =============================================================================== Input Output Unk VLAN Id ===============================================================================: 7705 SAR OS Interface Configuration Guide Page 169...
Page 170: Table 18: Show Port Detail Output Fields (Tdm Ds1 Interface)
— the link uses the internal clock when transmitting data The channel interface index number Channel IfIndex Specifies whether incoming remote loopback is enabled In Remote Loop The egress scheduling policy Egr. Sched. Pol Traffic statistics Traffic Statistics Page 170 7705 SAR OS Interface Configuration Guide...
Page 171 FE-LOF — the number of far-end loss of frame errors AIS — the number of alarm indication signal errors LOS — the number of loss of signal errors LOF — the number of loss of frame errors 7705 SAR OS Interface Configuration Guide Page 171...
Page 172 For any interface that does not support protocol multiplexing, this counter will always be 0. Unknown proto discards do not show up in the packet counts. Page 172 7705 SAR OS Interface Configuration Guide...
Page 173 Hold time up : 0 milliseconds Hold time down : 0 milliseconds =============================================================================== Traffic Statistics =============================================================================== Input Output ------------------------------------------------------------------------------- Octets Packets Errors =========================== DS1/E1 Line =========================== --------------------------- SEFS ========================= ========================= Transmit: FE-LOF Receive: FE-LOF 7705 SAR OS Interface Configuration Guide Page 173...
Page 174: Table 19: Show Port Channel Group Output Fields
The number of timeslots that are part of this channel group Timeslots The speed of the interface Speed The checksum used for the channel group (16 or 32) Up — the port is administratively up Admin Status Page 174 7705 SAR OS Interface Configuration Guide...
Page 175 (only valid for CESoPSN with CAS) Indicates the user-defined pattern transmitted if the payload fill Signal Pattern type is pattern Octets input/output — the total number of octets Traffic stats received and transmitted on the port 7705 SAR OS Interface Configuration Guide Page 175...
Page 176 0. For ATM, this field displays cells discarded on an invalid vpi/vci. Unknown proto discards do not show up in the packet counts. Page 176 7705 SAR OS Interface Configuration Guide...
Page 177: Table 20: Show Port Acr Detail Output Fields
Label Description Adaptive Clock Recovery (ACR) Configuration The SAP being used by the port for recovering the clock Clock Master PW The current state of the ACR adaptive algorithm Clock Sync State 7705 SAR OS Interface Configuration Guide Page 177...
Page 178 DCO mean for the previous 15 sets of 60-second intervals phase error stddev — the ACR input phase error standard deviation and output DCO standard deviation for the previous 15 sets of 60-second intervals Page 178 7705 SAR OS Interface Configuration Guide...
Page 179 Use RTP Header : No Differential : No Timestamp Freq : 0 CAS Framing : No CAS Effective PDVT : +/-2.500 ms Cfg Alarm : stray malformed pktloss overrun underrun Alarm Status 7705 SAR OS Interface Configuration Guide Page 179...
Page 180 10/08/2008 11:25:11 10/08/2008 11:24:11 10/08/2008 11:23:11 10/08/2008 11:22:11 10/08/2008 11:21:11 10/08/2008 11:20:11 10/08/2008 11:19:11 10/08/2008 11:18:11 10/08/2008 11:17:11 10/08/2008 11:16:11 10/08/2008 11:15:11 10/08/2008 11:14:11 10/08/2008 11:13:11 ----------------------------------------------------------------------- Current 24 Hour (137 min) ======================================================================= Page 180 7705 SAR OS Interface Configuration Guide...
Page 181: Table 21: Show Port Descriptions Output Fields
The port identifier Port Id A text description of the port Description Sample Output *A:ALU-1># show port 1/4/1 description =============================================================================== Port Descriptions on Slot 1 =============================================================================== Port Id Description ------------------------------------------------------------------------------- 1/4/1 DS1/E1 =============================================================================== *A:ALU-1># 7705 SAR OS Interface Configuration Guide Page 181...
Page 182: Table 23: Show Port Ppp Output Fields
If the two magic numbers do not match, the link is not looped back. Page 182 7705 SAR OS Interface Configuration Guide...
Page 183 10/12/2007 20:15:54 ipcp initial 10/12/2007 20:15:54 10/12/2007 20:15:54 mplscp initial 10/12/2007 20:15:54 10/12/2007 20:15:54 initial 10/12/2007 20:15:54 10/12/2007 20:15:54 osicp initial 10/12/2007 20:15:54 10/12/2007 20:15:54 ipv6cp initial 10/12/2007 20:15:54 10/12/2007 20:15:54 =============================================================================== 7705 SAR OS Interface Configuration Guide Page 183...
Page 184 Line Monitor Method: keepalive Keepalive statistics Request interval : 10 Threshold exceeded : 0 Drop Count In packets Time to link drop : 00h00m30s Out packets Last cleared time : 10/12/2007 20:15:54 =============================================================================== *A:ALU-1># Page 184 7705 SAR OS Interface Configuration Guide...
Page 185: Table 24: Show Port Atm Output Fields
Table 24: "Show Port ATM Output Fields" • Table 25: "Show Port ATM Connections Output Fields" • Table 26: "Show Port ATM PVC Output Fields" • Table 27: "Show Port ATM PVC VPI/VCI Output Fields" 7705 SAR OS Interface Configuration Guide Page 185...
Page 186: Table 28: Show Port Atm Pvc Vpi/Vci Detail Output Fields
The total non-real-time variable bit rate (nrt-VBR) bandwidth Ingress NRT-VBR consumed on this interface in the ingress direction The total unspecified bit rate (UBR) bandwidth consumed on this Ingress UBR interface in the ingress direction Page 186 7705 SAR OS Interface Configuration Guide...
Page 187 HEC Errors (Dropped) HEC Errors (Fixed) : 0 =============================================================================== ATM Bandwidth Info =============================================================================== kbps kbps ------------------------------------------------------------------------------- Ingress CBR Egress CBR Ingress RT-VBR Egress RT-VBR Ingress NRT-VBR Egress NRT-VBR Ingress UBR Egress UBR 7705 SAR OS Interface Configuration Guide Page 187...
Page 188 A:ALU-1># show port 1/1/1.1 atm connections ================================================================ ATM Connections, Port 1/1/1.1 ================================================================ Owner Type Ing.TD Egr.TD ---------------------------------------------------------------- 0/100 0/101 0/102 0/103 0/104 0/105 0/106 0/107 0/108 0/109 0/110 0/111 0/112 0/113 0/114 ================================================================ Page 188 7705 SAR OS Interface Configuration Guide...
Page 189 OAM cells to alert the far end that it is down The status of the ATM interface Sample Output *A:ALU-1># show port 1/1/1.1 atm pvc ================================================================ ATM PVCs, Port 1/1/1.1 ================================================================ VPI/VCI Owner Type Ing.TD Egr.TD ---------------------------------------------------------------- 0/32 ETE-AIS ================================================================ *A:ALU-1># 7705 SAR OS Interface Configuration Guide Page 189...
Page 190 : SAP AAL Type : n/a Endpoint Type : PVC Cast Type : P2P Ing. Td Idx Egr. Td Idx Last Changed : 11/08/2007 17:02:36 ILMI Vpi/Vci Range : n/a ============================================================================== *A:ALU-1># Page 190 7705 SAR OS Interface Configuration Guide...
Page 191: Table 28: Show Port Atm Pvc Vpi/Vci Detail Output Fields
The number of CLP=0 cells CLP=0 Cells The number of dropped CLP=0 cells Dropped CLP=0 Cells The number of dropped CLP=0+1 cells Dropped Cells (CLP=0+1) The number of tagged cells Tagged Cells 7705 SAR OS Interface Configuration Guide Page 191...
Page 192 Input Output ------------------------------------------------------------------------------- Octets 1643 1643 Cells CLP=0 Cells Dropped CLP=0 Cells Dropped Cells (CLP=0+1) Tagged Cells =============================================================================== =============================================================================== ATM OAM Statistics =============================================================================== Input Output ------------------------------------------------------------------------------- Loopback OAM Cells (generated) =============================================================================== *A:ALU-1># Page 192 7705 SAR OS Interface Configuration Guide...
Page 193 Up — the interface is operationally up Down — the interface is operationally down Sample Output *A:ALU-1># show port 1/1/1.1 atm pvp ================================================================ ATM PVPs, Port 1/1/1.1 ================================================================ Owner Type Ing.TD Egr.TD ---------------------------------------------------------------- ================================================================ *A:ALU># 7705 SAR OS Interface Configuration Guide Page 193...
Page 194 The number of loopback requests and responses transmitted and Loopback received on this connection for both end-to-end and segment The number of OAM cells generated at the endpoint and sent towards OAM Cells the network (generated) Page 194 7705 SAR OS Interface Configuration Guide...
Page 195 Input Output ------------------------------------------------------------------------------- Octets 1007 1007 Cells CLP=0 Cells Dropped CLP=0 Cells Dropped Cells (CLP=0+1) Tagged Cells =============================================================================== =============================================================================== ATM OAM Statistics =============================================================================== Input Output ------------------------------------------------------------------------------- Loopback OAM Cells (generated) =============================================================================== *A:ALU-1># 7705 SAR OS Interface Configuration Guide Page 195...
Page 196 Table 32: "Show Multilink Bundle IMA Group Output Fields" • Table 33: "Show Multilink Bundle IMA Group Detailed Output Fields" • Table 34: "Show Multilink Bundle MLPPP Output Fields" • Table 35: "Show Multilink Bundle MLPPP Detailed Fields" Page 196 7705 SAR OS Interface Configuration Guide...
Page 197: Table 31: Show Multilink Bundle Output Fields
The total number active of member links configured for this bundle Total Links The total number of active links for the bundle Active Links 7705 SAR OS Interface Configuration Guide Page 197...
Page 198: Table 32: Show Multilink Bundle Ima Group Output Fields
The minimum number of links that must be active for a bundle to be Min Links active. If the number of links drop below the given minimum, then the multilink bundle will transition to an operation down state. Page 198 7705 SAR OS Interface Configuration Guide...
Page 199 Bundles : 1 =============================================================================== *A:ALU-1> Note: The ima-grp command shows all bundles in the IMA group. The bundle-ima command shows information on the specified bundle. The fields for both commands are the same. 7705 SAR OS Interface Configuration Guide Page 199...
Page 200: Table 33: Show Multilink Bundle Ima Group Detailed Output Fields
The bandwidth configured for this IMA group bundle in kb/s Bandwidth The traffic and port statistics information displayed for bundles when Traffic and Port the detail option is selected is the same as information displayed for statistics physical ports Page 200 7705 SAR OS Interface Configuration Guide...
Page 201 Red Diff Delay Act : down MRRU : N/A Short Sequence : N/A Oper MRRU : N/A Oper MTU : 1524 Fragment Threshold : 128 bytes Up Time : N/A Bandwidth : 0 KBit 7705 SAR OS Interface Configuration Guide Page 201...
Page 202: Table 34: Show Multilink Bundle Mlppp Output Fields
— the port is either in its initial creation state or is just about to be deleted ghost — no member links are configured as part of this bundle down — all member links are in “none”, “ghost”, or “down” state Page 202 7705 SAR OS Interface Configuration Guide...
Page 203 *A:ALU-1># *A:ALU-1># show multilink-bundle bundle-ppp-1/4.8 =============================================================================== Bundle Summary =============================================================================== Bundle Type Admin Oper Port Total/ State State State Links Active Links ------------------------------------------------------------------------------- bundle-ppp-1/4.8 mlppp Down Ghost ------------------------------------------------------------------------------- Bundles : 1 =============================================================================== *A:ALU-1># 7705 SAR OS Interface Configuration Guide Page 203...
Page 204: Table 35: Show Multilink Bundle Mlppp Detailed Fields
Active Links The yellow warning threshold for the differential delay for members Yellow Diff within a multilink bundle Delay The configured maximum frame size that can be reconstructed from MRRU multilink fragments Page 204 7705 SAR OS Interface Configuration Guide...
Page 205 Net. Egr. Queue Pol: =============================================================================== Traffic Statistics =============================================================================== Input Output ------------------------------------------------------------------------------- Octets Packets Errors =============================================================================== Port Statistics =============================================================================== Input Output ------------------------------------------------------------------------------- Unicast Packets Multicast Packets Broadcast Packets Discards Unknown Proto Discards =============================================================================== 7705 SAR OS Interface Configuration Guide Page 205...
Page 206 =============================================================================== *A:ALU-1># Note: The mlppp detail command shows all bundles in the MLPPP group. The bundle-ppp detail command shows information on the specified bundle. The fields for both commands are the same. Page 206 7705 SAR OS Interface Configuration Guide...
Page 207 Table 36: "Show Multilink-bundle IMA ATM Output Fields" • Table 37: "Show Multilink-bundle IMA ATM Connections Output Fields" • Table 38: "Show Multilink-bundle IMA ATM PVC Output Fields" • Table 39: "Show Multilink-bundle IMA ATM PVP Output Fields" 7705 SAR OS Interface Configuration Guide Page 207...
Page 208: Table 36: Show Multilink-Bundle Ima Atm Output Fields
============================================================================= ATM Info for bundle-ima-1/6.3 ============================================================================= Cell Mode : UNI Mapping : n/a Configured VCs Configured VPs Configured VTs Configured IFCs Configured minimum VPI: 0 Last Unknown VPI/VCI : none =============================================================================== *A:ALU-1># Page 208 7705 SAR OS Interface Configuration Guide...
Page 209: Table 37: Show Multilink-Bundle Ima Atm Connections Output Fields
Up — the bundle is operationally up Down — the bundle is operationally down Sample Output *A:ALU-1># show multilink-bundle bundle-ima-1/6.3 ima atm connections ================================================================ ATM Connections, Port bundle-ima-1/6.3 ================================================================ Owner Type Ing.TD Egr.TD ---------------------------------------------------------------- 1/100 ================================================================ *A:ALU-1># 7705 SAR OS Interface Configuration Guide Page 209...
Page 210: Table 38: Show Multilink-Bundle Ima Atm Pvc Output Fields
Up — the bundle is operationally up Down — the bundle is operationally down Sample Output *A:ALU-1># show multilink-bundle bundle-ima-1/6.3 ima atm pvc ================================================================ ATM PVCs, Port bundle-ima-1/6.3 ================================================================ VPI/VCI Owner Type Ing.TD Egr.TD ---------------------------------------------------------------- 1/100 ================================================================ *A:ALU-1># Page 210 7705 SAR OS Interface Configuration Guide...
Page 211 AAL-5 Packet Statistics =============================================================================== Input Output ------------------------------------------------------------------------------- Packets Dropped Packets CRC-32 Errors Reassembly Timeouts Over Sized SDUs =============================================================================== =============================================================================== ATM OAM Statistics =============================================================================== Input Output ------------------------------------------------------------------------------- Loopback OAM Cells (generated) =============================================================================== *A:ALU-1># 7705 SAR OS Interface Configuration Guide Page 211...
Page 212: Table 39: Show Multilink-Bundle Ima Atm Pvp Output Fields
Up — the bundle is operationally up Down — the bundle is operationally down Sample Output *A:ALU-1># show multilink-bundle bundle-ima-1/6.3 ima atm pvp ================================================================ ATM PVPs, Port bundle-ima-1/6.3 ================================================================ Owner Type Ing.TD Egr.TD ---------------------------------------------------------------- ================================================================ *A:ALU-1># Page 212 7705 SAR OS Interface Configuration Guide...
Page 213: Monitor Commands
7705 SAR Interfaces Monitor Commands • Port Monitor Commands • Fabric Profile Statistics Monitor Commands 7705 SAR OS Interface Configuration Guide Page 213...
Page 214: Port Monitor Commands
— when the absolute keyword is specified, the raw statistics are displayed without processing. No calculations are performed on the delta or rate statistics. rate — when the rate keyword is specified, the rate-per-second for each statistic is displayed instead of the delta Page 214 7705 SAR OS Interface Configuration Guide...
Page 215 At time t = 6 sec (Mode: Absolute) ------------------------------------------------------------------------------- Octets 330164560 330164560 Packets 6229520 6229520 Errors ------------------------------------------------------------------------------- At time t = 9 sec (Mode: Absolute) ------------------------------------------------------------------------------- Octets 330166203 330166203 Packets 6229551 6229551 Errors =============================================================================== *A:ALU-1# 7705 SAR OS Interface Configuration Guide Page 215...
Page 216 At time t = 0 sec (Base Statistics) ------------------------------------------------------------------------------- Octets 330260861 330260861 Cells 6231337 6231337 Unknown VPI/VCI Cells ------------------------------------------------------------------------------- At time t = 3 sec (Mode: Absolute) ------------------------------------------------------------------------------- Octets 330262504 330262504 Cells 6231368 6231368 Unknown VPI/VCI Cells ------------------------------------------------------------------------------- Page 216 7705 SAR OS Interface Configuration Guide...
Page 217 At time t = 6 sec (Mode: Absolute) ------------------------------------------------------------------------------- Octets 330264147 330264147 Cells 6231399 6231399 Unknown VPI/VCI Cells ------------------------------------------------------------------------------- At time t = 9 sec (Mode: Absolute) ------------------------------------------------------------------------------- Octets 330265790 330265790 Cells 6231430 6231430 Unknown VPI/VCI Cells =============================================================================== *A:ALU-1# 7705 SAR OS Interface Configuration Guide Page 217...
Page 218 1 to 999 absolute — displays the raw statistics without processing. No calculations are performed on the delta or rate statistics. rate — displays the rate-per-second for each statistic instead of the delta Page 218 7705 SAR OS Interface Configuration Guide...
Page 219: Clear Commands
— clears all the collected fabric statistics related to the specified adapter card. This command is equivalent to clearing the specified adapter card using all keywords above (source-mda, destination-mda, fabric-port, fabric-global). 7705 SAR OS Interface Configuration Guide Page 219...
Page 220 — specifies the ATM network virtual path identifier (VPI) for this PVC vci — specifies the ATM network virtual channel identifier (VCI) for this PVC pvc — clears PVC statistics pvp — clears PVP statistics Page 220 7705 SAR OS Interface Configuration Guide...
Page 221: Standards And Protocol Support
RFC 2138 RADIUS Common Generic Criteria. Issue 3, RFC 2206 RSVP-MIB September 2000 RFC 2571 SNMP-FRAMEWORKMIB AF-PHY-0086.001 Inverse Multiplexing for ATM (IMA) RFC 2572 SNMP-MPD-MIB RFC 2573 SNMP-TARGET-&- NOTIFICATION-MIB RFC 2574 SNMP-USER-BASED-SMMIB 7705 SAR OS Interface Configuration Guide Page 221...
Page 222 Section of ITU, Types and Characteristics of SDH Networks Protection Architecture, issued in October 1998 and as augmented by Corrigendum1 issued in July 2002 GR-253-CORE - SONET Transport Systems: Common Generic Criteria. Issue 3, September 2000 Page 222 7705 SAR OS Interface Configuration Guide...
Page 223 The TACACS+ Protocol TCP/IP RFC 768 RFC 791 RFC 792 ICMP RFC 793 RFC 826 RFC 854 Telnet RFC 1350 The TFTP Protocol (Rev. 2) RFC 1812 Requirements for IPv4 Routers 7705 SAR OS Interface Configuration Guide Page 223...
Page 224 Standards and Protocol Support Page 224 7705 SAR OS Interface Configuration Guide...
Page 225: Documentation Feedback
Customer documentation and product support Customer documentation http://www.alcatel-lucent.com/myaccess Product manuals and documentation updates are available at alcatel-lucent.com. If you are a new user and require access to this service, please contact your Alcatel-Lucent sales representative. Technical Support http://www.alcatel-lucent.com/support Documentation feedback...
