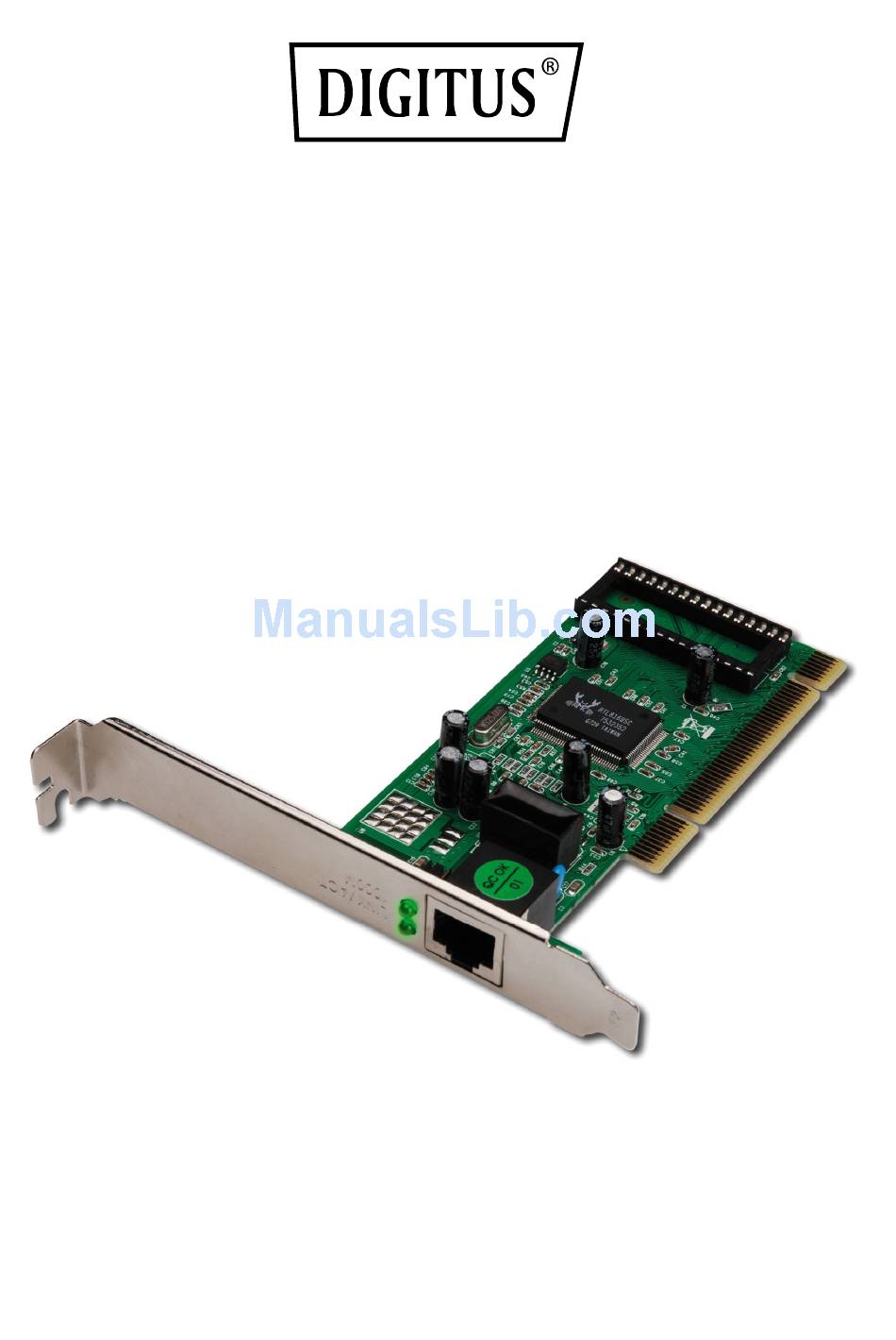

- Page 1 10/100/1000 MBPS NETWORK PCI ADAPTER User Manual DN-10110...
- Page 2 Table of Contents CHAPTER 1 INTRODUCTION ................ 3 1.1 FEATURES ....................... 3 1.2 ENVIRONMENTAL ................... 3 1.3 PACKAGE ......................4 CHAPTER 2 INSTALLATION ................. 4 2.1 INSTALLING THE GIGABIT LAN CARD ............4 2.2 SOFTWARE INSTALLATION ................4...
-
Page 3: Chapter 1 Introduction

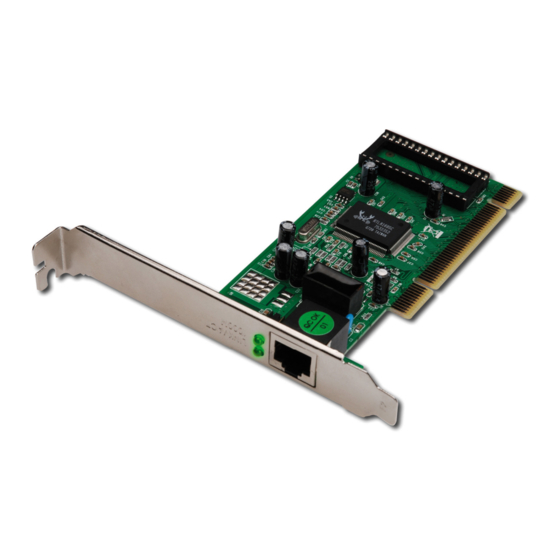

The DN-10110 provides the bandwidth capability to support high-end servers and workstations. With Auto-negotiation, this card can run on three different speeds: 10Mbps at half and full duplex, 100Mbps at half and full duplex, and 1000Mbps at full duplex. -
Page 4: Chapter 2 Installation
2.1 Installing the Gigabit LAN Card 1. Shut down the computer, unplug its power cord, and remove the chassis cover. 2. Insert the contact edge of the DN-10110 card into the connector of any available PCI Bus Master expansion slot. -
Page 5: Software Installation
2.2 Software Installation Step 1: Insert the CD (which u got with the gift box) into the CD-ROM and follow the steps which are shown below in the screen shot. Step 2: Open your “CD-ROM” please open the “Driver” folder and double click “Setup.exe” file, the driver installation will start. - Page 6 Step 4: Click “Install” button. Step 5: Just wait for a moment. Windows will install the driver automatically...
- Page 7 Step 6: The completing dialog box will appear, click “Finish” button. After you’ve finished the above installation steps, you can plug your RJ45 cable into the LAN port. Then you can use your LAN card freely You will enjoy the many advantages of joining a LAN card. Hereby ASSMANN Electronic GmbH, declares that this device is in compliance with the requirements of Directive 2014/30/EU and the Directive 2011/65/EU for RoHS compliance.
