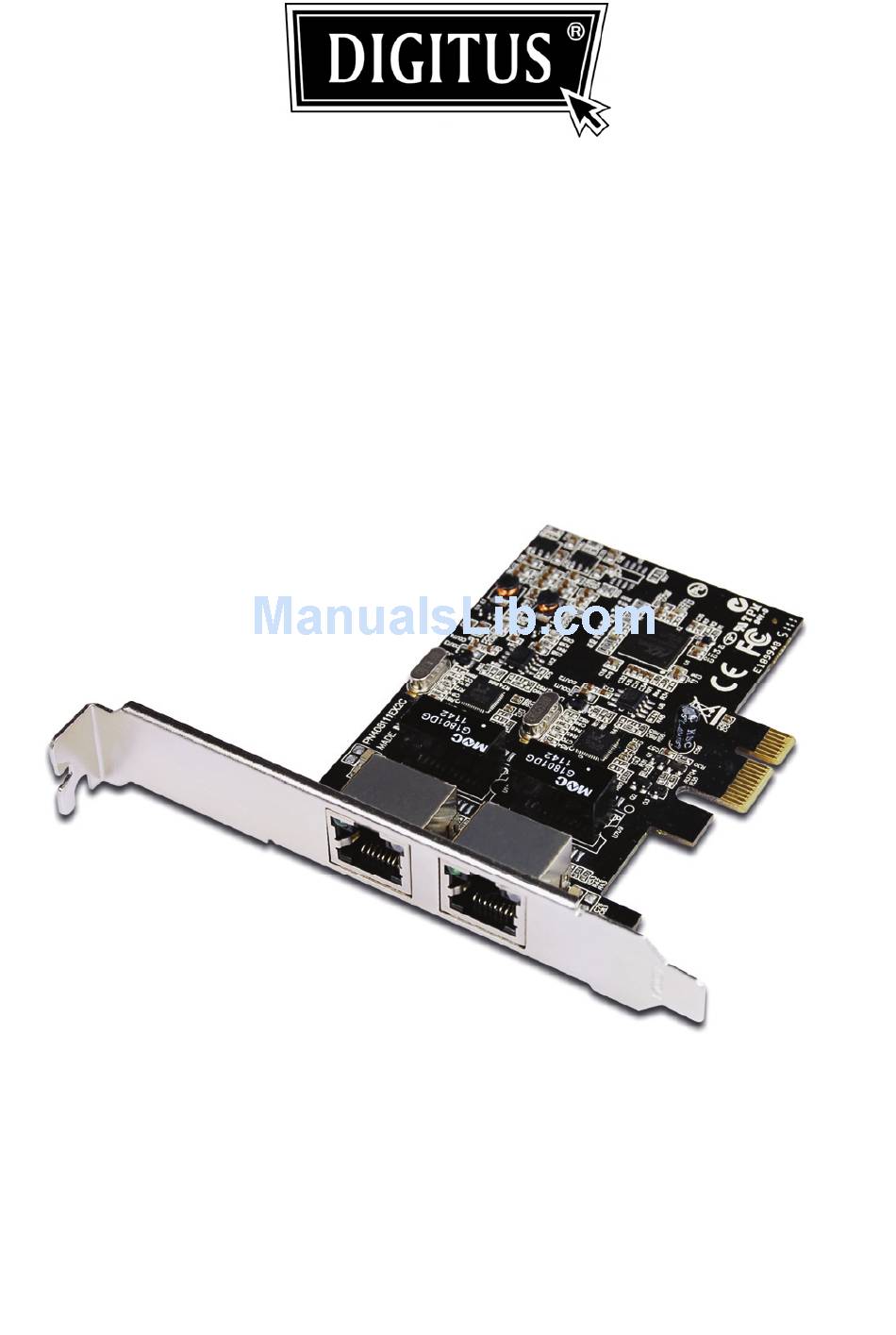

- Page 1 10/100/1000 MBPS DUAL RJ-45 NETWORK PCI EXPRESS ADAPTER User Manual DN-10131...
-
Page 2: Table Of Contents
Contents: Chapter 1: Introduction ..........3 1.1 Product Introduction ........... 3 1.2 Features ............. 4 1.3 System Requirements ........4 1.4 Package Contents ..........5 Chapter 2: Getting Started ........6 2.1 Hardware Layout ..........6 2.2 Hardware Installation .......... 7 2.3.1 Installation for Windows XP/Vista/7 ..... -
Page 3: Chapter 1: Introduction
Chapter 1: Introduction 1.1 Product Introduction PCI Express is the next revolution in I/O interconnect standards that will deliver the bandwidth and features required by PCs, consumer electronics and communications devices. The architecture is a cost-effective, low-pin count, and point-to-point technologies offering maximum bandwidth, reducing cost and design complexity and enabling smaller form factors. -
Page 4: Features
1.2 Features Designed to meet PCI Express Specification Revision 1.1 Single-lane (or x1) PCI Express throughput supports rate of 2.5Gbps Fully Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab 10/100/1000M data auto-negotiation Jumbo Frame support ... -
Page 5: Package Contents
1.4 Package Contents 1 x 2-Port Gigabit Ethernet PCIe Card 1 x Driver CD 1 x User Manual 1 x Low Profile Bracket Note: Contents may vary depending on country/market. -
Page 6: Chapter 2: Getting Started
Chapter 2: Getting Started 2.1 Hardware Layout Link/Activity Indicator: Steady green indicates good linkage between the adapter and its supporting server or switch. Flashing green indicates activity (transmitting or receiving) within the adapter 1000M/100M Indicator: Green: The LED indicator lights green when a 1000 Mbps device is connected to the adapter... -
Page 7: Hardware Installation
Orange: The LED indicator lights orange when a 100 Mbps device is connected to the adapter 2.2 Hardware Installation Turn off the power to your computer. Unplug the power cord and remove your computer’s cover. Remove the slot bracket from an available PCIe slot. To install the card, carefully align the card’s bus connector with the selected PCIe slot on the motherboard. -
Page 8: Installation For Windows Xp/Vista/7
Insert the provided CD into your disk drive. The CD-ROM will start automatically. At the Windows desktop click Start, then Run. Type D:\DN-10131\Windows\Setup.exe, then click OK. (Change D:\ to match your CD-ROM drive letter) Click “Next” to continue. Click “Install” to continue. -
Page 9: Installation For Mac Os
“DIGITUS” disc icon, double-click “DN-10131” folder. Double-click “Mac” folder, and then double click the “For Mac OS X 10.4/10.5.pkg” file (For Mac OS X 10.6 OS, please double click “For Mac OS X 10.6.mpkg” file; For Mac OS X 10.7 OS, please double click “For Mac OS X 10.7.mpkg” file) to launch the installer. -
Page 10: Hardware Verify
2.4 Hardware Verify 2.4.1 Verifying for Windows XP/Vista/7 Click on the “Device Manager” tab in the Windows Control Panel. Start > Control Panel > Device Manager Entry “Network adapters” item, and you can read “Realtek PCIe GBE Family Controller” in the Device Manager. 2.4.2 Verifying for Mac OS X 10.5.x/10.6.x/10.7.x Choose About this Mac from the Apple menu. -
Page 11: Chapter 3: Troubleshooting Tips
section. Scroll the list to reveal the 2-Port Gigabit Ethernet PCIe Card information Chapter 3: Troubleshooting Tips The computer can NOT detect the 2-Port Gigabit Ethernet PCIe Card Make sure that the PCI Express card is correctly plugged into the PCI Express slot; if not, turn off the computer and plug it again. - Page 12 updated. The board itself might be defective. You can try another motherboard testing 2-Port Gigabit Ethernet PCIe Card working or not. Computer failed to start after inserting the 2-Port Gigabit Ethernet PCIe Card Turn off the computer, remove the 2-Port Gigabit Ethernet PCIe Card, and try to restart the computer.
