Summary of Contents for Datavideo DAC-9
-
Page 1: Quick Start Guide
HDMI to HD/SD-SDI Converter DAC-9 Quick Start Guide www.datavideo-tek.com Rev 240409... -
Page 2: Table Of Contents
Contents Warnings and Precautions…………………………………….. 2 Warranty …….…………………………………………….……. 4 Disposal ………….……………………………………….……. Packing List ……………………………………………….……. 4 Introduction…………………………………………………..5 Features…………………………………………………..… 5 Input ……………………………………………………….……. 5 Outputs ………………...………………………………….……. 5 Supported HDMI Input Video Formats ………………….……. 5 Front Panel……………………………………………………… 6 Rear Panel……………………………………………………… 6 SDI Cabling Advice …..………………………………….……. 7 Specifications ……………………………………………………... - Page 3 This product should only be operated from the type of power source indicated on the marking label of the AC adapter. If you are not sure of the type of power available, consult your Datavideo dealer or your local power company.
- Page 4 Warnings and Precautions Except as specifically explained elsewhere in this manual, do not attempt to service this product yourself. Opening or removing covers that are marked “Do Not Remove” may expose you to dangerous voltage points or other risks, and will void your warranty. Refer all service issues to qualified service personnel.
-
Page 5: Warranty
12 months from the date of product purchase. If this equipment fails due to such defects, Datavideo will, at its option, repair or provide a replacement for the defective part or product. Equipment that... -
Page 6: Introduction

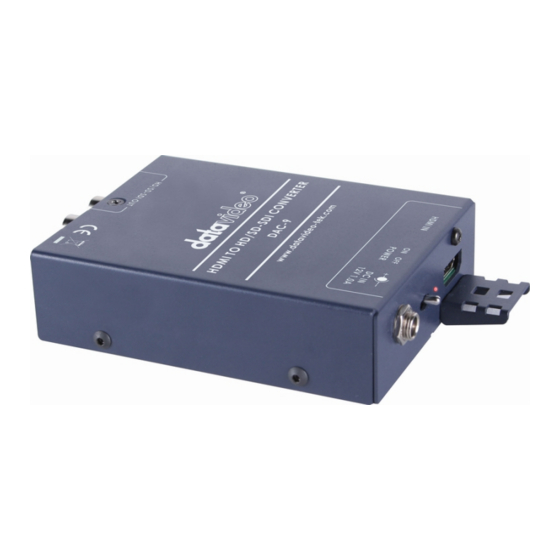

Introduction The Datavideo DAC-9 is stand alone HDMI to SDI/HD-SDI video converter. This converter is an ideal accessory for Digital Video Switchers such as the Datavideo SE-900, SE-1000 and SE-2000 where long SDI cable runs are required between the camera and mixer. -
Page 7: Front Panel
Front Panel DC In Socket Connect the supplied 12V 1.5A PSU to this socket. The connection can be secured by screwing the outer fastening ring of the DC In plug to the socket. Power Switch Switches the power On / Off. HDMI Input Connector Receives HDMI input signal from your HDMI equipped Camera or device. -
Page 8: Sdi Cabling Advice
Loss (RL). Serial Digital Video coax like Belden 1694A or Canare L5CFB are good examples of broadcast quality SDI cable. A 75 Ohm (Ω) impedance must be maintained throughout the DAC-9 SDI signal or cable path, including BNC connectors etc. -
Page 9: Specifications
Specifications • 1x HDMI input Input • 2x HD/SD-SDI output Output • 720x480 Interlaced • 720x576 Interlaced Supported • 1280x720 / 50Hz Progressive HDMI Input • 1280x720 / 59.94Hz Progressive Formats • 1280x720 / 60Hz Progressive • 1920x1080 / 50Hz Interlaced •... -
Page 10: Service & Support
It is our goal to make your products ownership a satisfying experience. Our supporting staff is available to assist you in setting up and operating your system. Please refer to our web site www.datavideo-tek.com for answers to common questions, support requests or contact your local office below.
