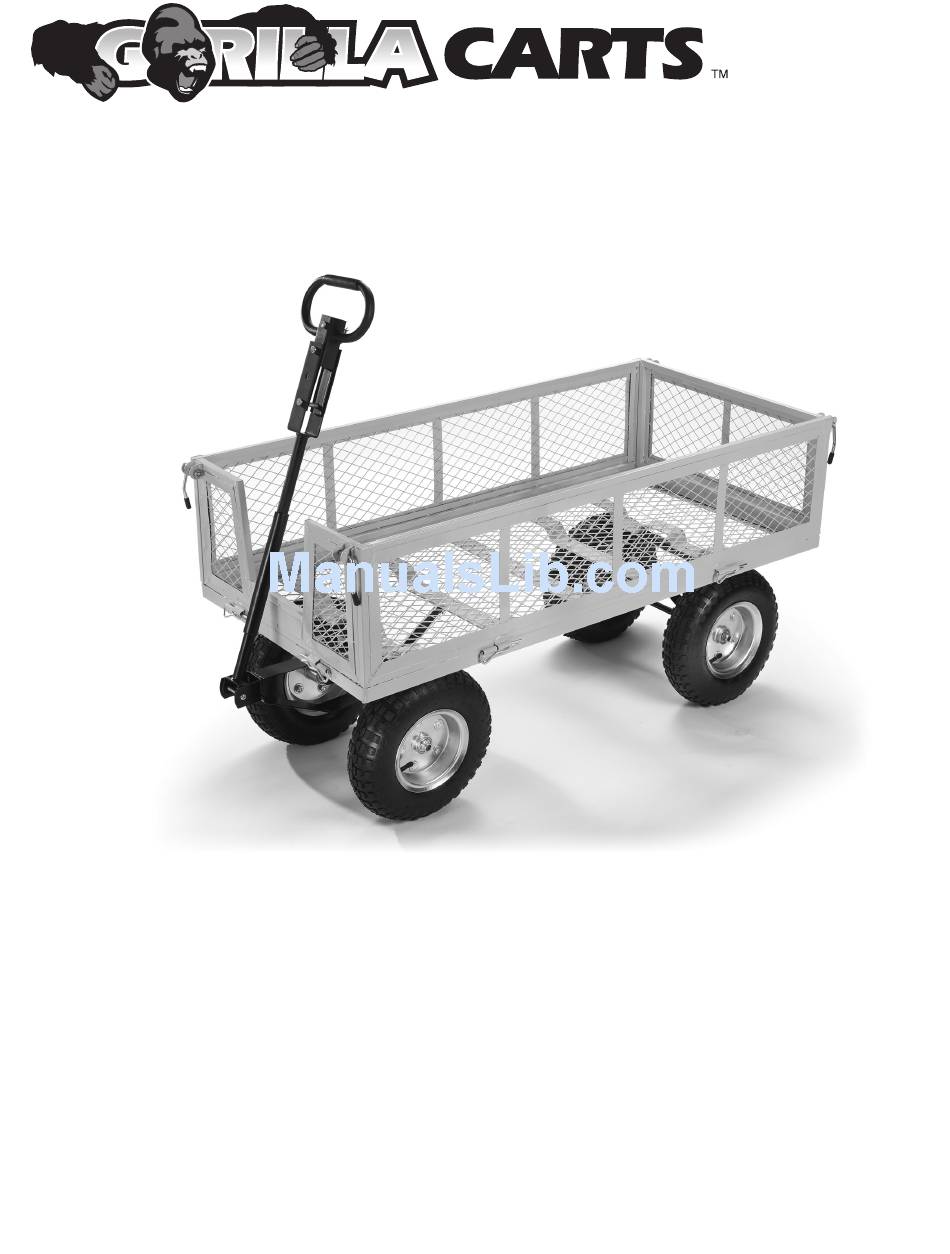

Gorilla Carts MH2120 Owner's Manual

Utility cart with removable folding sides

Utility Cart

With Removable Folding Sides

Owners Manual

Model MH2120

• Important Safety Instructions

• Parts and Hardware Identification

CAUTION:

Read, understand and follow ALL instructions before using this product.

For product inquiries:

Tricam Industries Asia Ltd.

7677 Equitable Drive

Eden Prairie, MN 55344

800-867-6763

www.tricam.com

REV 1/07

Table of Contents

Do you have a question about the MH2120 and is the answer not in the manual?

Page 1 Utility Cart With Removable Folding Sides Owners Manual Model MH2120 • Important Safety Instructions • Assembly Instructions • Parts and Hardware Identification CAUTION: Read, understand and follow ALL instructions before using this product. For product inquiries: Tricam Industries Asia Ltd.
Page 2 IMPORTANT SAFETY INSTRUCTIONS 1. READ ALL INSTRUCTIONS CAREFULLY BEFORE USE. If you do not understand these instructions, need clarification or further explanation, please call our toll free answer line for assistance at 1-800-867-6763 Monday through Friday 8:00 a.m. until 5:00 p.m. CST. 2.
Page 3 S S t t e e p p 3 3 Assemble the wheels using bushings (4pcs.), washers (4pcs.), and locking nuts (4pcs.). Tighten all nuts securely. S S t t e e p p 4 4 Attach the Swivel Handle to the Yoke and the Plastic Coupling using the 8x60mm bolt, 8mm washer and lock nut.
Page 4 PARTS AND HARDWARE IDENTIFICATION MAIN FRAME PARTS Bed - (1) Side Panels - (2) Front Panel - (1) Back Panel - (1) 13” x 5 - 6 Wheels - (4) REAR SUPPORT ASSEMBLY Rear Axle Support - (1) Left Rear Axle Brace - (1) Right Rear Axle Brace - (1) FRONT SUPPORT ASSEMBLY Front Axle Support - (1)
Page 5 EXPLODED DRAWING FOR ASSEMBLY...
