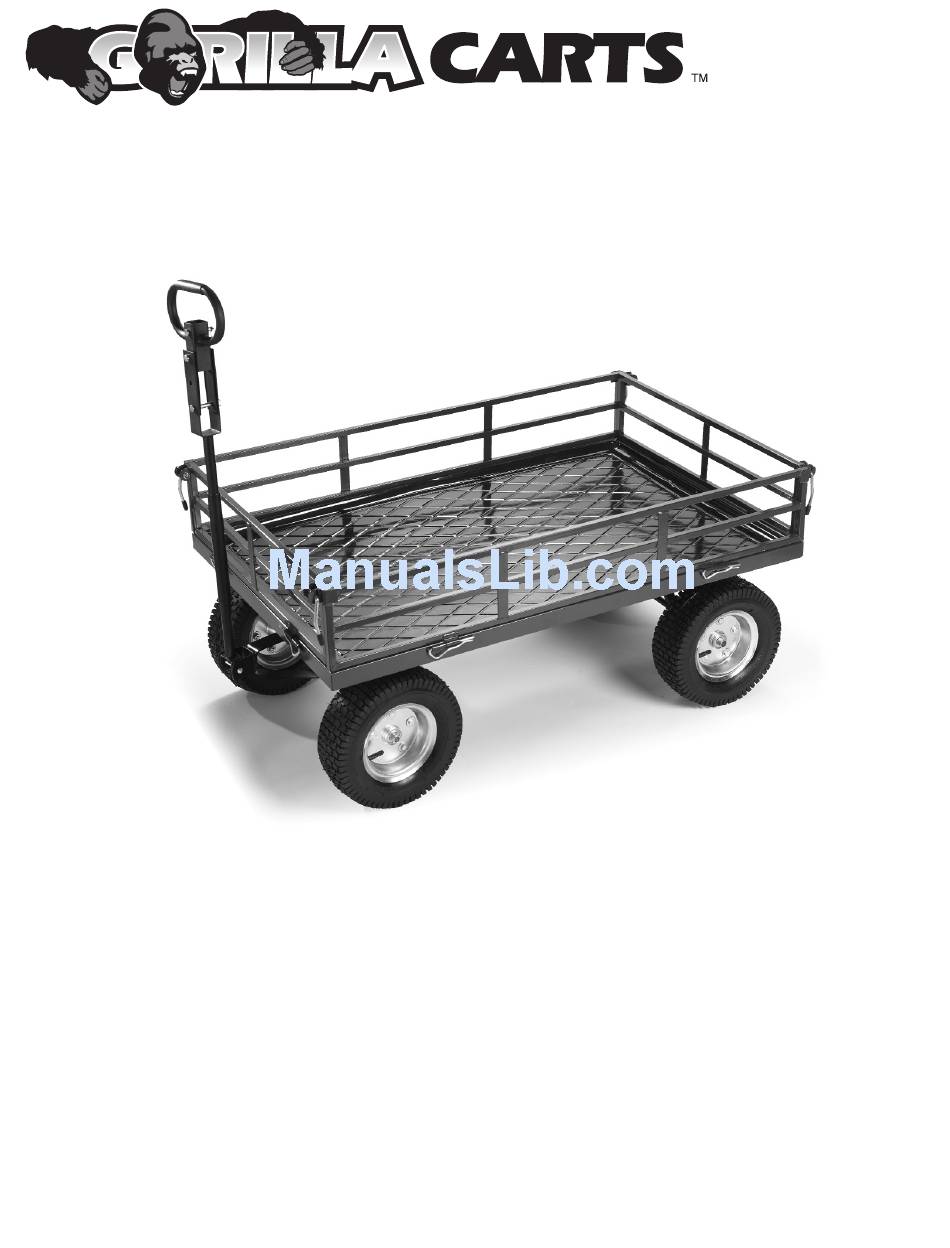

Gorilla Carts MH1370-01 Owner's Manual

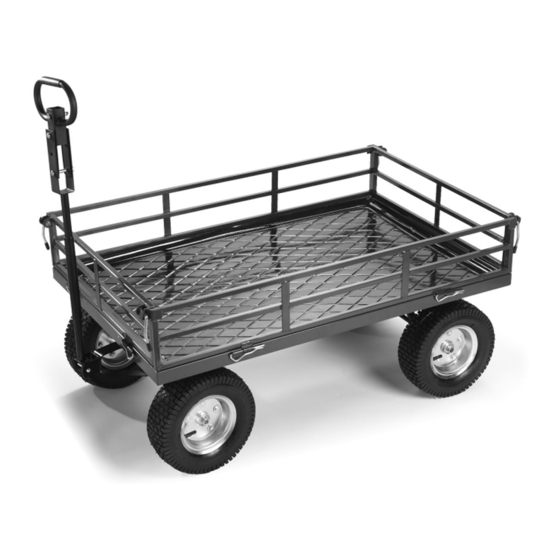

Heavy duty farm cart with removable folding sides

Heavy Duty Farm Cart

With Removable Folding Sides

Owners Manual

Model MH1370-01

• Important Safety Instructions

• Assembly Instructions

• Parts and Hardware Identification

CAUTION:

Read, understand and follow ALL instructions before using this product.

For product inquiries:

Tricam Industries Asia Ltd.

7677 Equitable Drive

Eden Prairie, MN 55344

800-867-6763

www.tricam.com

REV 1/07

Table of Contents

Need help?

Do you have a question about the MH1370-01 and is the answer not in the manual?

Page 1 Heavy Duty Farm Cart With Removable Folding Sides Owners Manual Model MH1370-01 • Important Safety Instructions • Assembly Instructions • Parts and Hardware Identification CAUTION: Read, understand and follow ALL instructions before using this product. For product inquiries: Tricam Industries Asia Ltd.
Page 2 IMPORTANT SAFETY INSTRUCTIONS 1. READ ALL INSTRUCTIONS CAREFULLY BEFORE USE. If you do not understand these instructions, need clarification or further explanation, please call our toll free answer line for assistance at 1-800-867-6763 Monday through Friday 8:00 a.m. until 5:00 p.m. CST. 2.
Page 3 S S t t e e p p 3 3 Attach the Frame Support to the Bed using (4) 8x15mm frame support bolts, 8mm washers, and lock nuts. Tighten securely. S S t t e e p p 4 4 Assemble the wheels using bushings (4pcs.), washers (4pcs.), and locking nuts (4pcs.).
Page 4 PARTS AND HARDWARE IDENTIFICATION MAIN FRAME PARTS Bed - (1) Side Panels - (2) Front/Back Panels - (2) SUPPORT ASSEMBLY Frame Support - (1) 13” Wheels - (4) Rear Axle Support - (1) Front Axle Support - (1) Center Front Axle Brace - (1) Yoke - (1) Steering Link Connector - (1) Plastic Coupling - (1)
Page 5 EXPLODED DRAWING FOR ASSEMBLY Removable Plastic Tray...
