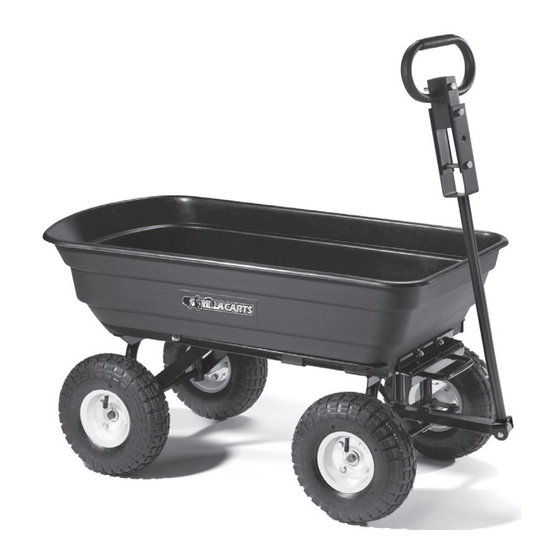

Garden Dump Cart
Owners Manual
Model GOR202D-C
• Important Safety Instructions
• Assembly Instructions
• Parts and Hardware Identification
CAUTION:
Read, understand and follow ALL instructions before using this product.
WARNING:
Not for recreational use. Persons should never ride in the dump cart.
Questions, problems, or missing parts? Before returning to your retailer, visit us
online at www.tricam.com and complete the replacement parts submission form or
call our customer service department at 1-800-867-6763, 9 a.m. - 4 p.m., CST,
Monday-Friday.
For product inquiries:
Tricam
7677 Equitable Drive
Eden Prairie, MN 55344
800-867-6763
www.gorillacarts.com
U.S. Patent #s: 6,851,756, 7,210,697, 7,390,065,
7,441,792, 7,818,865, 7,887,141
Canada Patent #: 2,503,869, 2,590,949
China Patent: 中国发明专利ZL 200680000909.0
Other U.S. and Foreign Patents Pending
12/13
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Gorilla Carts G0R202D-C
Summary of Contents for Gorilla Carts G0R202D-C
- Page 1 Garden Dump Cart Owners Manual Model GOR202D-C U.S. Patent #s: 6,851,756, 7,210,697, 7,390,065, 7,441,792, 7,818,865, 7,887,141 Canada Patent #: 2,503,869, 2,590,949 • Important Safety Instructions China Patent: 中国发明专利ZL 200680000909.0 • Assembly Instructions Other U.S. and Foreign Patents Pending • Parts and Hardware Identification CAUTION: Read, understand and follow ALL instructions before using this product.
-
Page 3: Parts List
Exploded Drawing for Assembly Parts List A. Tray (1) B. Lock Assembly (1) C. Front Frame (1) D. Rear Axle Assembly (1) (includes rear axle and left and right struts) E. Front Axle Assembly (1) 10 inch wheel (4) G. Handle (1) Hardware List Images are not to scale A. - Page 4 Important Safety Instructions 1. READ ALL INSTRUCTIONS CAREFULLY BEFORE USE. If you do not understand these instructions, need clarification or further explanation, please call our toll free answer line for assistance at 1-800-867-6763. 2. Do not load the cart with more than 600lb (272kg). Do not use the dumping feature of the cart with more than 300lb (136kg).
- Page 5 Step 3 D, H Attach the dump lock assembly to the tray using M8x20 carriage bolts (4), M11 washers (4), M8 washers (4), and M8 lock nuts (4). F , G Step 4 Attach the front axle assembly to the front frame using M8x40 Phillips flat head bolts (2), M8 lock nuts (2), and M8 washers (2).
- Page 6 Using the Dumping Feature Returning the Plastic Tray to the Lowered Position To operate the dumping feature, pull the dumping release handle outward Rotate the plastic tray back down to to release the plastic tray from the the lowered position. Make sure the locking mechanism.
