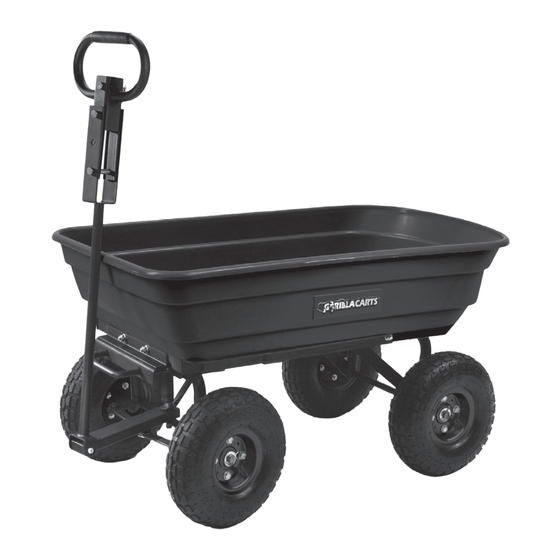

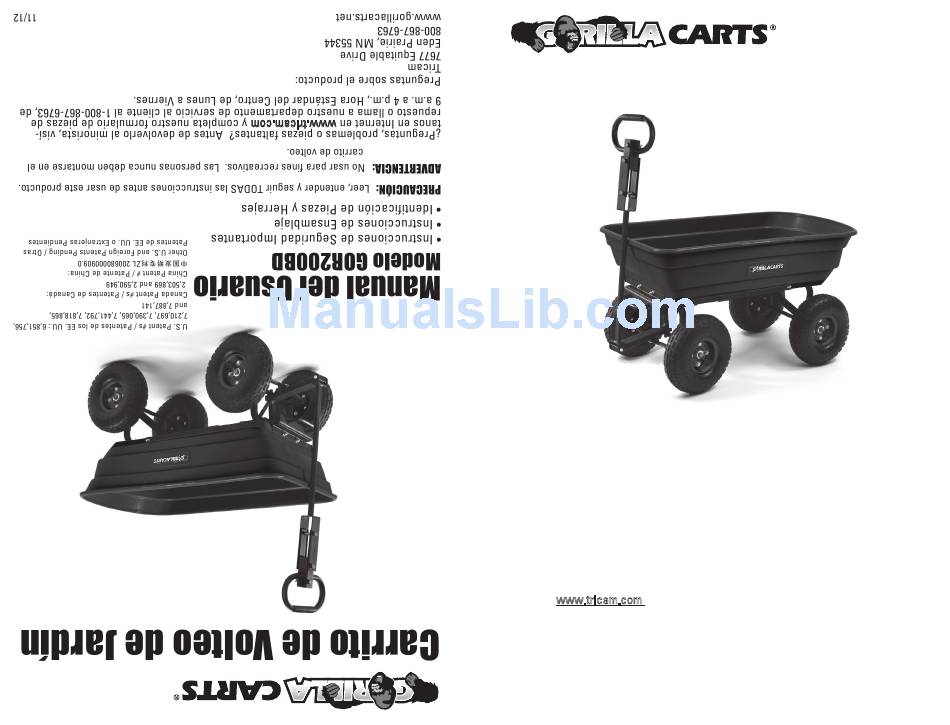

Garden Dump Cart
Owners Manual
Model GOR200BD
• Important Safety Instructions
• Assembly Instructions
• Parts and Hardware Identification
CAUTION:
R ead, understand and follow ALL instructions before using this product.
WARNING:
Not for recreational use. Persons should never ride in the dump cart.
Questions, problems, or missing parts? Before returning to your retailer, visit us
online at www.tricam.com and complete the replacement parts submission form or
call our customer service department at 1-800-867-6763, 9 a.m. - 4 p.m., CST,
Monday-Friday.
For product inquiries:
Tricam
7677 Equitable Drive
Eden Prairie, MN 55344
800-867-6763
www.gorillacarts.net
U.S. Patent #s / Patentes de los EE. UU.: 6,851,756,
7,210,697, 7,390,065, 7,441,792, 7,818,865, and
7,887,141
Canada Patent #s / Patentes de Canadá:
2,503,869 and 2,590,949
China Patent # / Patente de China:
ZL 200680000909.0
中国发明专利
Other U.S. and Foreign Patents Pending / Otras
Patentes de EE. UU. o Extranjeras Pendientes
